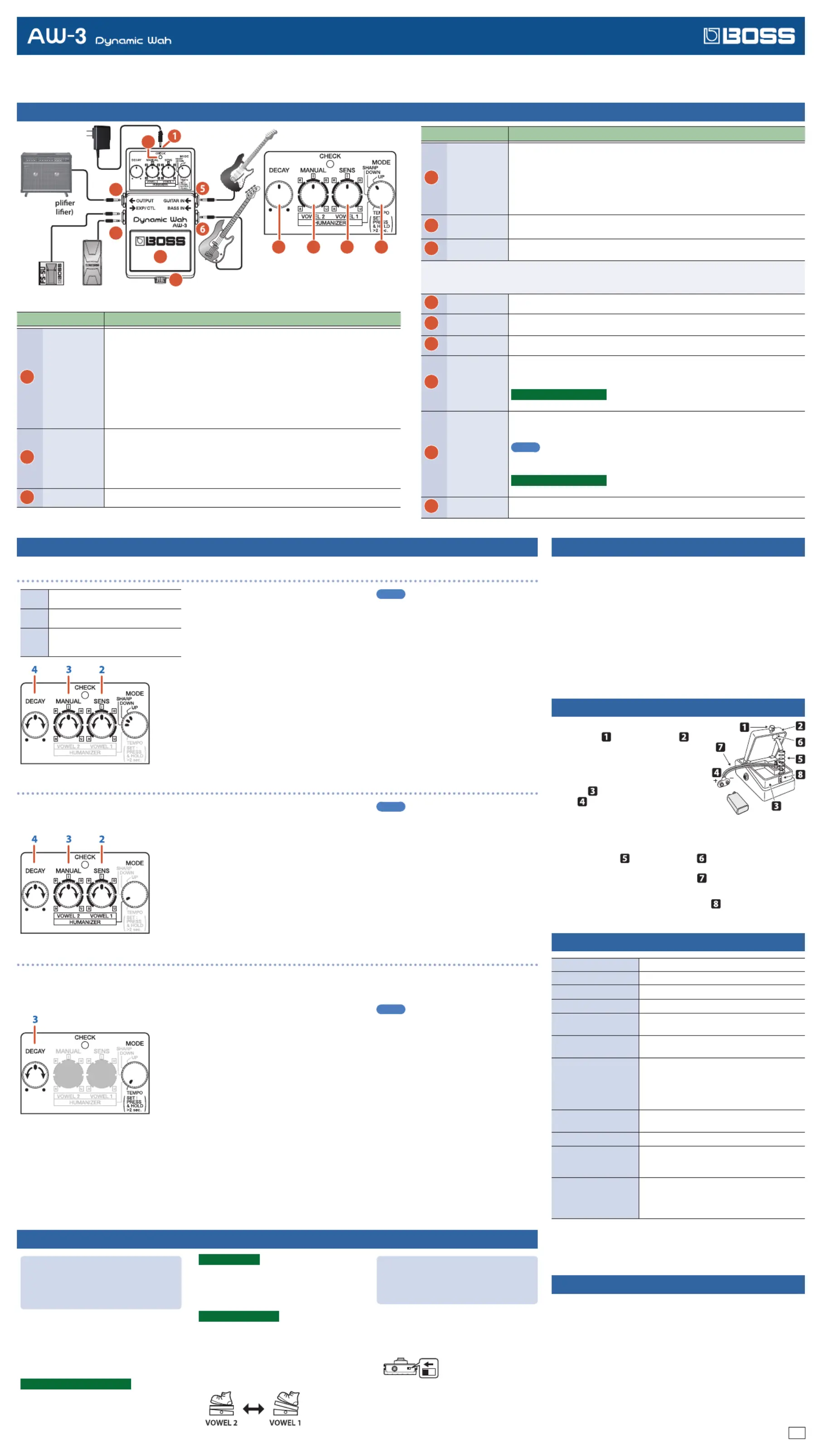

Name Explanation
1 DC IN jack
Accepts connection of an AC Adaptor (PSA series; sold separately). By using an AC
Adaptor, you can play without being concerned about how much battery power you
have left.
* As soon as you connect the AC adaptor, the unit is turned on.
* We recommend that you keep batteries installed in the unit even though you’ll be
powering it with the AC adaptor. That way, you’ll be able to continue a performance
even if the cord of the AC adaptor gets accidently disconnected from the unit.
* Use only the specied AC adaptor (PSA-series).
* If the AC adaptor is connected while power is on, the power supply is drawn from the
AC adaptor.
2 CHECK indicator
Combination indicator that shows the eect’s on/o status, tempo (in Tempo mode), and
Battery Check function.
The indicator lights when an eect is ON.AW-3
* If this indicator goes dim or no longer lights while an eect is ON, the battery is near
exhaustion and should be replaced immediately.
&“Changing the Battery”
3 OUTPUT jack This output jack is connected to an amplier or other eects device.
Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (supplied on a separate sheet).
After reading, keep the document(s) where it will be available for immediate reference.
Panel Descriptions
Owner’s Manual
Name Explanation
4 EXP/CTL jack
This jack lets you connect an expression pedal made by BOSS/Roland, or a foot switch.
This allows you to attain pedal wah and Humanizer eects. It also allows setting of the
tempo (while in Tempo mode).
&“Description of Each Mode,” “Using the EXP/CTL Jack”
* Use only the specied expression pedal (EV-30, FV-500H, FV-500L, and Roland
EV-5; sold separately). By connecting any other expression pedals, you risk causing
malfunction and/or damage to the unit.
5 GUITAR IN jack This jack accepts input signals coming from a guitar, some other musical instrument, or
another eects unit.
6 BASS IN jack This jack accepts input signal coming from a bass guitar.
* BASS IN is disabled when the GUITAR IN jack is used.
* The GUITAR IN and BASS IN jacks double as power switches. Power to the unit is turned on when you plug into
the GUITAR IN or BASS IN jack; the power is turned o when the cable is unplugged. Be sure to disconnect any
cord plugged into the GUITAR IN or BASS IN jack when not using this eects device.
7 Pedal switch Used for switching eects on/o, and for inputting the tempo (in Tempo mode).
8 Thumbscrew When this screw is loosened, the pedal will open, allowing you to change the battery.
&“Changing the Battery”
9 [DECAY] knob Adjusts the time over which the wah and humanizer eects make the changes. Turn the
knob clockwise to increase the time that the eect plays.
10 [MANUAL] knob
Adjusts the frequency at which the wah eect begins.
* The range setting may vary with the selected mode and when inputting through the
BASS IN jack.
When in HUMANIZER Mode
Switches to VOWEL 2, in which the second vowel is selected.
11 [SENS] knob
Adjusts the amount of wah eect that is applied in response to the input level. The
further you turn this knob clockwise, the stronger the wah eect applied, even with
lighter picking.
MEMO
Turn the SENS knob fully counterclockwise, then adjust the [MANUAL] knob to get a xed
wah (xed lter) eect.
When in HUMANIZER Mode
Switches to VOWEL 1, in which the rst vowel is selected.
12 [MODE] switch Switches the mode (UP, DOWN, SHARP, HUMANIZER, TEMPO).
&“Description of Each Mode”
Precautions When Connecting
5 To prevent malfunction and equipment failure, always turn down the volume,
and turn o all the units before making any connections.
5 Once the connections have been completed, turn on power to your various
devices in the order specied. By turning on devices in the wrong order, you risk
causing malfunction and/or damage to speakers and other devices.
When powering up: Turn on the power to your guitar amp last.
When powering down: Turn o the power to your guitar amp rst.
5 Before turning the unit on/o, always be sure to turn the volume down. Even
with the volume turned down, you might hear some sound when switching the
unit on/o. However, this is normal and does not indicate a malfunction.
Changing the Battery
1. Hold down the pedal and loosen the
thumbscrew , then open the pedal
upward.
* The pedal can be opened without detaching
the thumbscrew completely.
2. Remove the old battery from the battery
housing , and remove the battery
snap connected to it.
3. Connect the battery snap to the new
battery, and place the battery inside the
battery housing.
* Be sure to carefully observe the battery’s polarity (+ versus -).
4. Slip the coil spring onto the spring base on the back of the pedal, and
then close the pedal.
* Carefully avoid getting the battery snap cord caught in the pedal, coil spring,
and battery housing.
5. Insert the thumbscrew into the guide bush hole and tighten it securely.
Main Specications
Nominal Input Level -20 dBu
Input Impedance 1 MΩ
Nominal Output Level -20 dBu
Output Impedance 1 kΩ
Recommended Load
Impedance 10 kΩ or greater
Power Supply Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw
50 mA
* Expected battery life under continuous use:
Alkaline: 8 hours
These gures will vary depending on the
actual conditions of use.
Dimensions 73 (W) x 129 (D) x 59 (H) mm
2-7/8 (W) x 5-1/8 (D) x 2-3/8 (H) inches
Weight 430 g /1lb (including Battery)
Accessories
Leaet (“USING THE UNIT SAFELY,” “IMPORTANT
NOTES,” and “Information”)
Alkaline battery (9 V, 6LR61)
Options (sold separately)
AC adaptor: PSA series
Expression pedal: EV-30/FV-500H/FV-500L,
Roland EV-5
Footswitch (momentary-type): FS-5U/FS-6/FS-7
* 0 dBu = 0.775 Vrms
* This document explains the specications of the product at the time that the
document was issued. For the latest information, refer to the Roland website.
Use of Battery
5 The battery that was supplied with the unit is for temporary use, intended
primarily for testing the unit’s operation. We suggest replacing this with an
alkaline dry cell.
5 If you handle batteries improperly, you risk explosion and uid leakage. Make
sure that you carefully observe all of the items related to batteries that are listed
in “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (supplied on a separate
sheet).
9 V Battery
English
© 2017 Roland Corporation
Description of Each Mode
UP Provides a wah eect in which the lter
shifts to higher frequencies.
DOWN Provides a wah eect in which the lter
shifts to lower frequencies.
SHARP
Provides a stronger wah eect
with shifting of the lter to higher
frequencies.
1. When you have nished making the
connections, turn the eect on.
The CHECK indicator turns red.
2. Use the [SENS] knob to adjust the amount
of eect that is applied in response to the
input level.
3. With the [MANUAL] knob, adjust the
frequency at which the wah eect begins.
4. With the [DECAY] knob, adjust the length
of time the wah eect is applied.
MEMO
If an expression pedal made by Roland/BOSS is
connected to the EXP/CTL jack, this unit operates
as a pedal wah, and the SENS/MANUAL/DECAY
knobs do not function.
&“Using the EXP/CTL Jack”
UP, DOWN, SHARP
In this mode, the guitar sound is transformed
into the sound of a human voice. The vowel
changes as you pick.
1. When you have nished making the
connections, turn the eect on.
The CHECK indicator turns red.
2. Select the rst vowel with the [VOWEL 1]
knob.
3. Select the second vowel with the [VOWEL 2]
knob.
4. Use the [DECAY] knob to adjust the length
of time used to move from VOWEL 1 to
VOWEL 2.
MEMO
5 If an expression pedal made by BOSS/Roland
is connected to the EXP/CTL jack, this unit
operates as a humanizer, letting you use the
pedal to control the transition from VOWEL 1
to VOWEL 2.
* The DECAY knobs is disabled.
&“Using the EXP/CTL Jack”
5 Applying the same settings to VOWEL 1 and
VOWEL 2 results in a xed Humanizer (xed
lter) eect.
HUMANIZER
In this mode, you can specify the tempo of the
auto wah in a range of 200 msec to 4 sec by using
the AW-3’s pedal switch or by using a footswitch
made by BOSS.
Tempo Settings with the AW-3 Pedal
1. When you have nished making the
connections, press and hold down the
AW-3’s pedal switch for at least two
seconds to enable setting of the tempo
The CHECK indicator turns green, and the
tempo ashes in red.
The output sound also switches to Auto Wah at
the same time.
* When the power is turned on (before tempo
settings), the tempo is at 500 msec.
* To allow switching without the normal stress
of dealing with eect on/o hassles, when you
go into the tempo setting mode with the eect
on, the eect is switched o for two seconds,
after which the AW-3 switches to the tempo
setting mode.
2. Depress the pedal to get the tempo you
want.
The speed changes to match the tempo
entered by pressing the pedal, and the CHECK
indicator will ash in sync with the tempo.
Available range for the tempo: 200 msec–4 sec
3. With the [DECAY] knob, adjust the wah
eect time.
4. When you have nished setting the
tempo, once again step on the pedal
switch, and keep it down for two or more
seconds.
You exit the tempo setting mode, and the
pedal switch reverts to its normal function of
turning the eect on/o.
* Immediately after exiting the tempo setting
mode, the eect stays on, with Auto Wah in
eect.
MEMO
5 If a foot switch made by BOSS is connected
to the EXP/CTL jack, that foot switch is used
to set the tempo, and the AW-3’s pedal only
switches the eect on/o.
While the tempo can be set as usual, the
eect can also be switched on and o.
&“Using the EXP/CTL Jack”
5 If an expression pedal made by BOSS/Roland
is connected to the EXP/CTL jack, it operates
as a pedal wah, and the [DECAY] knob does
not function.
&“Using the EXP/CTL Jack”
TEMPO
Using the EXP/CTL Jack
With an expression pedal (expression pedal
made by BOSS/Roland: sold separately)
connected to the EXP/CTL jack, the wah
and humanizer eects are then applied in
response to the operation of the pedal.
* Set the minimum volume of the expression
pedal made by BOSS/Roland to the minimum
(0) setting. If this is not set to the minimum, the
wah eect or humanizer eect might not be
produced correctly.
In UP, DOWN, or TEMPO mode
Provides the pedal wah eect.
* The [DECAY], [MANUAL], and [SENS] knob
functions are disabled.
In SHARP mode
Provides a pedal wah eect, but featuring special
tone characteristics.
* The [DECAY], [MANUAL], and [SENS] knob
functions are disabled.
In HUMANIZER mode
The pedal action shifts between VOWEL 1 and
VOWEL 2.
* The [DECAY] knob function is disabled.
* If VOWEL 1 and VOWEL 2 have the same
settings, no change is obtained by moving
the pedal.
With a momentary-type footswitch
(footswitch made by BOSS: sold separately)
connected to the EXP/CTL jack, you can use
the footswitch to set tempos in Tempo mode.
In this setup, the AW-3’s pedal switch is only used
to turn the eect on/o.
* Set the polarity switch of the connected foot
switch as shown in the gure below.
* If you connect or disconnect the foot switch
while making the tempo setting, the tempo
might be disrupted. If this occurs, make the
tempo setting once again.
9
11
10
12
Guitar Am
(Bass Amp
Electric Guitar
AC adaptor
PSA series
(sold separately)
2
3
7
Bass Guitar
Expression Pedal
(EV-30, FV-500H, FV-500L, and Roland EV-5; sold separately)
Footswitch
(FS-5U; sold separately)
or
4
8
02
Tuotetiedot
| Merkki: | Boss |
| Kategoria: | Kitaran vahvistin |
| Malli: | Dynamic Wah AW-3 |
Tarvitsetko apua?
Jos tarvitset apua merkille Boss Dynamic Wah AW-3 esitä kysymys alla ja muut käyttäjät vastaavat sinulle
Kitaran vahvistin Boss Käyttöohjeet
13 Joulukuuta 2024
13 Joulukuuta 2024
13 Joulukuuta 2024
13 Joulukuuta 2024
13 Joulukuuta 2024
13 Joulukuuta 2024
13 Joulukuuta 2024
13 Joulukuuta 2024
13 Joulukuuta 2024
13 Joulukuuta 2024
Kitaran vahvistin Käyttöohjeet
- Kitaran vahvistin Yamaha
- Kitaran vahvistin Vox
- Kitaran vahvistin Roland
- Kitaran vahvistin Blackstar
- Kitaran vahvistin SPL
- Kitaran vahvistin Radial Engineering
- Kitaran vahvistin Peavey
- Kitaran vahvistin Mooer
Viimeisimmät Kitaran vahvistin Käyttöohjeet
12 Joulukuuta 2024
4 Joulukuuta 2024
21 Lokakuuta 2024
21 Lokakuuta 2024
21 Lokakuuta 2024
21 Lokakuuta 2024
21 Lokakuuta 2024
21 Lokakuuta 2024
19 Lokakuuta 2024
19 Lokakuuta 2024
