INTERFACING SOLUTIONS
VIMBM-86B
VIDEO IN-MOTION INTEGRATION
FOR SELECT BMW
VEHICLES 2012-UP
BMW
2012-2015 1 Series
2012-2015 3 Series
2012-2014 5 Series
2012-2014 X3
2012-2014 X5
APPLICATION NOTES:
WORKS FOR:
NBT 10.2 Radio Displays
Contact Tech Support for more
information.
PARTS INCLUDED
(1) BM-86B Interface Module
(1) BM-86B 40-Pin Harness
(1) Instruction Sheet
SAFETY PRECAUTIONS
1. Please read through the entire instruction manual before starting any of the installation procedures.
2. We recommend disconnecting the negative side of the battery until ready to code the vehicle.
3. Do not install any of the main modules near any major components or near the HVAC system,
as placing items near the HVAC may cause damage or overheating to the vehicle or interface.
4. We recommend not disconnecting any of the air bag connections behind the dash panels.
5. This product is under Cruxs 1 year manufacturers warranty. Warranty may be voided in the case where
the device shows proof of being opened or improper extreme force.
TECH SERVICES
All our products are manufactured under strict quality control. Each device is being tested before shipment. If nevertheless do occur problems or if
you have technical questions, contact us directly:
Crux Interfacing Solutions Tech Support
1 (855) 822-1348 (Mon - Fri - 9:00 AM - 5:00 PM) Pacific Time
www.cruxinterfacing.comRev. 102814 1
INTERFACING SOLUTIONS
VIMBM-86B
VIDEO IN-MOTION INTEGRATION
FOR SELECT BMW
VEHICLES 2012-UP

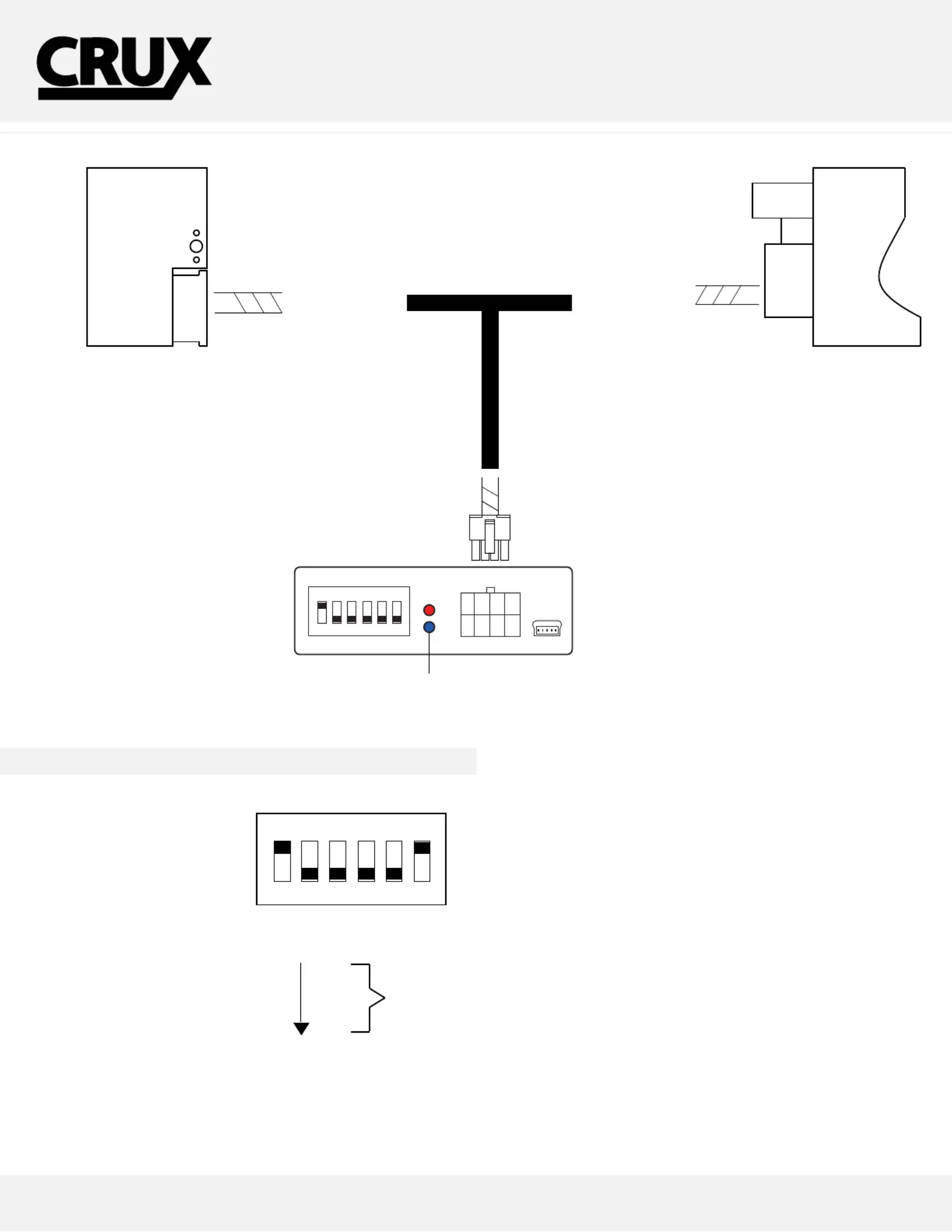

INSTALLATION OVERVIEW
www.cruxinterfacing.comRev. 102814 2
8-PIN
(male plug)
4 5 6
ON
1 2 3
STATUS LED’S
40-PIN
(male plug)
40-PIN
(female plug)
4 5 6
ON
1 2 3
DIP 1 = ON
2
3
4
5
DIP 6 = ON
OFF
ACTIVATE
VIDEO
IN-MOTION
DIP SWITCH SETTINGS OVERVIEW
CONNECTING THE INTERFACE
Follow these steps to properly install the interface module.

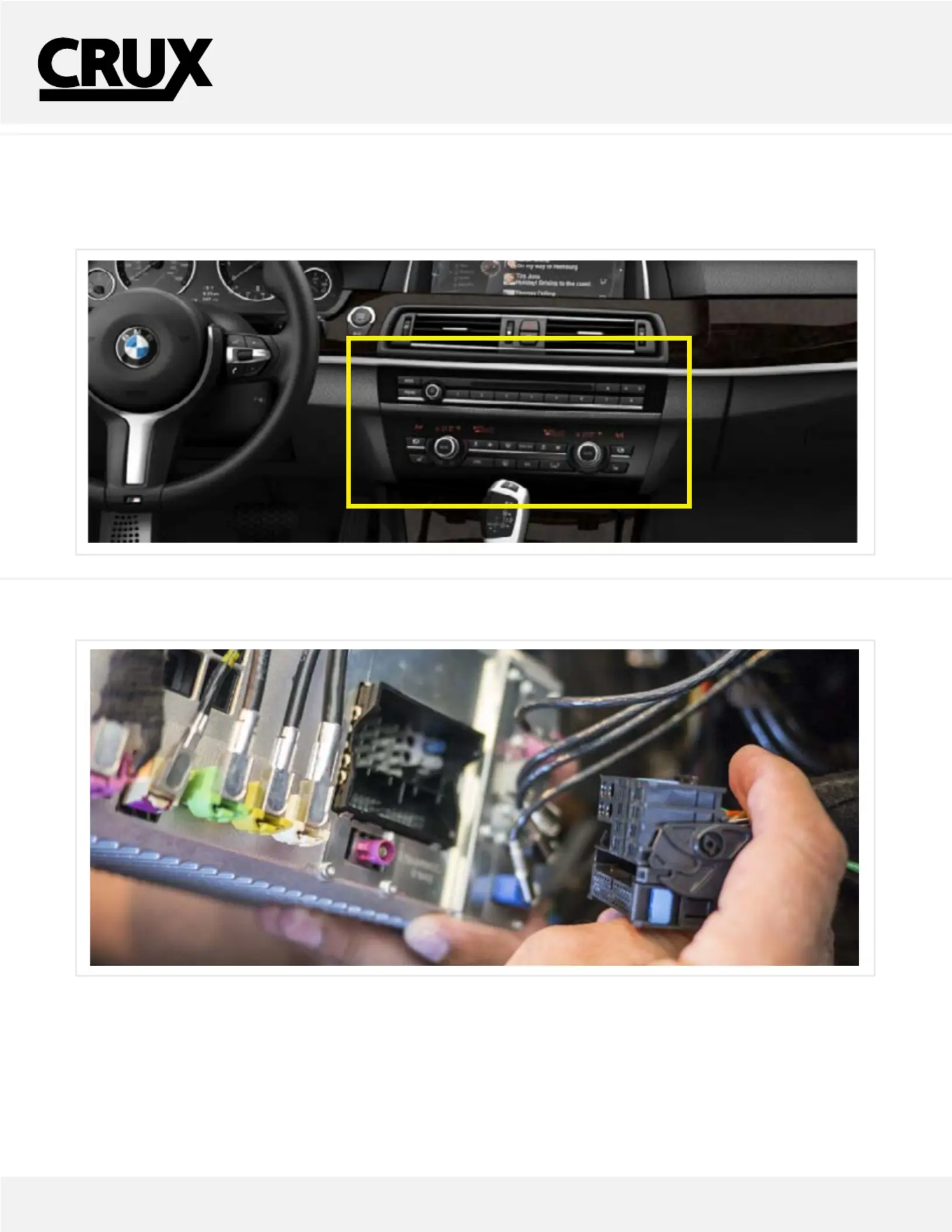

Step 1 - Remove the RADIO portion of the system to gain access to the factory 40-PIN Harnesses. You will NOT have to
get behind the factory display.
Step 2 - Once behind the RADIO, remove the factory 40-Pin Quadlock connector.
INTERFACING SOLUTIONS
VIMBM-86B
VIDEO IN-MOTION INTEGRATION
FOR SELECT BMW
VEHICLES 2012-UP
www.cruxinterfacing.comRev. 102814 3
