Sivu 1/2
16-PIN
(male plug)
8-PIN
(male plug)
INTERFACE
16-PIN
(female plug)
4 5 6
TO ENABLE VIDEO
IN-MOTION 1. On = Enable
2. Not Used
3. Not Used
4. Not Used
5. Used
6. Used
GREEN/ VDO UNLOCK
WHITE/ 12V OUTPUT
ON
1 2 3
RADIO DISC
NAVI TEL
SYS ON
1 2 3
4 5 6
7 8 9
0
*#
CLEAR
SAFETY WARNING:
THIS INTERFACE IS DESIGNED TO ACTIVATE
VIDEO IN-MOTION TO ALLOW THE PASSENGER
ACCESS TO THE ADDRESS INPUT WHILE THE
VEHICLE IS IN-MOTION. THIS INTERFACE MAY
CAUSE AN ERROR WHEN SERVICED AT THE OEM
DEALER. BE AWARE THAT MOST DEALERS
WILL ATTEMPT TO VOID THE MANUFACTURERS
WARRANTY WHEN INSTALLING ANY AFTERMAR-
KET EQUIPMENT. IMPROPER USE OF THIS INTER-
FACE BY THE DRIVER MAY RESULT IN CITATION.
DRIVER MUST KEEP FULL ATTENTION ON THE
ROAD AND RESPONSIBILITY ON THE SAFETY OF
HIS PASSENGERS.
IN TERFACI NG SOLUTIO NS
VIDEO IN-MOTION ACTIVATION FOR MERCEDES BENZ 2011-2013 w/NTG-4.5 RADIO
MERCEDES BENZ:
2013 - 2013 B-class (W246)
2012 - 2013 C-class (W204)
2012 - 2013 C-class (C204)
2012 - 2013 E-class (W212)
2012 - 2013 E-class (C207)
2012 - 2013 CLS (C218)
2011 - 2013 GLK (W204)
2012 - 2013 ML (W166)
2012 - 2013 SLK (R172)
2013 - 2013 SL (R231)
Important Note:
This interface only supports the following
radio types:
NTG-4.5
VIMMB-85 We recommend reading this installation guide rst before starting any
work. Following these instructions from “Start” to” Finish” will ensure
a smooth and hassle free installation. We oer telephone support M-F
9:00 AM – 5:00 PM PDT at 1 (855) 822-1348. We are here to help.
PARTS INCLUDED:
(1) MB-85 Interface
(1) MB-85 Harness
(1) Instruction
PRECAUTIONS:
- Remove the negative side of the battery to avoid any short circuits
during the installation.
- Do not install the interface near any major components or near the
HVAC system. This may cause damage or overheating to the vehicle.
- Do not disconnect the airbag connection behind the radio panel.
PRELIMINARY:
Please read the entire manual before installing this interface.
Vehicle must be equipped with factory DVD changer.
This interface does not activate DVD reader.
IMPORTANT:
THIS INTERFACE ONLY WORKS WITH VEHICLES
THAT HAVE THE “NTG-4” AND “NTG-4.5” RADIOS.
INSTALLING THE INTERFACE:
1. Remove the factory radio to gain access to the factory connectors.
2. Remove the ber-optic cable from the factory connector.
2. Make the T-Harness connections behind the factory radio.
(if the connectors do not match please contact tech support)
3. Test and make sure the Reverse gear triggers the interface and
also test the video in-motion while the car is rolling.
(Navigation address input should be active while rolling)
4. Make all other connections before re-installing the factory
radio.

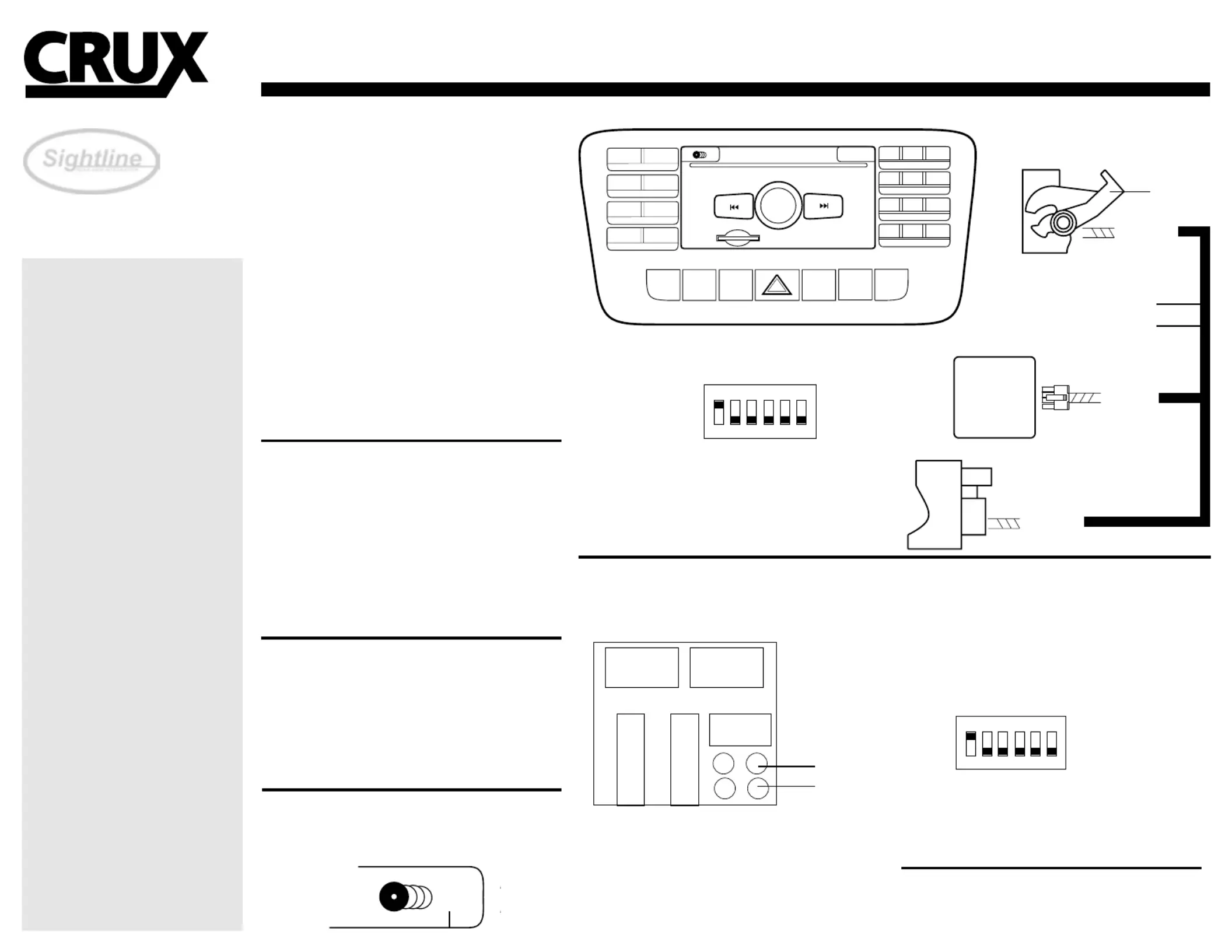

INSTALLATION OVERVIEW
TROUBLE SHOOTING
1. No video display while driving.
- Make sure the dip switches are in the proper location.
COMPATIBLE NAV RADIO
NTG-4.5
RADIO CONFIRMATION:
A big tip on whether the radio type you have works with this interface
is by simply looking for the multi-disc changer icon on the radio face.
The vehicles with this button comes standard on the multi-media
package
FIBER-OPTIC CABLES:
Installer must remove and re-insert the factory ber-optic cables into
the aftermarket connector slots. Use the plastic lever to remove the
factory connectors and then to lock them back into place. One into our
T-Harness and one into the factory radio.
INSERT
HERE
LEVER
TO FACTORY
HARNESS
4 5 6
TO ENABLE VIDEO
IN-MOTION 1. On = Enable
2. Not Used
3. Not Used
4. Not Used
5. Used
6. Used
ON
1 2 3
DIP SWITCHES:
1. To enable the video in-motion feature switch “1” must be “ON”
2. Switches “5” and “6” are defaulted to “OFF”, test the video
in-motion feature before placing the radio back into the dash.
If there is no display on the screen please place switches “5” and
“6” to “ON”.
Note: Switches “5” and “6” are for Can-Bus conguration.
Rev. 030714
