Sivu 1/29

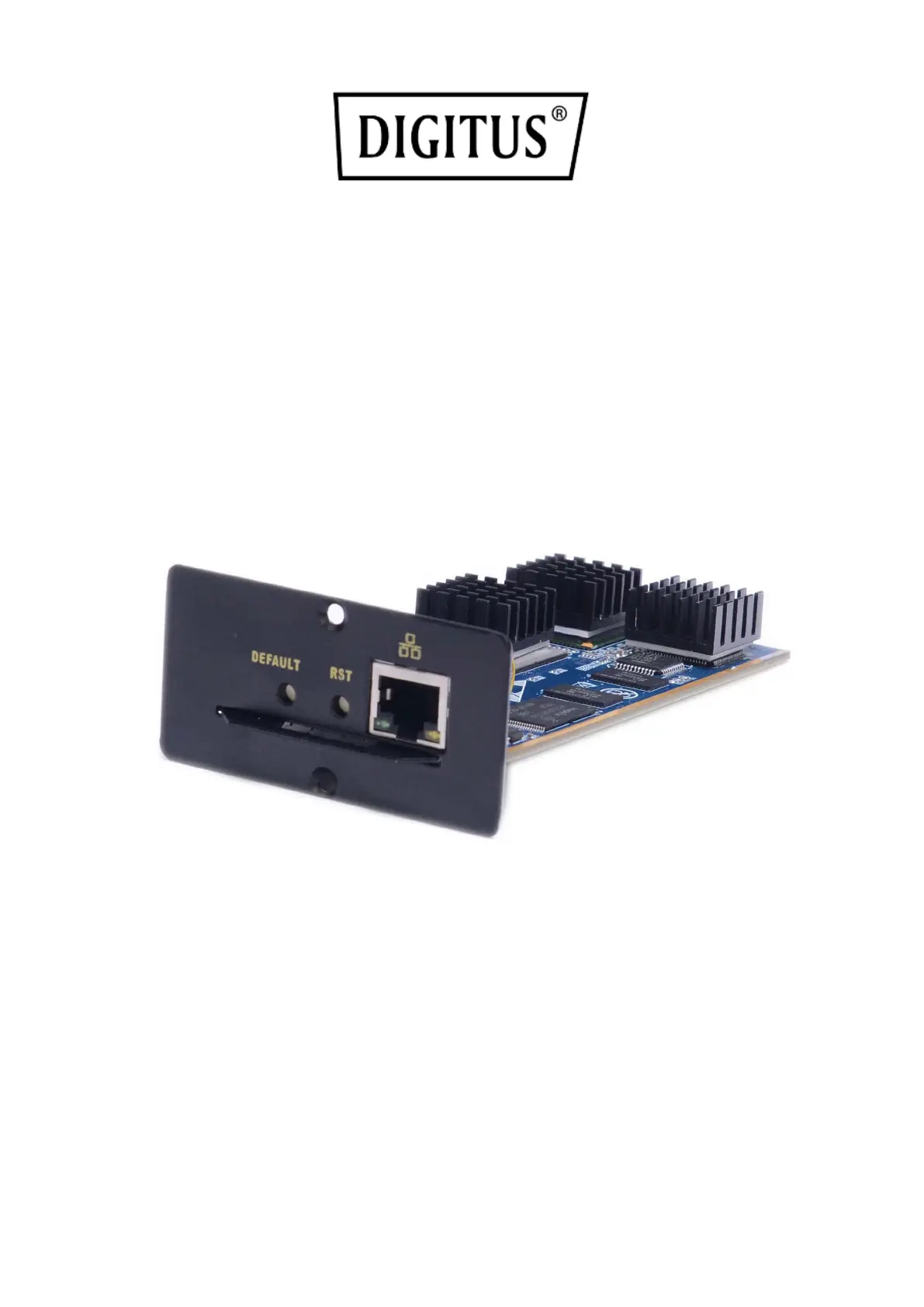

IP Function Module for
KVM Switches
User Manual
DS- -151000
2
Product Features
Our products adopt KVM over IP technology and make full use of existing
Ethernet network to replace dependence of special cables and signal systems
Expedient bandwidth co ntrol can adjust of frame rate and code rate for video
transmission to adapt to different network bandwidth, fully guarantee the
transmission quality of the image
Based on IP connection eliminates the distance analog KVM system and other
restrictions, therefore a flexible centralized management can be achieved
Because digital KVM signaling is based on IP agreement, the network
administrator can use client applications to access in data center or anywhere
in the world using one computer to control servers and other devices. It
means that any number of users and devices can be added or changed
without any complex reconfiguration
Client-side soft can fully make use of IP technology to provide rich
administrative control which including process sharing, server status monitor,
simulate multi-platform keyboard and centralized records
Multiple permissions settings to meet the use and operation of different users
Video transmission and data encryption of keyboard and mouse ensure the
security of network traffic
BIOS level connection is no limited by operating system, and applicable to
various server, PC and operating system
Absolute synchronistical technologies of mouse to ensure the operating
accuracy of window
Support remote key combination to send
10M \ \ 1 100M 000M network transmission
Remote resolution can reach to 1920 x @ 1080 60Hz. Support screen zoom
function with arbitrary proportion
Base on WEB UI, convenient for customer to access under different operation
system. Support remote online update
3
Hardware Specifications

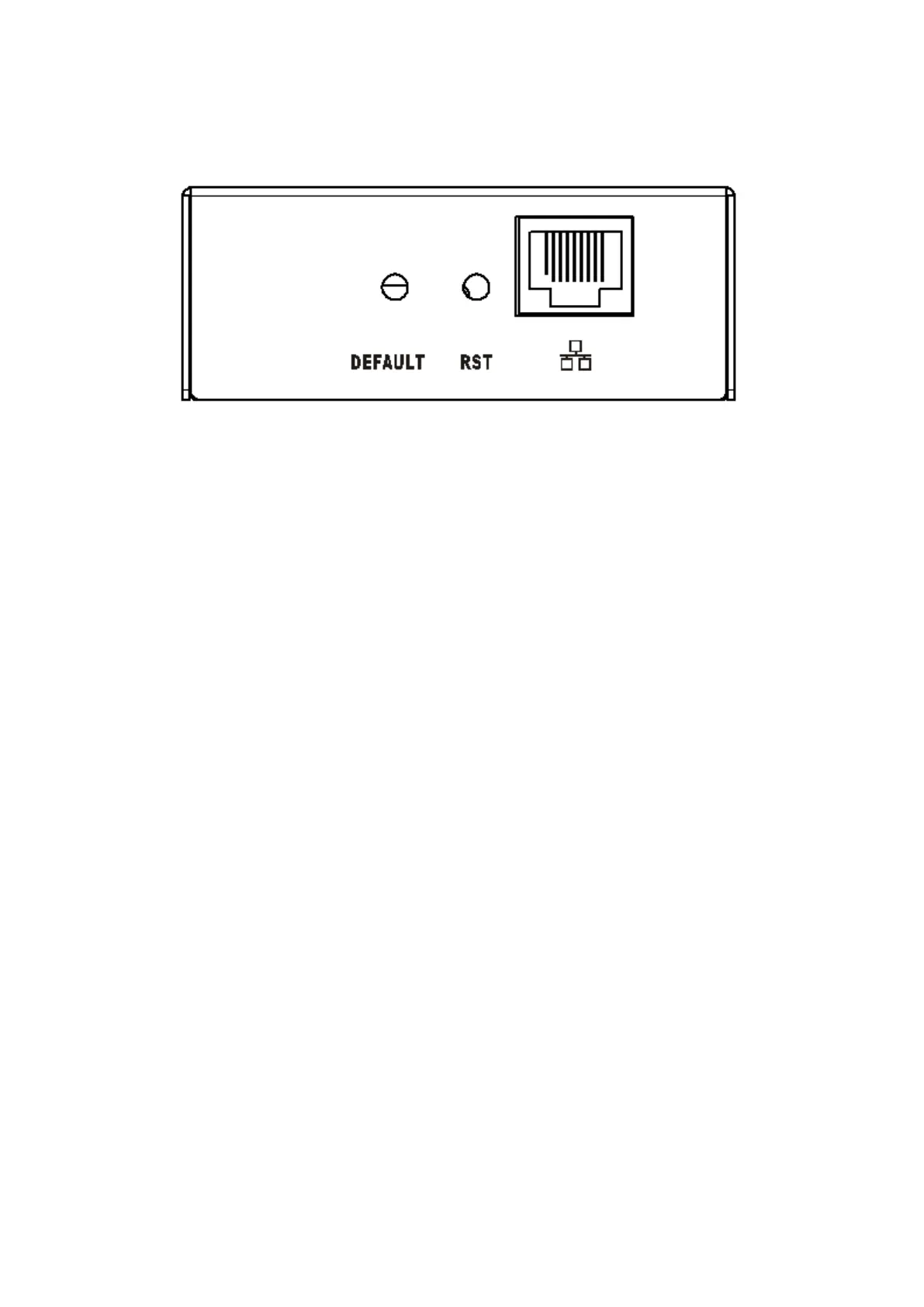

Product view:
1. Reset: (RST)
Press this button to restart IP module DS-51000-1
2. Restore factory settings button: (DEFAULT)
Long press button for 5 seconds K (IP address, user name, login password) can
return to the factory default settings
3. Network interface:
Can access the WAN (wide area network) or LA Local Area Network)N (
Packing List
IP-KVM module
CD software
User manual
Check to make sure that all the components are present and that nothing was
damaged in shippin blem, contact your dealer.g. If you encounter a pro
Read this manual and follow the installation and operation procedure carefully to
prevent any damage to the unit, and/or any of the devices that connect to it.
