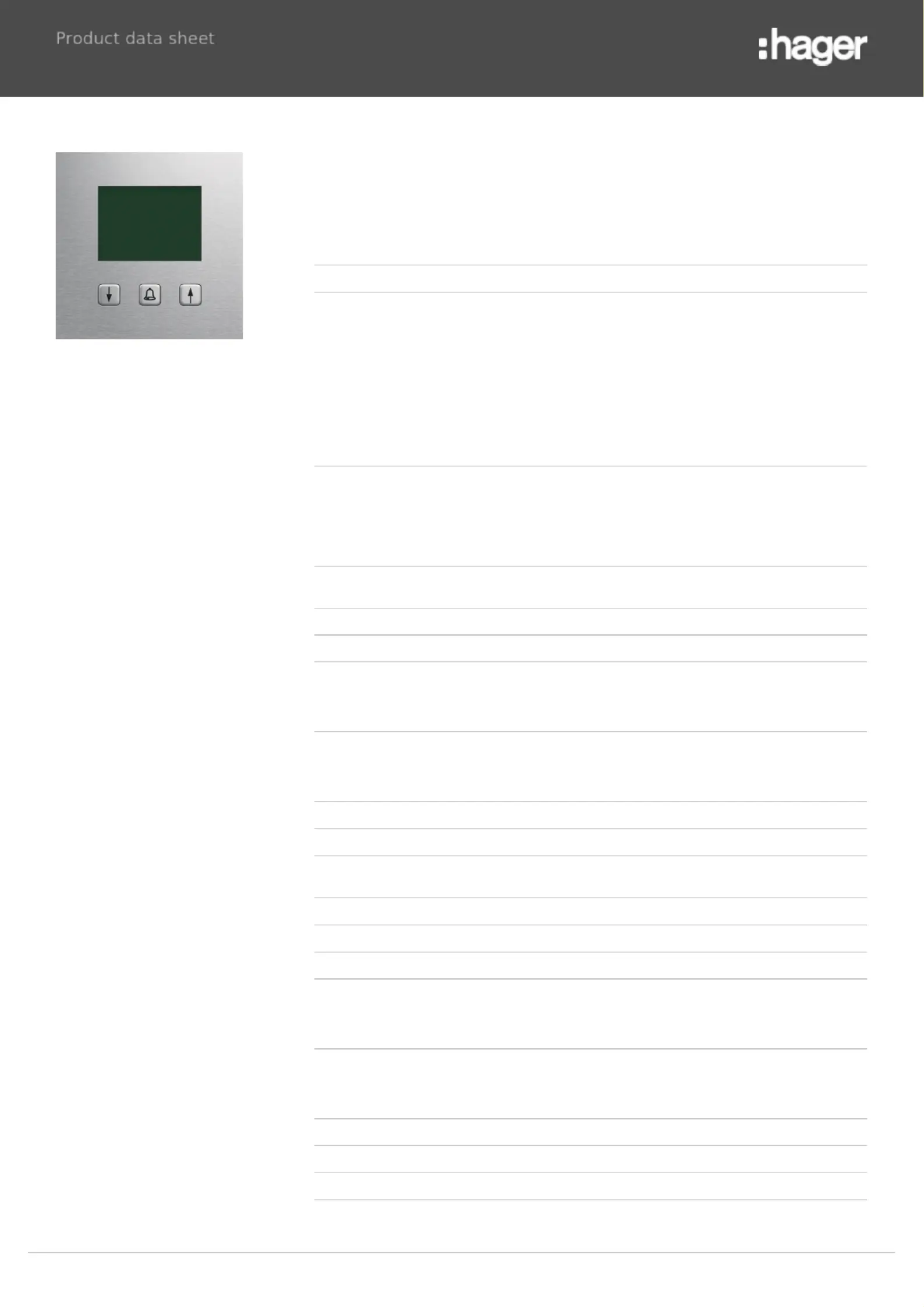

REN705S
REN705S
Display Call Module for Modesta with German and English text
Technical characteristics
Functions
Function ringing
System functions
256 call destination entries each with 16 characters
for the name,16 characters for additional information
and 1...6-digit call numbers,list of names in
alphabetical order,easy operation by means of 3
button function (up/down/call),display of call status
and intercom connection,dynamic search speed with
long push-button action,in idle state animated
operating instructions in the display
Configuration
Configuration
set-up with DCTERM PC software via DCI-256,set-up
via keyboard with DLM-256,memory chip
interchangeable with subscriber data
Controls and indicators
Indication / display
blue illuminated graphic LC display with large
lettering
Button / push-button integrated flush-mounted stainless steel buttons
Number of function keys 3
Number of call buttons 1
Voltage
Operating voltage 12 V~/15 V=
Dimensions
Depth 39 mm
Dimensions of display (W x H) 63 x 44 mm
Distance mounting dowels
(horizontal/vertical) 110 mm
Dimensions front plate (W x H x D) 120 x 120 x 2 mm
Height 120 mm
Width 120 mm
Material thickness stainless steel 2 mm
Screen
Resolution graphical display 128 x 64
Materials
Colour of design line Stainless steel
Colour Stainless steel
Material / workmanship metal brushed
Surface appearance matt
Subject to technical modifications
Material / surface
stainless steel surface, brushed
transversely,symbols laser-engraved
Installation, mounting
Distance screw pillars (horizontal/vertical) 110/110 mm
Installation mode flush mounting in MODESTA frame
Connection
Connection
two potential-free contacts 24 V/1 A (can only be
used with DLM-256),RS232 interface (2400/8/1N
RTS/CTS-Handshake) for data exchange and
configuration
Cable
Conductor Ø 0.5…0.8 mm
Settings
Setting Contrast continuously adjustable
Scope of delivery
Component M3 fastening nuts
Equipment
Switching contact potential-free max. 24V/1A
Use
System technology 2-wire
Use conditions
Operating temperature -20…70 °C
Relative humidity (without condensation) 0…65 %
Identification
Main design line Modesta
Subject to technical modifications
