www.hotoneaudio.com
Professional Stompboxes
The A Station pedal is a powerful acoustic preamp with D.I. and microphone
preamp. If it's acoustic you play (guitar, violin, mandolin, etc.), A Station will make
it sound great.
The mic preamp makes this perfect for songwriters and worship leaders. It is a
must have for venues where performers are playing through the house.
FEATURES
Compact size, rock solid aluminum casing
Powerful 3-band EQ for enhancing and shaping your instrument tone
Notch filter with frequency control for eliminating unwanted feedback
Pristine DI output for feeding the signal directly to the mixer or for recording
1/4” parallel output for connecting acoustic amps or other gear
High quality microphone preamp with phantom power
Switchable FX Loop for extended instrument and vocal dimension
Mute function for silent tuning and safe connection
Boost function for stand out solos or boosting weak instrument signals
9V DC or 9V battery power supply
SIGNAL PATH
VOLUMEEQGT IN
FX LOOP (MIX Position)
MIC GAINMIC IN BALANCED OUT
OUTPUT
VOLUMEEQ FX LOOP (GT Position)
MIC GAINMIC IN BALANCED OUT
OUTPUT
VOLUMEEQGT IN
MIC GAINMIC IN BALANCED OUT
OUTPUT
FX LOOP (MIC Position)
Thank you for purchasing a HOTONE product!
GT IN

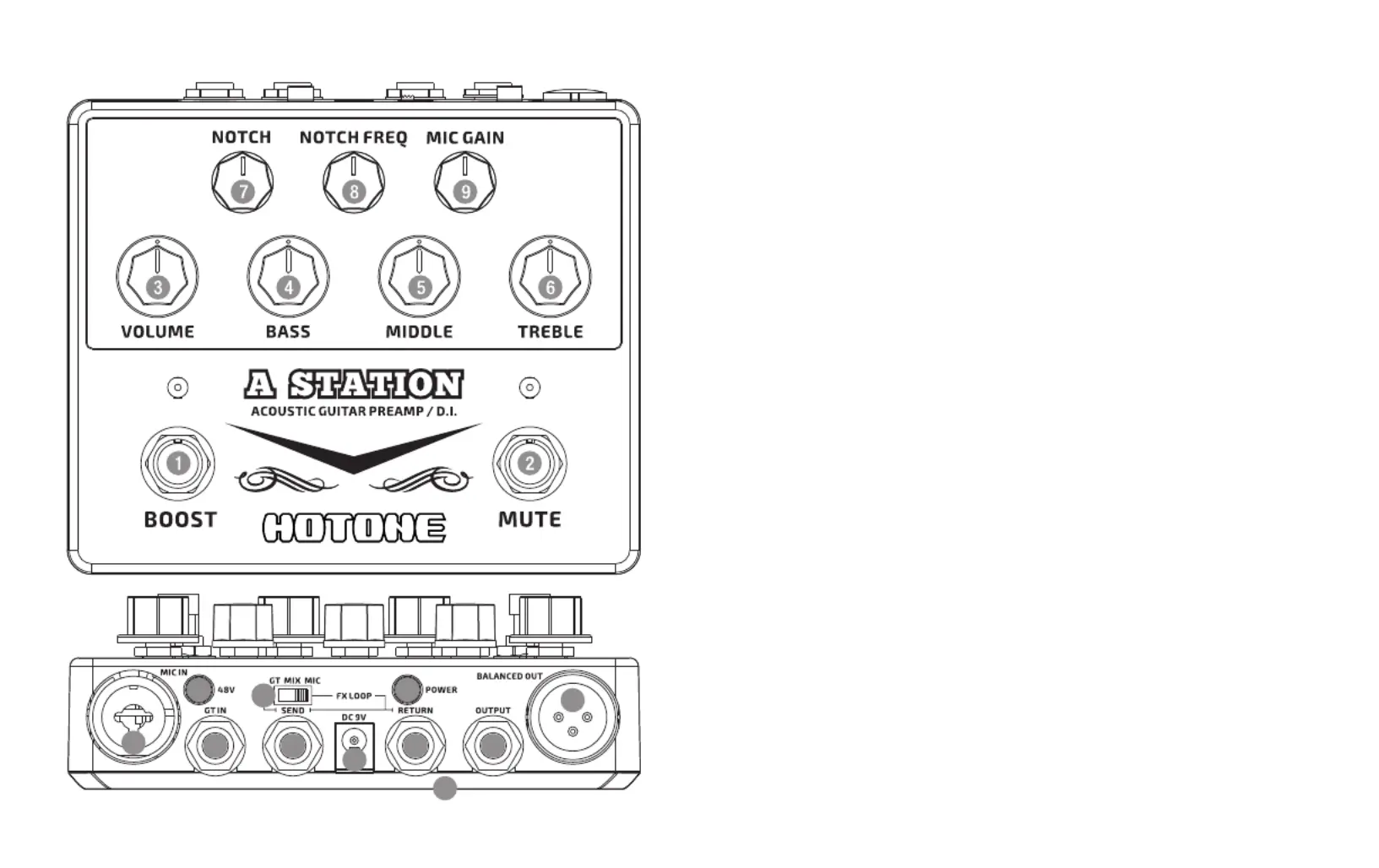

PANEL INTRODUCTION
Front Panel
1. BOOST switch: For boosting your guitar signal. This function is very useful when you
need to change your playing style or your guitar signal is weak. The boost amount is
+6dB.
2. MUTE switch: For activating/deactivating mute function. All outputs will be muted when
mute function is activated.
The LEDs above the footswitches indicate the function on/off status.
3. VOLUME knob: Controls the output volume of your guitar.
4-6. BASS/MIDDLE/TREBLE: 3-band EQ, for shaping your guitar sound.
7-8. NOTCH and NOTCH FREQ: A notch EQ with frequency and gain control to fine tune your
tone or eliminate unwanted feedback. Use the NOTCH knob to control the gain, use the
NOTCH FREQ knob to adjust the frequency.
9. MIC GAIN: Controls the input level of your microphone.
Top (I/O) Panel
10. MIC IN: XLR and 1/4” combo jack, for connecting microphones.
11. 48V: Push this button to turn on/turn off phantom power, which is supplied to the MIC
IN jack.
12. GT IN: 1/4” (6.35mm) mono input jack, for connecting guitar.
13. FX LOOP selector: Use this selector to change the signal path.
GT: The FX LOOP affects your guitar signal only.
MIX: The FX LOOP affects both your guitar signal and your mic signal.
MIC: The FX LOOP affects your mic signal only.
14. FX LOOP SEND jack: 1/4” (6.35mm) mono jack, connect to your effects input jack.
15. FX LOOP RETURN jack: 1/4” (6.35mm) mono jack, connect to your effects output jack.
16. POWER: Switches the unit on/off.
17. DC 9V: Plug in 9V DC adapter (center negative, adapter sold separately).
18. OUTPUT: 1/4” (6.35mm) output jack, for connecting acoustic amps.
19. BALANCED OUT: XLR output jack, for connecting audio interfaces or mixers.
20. Battery compartment (on the bottom): Holds one 9-volt battery.
14
10
11
12 15
16 19
20
18
17
13
