Installation Instructions
Magnetic sensor
ME / MFS / MGS / MGT / MN / MS
UK
UK
UK
UK
UK
MFSxxx / 00 10 / 2015
2
1 Preliminary note
1.1 Symbols used
Instruction
Cross-reference
Important note
Non-compliance may result in malfunction or interference.
2 Function and features
The sensor reacts to magnetic fields. It detects a magnet without contact and
signals its presence by means of an output signal.
The nominal sensing range (Sn) can be seen in the type designation on the type
label on the unit (the value applies to a damping magnet M 4.0).
MEA3060-BPKG
= nominal sensing range in mm

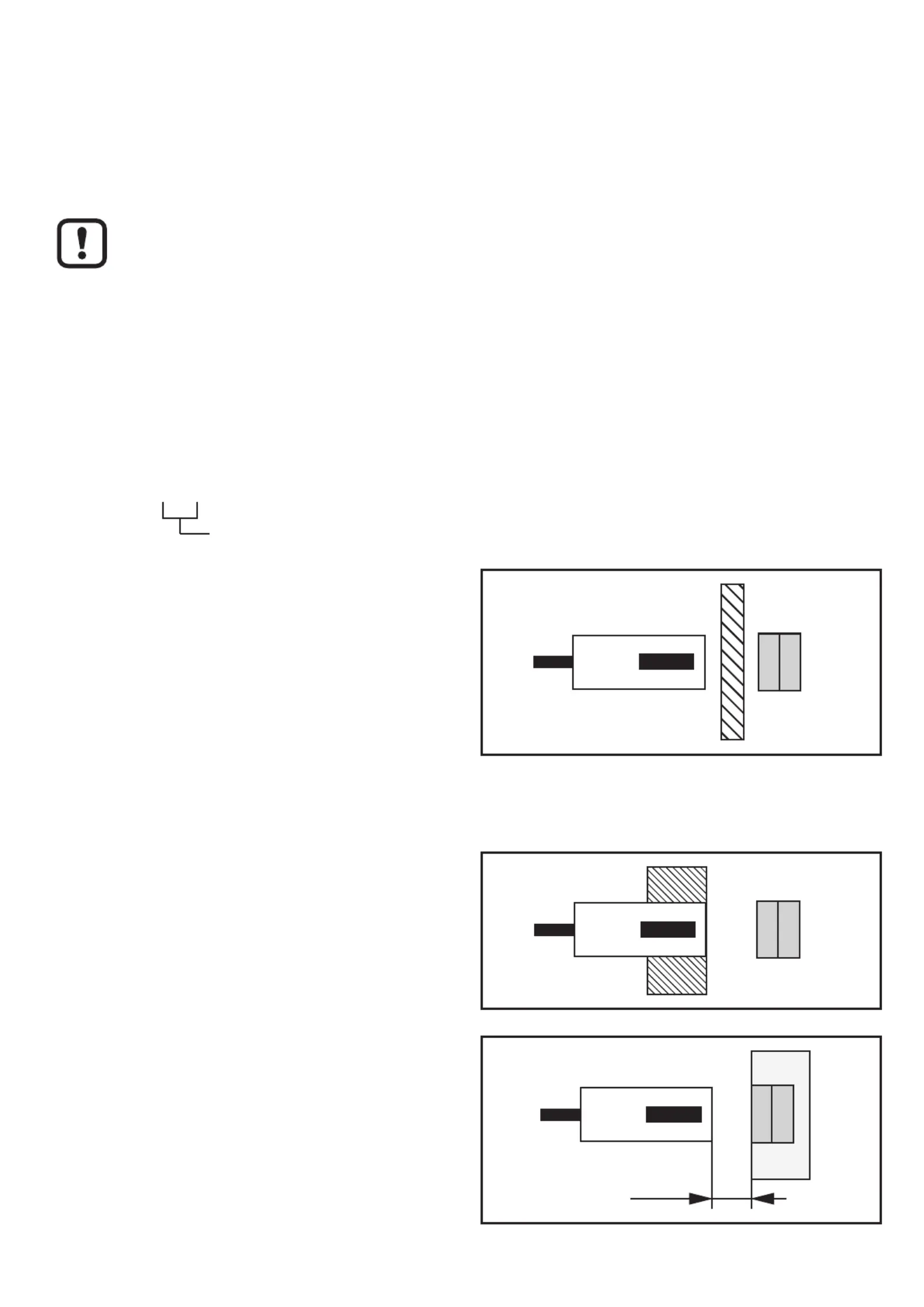

The sensor detects magnets through
all non-magnetizable materials (e.g.
non-ferrous metals, stainless steel,
plastic, wood).
N S
3 Installation
Mount the sensor by means of
amounting bracket or a mounting
device.
Flush mountable in all non-
magnetizable materials.
N S
When mounted in magnetizable
materials an open space must be left:
a = 10 mm (at Sn = 60 mm)
a = 15 mm (at Sn = 70 mm).
N S
0,6 Sn
3
UK

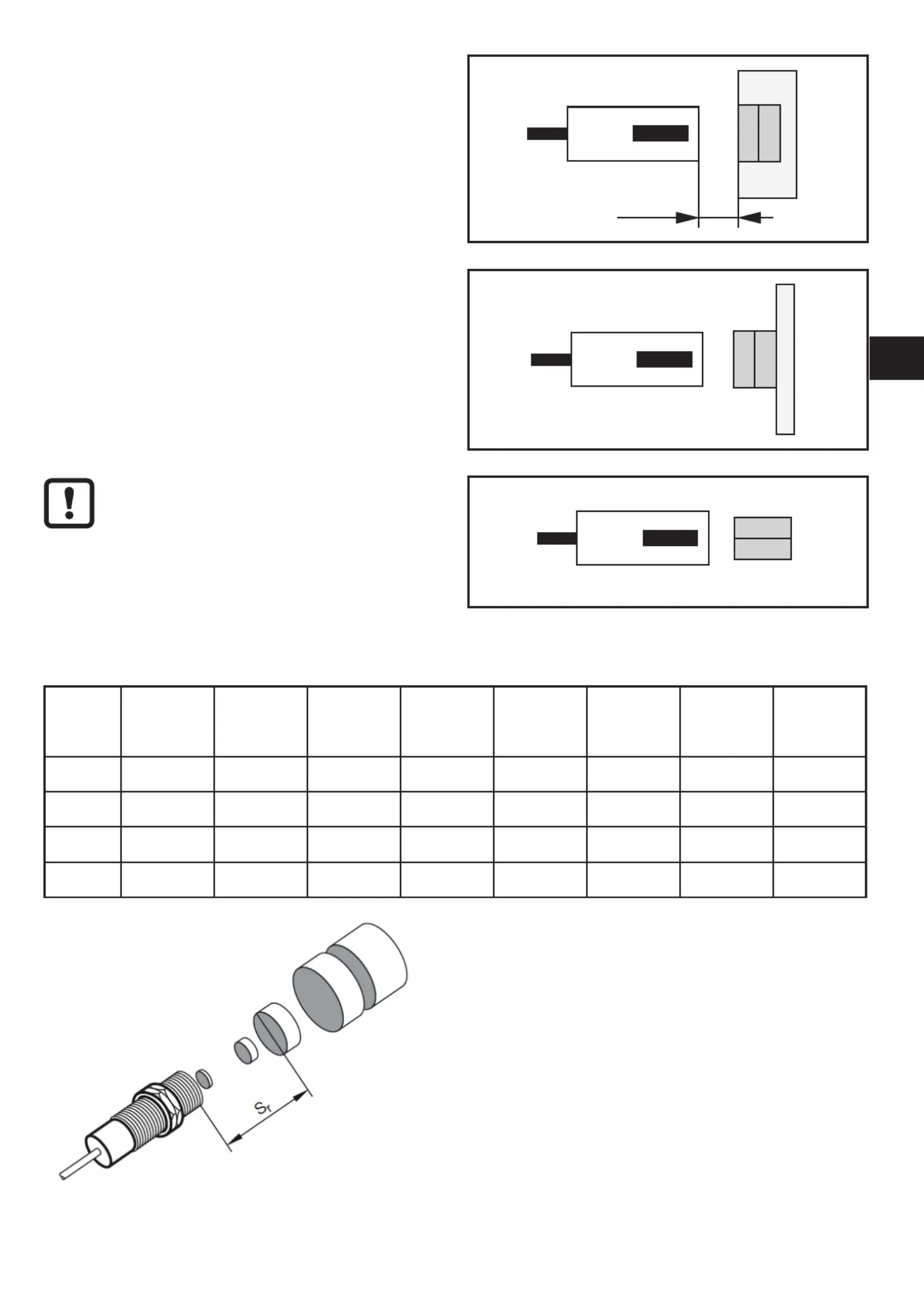

If the damping magnet is mounted flush
in magnetizable material, the sensing
range decreases to approx. 80 % of Sn.
N S
0,6 Sn
If the damping magnet is mounted on
magnetizable material, the sensing
range may increase to 1.1 to 1.2 times
the value.
N S
A second switch point may occur
in case of horizontal orientation of the
magnet.
S
N
3.1 Sensing range (Sr in mm) referred to magnets
E10749 E10750 E10751 E10752 E10753 E10754 E11803 E12291
M 1.0 M 2.0 M 3.0 M 4.0 M 5.0 M 5.1 M 4.1 M 3.1
ME... 24 24 34 60 68 66 59 33
MF... 24 24 34 60 68 66 59 33
MG... 27 27 38 70 77 76 69 37
MS... 24 24 34 60 68 66 59 33
