Sivu 1/4

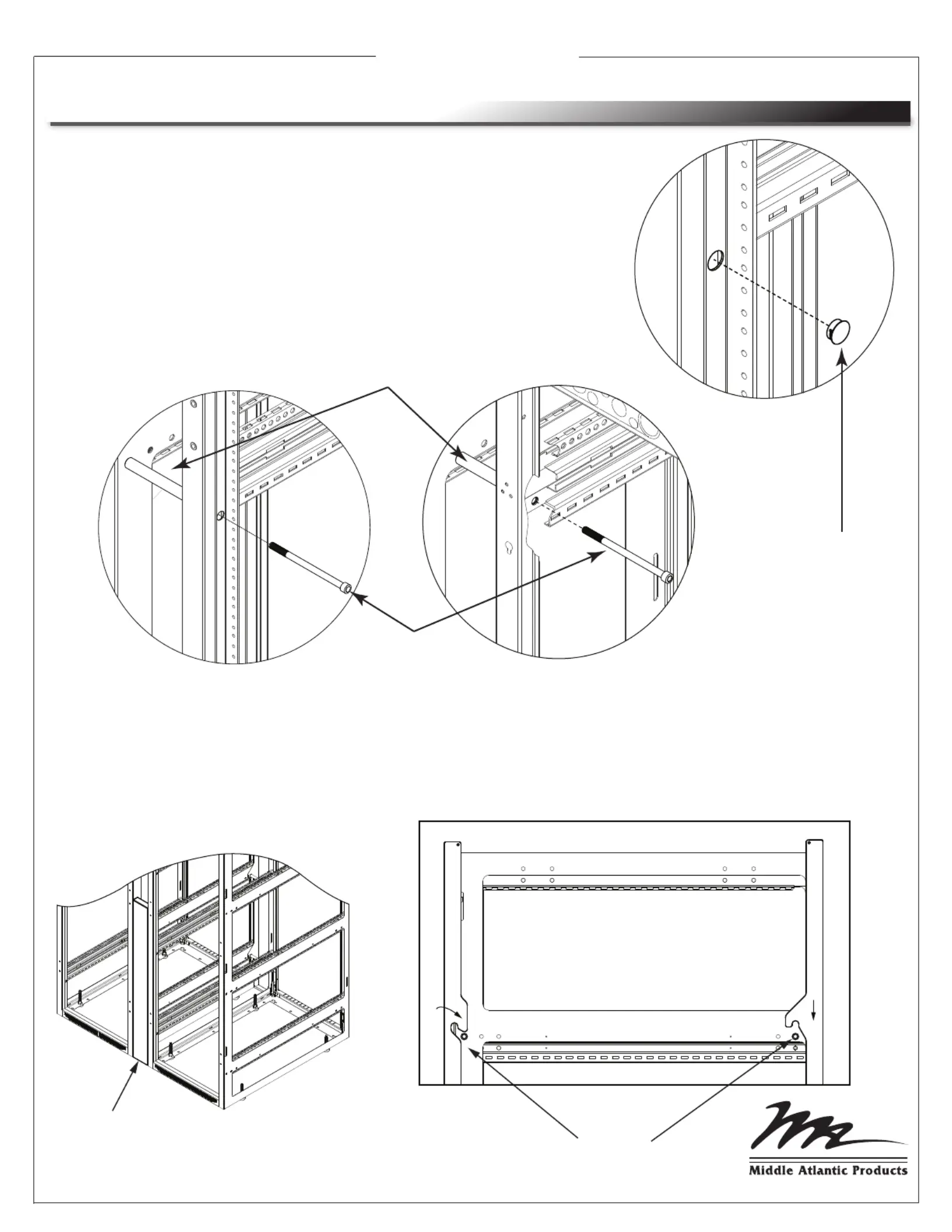

3) Install cable chase bottoms onto spacers located at the front and rear of joined racks. Install front
and rear tops once bottoms are in place. (FIGURE C)
NOTE: Cable chase markings will identify chase and proper orientation. (FIGURE C)
1) Remove plastic caps from racks. (FIGURE A)
2) Install spacers between racks at the front and rear
using supplied bolts (four places each). Front and rear
spacers are installed at the first hole position as shown.
(FIGURE B)
FRONT TOP
REAR TOP
Spacers
Front of Rack Rear of Rack
FIGURE A
Front Cable Chase Rear Cable Chase
INSTALLATION (41SP/45SP SIZES)
FIGURE B
FIGURE C Spacer
I-00484 Rev B
Plastic
Cap
Bolts
4) Reinstall plastic caps (extras provided).
Bottoms do not have handles
INSTALLATION (38SP SIZE)
Page 2
FRONT TOP
FRONT TOP

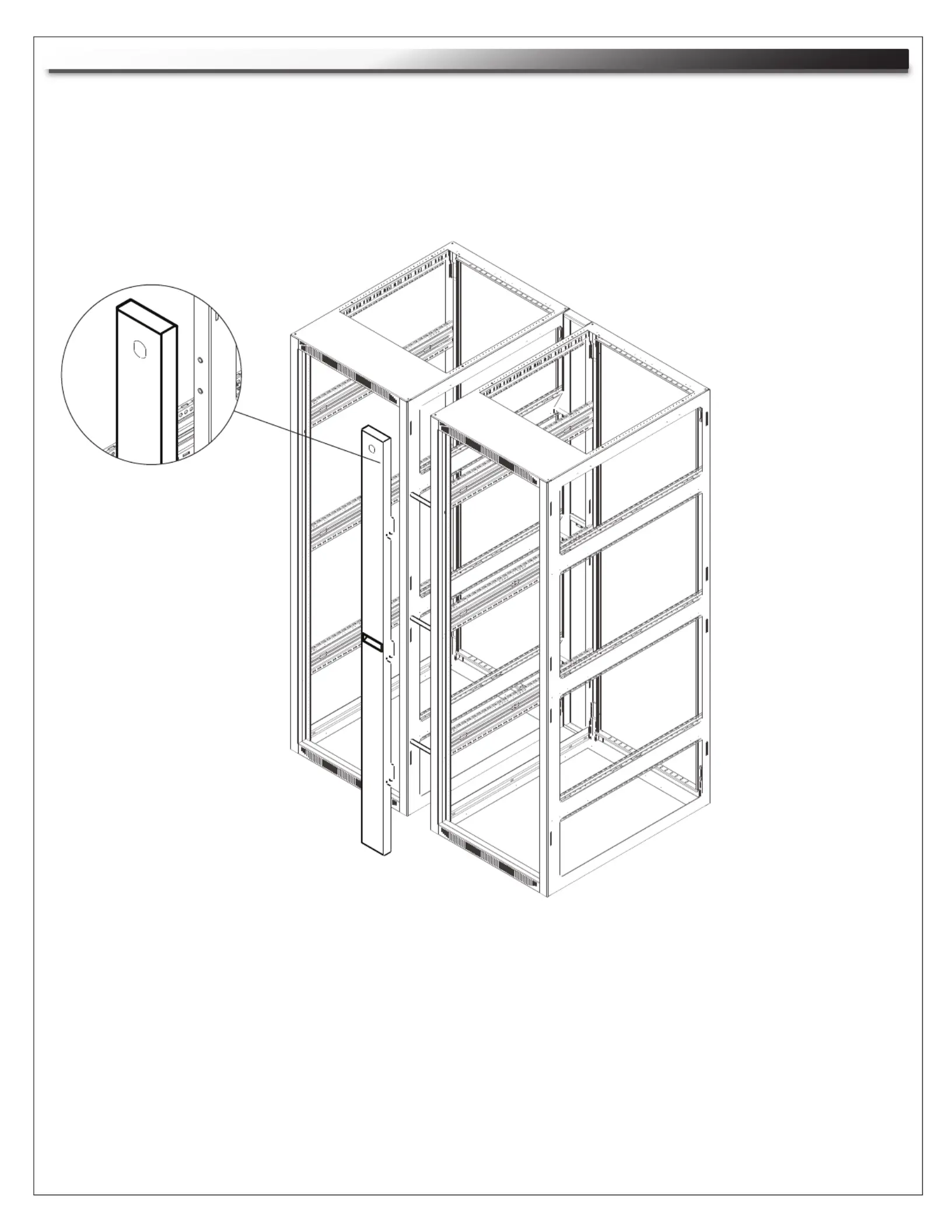

1) Remove plastic caps and install spacers using supplied bolts at the front and rear of the rack
(three places each). Install front and rear cable chases as previously described in step 3.
(FIGURE D)
2) Reinstall plastic caps (extras provided).
FIGURE D
LOCK INSTALLATION
Page 3

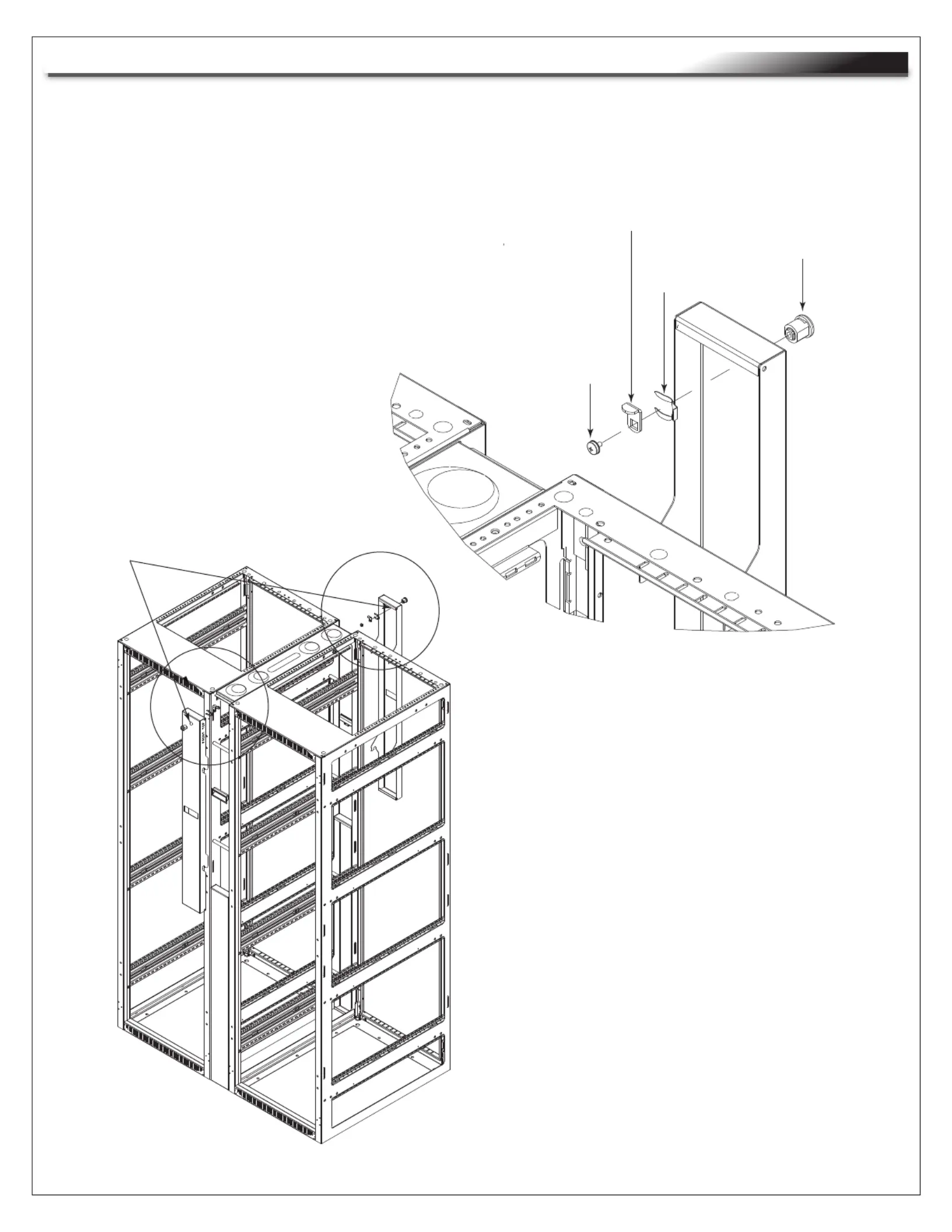

1) Knock out the lock holes on the top panels. (FIGURE E)
2) Insert the lock cylinder into panel and secure with clip.
(FIGURE E)
3) Attach the cam to the lock cylinder with screw. (FIGURE E)
Refer to for proper orientation of cam.NOTE: FIGURE E
FIGURE E
Lock Holes
Lock Cylinder
Clip
Screw
Cam
NOTE: Requires BGR-CC-xxLT Cable Chase Top (Sold Separately).
