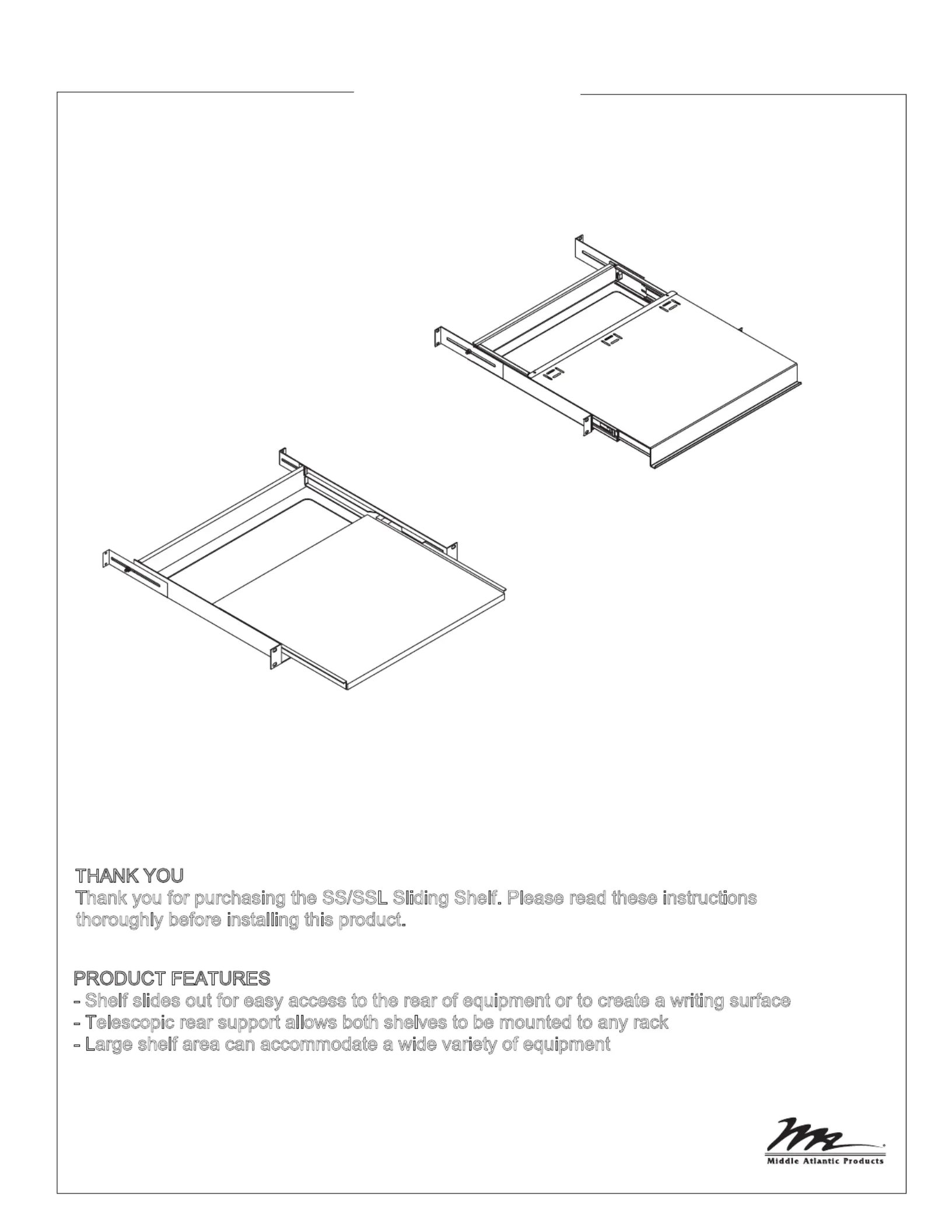

THANK YOU
Thank you for purchasing the SS/SSL Sliding Shelf. Please read these instructions
thoroughly before installing this product.
PRODUCT FEATURES
- Shelf slides out for easy access to the rear of equipment or to create a writing surface
- Telescopic rear support allows both shelves to be mounted to any rack
- Large shelf area can accommodate a wide variety of equipment
Page 2
7/8” HOOK AND LOOP FASTENERS
- To extend the shelf, grab the front edge of the shelf and
gently pull forward until the rollers seat in locking
dimples.
- To extend the shelf, pull forward by grasping the flange
on the front of the shelf. The shelf will lock when
fully extended.

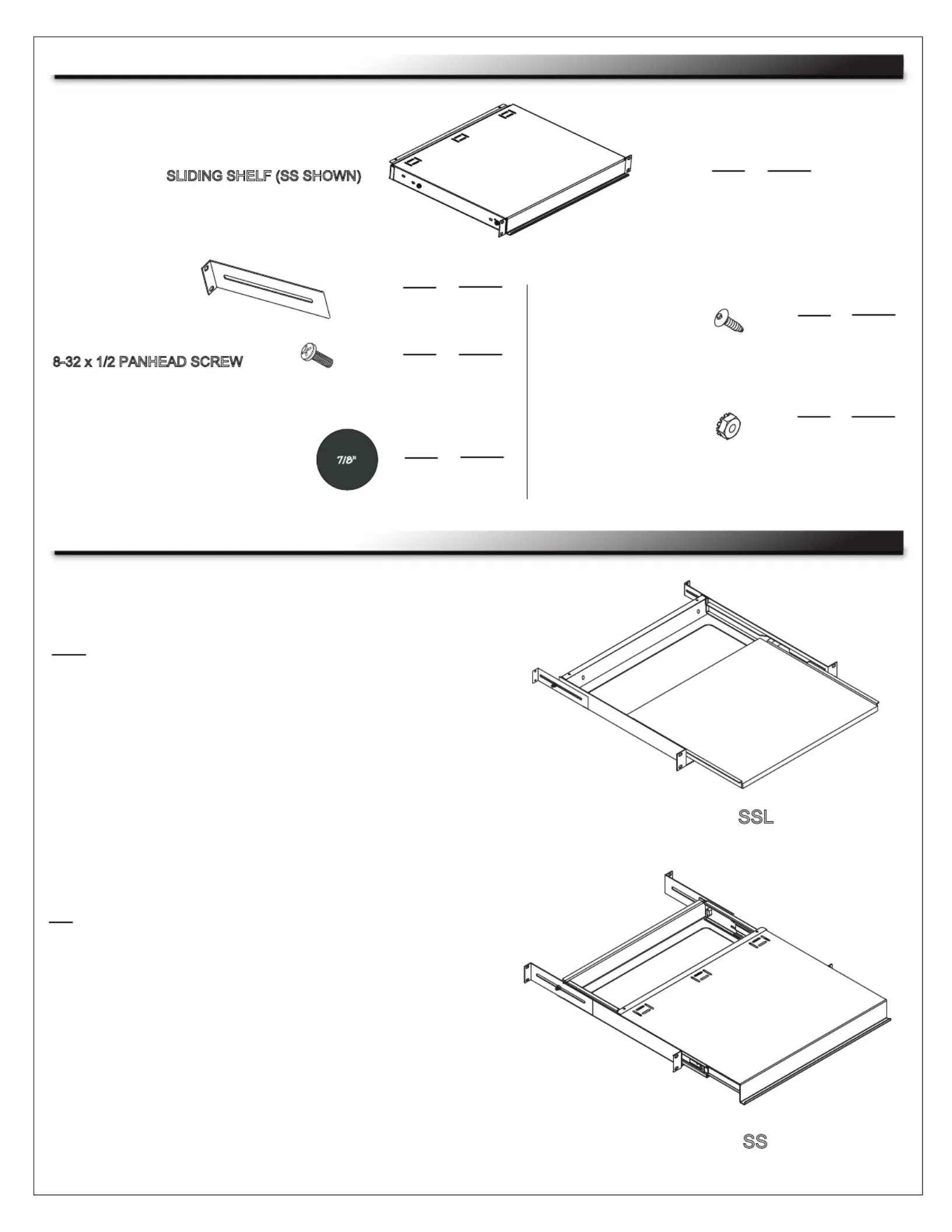

SLIDING SHELF (SS SHOWN)
8-32 x 1/2 PANHEAD SCREW
7/8"
SSL
SS
#10X5/8
WOOD SCREW
8-32
STAR NUT
QTY PART
QTY PART
SSL
SS
CAUTION: DO NOT PULL OUT THE SHELF TO FAR,
IT MAY BECOME DETACHED.
QTY
PSSRB1
PART
1 A
QTY PART
2 B
QTY PART
2 C
QTY PART
2 D
2 E
2 F
PARTS LIST
OPERATION

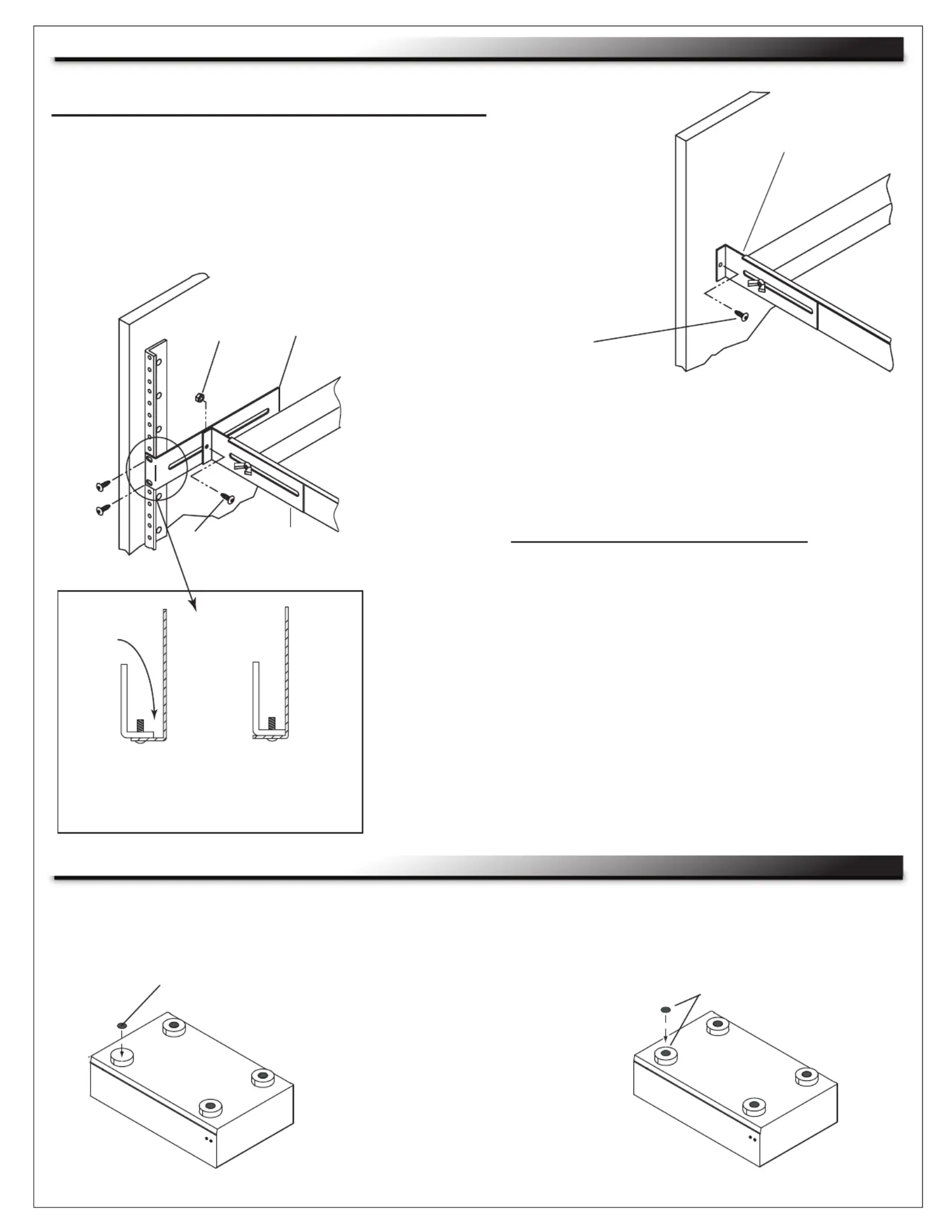

Page 3
- Place soft material dot on the component’s foot. If there is no feet on the component, place as close to
the corner as possible to ensure stability. (FIGURE D)
- Extend the rear hanging brackets until they meet
the sides of the rack. (FIGURE A)
- Attach PSSRB1s to the shelf’s preinstalled
rear support bracket with provided hardware.
(FIGURE B)
- Ensure all brackets are aligned, tighten screws,
nuts and preinstalled wing-nuts. (FIGURE B)
NOTE: Leave no gap during installation of
part B. (FIGURE C)
- Level the shelf from front to back Secure the
brackets to the sides with supplied wood screws.
Tighten the wing-nuts on the bracket. (FIGURE A)
- Mate coarse material dot on the soft material dot. (FIGURE E)
FIGURE A (Rear of Shelf)
FIGURE B (Rear of Shelf)
INCORRECT
(Weaker) CORRECT
(Stronger)
WOOD RACK INSTALLATION (Without Rear Rail)
INSTALLATION WITH REAR RAIL
FIGURE E
FIGURE D
HOOK AND LOOP FASTENER INSTALLATION
INSTALLATION
Rear
Support
Bracket
Rear
Support
Bracket
E
F
C
B
DD
FIGURE C
Note
Gap
