I-00333 Page 1 Rev -
THANK YOU
Thank you for purchasing the UD1 one rackspace drawer. Please read these instructions
thoroughly before installing/assembling this product.
PRODUCT FEATURES
- Reversible design allows the drawer to be flipped over for use as a slide-out shelf for the
the following applications: writing surface, laptop and keyboard holder.
- Cable knockout at rear of drawer allows for efficient routing of cabling.
SUPPLIED HARDWARE
(2) 10-32 Wing nuts
(4) 6-32 X .25 Self threading screws
(2) 10-32 X .5 Pan head machine screws
(4) #10 X .625 Pan head wood screws
(2) Side mounting brackets (For wood installation)
(2) Rear mount brackets (For use with
Rackrail)
INSTALLATION WITH REAR MOUNTING BRACKETS (USE WITH REAR RAIL)
1) Position drawer in rack before attaching rear mounting brackets.
2) With drawer positioned in the rack, attach the supplied rear mounting brackets to each side as shown
using the supplied hardware. (FIGURE A )
3) Install drawer to the front and rear rackrails
as shown. (FIGURE B)
REAR MOUNTING
BRACKET
WING NUT
PAN HEAD
MACHINE
SCREW
FIGURE A
REAR MOUNTING
BRACKET
FIGURE B
RACKRAIL
SCREW
(sold separately)
Page 2
NOTE: Drawer weight capacity is 50 pounds.
15.5" - 20.5"

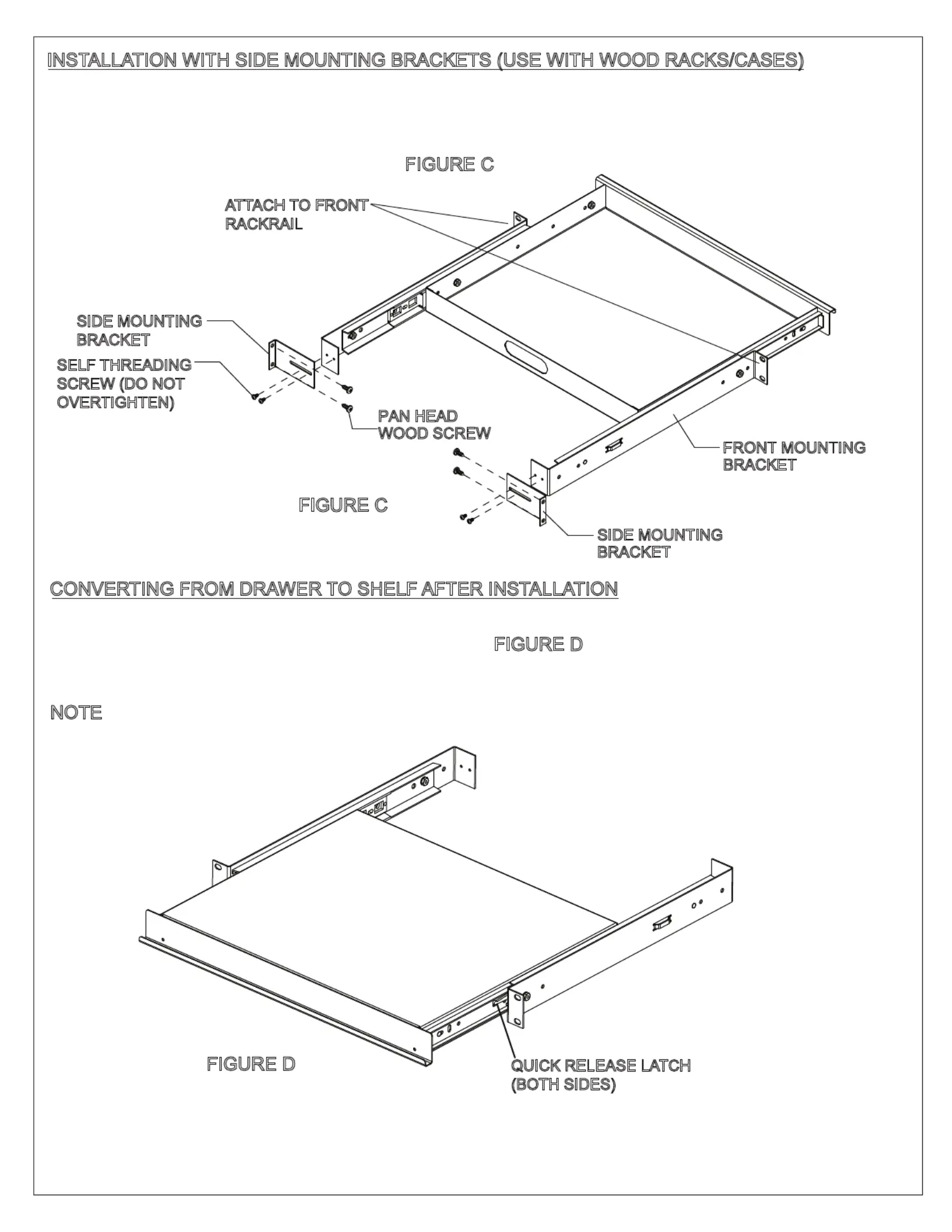

INSTALLATION WITH SIDE MOUNTING BRACKETS (USE WITH WOOD RACKS/CASES)
1) Attach the drawer to the front rackrail before attaching the side mounting brackets
2) Attach the side mounting brackets to the drawer and then attach to the sides of the rack
as shown using the supplied hardware. (FIGURE C)
CONVERTING FROM DRAWER TO SHELF AFTER INSTALLATION
1) Open the drawer and simultaneously push the right side quick release latch down and the left side
latch up, and slide the drawer out from the tracks. (FIGURE D)
2) Flip the drawer over and insert onto the tracks. Close the shelf to lock it on the tracks.
QUICK RELEASE LATCH
(BOTH SIDES)
NOTE: The above steps are the same for converting from shelf to drawer.
SIDE MOUNTING
BRACKET
FRONT MOUNTING
BRACKET
PAN HEAD
WOOD SCREW
FIGURE C
FIGURE D
ATTACH TO FRONT
RACKRAIL
Page 3
SELF THREADING
SCREW (DO NOT
OVERTIGHTEN)
SIDE MOUNTING
BRACKET
