I-00366 Rev B

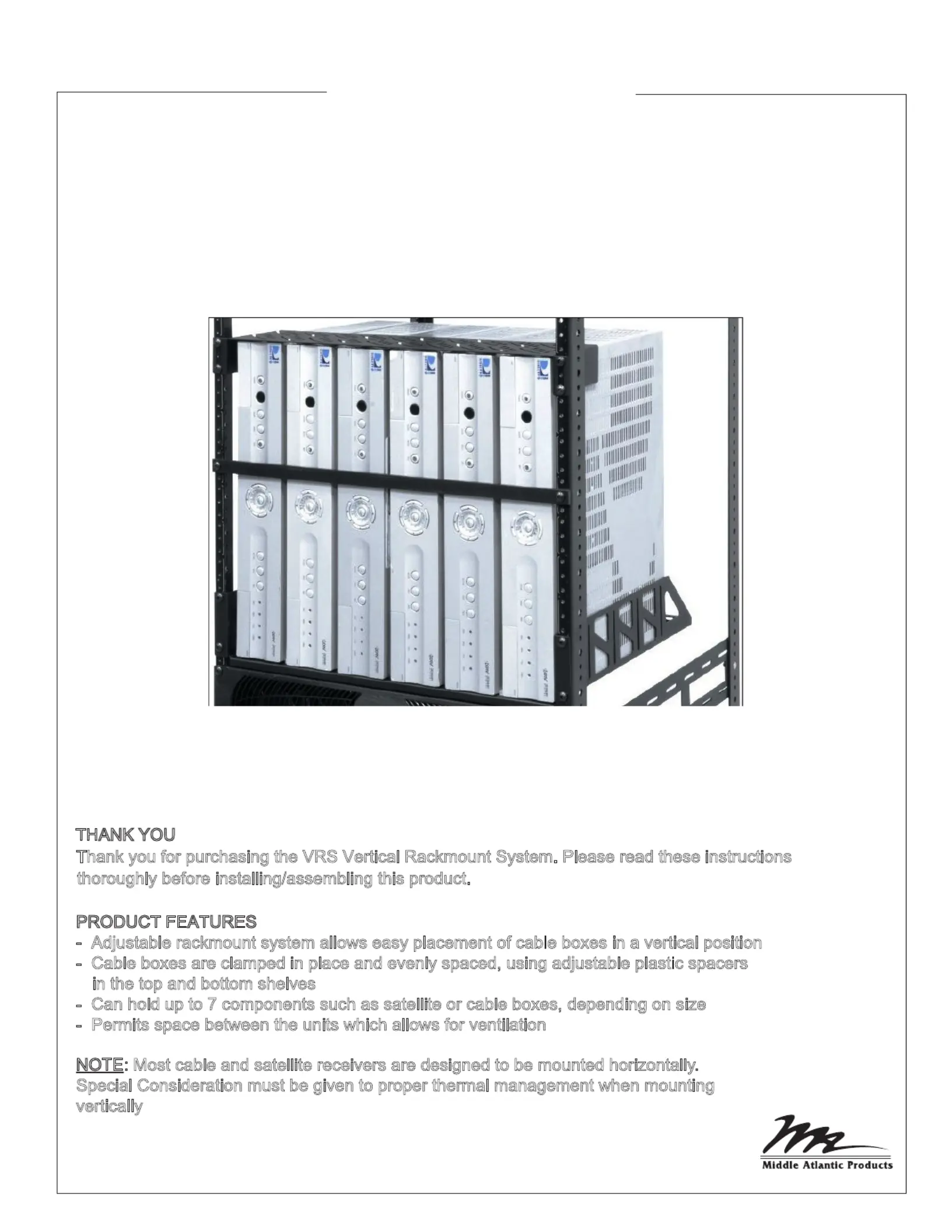

THANK YOU
Thank you for purchasing the VRS Vertical Rackmount System. Please read these instructions
thoroughly before installing/assembling this product.
PRODUCT FEATURES
- Adjustable rackmount system allows easy placement of cable boxes in a vertical position
- Cable boxes are clamped in place and evenly spaced, using adjustable plastic spacers
in the top and bottom shelves
- Can hold up to 7 components such as satellite or cable boxes, depending on size
- Permits space between the units which allows for ventilation
NOTE: Most cable and satellite receivers are designed to be mounted horizontally.
Special Consideration must be given to proper thermal management when mounting
vertically
F
L
AT
SURFACE
1) PRE-INSTALLATION SIZING/REAR RETAINER BAR INSTALLATION
Place the rackshelf onto a flat surface. Place your first and last cable boxes onto the rackshelf as shown.
Slide the boxes until they are flush with the front rackears. This is to determine where to place the rear
retainer bar, which will secure the components from the back. (FIGURE A)
SUPPLIED HARDWARE
(D)
FIGURE A
Page 2
Rear Retainer Bar
(A)
(B)
(C)
(D)
Plastic Spacer
8-32 Nuts
8-32 Studs
3
3
QTY
QTY
QTY
QTY
QTY
1
Front Retainer Bar
(Used for Transportation)
(E)
1
22
Page 3
4) INSTALL BOTTOM RACKSHELF
Install to rackrail as shown. (FIGURE C)
NOTE: The lip of the rackshelf
aligns with the bottom of the
lowest rackspace (to equal two
rackspaces because the ear
alone is less than two rackspaces)

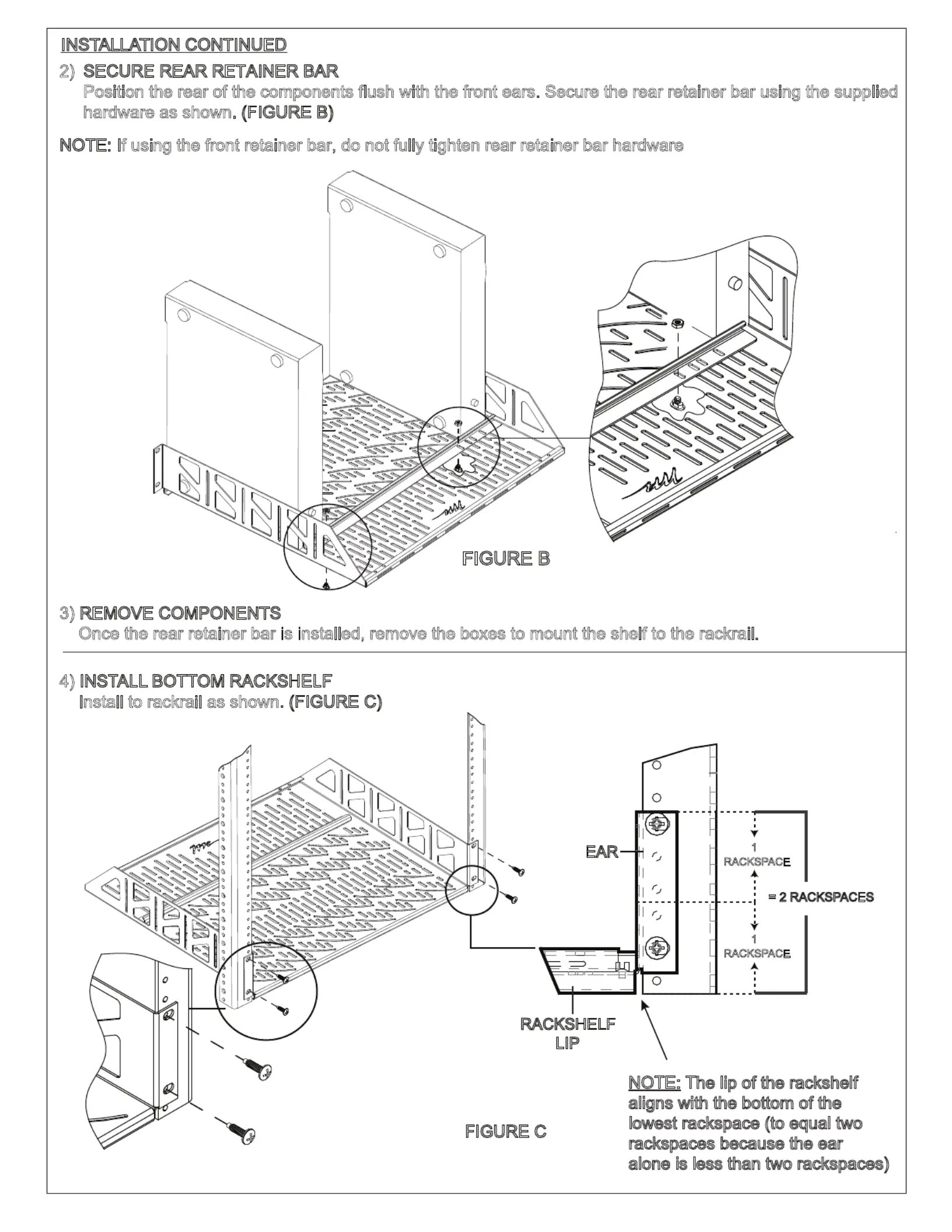

2) SECURE REAR RETAINER BAR
Position the rear of the components flush with the front ears. Secure the rear retainer bar using the supplied
hardware as shown. (FIGURE B)
NOTE: If using the front retainer bar, do not fully tighten rear retainer bar hardware
3) REMOVE COMPONENTS
Once the rear retainer bar is installed, remove the boxes to mount the shelf to the rackrail.
FIGURE B
FIGURE C
EAR
RACKSHELF
LIP
1
RACKSPACE
1
RACKSPACE
= 2 RACKSPACES
INSTALLATION CONTINUED
