Installation and Assembly:
Peerless Ultra-Thin Flat Mount for 37" - 65" (94 - 165 cm)*
Flat Panel Displays
Model: SUF661
*Display Compatibility Requirements
• The depth of this mount (0.19") may not provide
suffi cient space for proper ventilation on some displays.
Please refer to the manufacturer's requirements for
mounting your display before installation.
• The display must have a fl at mounting surface, or the
mounting holes need to be on the furthest back surface
of the display.
• Input/Output connection must be properly oriented to
accommodate mounting 0.19" from the wall.
ISSUED: 04-01-11 SHEET #: 9029-2 07-27-11
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com
Max UL Load Capacity:
150 lb (68kg)
2 of 29 ISSUED: 04-01-11 SHEET #: 203-9029-2 07-27-11
NOTE: Read entire instruction sheet before you start installation and assembly.
Table of Contents
Parts List.................................................................................................................................................................................3
Installation to Wood Stud Wall ............................................................................................................................................ 4,5
Installation to Solid Concrete/Cinder Block walls ...................................................................................................................6
Installing Display Screws ........................................................................................................................................................7
Mounting Flat Panel Display ...................................................................................................................................................8
Tools Needed for Assembly
• stud fi nder ("edge to edge" stud fi nder is recommended)
• drill
• 5/16" (8mm) bit for concrete and cinder block wall
• 5/32" (4mm) bit for wood stud wall
• level
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US
customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact
your local distributor.
• This mount is designed to attach the display 0.19" from the wall. Please refer to manufacturer's installation guide
recommendations for required distance from wall to avoid risk of injury or property damage.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.
• Never exceed the Maximum UL Load Capacity. See page one.
• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of
an "edge to edge" stud fi nder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws fi rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
• This product was designed to be installed on the following wall construction only;
WALL CONSTRUCTION HARDWARE REQUIRED
• Wood Stud Included
• Wood Beam Included
• Solid Concrete Included
• Cinder Block Included
• Metal Stud Contact Qualifi ed Professional (not evaluated by UL)
• Brick Contact Qualifi ed Professional (not evaluated by UL)
• Other or unsure? Contact Qualifi ed Professional (not evaluated by UL)
WARNING
3 of 29 ISSUED: 04-01-11 SHEET #: 203-9029-2 07-27-11
C
A
D
EFGHIJ
K

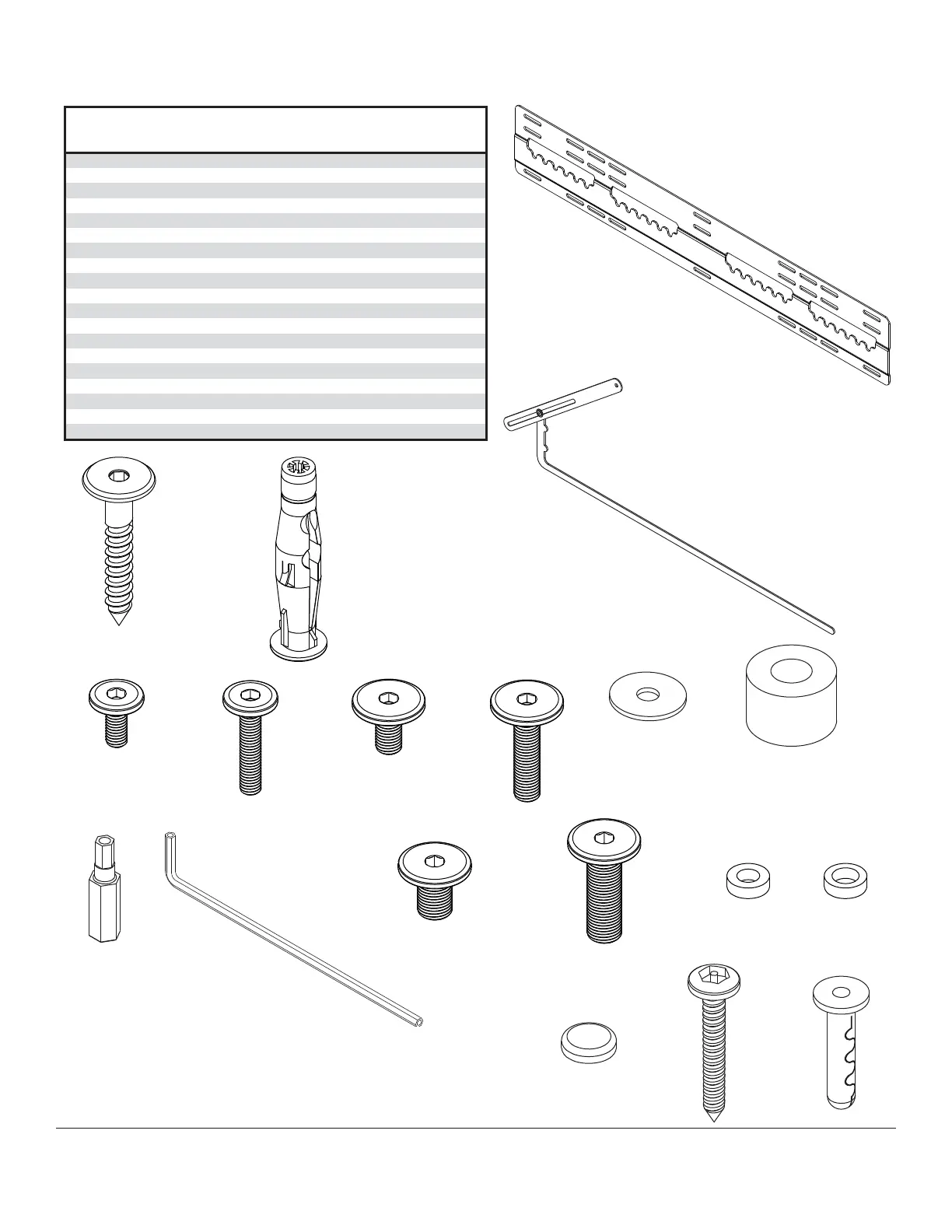

Before you begin, make sure all parts shown are included with your product.
Parts may appear slightly different than illustrated.
MN
O P
L
B
Q R S
Description Qty. Part #
A
wall plate 1 046-P1202
Blocking arm 1 046-P1212
Cwood screws 6 500-1090
Dconcrete anchors 6 590-0320
EM5 x 12 mm hex screw 4 560-1732
FM5 x 25 mm hex screw 4 560-1733
GM6 x 12 mm hex screw 4560-1734
HM6 x 25 mm hex screw 4560-1735
I.725" washer 4 540-9478
J3/4" spacer 4 540-1059
K4 mm security driver 1 560-1133
L4 mm security allen wrench 1560-9646
MM8 x 12 mm hex screw 4560-1736
NM8 x 25 mm hex screw 4 560-1737
OM5 x 1/8" spacer 4 046-0223
PM6 x 1/8" spacer 4 046-0224
Qcloth bumper 2570-0051
Rsecurity wood screw 1 520-1092
Salligator ancho
r
®1590-0097
Parts List
