Sivu 1/28
VLFS820-B2
INSTRUCTION MANUAL
WE’RE HERE TO HELP
Our live install experts are
standing by to help.
Call us at:
US: +1 (800) 359-5520
EMEA: +31 (0) 495 580 852
UK: +44 (0) 800 056 2853
Get it right the first time.
HeightFinder™ shows you
where to drill.
Use it now:
SANUS.com/2567
Want to watch a video that
shows how easy this is?
Watch it now at:
SANUS.com/3119
Texto en español,gina 10 Deutscher Text Seiten 14 Svensk text sida 18
中文文字说明请参见第 22
Texte fraais page 12 Nederlandse tekst op pagina 16
Русский текст: стр. 20 日本語は 24 ペー
2
IMPORTANT SAFETY INSTRUCTIONS
– PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS
CAUTION: Avoid potential personal injuries and property damage!
This product is designed ONLY to be installed into wood studs, solid concrete or concrete block
— DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV
This product is designed for INDOOR USE ONLY
The wall must be capable of supporting five times the weight of the TV and mount combined
Do not use this product for any purpose not explicitly specified by manufacturer
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service.
Tools Needed
Call Customer Service
US: 1-800-359-5520
EMEA: +31 (0) 495 580 852
UK: +44 (0) 800 056 285
Wall
Construction
ONLY install on
these acceptable
wall types.
Drywall alone
will NOT hold the
weight of your TV.
Unsure
wood studs Solid or concrete
concrete block
ACCEPTABLE
Concrete anchors Required
(NOT INCLUDED)
CAUTION:
DO NOT install
in drywall alone
125 lbs.
(56.6 kg)
TV Weight Limit
(including accessories)
DO NOT EXCEED
If your TV (plus accessories) weighs MORE, this
mount is NOT compatible.
Visit SANUS.com or call customer service to find a
compatible mount.
Wood Stud Install
Concrete Install
Awl
Pencil Level Tape
Stud
Finder
ScrewdriverTape
Measure
7/32 in.
(5.5 mm)
Wood
Drill Bit
Electric
Drill
Hammer
1/2 in.
( 13 mm)
Socket
Wrench
Drill Bit
3/8 in.
(10 mm)
Concrete
Call Customer Service
US: 1-800-359-5520
EMEA: +31 (0) 495 580 852
UK: +44 (0) 800 056 285
3

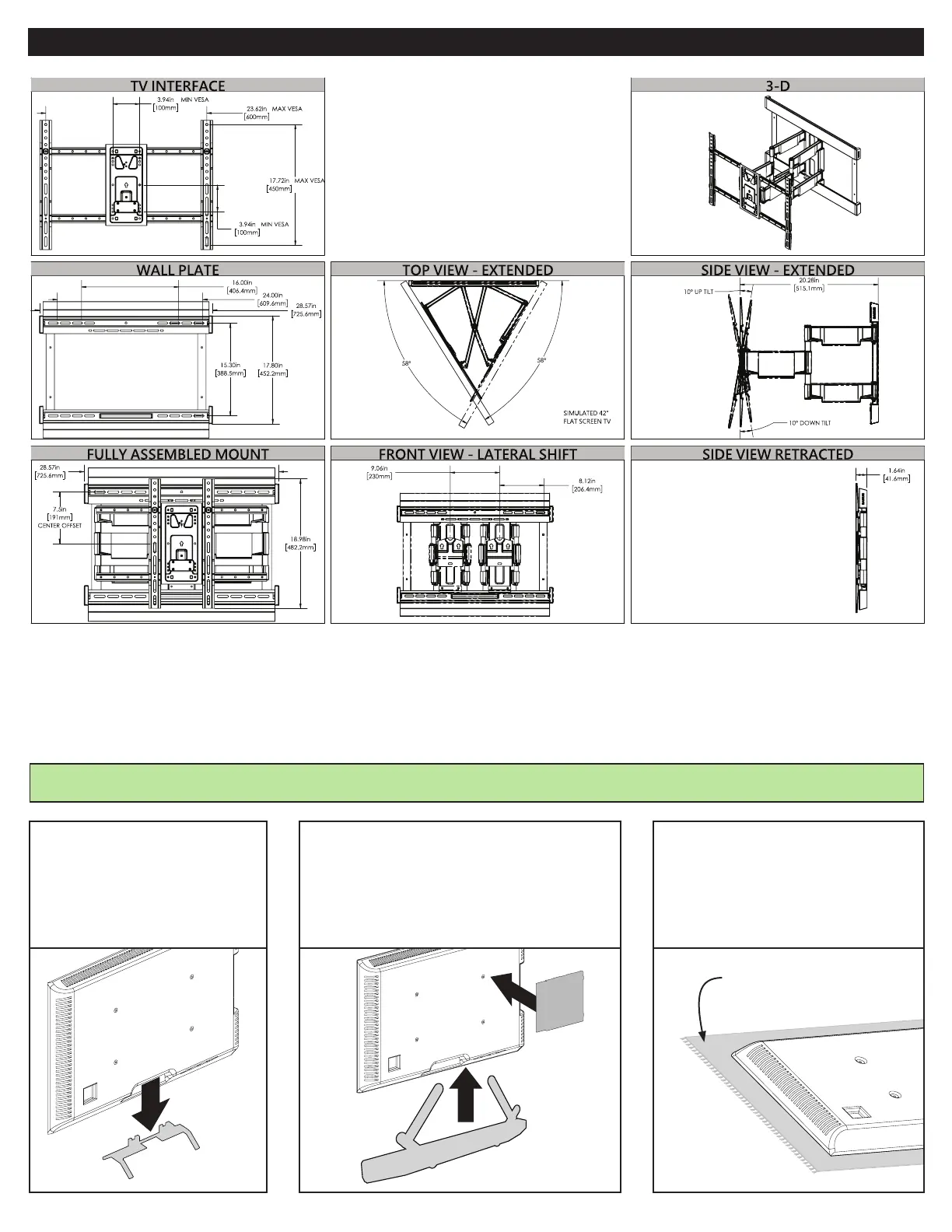

Dimensions
BEFORE YOU BEGIN
Remove the stand
from your TV if attached.
Install any accessories
you may have purchased, if they requireTV
removal prior to assembly. The TV is removable
for future accessory purchases.
Soft clean surface
Protect the face
of your TV when laying it down for
installation.
