Sivu 1/9

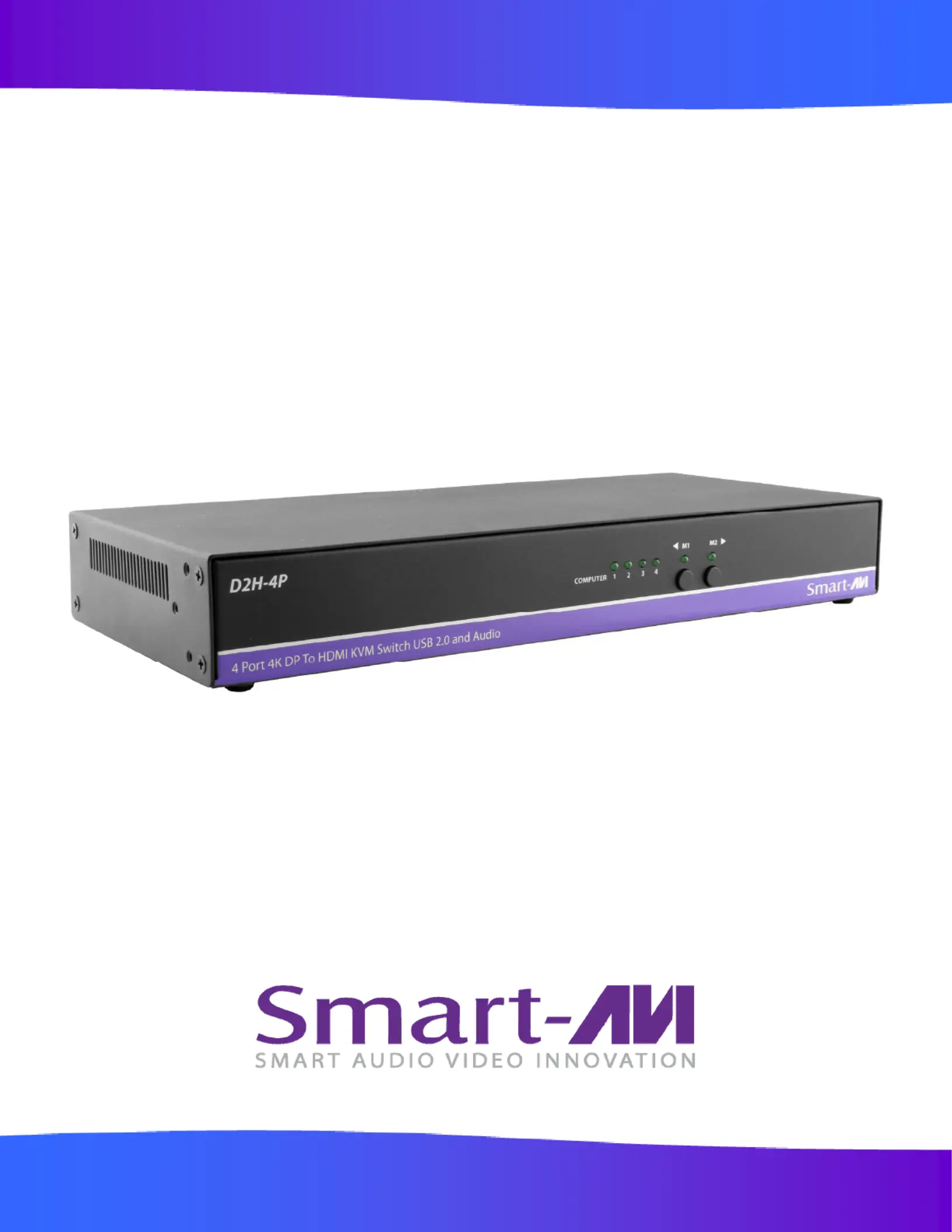

Made in U.S.A. www.SmartAVI.com 1-800-AVI-2131
D2H‐4P
User Manual
User Manual
User Manual
User Manual User Manual
Manage 4 computers from a single workstation
4-P
4-P
4-P
4-P4-Por
or
or
orort Displa
t Displa
t Displa
t Displat DisplayP
yP
yP
yPyPor
or
or
orort in, HDMI out,
t in, HDMI out,
t in, HDMI out,
t in, HDMI out, t in, HDMI out, 4K Ultra-HD KVM Switch with USB and Audio
2
TABLE OF CONTENTS
WHAT'S IN THE BOX? 2
FEATURES 2
OVERVIEW 3
TECHNICAL SPECIFICATIONS 4
HARDWARE INSTALLATION 5
FRONT PANEL CONTROL 6
HOTKEY COMMANDS 6
RS-232 CONTROL 7
LIMITED WARRANTY STATEMENT 8
FEATURES
Full EDID video emulation via HDMI output
KVM control between four connected computers from a single workstation
Supports resolutions up to 4K (3840x2160 @30Hz)
DisplayPort 1.2 and HDMI compliant
Zero pixel loss with TMDS signal correction
Supports all USB 2.0 devices, including keyboard and mouse
Supports Windows, Mac and Linux
Optionally rack mountable
Hot key commands for quick channel selection
Independent (asynchronous) switching of KVM and peripheral USB ports. Users can scan a docu-
ment and save in another computer
Complete KVM emulation for error free booting
Front panel buttons for manual switching
Full HDMI support and backwards compatible with prior DisplayPort versions
Stereo Audio sharing
WHAT'S IN THE BOX?
PART NO. QTY DESCRIPTION
D2H-4P 1 4-Port DisplayPort KVM Switch with Audio and USB 2.0 Sharing
PS5VDC2A 1 Power Adapter External 100-240 VAC/5VDC2A
1 Quick Start Guide
Brackets for mounting this device in a standard 19” rack may be optionally ordered from Smart-AVI.
3
OVERVIEW
D2H-4P is a dedicated multi-platform KVM switch capable of managing four 4K computers through a sin-
gle, central workstation. Built with ultra-HD ready HDMI output the D2H-4P offers full video emulation di-
rectly from the device. Up until now, DisplayPort switches lost emulated picture when disconnected from
monitors, leading to confusion and disorganization upon reconnecting. With D2H-4P, full EDID-assisted
HDMI video emulation ensures visual workspaces and screen resolutions are remembered every time.
The D2H-4P is DisplayPort 1.2 and HDMI compliant, supporting screen resolutions up to 4K Ultra-HD
(3840x2160 @ 30Hz) for remarkable and responsive video emulation. Additionally, the D2H-4P is USB
peripheral-friendly. The D2H-4P is also easy to control with both a simple front-panel interface, as well as
RS-232 functionality.
SOURCE SWITCHING MADE EASY
The D2H-4P offers simplified management between four DisplayPort equipped computers’ USB 2.0 outputs. Key-
boards, mice, and other connected USB devices can be switched between with ease. This dynamic KVM console
can be controlled via hot keys or RS-232 commands, as well as directly through the console’s easy-to-read front
panel.
EDID PASS-THROUGH AND RECOGNITION
The D2H-4P features EDID Pass-Through technology and source recognition, which enables smooth and efficient
switching in virtually any scenario. This plug-and-play EDID functionality makes set up hassle free and simple.
FULL USB KEYBOARD AND MOUSE EMULATION
The USB keyboard and mouse emulation utilized by D2H-4P provides quick source switching via keyboard hot keys.
D2H-4P simulates the presence of a keyboard and mouse for every attached computer through a USB cable. This
essential function simulates keyboard, video, and mouse control for all connected computers, so switching be-
tween each is kept seamless and completely uninterrupted.
FLEXIBLE CONTROL
USB/KEYBOARD: Hot keys enable the user to switch and control all the different functions of the KVM switch. RS-
232: Any external device or program supporting RS-232 can control the D2H-4P. The D2H-4P uses a very simple
protocol that enables easy integration with other devices.
FLEXIBLE SHARING
INDEPENDENT SIMULTANEOUS DEVICE SELECTION: Flexibility is key with the D2H-4P. It enables the use of a USB
keyboard and mouse of one computer while other USB peripherals such as scanners and printers are connected to
other computer sources. D2H-4P maintains the ability to switch all connected devices to any one of the computer
sources as with any other KVM switches.
REAL-WORLD APPLICATIONS
The D2H-4P has a broad range of applications, but the main function is to centralize the access of up to four com-
puters that support DisplayPort displays in a single workstation. Not only does it function as a KVM console, but it
also supports USB 2.0 functionality. This allows users to access nearby USB devices, including those not supported
by other KVM switches. The D2H-4P is the ideal solution for medical, industrial, studio and defense applications,
where it is not practical or safe to have multiple computers in the vicinity of the workstation.
• Server Hubs • Hospitals/Medical Care
• Retail Spaces • Educational Facilities
• Airports • Dealer Rooms
• Control Rooms • Audio/Visual Presentation Spaces
• Restaurants and Eateries • Hotels/Resorts
