Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: January 17, 2023 3:05 PM
Product ID
C2-DH46-UA2-CBL-KVM
Top
Sides
Front
2-Port Dual Monitor Cable KVM Switch - HDMI - 4K 60Hz

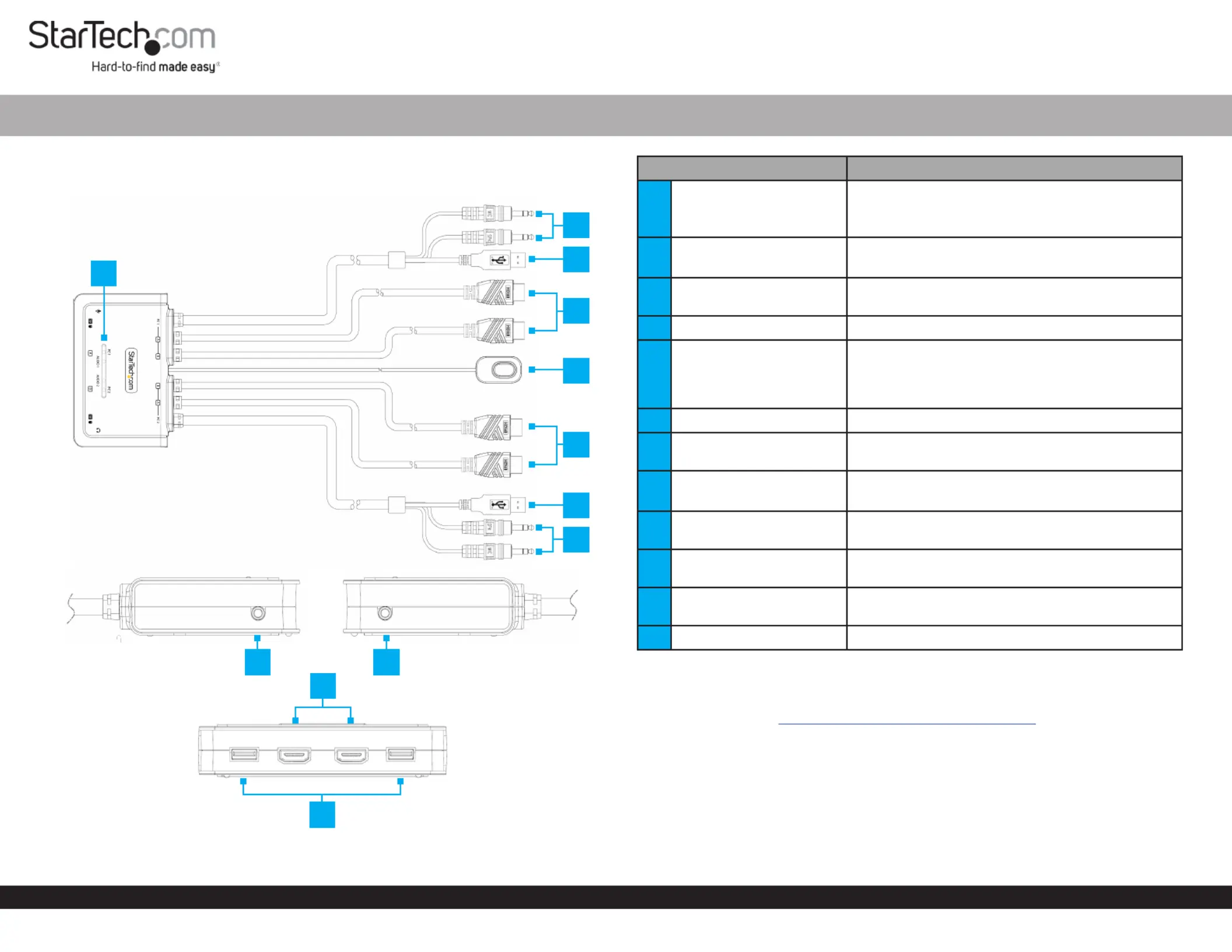

Component Function
1LED Indicators
• Solid Green = Selected PC is Connected
• Blinking Green = Selected PC is not detected
• Amber LED = Selected Audio Source
2PC 1 Audio Connectors • Green: 3.5mm Headphone PortConnect to
• Pink: 3.5mm Microphone PortConnect to a
3PC 1 USB-A Host
Connector • Connect to a on USB-A port PC 1
4PC 1 HDMI Connectors • Connect to an HDMI Enabled Computer
5Remote Port Selector
• A wired button used to switch between PC 1
and PC 2
• Press and Release the to switch Remote Switch
between and PC 1 PC 2
6PC 2 HDMI Connectors • Connect to an HDMI Enabled Computer
7PC 2 USB-A Host
Connector • Connect to a on USB-A port PC 2
8PC 2 Audio Connectors • Green: 3.5mm Headphone PortConnect to a
• Pink: 3.5mm Microphone PortConnect to a
9Console Microphone
Port • Pink: MicrophoneConnect a
10 Console Audio Output • Green: Audio DeviceConnect an (ie. Speakers
or Headphones)
11 Console HDMI Output
Ports • Connect to two HDMI Displays
12 Console USB HID Ports • Connect a and USB Mouse Keyboard
Product Information
For the latest manuals, product information, technical specications, and declarations of
conformance, please visit: www.StarTech.com/C2-DH46-UA2-CBL-KVM
Package Contents
• KVM Switch x 1
• Quick-Start Guide x 1
2
8
3
5
4
6
7
1
9 10
11
12
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could
void the user’s authority to operate the equipment.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Warranty Information
This product is backed by a two-year warranty.
For further information on product warranty terms and conditions, please refer to .
www.startech.com/warranty
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)
for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of
business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations
or exclusions contained in this statement may not apply to you.
Safety Measures
• If product has an exposed circuit board, do not touch the product under power.
Mesures de sécurité
• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.
安全対策
• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。
Misure di sicurezza
• Se il prodotto p2-ha un circuito stampato visibile, non toccare il prodotto quando è acceso.
Säkerhetsåtgärder
• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.
FR: startech.com/fr
DE: startech.com/de
ES: startech.com/es
NL: startech.com/nl
IT: startech.com/it
JP: startech.com/jp
StarTech.com
Ltd.
45 Artisans Cres
London, Ontario
N5V 5E9
Canada
StarTech.com
Ltd.
Unit B, Pinnacle 15
Gowerton Rd,
Brackmills
Northampton
NN4 7BW
StarTech.com LLP
4490 South Hamilton
Road
Groveport, Ohio
43125
U.S.A.
StarTech.com Ltd.
Siriusdreef 17-27
2132 WT Hoofddorp
The Netherlands
3. (Optional) Connect a from the or3.5 mm Audio Cable Stereo Speakers
Headphones Speaker Audio Port KVM to the (green), located on the side of the
Switch.
4. (Optional) Connect a from the to the 3.5 mm Audio Cable Microphone Microphone
Audio Port KVM Switch. (pink), located on the side of the
Operation
Switching with the Remote Port Selector
To switch between which is active, press and release the button on Host Computer
the .Remote Port Selector
Software Operation
Install the on each computer connected to the KVM Switching Software KVM Switch
to use features such as autoscan, xed audio, and more.
Note: To download the latest KVM Switching Software, please visit:
www.StarTech.com/C2-DH46-UA2-CBL-KVM
Hotkey Reference Guide
Note: Each hotkey sequence keystroke should be pressed within two seconds.
Keyboard with Scroll Lock: ComputersTo switch the hotkey combination is Scroll
Lock + Scroll Lock + 1 - 2
Keyboard with no Scroll Lock: Use the available software to dene the new hotkey
sequence
Requirements
• HDMI Enabled Computers x 2
• HDMI Cables x 2
• HDMI Display x 2
• USB HID Devices (Keyboard / Mouse) x 2
• (Optional) Microphone x 1
• (Optional) Powered/Active Stereo Speakers or Headphones x1
• (Optional) Headset x 1
Note: A Headset may require the use of a Headset Adapter. Please check with the
manufacturer of the Headset for more details.
Installation
Connect the Computers
Note: Power o all Computers, Displays, and Peripherals before completing the
following installation steps.
1. Connect the built-in to the on PC 1 HDMI Connectors HDMI Output Ports PC 1.
2. Connect the built-in to a on . PC 1 USB Host Connector USB-A Port PC 1
3. (Optional) Connect the built-in to the corresponding PC 1 Audio Connectors 3.5 mm
Audio Ports PC 1 on .
4. Repeat to install .Steps 1-3 PC 2
Connect the Console
1. Connect a to the , located on the USB Mouse and Keyboard Console USB HID Ports
front of the .KVM Switch
2. Connect an from each , to each of the HDMI Cable HDMI Display Console HDMI
Output Ports KVM Switch, located on the front of the .
