*Only use a 9 volt DC, Center Negative, 100mA to power the pedal.
The use of an isolated power supply is recommended for powering all Walrus Audio Pedals.
Daisy chain power supplies are not recommended.
Got questions or need a repair?
Email help@walrusaudio.com to talk with a real live human about your Walrus gear!
This product comes with a limited lifetime warranty.
Click Here for more info.

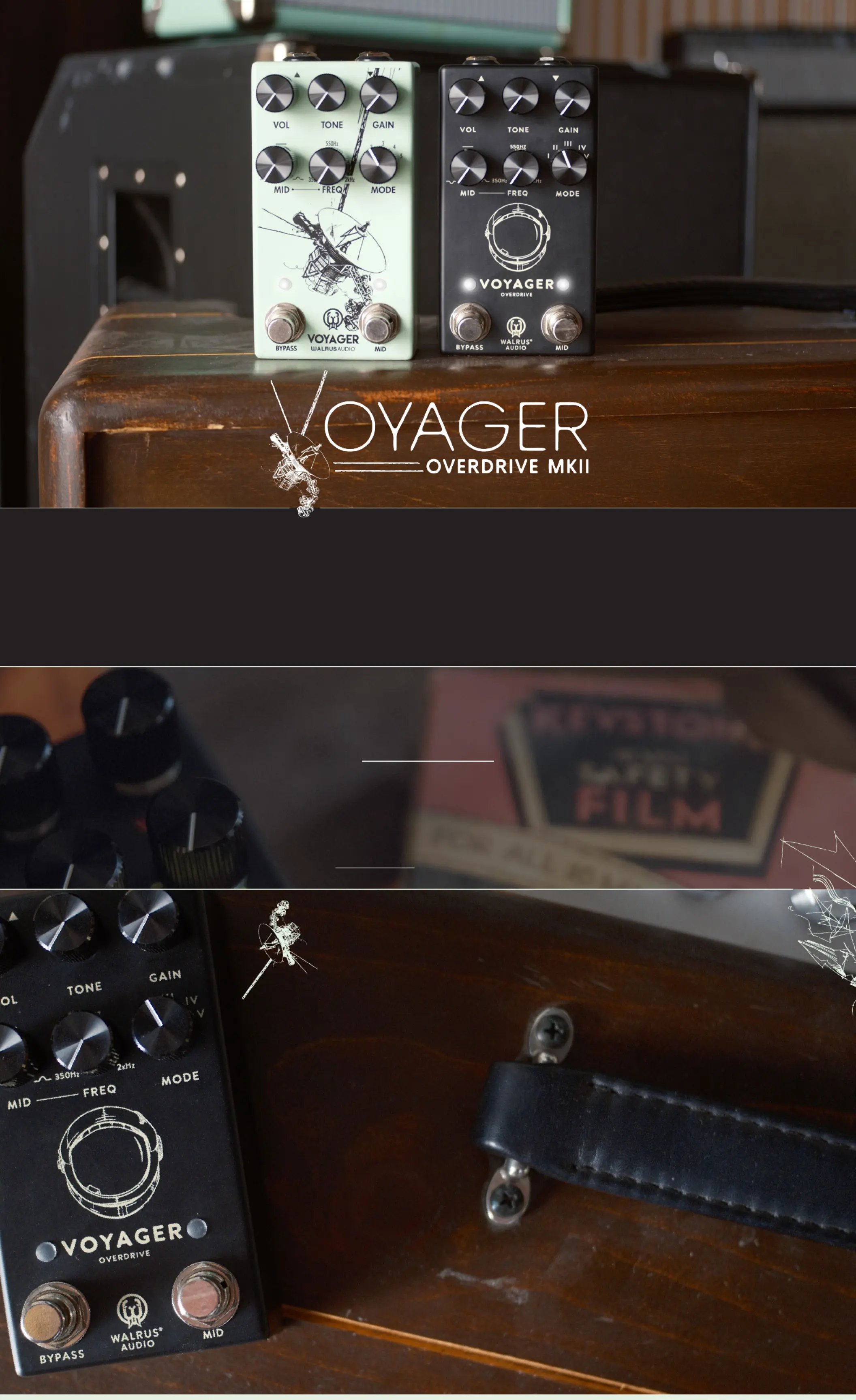

The Voyager MKII is a mid-focused overdrive/preamp that contains all the mythical magic from
the original Voyager and adds a wealth of features not seen before in a Klon-style pedal. From
its lowest to highest settings, the Voyager provides a uniquely superb amount of clarity to any
playing style. At lower gain settings, it brightens the signal and adds clarity to each note. With the
gain turned up, the Voyager transforms into a thick overdrive, providing depth to chorded playing
while retaining the clarity needed to break through solos.

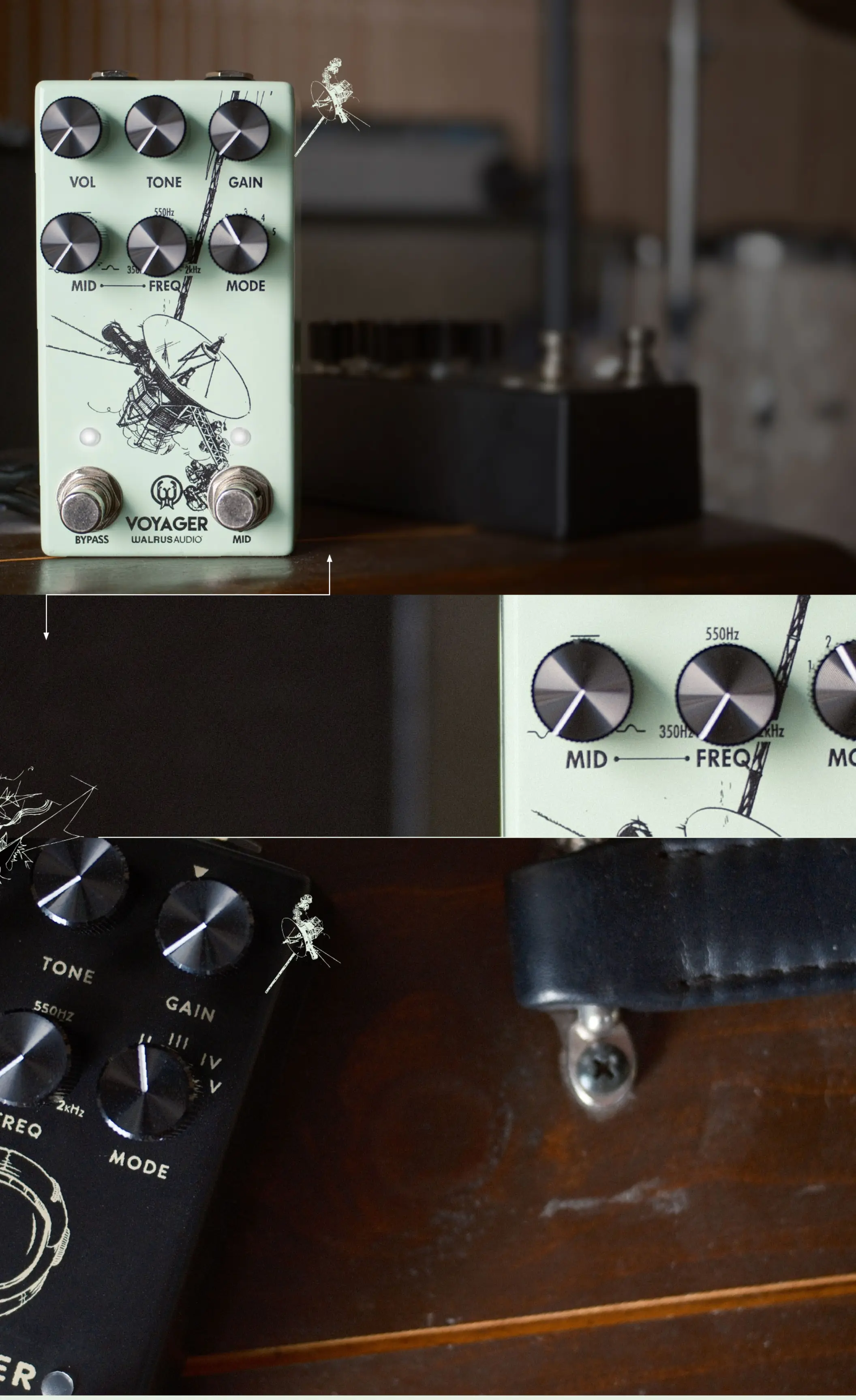

Bypass: Soft-touch, relay true bypass. Press the switch to
engage/disengage the pedal. LED indicates whether the
circuit is engaged or not.
Mid Switch: Turns the Mid-EQ circuit on/off. This is only active
when the bypass switch has been engaged. You can use this
to change your tone for specific sections of the song or when
pairing with other pedals.
Volume : Control the overall volume of the Voyager. Clockwise
increases volume, counter-clockwise decreases the volume.
Use to set “unity” after you get the gain you are wanting.
Tip: With the gain knob set at a lower setting, you can use the
pedal as a “clean” boost paired with the mid-EQ. Really nice
tone-shaping feature and pairs well with other drives.
CONTROLS
Tone: Adjust the cutoff frequency of a low-pass filter to
tame the high end or let it sing. Clockwise increases high-
frequency amplitude, counter-clockwise decreases high
frequency amplitude.
Gain: Use to increase the overall gain of the drive circuit.
Clockwise increases gain, counter-clockwise decreases
gain. This circuit blends your guitars clipped signal with
your dry signal. As you increase the gain, you will start to
hear less dry signal and more of that overdriven sound
that we all love.
Mid: Control the gain of a parametric EQ. Has a gain range
of +/-12dB, with 12 o’clock being flat, the classic Voyager
tone. This can be used to focus in on a specific frequency
area for solo-type sections or used to clean up the lower
mid area to achieve a tight, driven guitar tone.
CONTROLS
Freq (Frequency): Control the center frequency
of the MID EQ. The range is 250Hz-2kHz. Use it
to tailor your tone to your style of playing. A nice
range to cover a wide range of guitar and pickup
types.
MODE 1: Classic 1N34A Germanium Diodes
(most compressed).
Mode 2: Classic 1N34A Germanium Diodes with bass boost
(trust us).
Mode 3: Symmetric Silicon Diodes (more open and dynamic).
Mode 4: Asymmetric Silicon Diodes (a little bit of compression).
Mode 5: Asymmetric Silicon Diodes, with bass boost (a little bit of
compression, with bass).
MODES

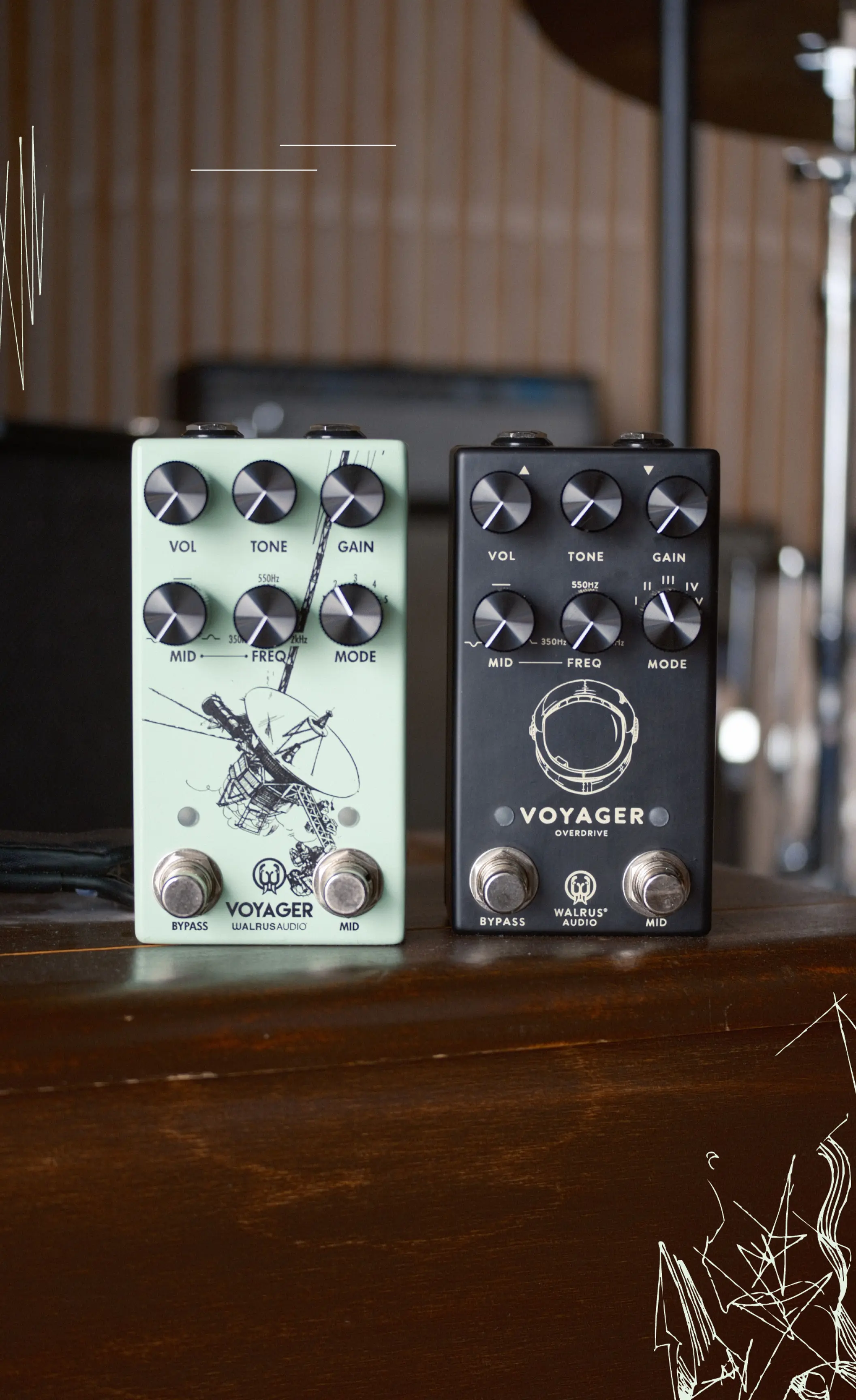

Sea foam pedal art by Nathan Price
Black art by Christi Du Toit
The die cast enclosure’s exact size is
2.62 x 4.77 x 2.25 inches including knobs.
Input: 1/4” TS, Unbalanced, 1M impedance
Output: 1/4” TS, Unbalanced, 100k impedance
True-Bypass
