Please read and keep the information in the attached safety instructions
supplied with the product before starting using the device.
WARNING
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such
as vases, shall be placed on the apparatus. No naked flame sources, such as lighted candles, should be
placed on the apparatus.
WEEE (Waste Electrical & Electronic Equipment)
Correct Disposal of This Product This marking shown on the product or its literature, indicates :
that it should not be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from, uncontrolled waste
disposal, please separate this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased, this product, or their local
government office, for details of where and how they can take this item for environmentally safe
recycling. Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for disposal.
The extender is a DisplayPort 1.2 compatible fiber optical extender (transmitter and EXT-DP12-OPT
receiver set) providing uncompressed signal extension with embedded audio to a range of 200 m (655
ft.) over one single SC multi-mode fiber. The extender supports real 4K UHD (3840x2160 EXT-DP12-OPT
or 4096x2160@60Hz) resolution and a video bandwidth up to 21.6 Gbps.
Thank you for choosing Analog Way . By following these simple steps, you will be DP 1.2 Over Fiber Extender
able to set up and use your extender within minutes.
BOX WHAT’S IN THE
• 1x EXT-DP12-OPT Transmitter
• 1x EXT-DP12-OPT Receiver
• 2 +5V DC Power supplyx
• 2x DisplayPort short copper cable
• 1x Quick start guide*
Go on our website to register your product(s)
and be notified about new firmware versions:
http://bit.ly/AW-Register
*Quick start guide also available on www.analogway.comis
OVERVIEW
SAFETY INSTRUCTIONS
QUICK START GUIDE
DP 1.2 Over Fiber Extender
Ref. EXT-DP12-OPT

1. Connect the Transmitter module to the DisplayPort source device using DisplayPort short copper cable
(included)
2. Connect the Receiver module to the display using DisplayPort short copper cable (included)
3. Connect a single strand of OM3 multi-mode SC terminated fiber optic cable (50/125 ) from the ㎛
Transmitter to the Receiver module.
4. Connect the included +5V DC power supply into Transmitter and Receiver module.
5. Active LED indicator on the modules will be light up after all connections are completed.

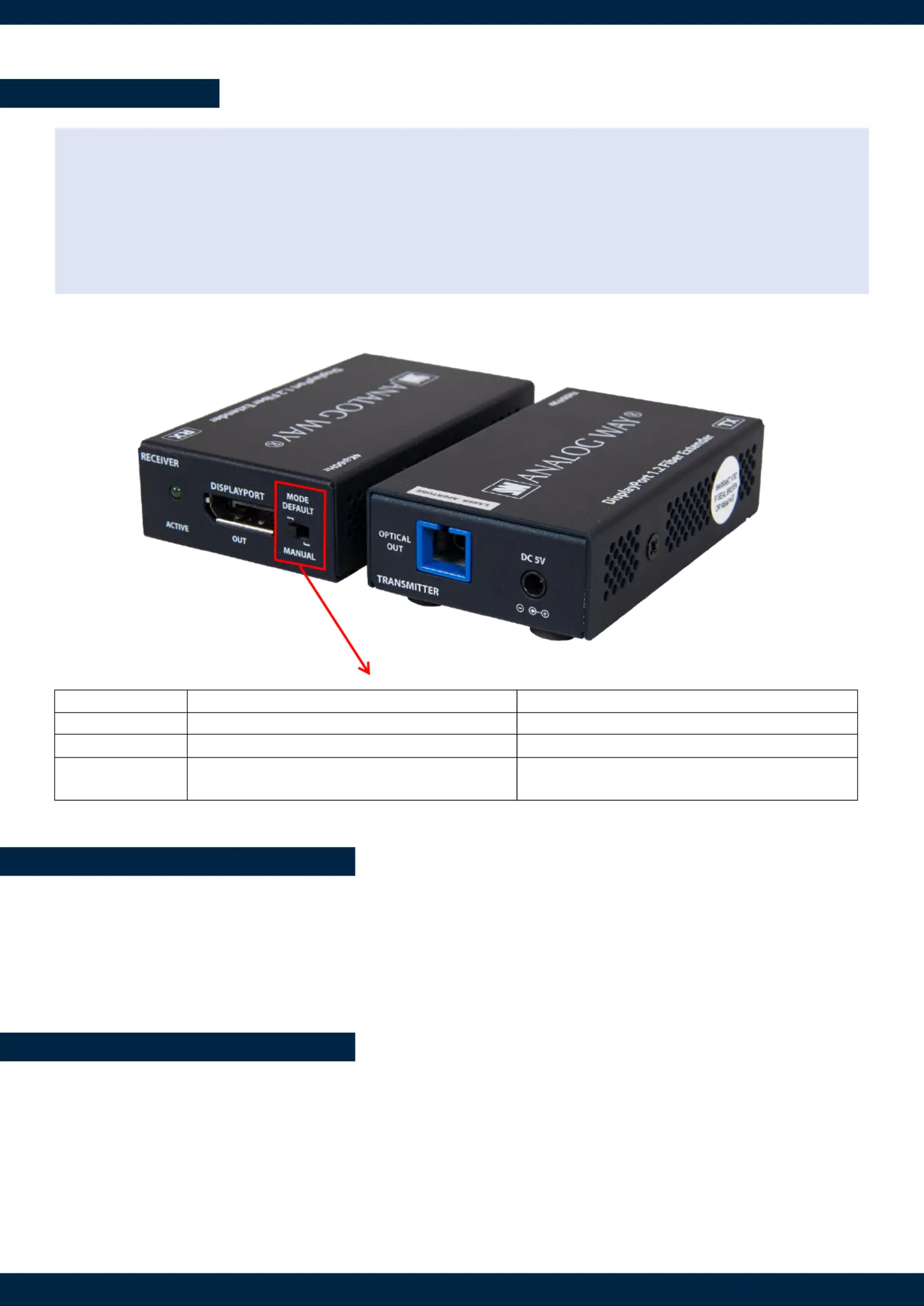

INSTALLATION
Transmitter
Receiver
DEFAULT
Minimum DP output level (recommended)
Auto setting (recommend ) ed
MANUAL
Maximum DP output level
Special setting of EQ / VOD / Pre-emphasis
Note
Switch this setting is in accordance with the
characteristics of the DisplayPort output
Switch setting is in accordance with the
characteristics of the DisplayPort input
WARRANTY AND SERVICE
This Analog Way product has a 1-year warranty on parts and labor (back to factory). Broken connectors are
not covered by warranty. This warranty does not include faults resulting from user negligence, special
modifications, electrical surges, abuse (drop/crush), and/or other unusual damage. the unlikely event In of a
malfunction, please contact your local Analog Way office for service.
FURTHER INFORMATION
Please visit our website for further information: www.analogway.com.
Manufactured for Analog Way by OPHIT CO. LTD in Republic of Korea - Head Office. #908~911/103, Digital Empire2, 88 Sinwon-ro, Yeongtong-gu Suwon-si,
Gyeonggi-do, 16681, Republic of Korea - Tel. +82- - -31 695 5543
12-FEB-2021
EXT-DP12-OPT- QSG
Code 140210
