Installation Guide
AT-VSP-800-BL and AT-VSP-800-WH
1
Velocity System 8” Scheduling Touch Panel
AT-VSP-800-BL and AT-VSP-800-WH

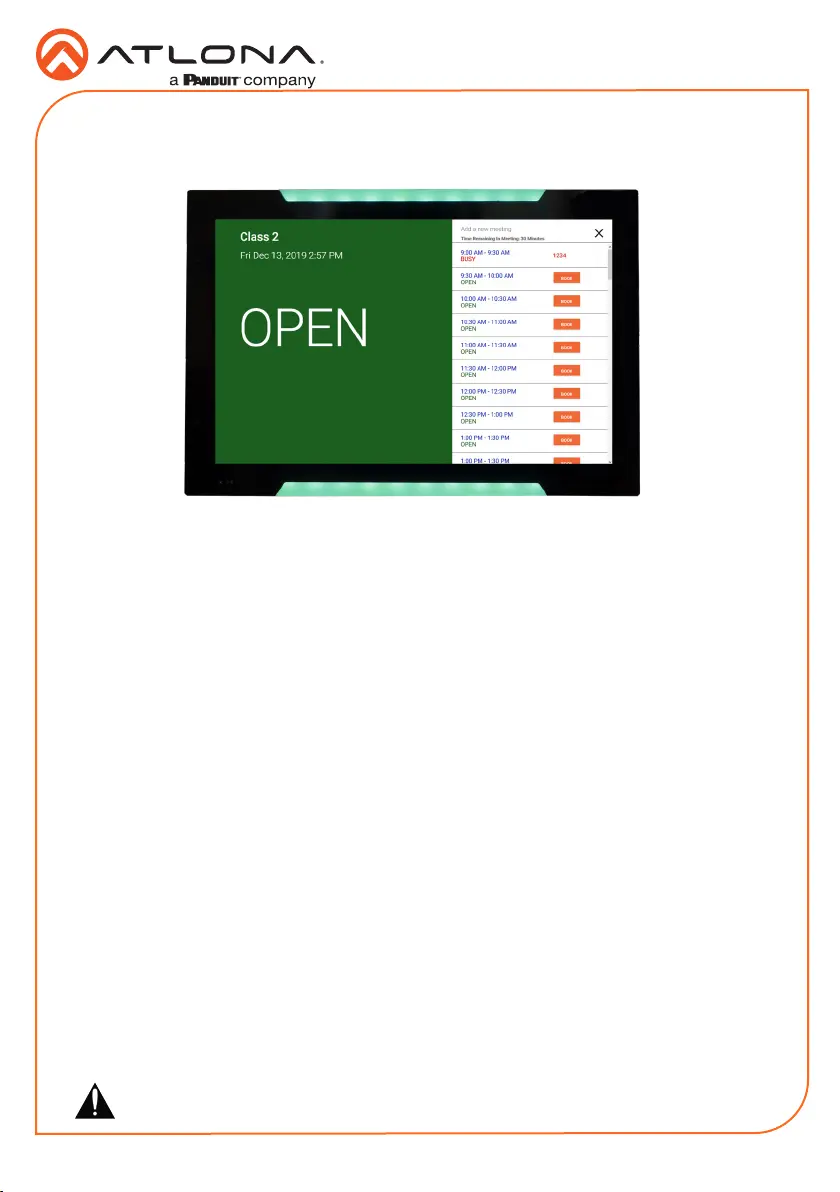

The Atlona AT-VSP-800 is a Velocity System 8” scheduling touch panel. It features contemporary,
rened styling with 1280×800 native resolution, and a capacitive glass surface that supports
touch and gesture interactions. Bright LED lighting on the edge of the bezel is ideal for providing
a visual representation of room status in scheduling applications. This touch panel conveniently
installs into a wall or furniture via a one-gang US, UK, or EU opening. The VSP-800 features
Power over Ethernet (PoE), enabling a single network connection for data and power. Setting up
the touch panel is eortless as room scheduling and AV control GUIs are automatically uploaded
from the Velocity System hardware or software server gateway during system conguration.
1 x AT-VSP-800
1 x Metal 1-gang mounting plate
1 x Metal 2-gang US horizontal mounting plate
4 x Mounting screws
1 x Installation Guide
Package Contents
Operating Notes
The Velocity 8” Scheduling Touch Panel (AT-VSP-800) must be on the same network as the
Velocity Gateway (AT-VGW-HW-3/10/20) or it will be unable to sync for scheduling.
The AT-VTP-800 is PoE capable, to power the unit, simply plug it into a 802.3af compatible
network switch. If the network switch is not PoE capable, a PoE injector (purchased separately)
can be used.
IMPORTANT: Velocity Gateway (AT-VGW-HW-3/10/20) must be set up before the AT-
VSP-800 is fully functional.
Installation Guide
AT-VSP-800-BL and AT-VSP-800-WH
2

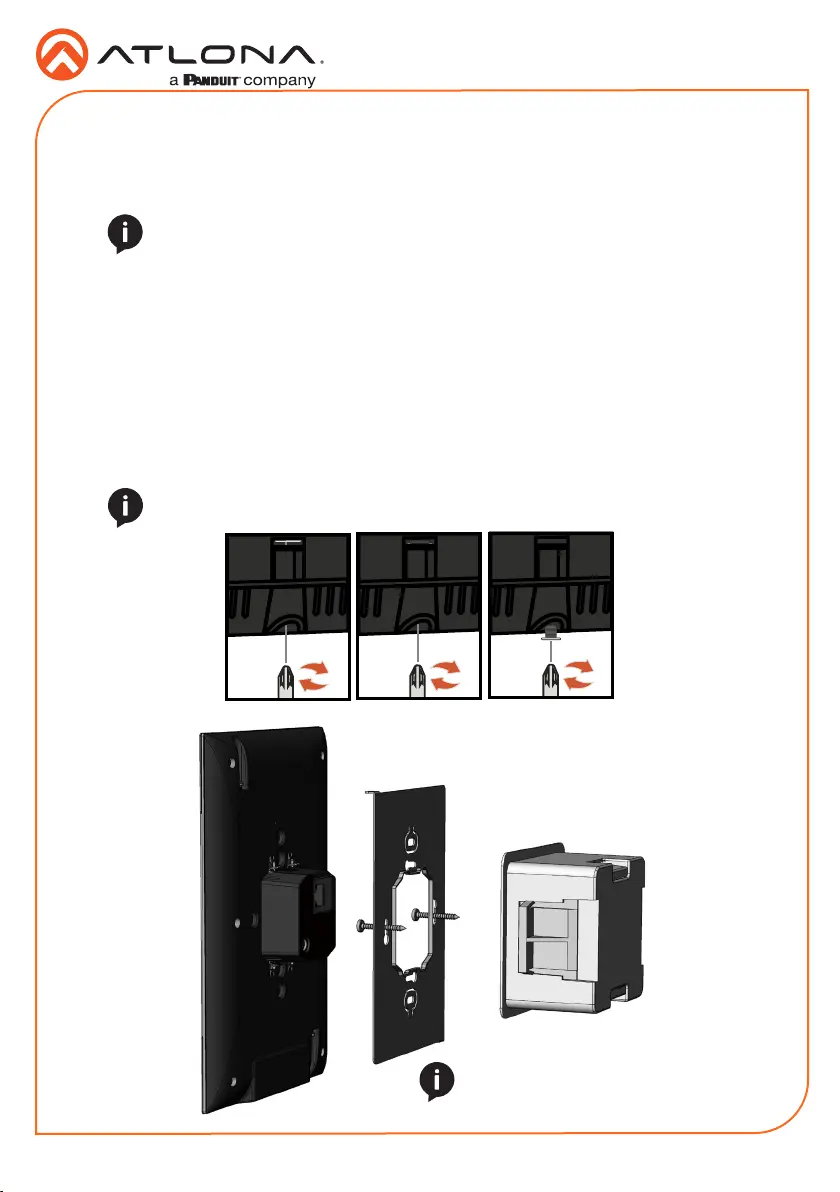

Mounting Instructions
The AT-VSP-800 can be mounted to a 1 gang back plate.
UK back box:
1 Select the type of 1 gang back box to use and install into a wall.
2 Thread the Ethernet cable through the 1 gang box.
3 Install the included mounting plate into the 1 gang box.
a If using a UK back box, place the screws in the two inside mounting holes.
b If using a US back box, place the screws through the outside screw holes.
4 Loosen or remove the two screws located at the top and bottom of the unit.
5 Place the unit onto the metal back plate, the dual prongs inserting into the small opening on
the back of the unit.
6 Tighten/attach the screws at the top and bottom of the touch pad.
NOTE: Install using the region’s safety guidelines for electrical boxes.
NOTE: To avoid damage to the unit, do not overtighten the screws.
NOTE: For horizontal installation, turn
the unit and mounting plate on its side.
The same back box can be used.
Installation Guide
AT-VSP-800-BL and AT-VSP-800-WH
3

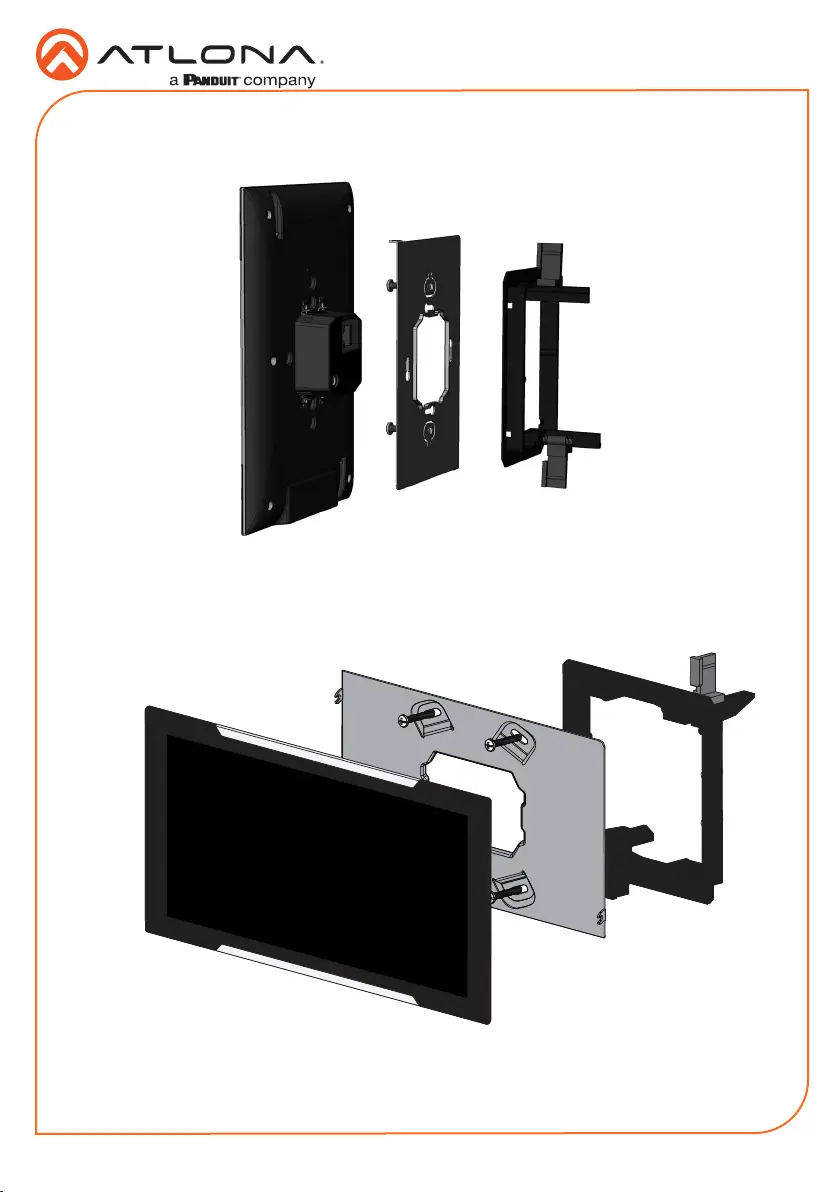

US back box:
1-gang Vertical installation
2-gang Horizontal installation
To install the touch panel in landscape orientation in a wall the US 2-gang installation
plate should be used. Use the 4 included screws to install the unit into the back box.
