Sivu 1/18

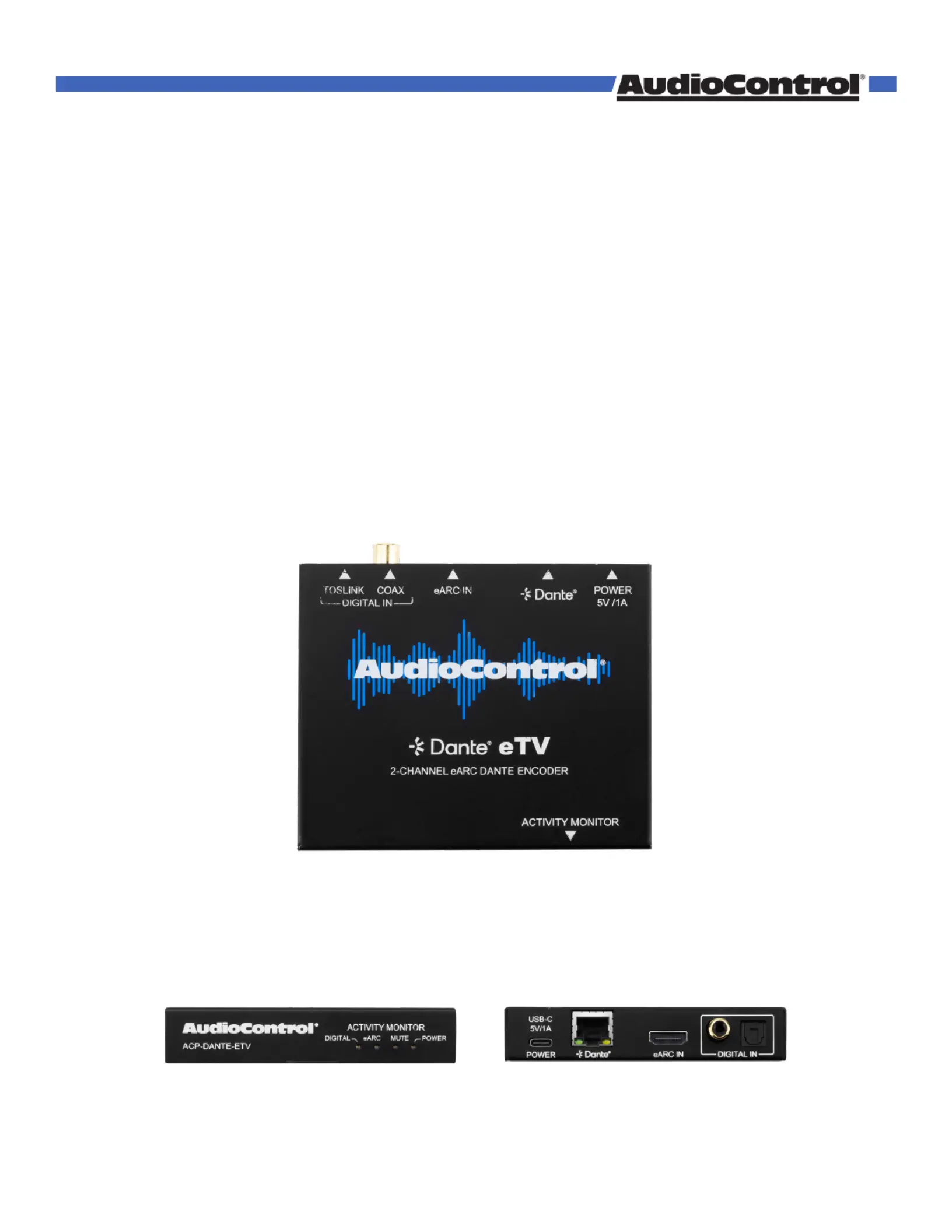

©COPYRIGHT AVPRO GLOBAL HOLDINGS 2024 - 22410 70TH AVENUE WEST, MOUNTLAKE TERRACE, WA 98043 1

ACP-DANTE-ETV

eARC Audio Output DANTE™ Encoder

User Manual

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Reading the instructions should take less time than a Peter Jackson Trilogy.

4. Do not use this apparatus near water.

5. Clean only with a dry cloth.

6. Do not block any ventilation openings.

7. The devices and their accessories should never be exposed to open ﬂames

or excessive heat.

8. Only use attachments and accessories speciﬁed by the manufacturer.

9. To reduce the risk of electrical shock or damage to the devices and their

operators, never handle or touch the devices and power cord with damp or

wet hands.

10. Refer all servicing to qualiﬁed service personnel. Servicing is required

when the apparatus has been damaged in any way, such as power-supply

cord or plug is damaged, liquid has been spilled or objects have fallen into

the apparatus, the apparatus has been exposed to rain or moisture, does

not operate normally, or has been dropped.

CAUTION: Changes or modiﬁcations to this device not expressly approved by

AudioControl Inc. could void the user’s authority to operate the equipment

under FCC rules.

Recycling notice: If the time comes and this apparatus has fulﬁlled

its destiny, do not throw it out into the trash. It has to be carefully

recycled for the good of mankind, by a facility specially equipped

for the safe recycling of electronic apparatii. Please contact your local or state

recycling leaders for assistance in locating a suitable nearby recycling facility.

Or, contact us and we might be able to repair it for you.

©COPYRIGHT AVPRO GLOBAL HOLDINGS 2024 - 22410 70TH AVENUE WEST, MOUNTLAKE TERRACE, WA 98043 2

Important Safety Instructions 2 .........................................................................................................

Table of Contents 3 ..............................................................................................................................

Introduction 4 ........................................................................................................................................

Features 4 ........................................................................................................................................

Key Beneﬁts 4 ..................................................................................................................................

Product Overview 5 .............................................................................................................................

Box Contents 5 ................................................................................................................................

Technical Speciﬁcations 5 ............................................................................................................

Front and Rear Panels 6 ...............................................................................................................

Installation 7 ..........................................................................................................................................

Connecting the Devices 7 .............................................................................................................

Dante Port Wiring .......................................................................................................................8

Audio Loop Out 8 ...........................................................................................................................

EArc setup 9 ...........................................................................................................................................

Digital Audio Inputs ....................................................................................................................9

Device Conﬁguration 10 .......................................................................................................................

Basic Navigation and Dante Flow Subscription 10 ...................................................................

Creating multicast Dante Flows 11 ..............................................................................................

Changing Device Name and Encoding Conﬁguration 11 .......................................................

Network Conﬁguration 12 ..............................................................................................................

AES67 Audio Stream Conﬁguration 12 ........................................................................................

Service 13 .................................................................................................................................................

Support 13 ................................................................................................................................................

Warranty 14 .............................................................................................................................................

Installation Notes 16 ...............................................................................................................................

Dante Boogie 17 .....................................................................................................................................

Thank you 18 ...........................................................................................................................................

Table of Contents
