OWNER’S MANUAL
AMP102VS
AudioSource®
13970 SW 72nd Ave
Portland, OR 97223
503.914.4688
www.audiosource.net AMP102VS Owner’s Manual 72015
Congratulations on your purchase of the AudioSource® AMP102VS.
Please take a few moments to read this entire manual, and be sure to
retain this document for future reference. Please read and observe all
safety instructions detailed on page 2.
NOTE: If any part of this product is damaged or missing, please call your
dealer or AudioSource® directly at 1.877.715.5439 or 503.914.4688.
Please read your warranty and retain your receipt and original carton
for possible future use.
For more information about AudioSource® electronics, speakers and
accessories please visit www.audiosource.net

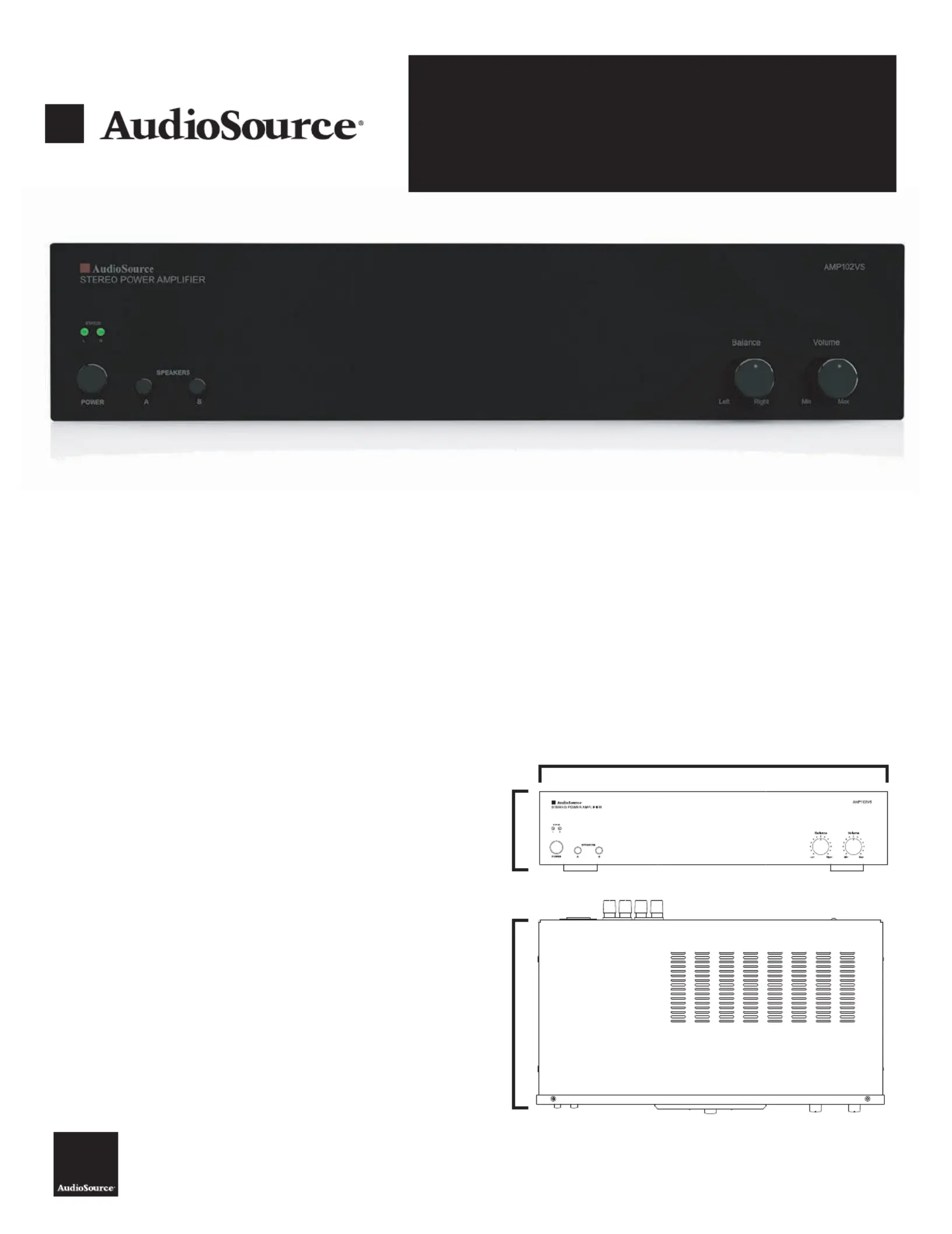

AMP102VS
Stereo Power Amplifier
FEATURES:
MAIN / INTERRUPT priority input switching
MAIN auxiliary output
Speaker A/B switching
Front panel Balance and Volume controls
Signal sensing “Power On” and Trigger mode
SPECIFICATIONS
Stereo (8 ohm): 55W per channel, <0.2% THD+N
Stereo (4 ohm): 75W per channel, <0.2% THD+N
Bridged Mono (8 ohm): 160W, 1kHz, <0.2% THD+N
Frequency Response: 10Hz ~ 50kHz, +0dB/ -3dB
Signal to Noise Ratio: 100dB below 50W output into 8 ohms
Channel Separation: 70dB
Input Sensitivity: 700mV input for rated 50W output
into 8 ohms
AC Power Consumption: 500W maximum
Net Weight: 14lbs / 6.4kgs
Gross Weight: 17.4lbs / 7.9kgs
Rear mounted treble and bass controls
Bass/Treble Control: +/- 12dB @ 100Hz and 10kHz
3.8”
(96.5mm)
16.5” (419mm)
8.25”
(210mm)
13. Unplug the apparatus during lightning storms or when unused for long periods
of time.
14. Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus has been exposed to rain or moisture, does not operate normally,
or has been dropped.
15. WARNING: To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture. The apparatus shall not be exposed to
dripping or splashing and that objects filled with liquids, such as vases,
shall not be placed on apparatus.
16. WARNING: The mains plug/appliance coupler is used as disconnect device,
the disconnect device shall remain readily operable.
17. This equipment is a Class II or double insulated electrical appliance. It
is designed in such a way that it does not require a safety connection
to electrical earth.
18.
- This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute
a risk of electric shock.
- Warning: to reduce the risk of electric shock, do not remove cover (or back) as
there are no user-serviceable parts inside. Refer servicing to qualified personnel.
- The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance instructions in the
literature accompanying the appliance.
AMP102VS
OWNER’S MANUAL
13970 SW 72nd Ave, Portland, OR 97223 • 503.914.4688 • www.audiosource.net
2
CAUTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER. NO
USER SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL!
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. The ventilation should not be impeded
by covering the ventilation openings with items such as newspaper, table-
cloths, curtains etc. Install in accordance with the manufacturer’s instructions.
8. Do not install near heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat. No open flame
sources, such as lighted candles, should be placed on the apparatus.
9. Do not defeat the safety purpose of the polarized or grounding type plug.
A polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or
third prong is provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
MAGNETIC FIELD: !!CAUTION!! Do not locate sensitive high-gain equipment such as preamplifiers or tape decks directly above or below the unit. Because
this amplifier has a high power density, it has a strong magnetic field, which can induce hum into unshielded devices that are located nearby. The field is
strongest just above and below the unit. If an equipment rack is used, we recommend locating the amplifier(s) in the bottom of the rack and the preamplifier
or other sensitive equipment at the top.

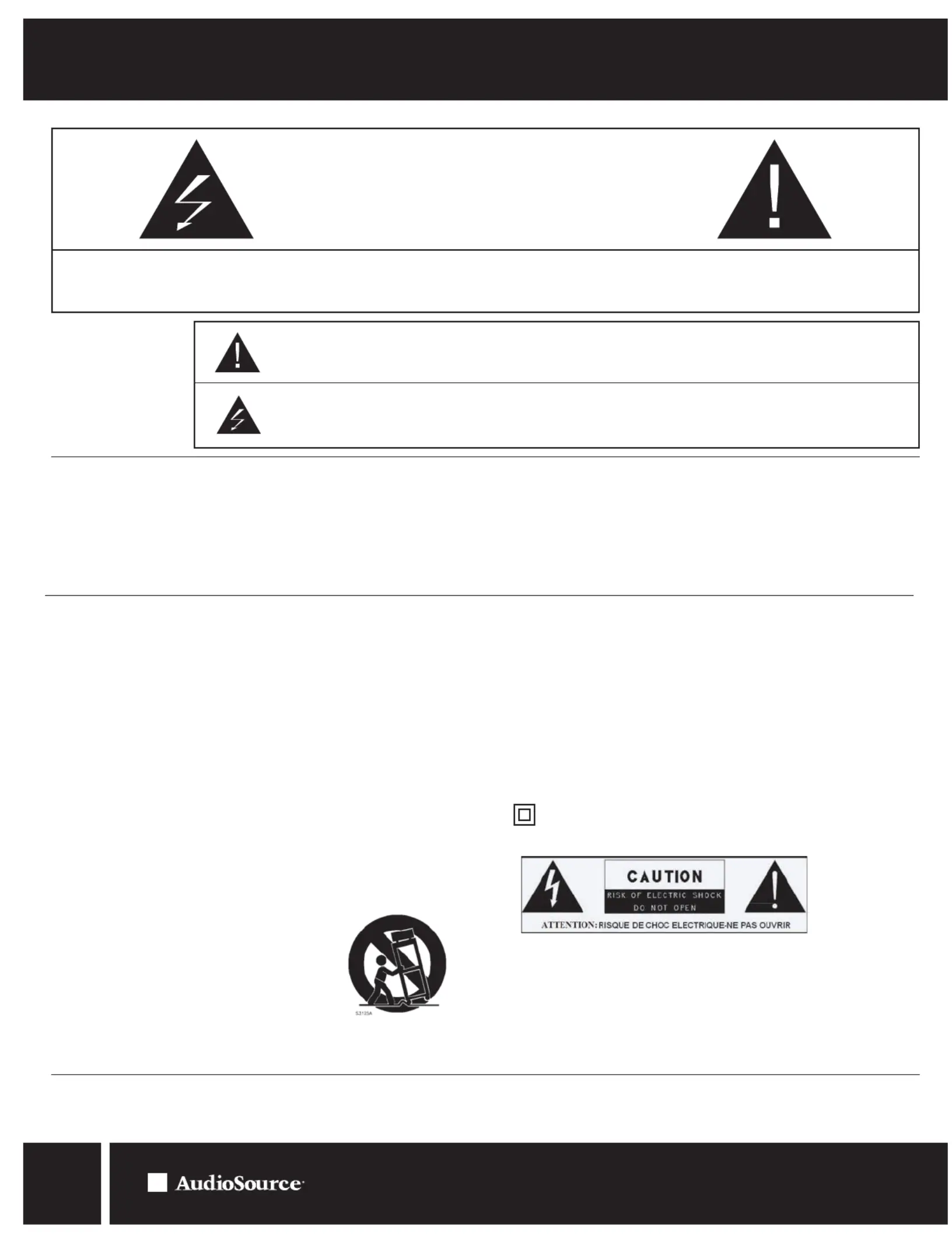

EXPLANATION OF
SAFETY SYMBOLS
The exclamation point within an equilateral triangle is intended to alert the user of the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the products’ enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
10. Protect the power cord from being walked on or pinched particularly at the
plugs, convenience receptacles, and at the point of exit from the apparatus.
11. Only use attacheements/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart or rack is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
• WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. THE APPARATUS SHALL NOT
BE EXPOSED TO DRIPPING OR SPLASHING AND THAT OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL NOT BE PLACED
ON APPARATUS.
• WARNING: TO PREVENT FIRE OF SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
• WARNING: THE MAINS PLUG IS USED AS DISCONNECT DEVICE. THE DISCONNECT DEVICE SHALL REMAIN READILY AVAILABLE.
• WARNING: ONLY USE ATTACHMENTS OR ACCESSORIES SPECIFIED OR PROVIDED BY THE MANUFACTURER.
AMP102VS
OWNER’S MANUAL
13970 SW 72nd Ave, Portland, OR 97223 • 503.914.4688 • www.audiosource.net 3

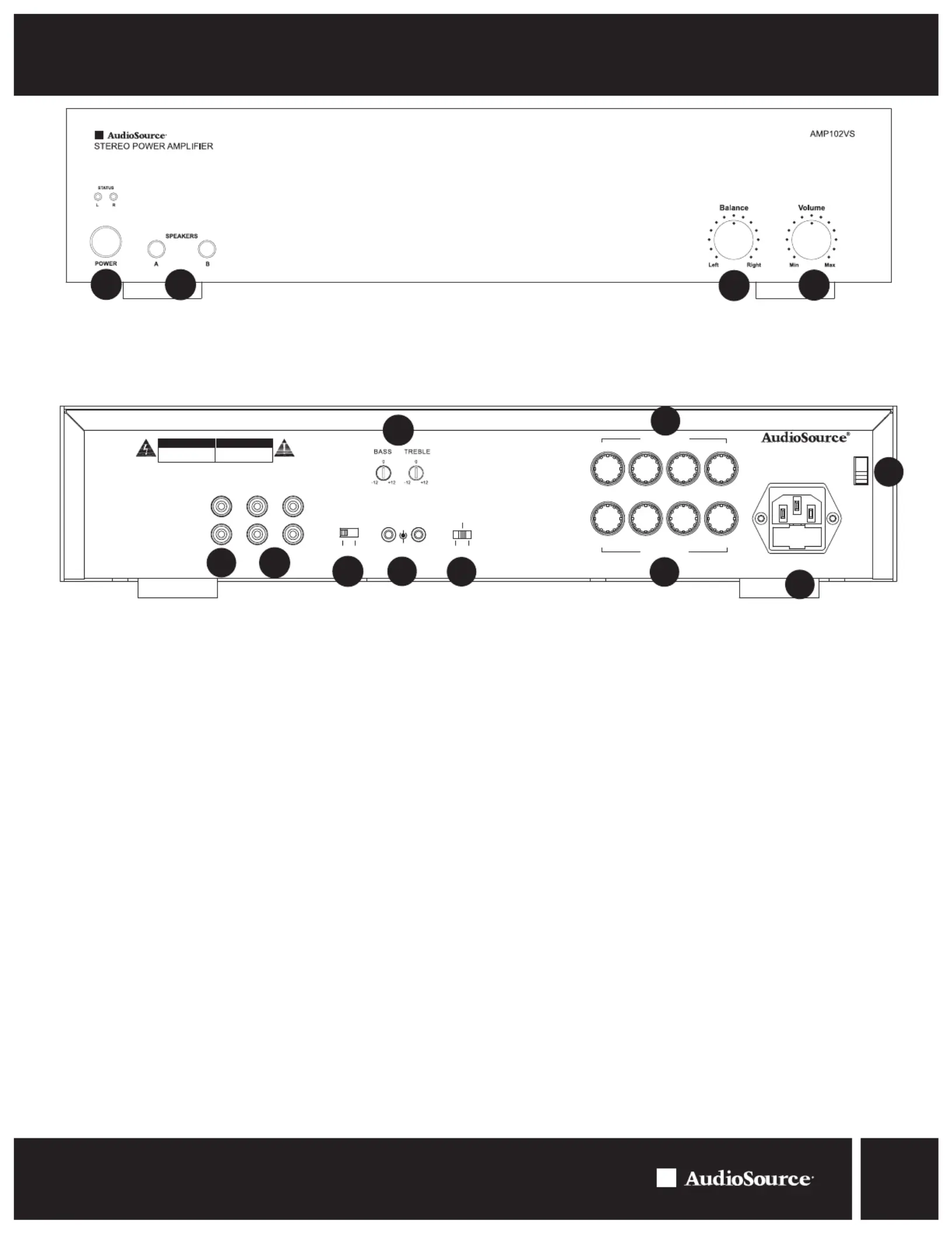

1. Power Switch
Switches the AMP102VS on or off.
2. Speaker Selector
Selects speaker zone A or B. For A + B zones push both buttons in.
3. Balance
Fades speaker output between the Right and Left Channels
4. Volume
Adjusts amplifier volume.
FRONT PANEL CONTROLS
7. Interupting Line Input
This is the secondary input, use MAIN IN for your main input.
INTERRUPTING INPUT can be used if a second source is desired and
takes over when signal is present and has at least a 5mV level.
When there is no signal, or a signal with less than 5mV level, the amp
switches back to MAIN IN after a brief delay.
8.
9.
Main Input/Output
11.
12.
Mode Select Switch
Switches the amplifier from Stereo mode to Bridged mode.
13.
Power Mode Select Switch
Speaker Zone A Output
Speaker output terminals for zone A. Minimum impedance: 8 ohm bridged
or 4 ohm stereo.
Speaker Zone B Output
Speaker output terminals for zone B. Minimum impedance: 8 ohm bridged
or 4 ohm stereo.
REAR PANEL CONTROLS
Figure 1. Front Panel
43
21
6
9
Figure 2. Rear Panel
MAIN IN should be used as the “primary” or main input for the amplifier.
Connect your receiver or main source to this input. Use MAIN OUT to pass
MAIN IN signal to another amplifier.
If you will be connecting one or two pair of speakers to the amplifier, place
the switch in the “Stereo” position. NOTE: For playing 2 pairs of speakers
(A plus B), make sure each speaker has an impedance of 8 ohms or greater.
When set to “Bridged” mode, the amplifier is a single channel mono amplifier.
NOTE: The AMP102VS supplies 160W in bridged mode, Please verify that your
speakers are capable of handling such power to avoid possible damage!
For stereo output connect the speaker’s positive (red) terminal to the amplifier’s
positive (red) terminal, and the speaker’s negative (black) terminal to the
amplifier’s negative (black) terminal for each Right and Left speaker.
Place the “MODE” switch in the “BRIDGED” position and use both red
terminals to connect to the speaker. Connect the speaker’s positive (red)
terminal to the amplifier’s red (+) terminal noted next to the bridging mark, and
the speaker’s negative (black) terminal to the amplifier’s unmarked positive
NOTE: Only one zone (A or B) can be bridged. Do not attempt to bridge both
A and B speaker terminals! This may result in a lower impedance than the
amplifier is designed for and may damage your amplifier. The minimum
impedance for the total load connected in bridged mode is 8 ohms.
STEREO MODE
BRIDGED MODE
BRIDGED MODE- MONO APPLICATION
For bridged mode, playing Right and Left together as mono output, use a
Y cable adapter to connect Right and Left RCA signal to the Right (Red) input
at MAIN IN. Set the MODE switch to BRIDGED and follow the instructions
for bridged speaker connection in the SPEAKER TERMINALS section of
this manual.
SPEAKER TERMINALS - STEREO MODE
SPEAKER TERMINALS - BRIDGED MODE
6. Bass and Treble Controls
These controls can adjust bass and treble frequencies +/- 12dB at 100Hz
and 10kHz.
10. 12V Trigger
Allows the AMP102VS to be powered on by other electronics or to power
on other electronics via a 3.5mm mini phone plug cable.
8
(red) terminal.
NOTE: Use Class 2 wiring for speaker connections.
To wire the output connector: 1. Strip the insulation off each speaker wire
to expose 3/8" (10 mm) of bare conductor. 2. Unscrew the output terminal
binding post several twists, insert each wire into the correct terminal.
3. Tighten binding post by twisting clock-wise until it is firmly clamping the
speaker wire.
Warning: While the amplifier does self-protect under most improper output
conditions, misconfiguration of loudspeaker mode and incorrect connection
of loudspeakers could damage connected loudspeakers and/or amplifier.
Please refer installation to a qualified installation professional, and always
check state and local electrical codes when installing.
10 11
12
13 14
15
7
Minimum Impedance:
8 ohm Bridged
4 ohm Stereo
AVIS: RISQUE DE CHOC ELECTRIQE
NE PAS OUVRIR CE CART ER
RESERVE AU PERSONNEL AUT ORISE
RISK OF FIRE O R ELECT RIC SHOCK
DO NOT OPEN
CAUTION AVIS
Trigger Normal
Auto On
Mode
Stereo Bridged
115V~ 60Hz 500W
FUSE:T4AL 250V
FUSE:T2AL 250V
230V~ 50Hz 500W
MODEL AMP102VS
Custom Manufactured in China
CAUTION: See User Manual Before
Replacing Fuse
Speaker A
R L
RL
-
-
-
+ +
+
--
+ +
Bridge
Speaker B
-
IN OUT
12V Trigger
+
IN
L
R
Interrupt
Serial Number:
IN OUT
Main In
Sets the power on option of the AMP102VS. Set it to Normal for manual
power on/off. Set to Auto-On for signal sensing. Set to Trigger if the 12V
Trigger input is used.
Tuotetiedot
| Merkki: | AudioSource |
| Kategoria: | Vastaanotin |
| Malli: | AMP102VS |
Tarvitsetko apua?
Jos tarvitset apua merkille AudioSource AMP102VS esitä kysymys alla ja muut käyttäjät vastaavat sinulle
Vastaanotin AudioSource Käyttöohjeet
10 Joulukuuta 2024
10 Joulukuuta 2024
10 Joulukuuta 2024
10 Joulukuuta 2024
10 Joulukuuta 2024
10 Joulukuuta 2024
10 Joulukuuta 2024
10 Joulukuuta 2024
10 Joulukuuta 2024
10 Joulukuuta 2024
Vastaanotin Käyttöohjeet
- Vastaanotin Bosch
- Vastaanotin Jensen
- Vastaanotin Goobay
- Vastaanotin Kogan
- Vastaanotin Yamaha
- Vastaanotin Extron
- Vastaanotin Lindy
- Vastaanotin Ecler
- Vastaanotin AudioControl
- Vastaanotin Rotel
- Vastaanotin Audio-Technica
- Vastaanotin Pyle
- Vastaanotin JVC
- Vastaanotin Kicker
- Vastaanotin Auna
- Vastaanotin OSD Audio
- Vastaanotin Audizio
- Vastaanotin Cambridge
- Vastaanotin MB Quart
- Vastaanotin Aplic
- Vastaanotin Block
- Vastaanotin Advance
- Vastaanotin Artsound
- Vastaanotin Denon
- Vastaanotin Helix
- Vastaanotin Soundstream
- Vastaanotin Rolls
- Vastaanotin Ground Zero
- Vastaanotin Karma
- Vastaanotin Glemm
- Vastaanotin EA
- Vastaanotin Match
- Vastaanotin Renkforce
- Vastaanotin Scansonic
- Vastaanotin SPL
- Vastaanotin Crunch
- Vastaanotin A-NeuVideo
- Vastaanotin Classé
- Vastaanotin FoneStar
- Vastaanotin Peavey
- Vastaanotin Crown
- Vastaanotin Fosi Audio
- Vastaanotin Graupner
- Vastaanotin Antelope Audio
- Vastaanotin Vaddio
- Vastaanotin ESX
- Vastaanotin Omnitronic
- Vastaanotin Russound
- Vastaanotin MEE Audio
- Vastaanotin GigaBlue
- Vastaanotin Mx Onda
- Vastaanotin Electro-Voice
- Vastaanotin Boss
- Vastaanotin JL Audio
- Vastaanotin Shanling
- Vastaanotin Atlas Sound
- Vastaanotin Audiolab
- Vastaanotin Memphis Audio
- Vastaanotin Primare
- Vastaanotin PureLink
- Vastaanotin Kramer
- Vastaanotin Yaesu
- Vastaanotin Musical Fidelity
- Vastaanotin Vimar
- Vastaanotin RDL
- Vastaanotin Ferguson
- Vastaanotin REL Acoustics
- Vastaanotin Imperial
- Vastaanotin Crest Audio
- Vastaanotin ButtKicker
- Vastaanotin AVMATRIX
Viimeisimmät Vastaanotin Käyttöohjeet
11 Joulukuuta 2024
11 Joulukuuta 2024
11 Joulukuuta 2024
11 Joulukuuta 2024
11 Joulukuuta 2024
11 Joulukuuta 2024
11 Joulukuuta 2024
11 Joulukuuta 2024
11 Joulukuuta 2024
10 Joulukuuta 2024
