Sivu 1/6
AXAMP-TY3
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 2/5/25 INSTAXAMP-TY3
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape
• Wire cutter • Zip-ties
• Multimeter
TABLE OF CONTENTS
Installation & Installation Options 2 ........................
Adding Amp/Amps to a Factory System
Non-amplified 3 ......................................................
Amplified 4 ..............................................................
Troubleshooting.....................................................6
APPLICATIONS
Visit for current application list
AxxessInterfaces.com
INTERFACE COMPONENTS
• AXAMP-TY3 Amplifier Integration interface
• AXAMP-TY3 interface harness
• AXAMP-TY3 vehicle T-harness
• Bass knob
Amplifier Integration Interface
Fits Toyota 2016-2023
www.MetraOnline.com
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
Designed for amplified and non-amplified models
Provides 6 channels of 5-volt RMS audio
Non-fading full range output (Channels 5 & 6)
Includes plug-n-play harnessing
Simple behind the radio installation
No programming required
Dual-colored LED
Input: 50 Watts per channel
Amp turn-on trigger (DC) 250mA
2 channel S/PDIF out (Front)
For refer Dash Disassembly Instructions,
to Enter the year, make, metraonline.com.
and model of the vehicle in the Vehicle Fit
Guide Radio Install kits.for
Visit for more detailed AxxessInterfaces.com
information about the product and up-to-date
vehicle specific applications.
2
Adding a full-range amp and subwoofer to a factory system:
This feature offers the ability to add a full-range amp and sub to a factory system, whether
amplified* or non-amplified. (Refer to )Page 3
* For amplified models the amp must be bypassed/unplugged. Refer to for
metraonline.com
vehicle specific amplifier bypass harness.
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
1. Disassemble the dash, unplug all connectors, and then remove the factory radio.*
2. AXAMP-TY3 vehicle T-harness Install the to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. AXAMP-TY3 vehicle T-harness AXAMP-TY3 interface Plug the to the .
4. AXAMP-TY3 interface harness AXAMP-TY3 interface Plug the to the .
5. Connect the amp turn-on wire.
6. Adjust your aftermarket amplifier to a desired listening level.
7. The Bassknob is used to adjust the output of channels 5 & 6 of the AXAMP.
Adjustment is as follows:
Counterclockwise turn lowers the volume of channels 5 & 6.
Clockwise turn raises the volume of channels 5 & 6.
* For dash disassembly instructions, refer to . Enter the year, make,
metraonline.com
and model of the vehicle in the and find instructions under Vehicle Fit Guide Metra
Radio Install kits.
INSTALLATION OPTIONS INSTALLATION
3
REV. 2/5/25 INSTAXAMP-TY3
A
2-Pin
LD-BASSKNOB
LD-BASSKNOB
20-Pin
LED
FRONT
REAR
SUB 2 PIN
20 PIN
TOSLINK
CHIME VOL
UPDATE
PORT
Interface
R
LD-PAW-CH3
LED
FRONT
REAR
SUB 2 PIN
20 PIN
TOSS
LINK
CHIME VOL
UPDATE
PORT
Interface
2-Pin
30
86
85
87
To 12v
Constant
2-Pin
RCA Cables
(sold separately)
If connecting multiple amps, Metra recommends incorporating
an ( ). Metra SPDT Relay part #: SPDT Relay not included E-123
SPDT Relay
8-Pin
Blue/White - Amp Turn-On Wire
FL
FR
RR
RL
LD-PAW-EXT
1 of 2
LD-PAW-EXT
2 of 2
B
C
Factory Radio
*BACK*
22-Pin
Factory Radio Harness
22-Pin
DO NOT 2 Pin connect
Connect to A . B
Disregard .connecter C
Non-amplified
Chime volume
is not used in
this application.
A Toslink cable can
be used to provide 2
channel audio to an
amplifier/processor
** **
Aux Ground output for accessories

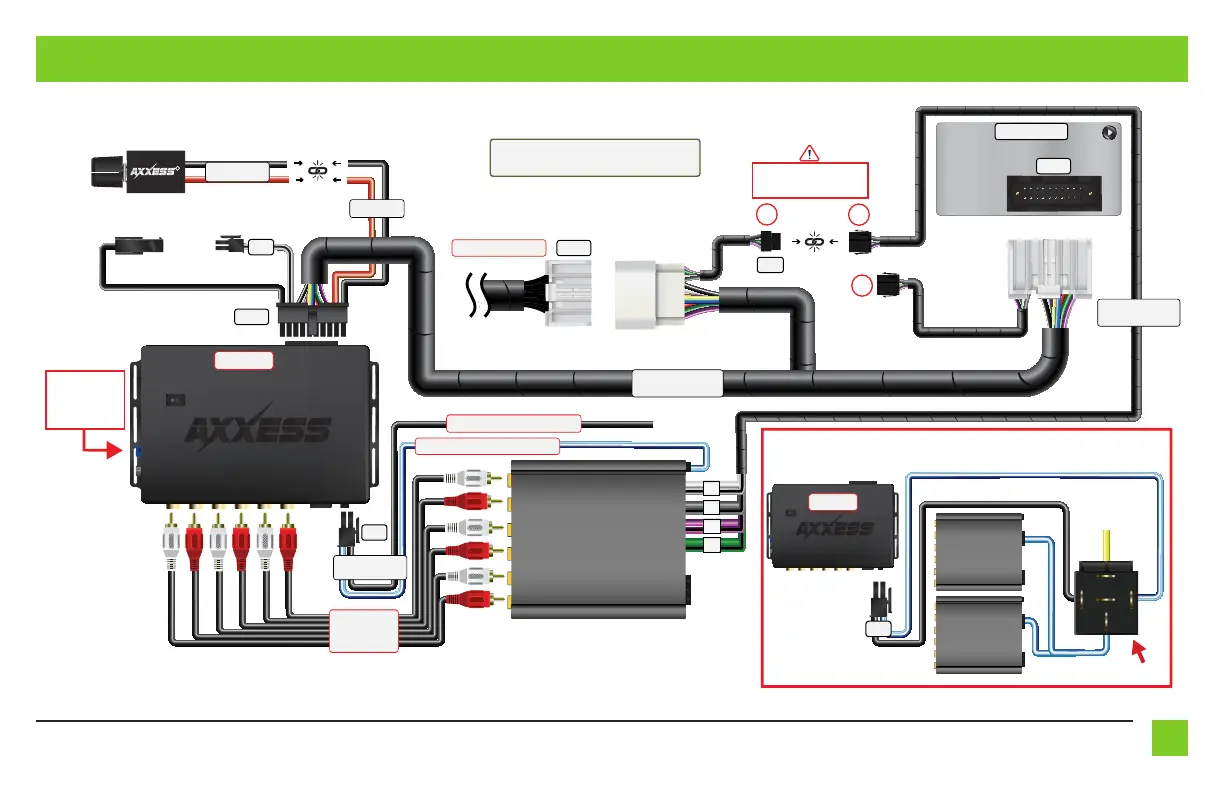

ADDING AMPLIFIER/AMPLIFIERS TO A FACTORY SYSTEM
