Sivu 1/3

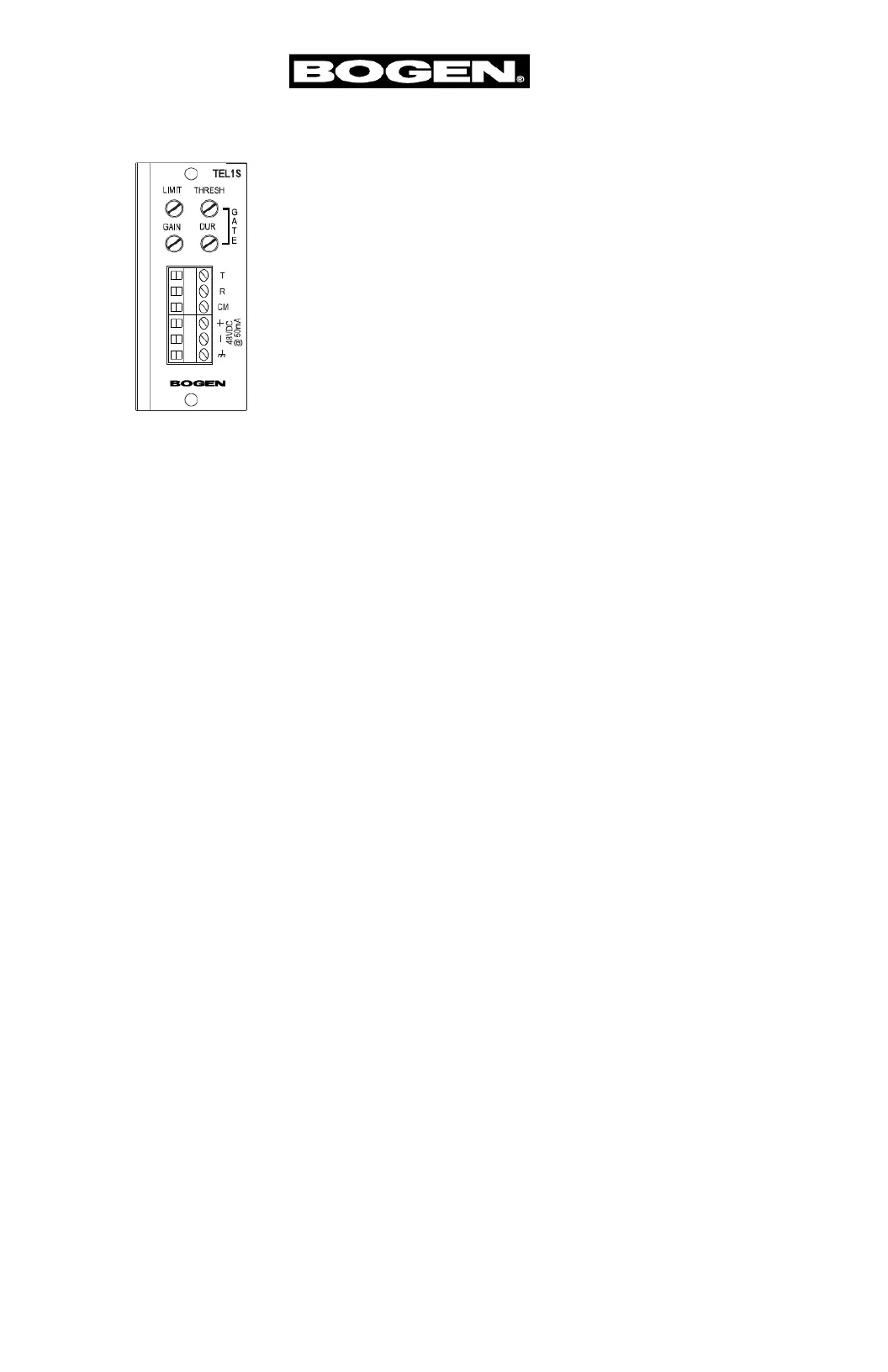

TEL S1
Telephone Interface
Module
Features
• Loop start trunk interface
• Ground start trunk interface
• Page port interface
• Transformer-isolated
• Gain/Trim control
• Output signal gating
• Gating threshold and duration adjustments
• Variable threshold limiter
• 4 Levels of available priority
• Can be muted from higher priority modules
• Can mute lower priority modules
© 2003 Bogen Communications, Inc.
Specifications subject to change without notice.
54-2055-01D 0808

Gain
Provides control over the level of input signal that can be applied to the
internal signal buses of the main unit. Allows a way to balance the input
levels of various devices so that the main unit controls can be set to
relatively uniform or optimum levels. Clockwise rotation will increase
gain, counterclockwise rotation decreases gain.
Limiter (Limit)
Sets the signal level threshold at which the module will begin to limit the
level of its output signal. Clockwise rotation will allow more output
signal before limiting, counterclockwise rotation will allow less. The
limiter monitors the module’s output signal level, so increasing gain will
affect when limiting takes place.
Priority Level*
This module can respo
the highest priority. It m
muted. Priority 2 can
modules set for 3 or 4
modules and mutes Pri
by all higher priority mo
*The number of priorit
the modules are used i
Interface Type
Dry Loop - Use with pag
the telephone line.
Loop Start - Use when in
dedicated telephones. R
supply (see Block Diagr
Ground Start - Use only
connection of external
ground.
Jumper Selec
Bus Assignment
This module can be set
be sent to the main uni
Telephone System Connections
Connect the telephone system’s Tip line to the “T” terminal and the Ring
line to the “R” terminal. When interfacing to a ground start trunk, also
connect a wire from the PBX’s ground to the module’s “CM”
terminal. In some cases, the power supply’s ground connection alone will
be adequate. For Dry Loop (Page Ports), connect the audio pair to the
module’s “T” & “R” terminals (polarity insensitive). No power supply is
necessary. The module is audio-activated so a contact pair from the page
port is not needed.
Module Installation
1. Turn off all power to the unit.
2. Make all necessary jumper selections.
3. Position the module in front of desired module
bay opening, making sure that the module is
right-side up.
4. Slide the module onto the card guide rails. Make
sure that both the top and bottom guides are
engaged.
5. Push the module into the bay until the faceplate
contacts the unit’s chassis.
6. Use the two screws included to secure the
module to the unit.
WARNING:
Turn off power to unit and make all jumper
selections before installing module in unit.

GAINGATING
GATE CONTROL
MUTE IN
MUTE OUT
BUS
ASSIGNMENT
PRIORITY
LEVEL
BUS A
BUS B
MUTE LOW
MUTE MED
MUTE HIGH
INPUT
LIMITER

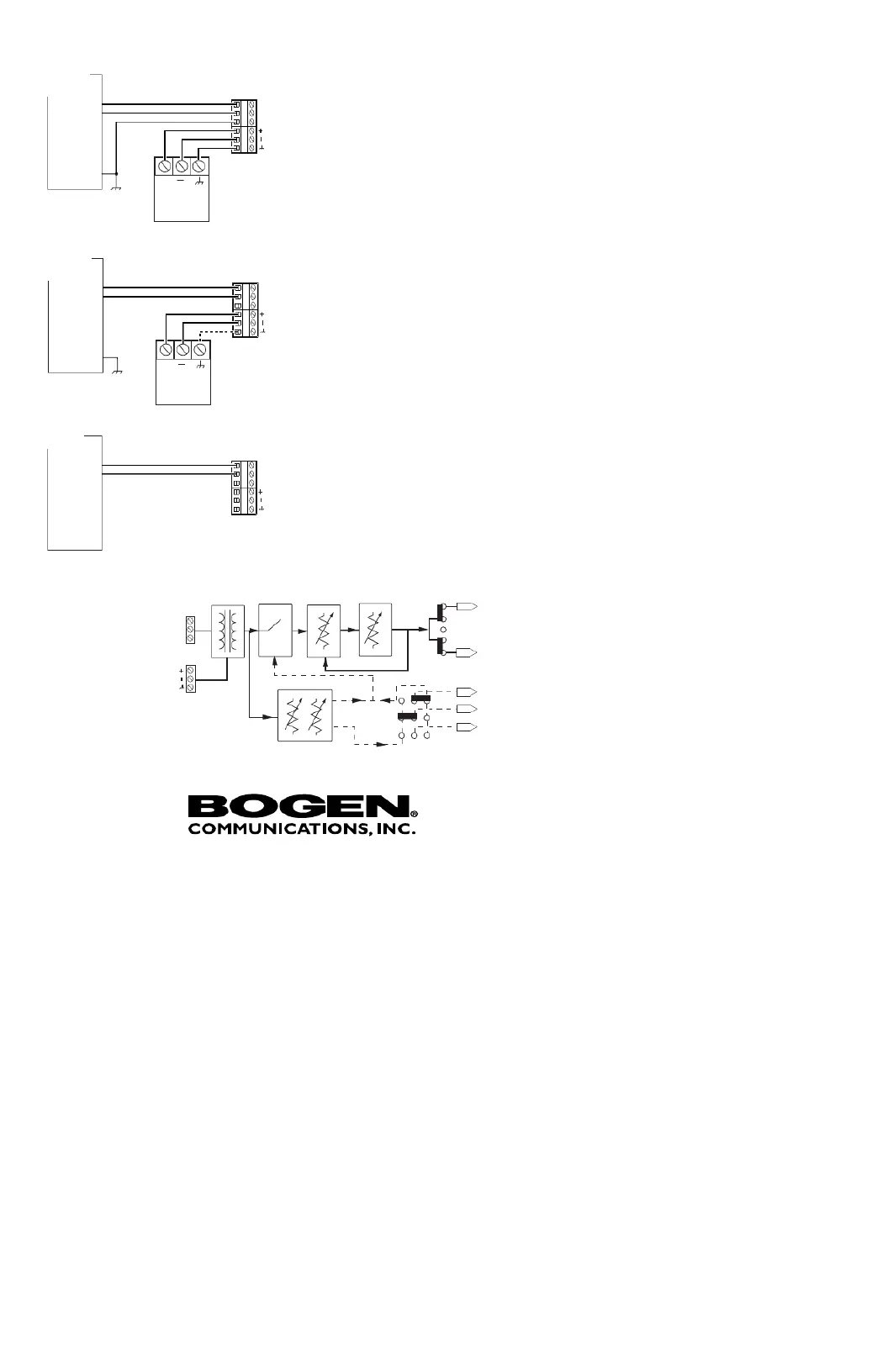

48VDC
@ 50mA
T
R
CM
TEL
INTERFACE
Block Diagram
Ground Start Interface Troubleshooting
1. Check that trunk is a Ground Start type. Try
other trunk style connections. If there is DC
voltage on the telephone line, it is a station
line and cannot be interfaced to this module.
2. Check jumper settings.
3. Check power supply connections and
operation.
4. Check connection between CM terminal and
the PBX’s ground.
5. Try reversing T & R connections.
Loop Start Interface Troubleshooting
1. Check that trunk is a Loop Start type. Try
other trunk style connections. If there is DC
voltage on the telephone line, it is a station
line and cannot be interfaced to this module.
2. Check jumper settings.
3. Check power supply connections and
operation.
4. Try reversing T & R connections.
48VDC
@ 50mA
T
R
CM
T
R
Gnd +
48 DCV
50mA (min)
TEL1S
Terminal Strip
External
Power Supply
PBX
Ground Start
Trunk
48VDC
@ 50mA
T
R
CM
T
R
Gnd +
48 DCV
50mA (min)
TEL1S
Terminal Strip
External
Power Supply
PBX
Loop Start
Trunk
48VDC
@ 50mA
T
R
CM
A1
A2
TEL1S
Terminal Strip
PBX
Page Port
C1
C2
Audio
Pair
Contact
Pair
x
x
No
Connection
Page Port Interface Troubleshooting
1. Check that there is no DC voltage on the
telephone line. If there is, it is a station line
and cannot be interfaced to this module.
2. Check jumper settings.
3. Check that audio is present at audio pair
leads of page port.
4. Adjust Threshold control on module.
Connections
www.bogen.com
