BowFlex IC Bike SE/SEi (Model Year 2023)
Exercise Bikes Service Manual
Table of Contents
8031278.101523.A
BowFlex Inc., www.bowflex.com, 5415 Centerpoint Parkway, Groveport, OH 43125 U.S.A. - Customer Service: North America (800) 605-3369, cs@bowflex.com
| outside U.S. global.bowflex.com | Printed in China | © 2023 BowFlex Inc. | BowFlex and the BowFlex logo are trademarks owned or licensed by BowFlex Inc.,
registered or otherwise protected by common law in the United States and other nations. The Bluetooth® word mark and logos are registered trademarks owned
by Bluetooth SIG, Inc., and any use of such marks by BowFlex Inc. is under license. | ORIGINAL DOCUMENT - ENGLISH VERSION ONLY
Section Code Section Page Number
1 Important Safety Instructions 2
1 Safety Warning Labels and Serial Number 3
1 FCC Compliance 3
1 Specifications 4
1 Maintenance 5
1 Moving the Machine 7
1 Leveling the Machine 7
1 Adjustments 8
1 Locking the Flywheel for Storage 9
1 Demonstration Mode 10
1 Console Features 10
1 Connectivity 11
1 Changing Unit Measures 12
1 Console Setup Mode – System Menu 12
1 Troubleshooting 14
1 Maintenance Parts Exploded View 18
1 Replacement Procedure Skill Level 19
Mechanical Procedures 20
2 Adjust the Drive Belt Tension 20
3 Adjust the Resistance (Calibration) 23
Part Replacement 26
4 Base Hub PCBA 28
5 Cable Assembly (Power Inlet to
Base Hub) 37
6 Crank Arms 44
7 Engine 48
8 Flywheel Assembly 58
9 Handlebar Post 66
10 Pedals 73
11 Resistance PCB 76
12 Shrouds, Outside (Decorative) 95
13 Shrouds, Structural 87
14 Speed (RPM) Sensor 91
8031277.101523.A
Service Manual
2
Important Safety Instructions and
General Troubleshooting Information for the
BowFlex IC Bike SE/SEi Exercise Bikes
8031279.101523.A
Service Procedures
NOTICE: This document provides important safety instructions, adjustments, and general troubleshooting information for
the maintenance of the BowFlex IC Bike SE / SEi (Model Year 2023) Exercise Bikes.
If you need assistance, please call BowFlex Customer Service (if purchased in US/Canada) or your local distributor (if
purchased outside US/Canada). To find your local distributor, go to: global.bowflex.com
This icon means a potentially hazardous situation which, if not avoided, could result in death or serious
injury. Read and understand all Warnings on this machine.
Important Safety Instructions - Before servicing or using this equipment, obey the following warnings:
This icon means a potentially hazardous situation which, if not avoided, could result in death or
serious injury. Read and understand all Warnings on this machine.
Read and understand the Part Replacement Procedure before working on the machine. Failure to obey the
instructions could cause injury to the service technician or bystanders.
Keep bystanders and children away from the product being serviced at all times.
Make sure that the repair is done in an appropriate work space away from foot traic and exposure to
bystanders.
Some components of the equipment can be heavy or awkward. Enlist the service of a second person when
you do maintenance steps involving these components. Do not try to do heavy or awkward steps on your
own.
If replacement parts are necessary, use only genuine replacement parts and hardware supplied by
BowFlex. Failure to use genuine replacement parts can cause a risk to users, keep the machine from
operating correctly and void the warranty.
Be sure that all warning stickers and instructional placards applied to the product stay present and in
good condition when doing maintenance or replacing components. If at any time the Warning labels
become loose, unreadable or dislodged, replace the labels. If purchased in US/Canada, contact Customer
Service for replacement labels. If purchased outside US/Canada, contact your local distributor for them.
Do not try to change the design or functionality of the machine being serviced as this can adversely aect
user safety.
Do not put the machine back in service until all shrouds, instructions, warning labels and correct
functionality have been verified and tested for correct performance.
SAVE THESE INSTRUCTIONS.
BowFlex Inc., www.bowflex.com, 5415 Centerpoint Parkway, Groveport, OH 43125 U.S.A. - Customer Service: North America (800) 605-3369, cs@bowflex.com
| outside U.S. global.bowflex.com | Printed in China | © 2023 BowFlex Inc. | BowFlex and the BowFlex logo are trademarks owned or licensed by BowFlex Inc.,
registered or otherwise protected by common law in the United States and other nations. The Bluetooth
® word mark and logos are registered trademarks owned
by Bluetooth SIG, Inc., and any use of such marks by BowFlex Inc. is under license. | ORIGINAL DOCUMENT - ENGLISH VERSION ONLY
3
Safety Warning Labels and Serial Numbers
FCC Compliance
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the users authority to operate the equipment.
This product complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This product has been tested and found to comply with the limits for a Class B digital device,
pursuant to CFR47 Part 15 Subpart B of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. In the unlikely
event that this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Consult the dealer or an experienced radio/TV technician for help.
This product complies with the European Radio Equipment Directive 2014/53/EU.

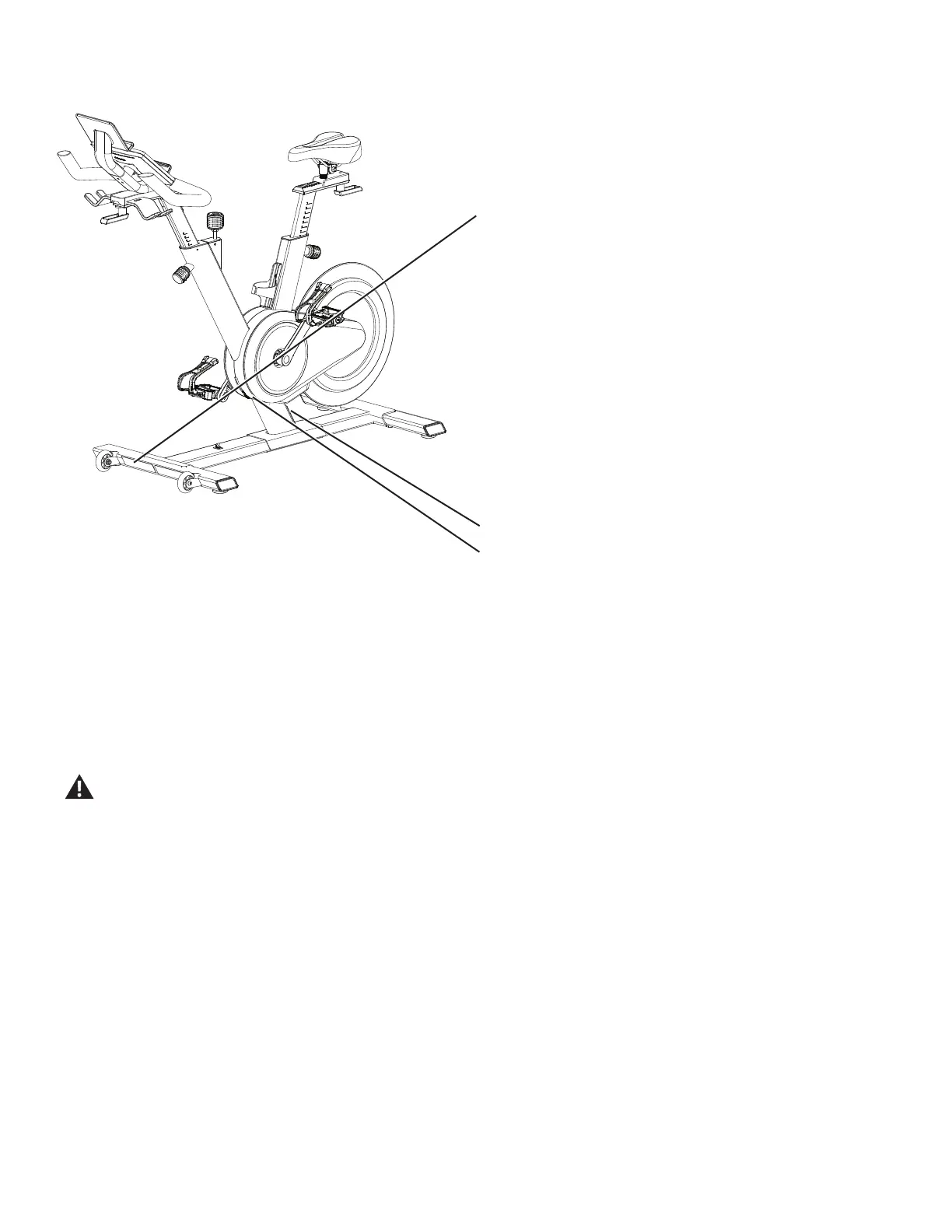

Product Specification Label
Serial Number Label
WARNING!
Read, understand and obey all warnings on this machine.
Keep children and pets away. Not intended for use
by anyone under 14 years of age. Refer to the Owner’s
Manual for additional warnings and safety information.
Injury or death is possible if caution is not used while
using this machine. The maximum user weight for this
machine is 330 lbs (150 kg.) The heart rate displayed is
an approximation and should be used for reference only.
For Consumer Use Only. Consult a physician prior to
using any exercise equipment. Set up and operate the
stationary exercise bicycle on a solid level surface.
(Label is only available in English and French Canadian.)
