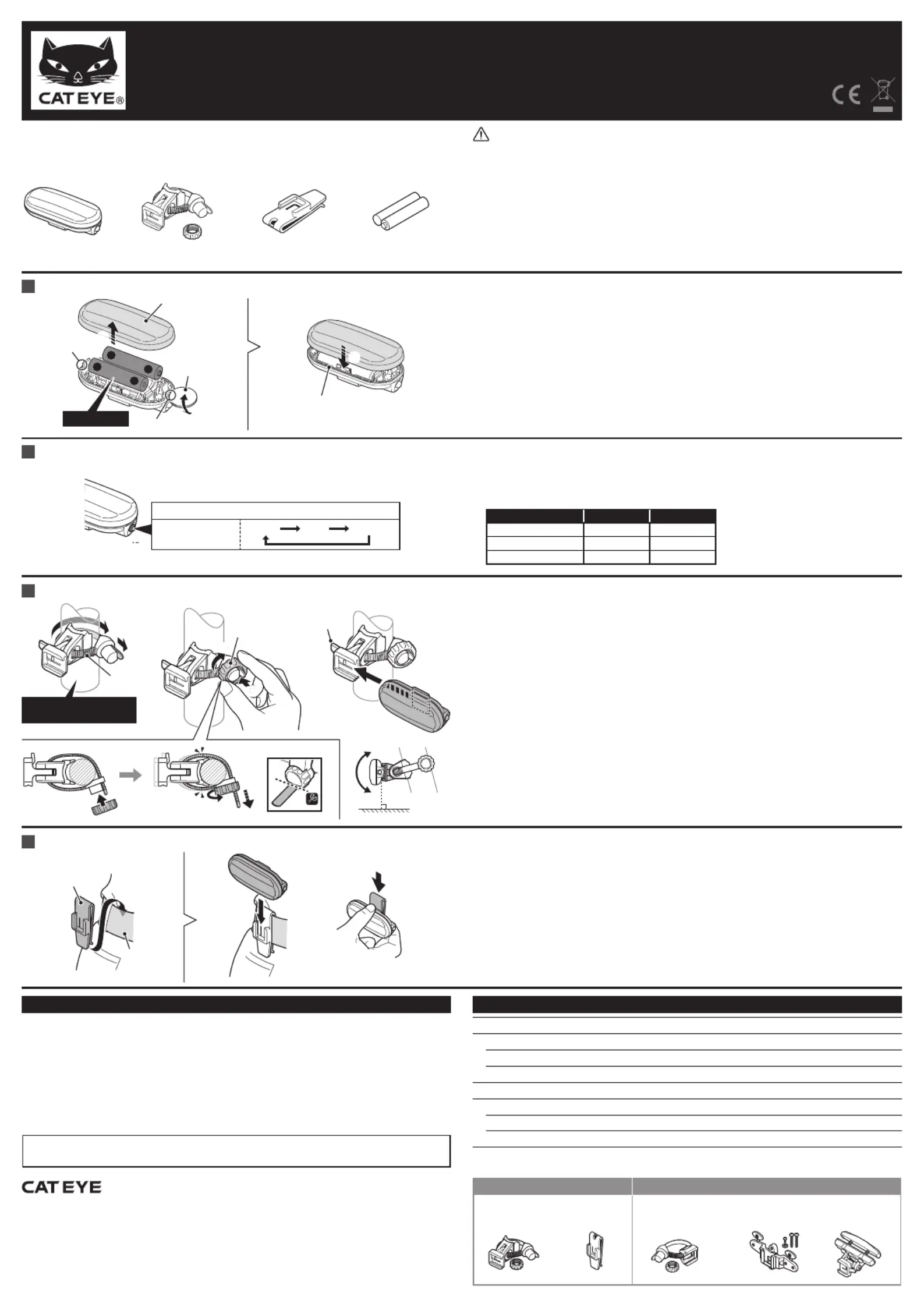

TL-LD135-R
TL-LD155-R
Copyright© 2017 CATEYE Co., Ltd. LD135R/155R-170207
2
ENG
90˚
Slot
Slot
-
+
-
+
12
3
Dial
Lens
Rubber gasket
Coin
Strap
HOW TO INSTALL BATTERY
HOW TO MOUNT TO A BICYCLE
Lever
Clip
Belt
2
1
3
AAA (LR3) x 2
1
3
WHEN USING THE CLIP
4
HOW TO USE
2
Standard operating time TL-LD135-R TL-LD155-R
Rapid Approx. 200 h Approx. 120 h
Flash Approx. 150 h Approx. 90 h
Constant Approx. 100 h Approx. 60 h
Switch operation
Long press : ON / OFF
Short press :
Lighting mode switch
Rapid Flash Constant
2-8-25, Kuwazu, Higashi Sumiyoshi-ku, Osaka
546-0041 Japan
Attn: CATEYE Customer Service Section
Phone : (06)6719-6863
Fax : (06)6719-6033
E-mail : support@cateye.co.jp
URL : http://www.cateye.com
[For US Customers]
CATEYE AMERICA, INC.
2825 Wilderness Place Suite 1200, Boulder
CO80301-5494 USA
Phone : 303.443.4595
Toll Free : 800.5CATEYE
Fax : 303.473.0006
E-mail : service@cateye.com
Before using the product, please thoroughly read this manual and keep it for future
reference.
3
4
5
2
1
ø12 - 32 mm
Seatpost, Seatstay
Light unit Clip (C-1N)
FlexTight™ bracket (SP-11) AAA dry-cell battery x 2
LIMITED WARRANTY
2-year Warranty: Light unit only
CatEye products are warranted to be free of defects from materials and workmanship for a period
of 2 years from original purchase. If the product fails to work during normal use, CatEye will repair
or replace the defect at no charge. Service must be performed by CatEye or an authorized retailer.
To return the product, pack it carefully and enclose the warranty certifi cate (proof of purchase) with
instruction for repair. Please write or type your name and address clearly on the warranty certifi cate.
Insurance, handling and transportation charges to CatEye shall be borne by person desiring service.
For UK and REPUBLIC OF IRELAND consumers, please return to the place of purchase. This does not
affect your statutory rights.
Please register your CatEye product on the website.
http://www.cateye.com/en/support/regist/
CO.,LTD.
SPARE PARTS
5342410
FlexTight™ bracket
(SP-12-R)
5445620
Rear rack bracket 5446510
RM-1 bracket
5342280
FlexTight™ bracket
(SP-11)
5440900N
Clip (C-1N)
OPTION PARTS
CAUTION!
• Before your trip, please make sure the light is fi rmly mounted to the bracket, it
lights up, and the light is not blocked by baggage, etc.
•
Stop your bicycle to operate the switch.
• This unit is not totally waterproof.
Please wipe and dry it completely after using in rain. Otherwise, it may cause failure.
• If the light unit or parts become dirty with mud, etc., clean with a soft cloth which
is moistened with mild soap.
Never apply paint thinner, benzine or alcohol; damage will result.
1. Mount the clip to the belt as shown. (1)
2. Insert the light to the clip until it clicks. (2)
3. To remove, press down the clip from the top while holding the light. (3)
CAUTION!
Do not mount the clip to the saddlebag. It may come off by vibration of the bicycle.
SPECIFICATIONS
Battery AAA dry-cell battery x 2
Operating time (When using alkaline batteries)
TL-LD135-R Rapid : Approx. 200 hours, Flash : Approx. 150 hours, Constant : Approx. 100 hours
TL-LD155-R Rapid : Approx. 120 hours, Flash : Approx. 90 hours, Constant : Approx. 60 hours
Temperature range 14˚F – 104˚F (-10˚C – 40˚C)
Dimensions/weight
TL-LD135-R
1-27/64” x 2-61/64” x 55/64” (36 x 75 x 21.9 mm) / 1.47 oz (41.6 g) (Including batteries)
TL-LD155-R
1-27/64” x 2-61/64” x 55/64” (36 x 75 x 21.9 mm) / 1.47 oz (41.8 g) (Including batteries)
* The specifi cations and design are subject to change without notice.
1. Mount the bracket to the seatpost or the seatstay as shown. (1 - 3)
2. Slide the light onto the bracket until it “clicks” into place. (4)
3. To remove the light, press the lever (5) and slide it off.
CAUTION!
• Be sure to tighten the dial by hand. When you tighten it too hard with a tool, the
screw thread may be stripped.
• Check the bracket frequently to be sure it is properly tightened at all times.
• Round off the cut edge of the bracket strap to prevent injury.
Use the switch to turn the power ON or OFF and to change the lighting mode.
* The light will turn on in the lighting mode previously selected.
(Mode memory function)
1. Using a coin to remove the lens from the light as shown in the drawing. (1 - 2)
2. Insert the battery according to the mark stamped on the body, and then fi t the lens
fi rmly to the body. (3)
CAUTION!
• Be sure to install batteries in the correct direction.
• Install the rubber gasket correctly to maintain waterproof features.
• Remove and store batteries when you will not use the light for a long period of
time. Otherwise, batteries may leak liquid, which may result in failure.
3
2
