Sivu 1/17
50 0396- - ETH232AD 0101 EN

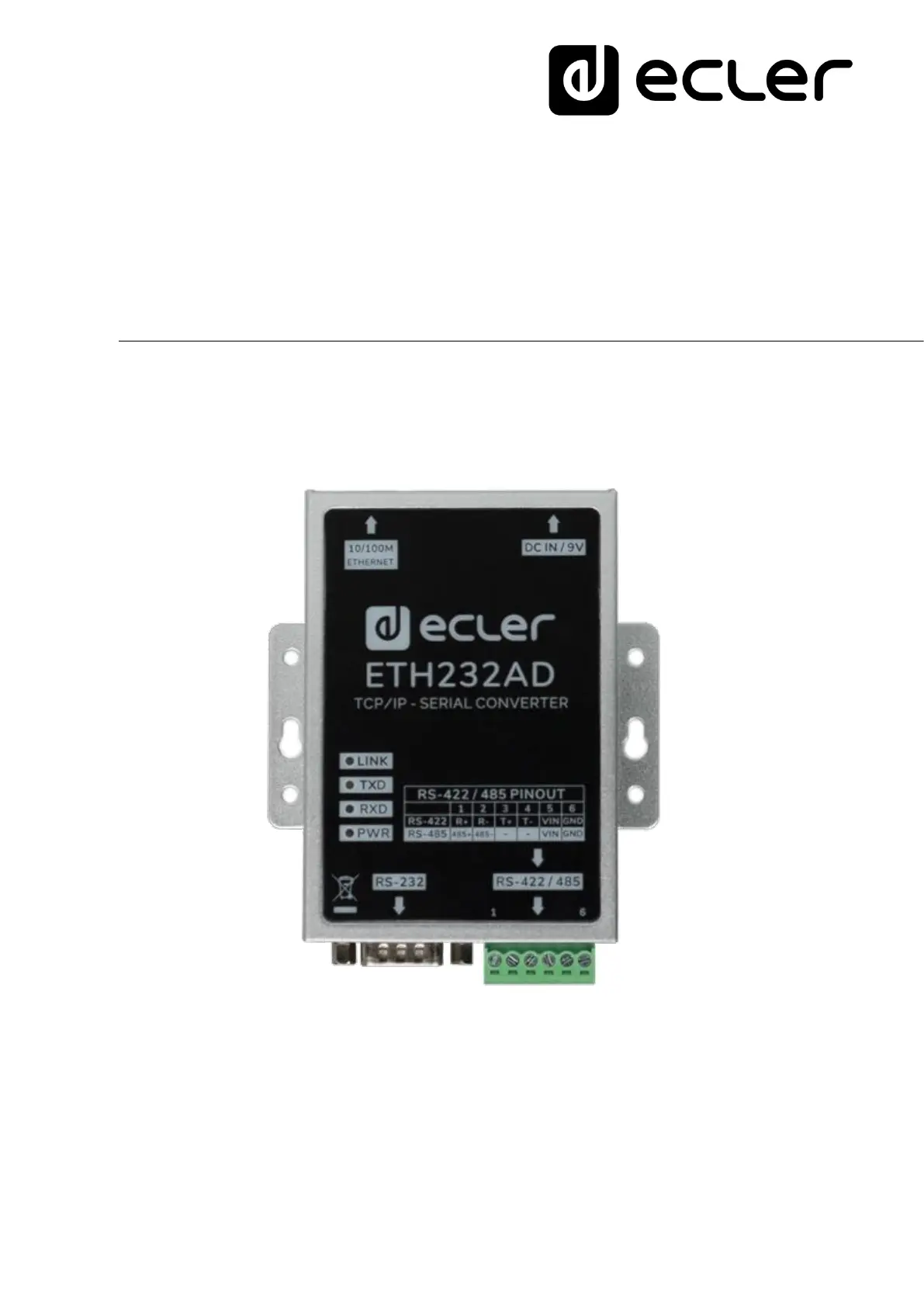

ETH232AD
PRODUCT ACCESSORIES
TCP/IP- serial converter
USER MANUAL
2
INDEX
IMPORTANT REMARK 3.............................................................................................................
IMPORTANT SAFETY INSTRUCTIONS ............................................................................... 3
IMPORTANT NOTE ................................................................................................................... 5
INTRODUCTION ........................................................................................................................ 5
PACKAGE CONTENT ............................................................................................................... 5
PANEL DESCRIPTION ............................................................................................................. 6
6.1. Pin out and connections ........................................................................................................... 7
CONFIGURATION AND OPERATION .................................................................................. 8
7.1. Basic Setup ................................................................................................................................... 9
7.1.1. Serial Settings ...................................................................................................................... 9
7.1.2. Network Settings .............................................................................................................. 10
7.2. Advanced Settings ................................................................................................................... 11
7.3. Security Settings ...................................................................................................................... 12
APPLICATION EXAMPLE WITH ECLER NET MANAGER ............................................ 13
TECHNICAL SPECIFICATIONS ............................................................................................ 15
3
IMPORTANT REMARK
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING (If applicable): The terminals marked with symbol of may be of
sufficient magnitude to constitute a risk of electric shock. The external wiring connected
to the terminals requires installation by an instructed person or the use of ready-made
leads or cords.
WARNING: To prevent fire or shock hazard, do not expose this equipment to rain or
moisture.
WARNING: An apparatus with Class I construction shall be connected to a mains
socket-outlet with a protective earthing connection.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
