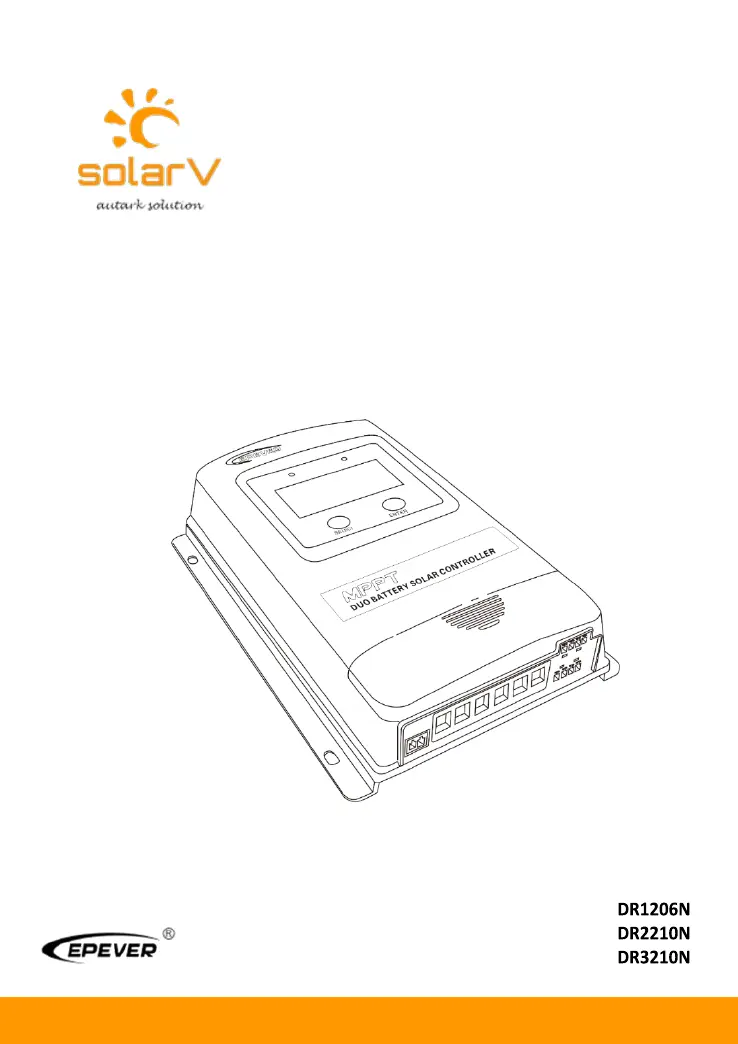

User Manual
DUO Racer Series MPPT Charge Controller
Modelle:
EN
Important Safety Instructions
Please reserve this manual for future review.
This manual contains all the instructions of safety, installation, and
operation for DuoRacer series MPPT Dual Battery Solar Charge Controller
(referred to as the controller in this manual).
Read all the instructions and warnings carefully before installation.
No user serviceable component inside the controller. Do NOT
disassemble or attempt to repair the controller.
Avoid direct sunlight, high temperature, and do NOT install the
controller locations where water can get in. at
Install the controller at well-ventilated places, the controller’s heat sink
may become very hot
during the system operation.
Appropriated external fuses or breaker are suggested.
Please cut off all connections of the PV array, fuses breakers which or
close to the battery before the controller installation and adjustment.
Power connections must remain tight to avoid excessive overheating from
the loose connection.
www.solarv.de
Copyright 2021 SolarV GmbH ©
CONTENTS
1.
Overview ................................................................................................ 1
1.1
Information & Features ........................................................................ 1
1.2
Name definition .................................................................................. 2
1.3
Structure ............................................................................................. 2
1.4
Starter battery BATT2 Instruction ....................................................... 3
1.5
AES Signal Output Port Instruction 4 .....................................................
1.6
Accessories 5 .........................................................................................
2.
Installation ............................................................................................. 7
2.1
Warning 7 ..............................................................................................
2.2
PV Array Requirements ........................................................................ 7
2.3
Wire Size ............................................................................................ 10
2.4
Mounting .......................................................................................... 11
3.
Display units ...........................................................................................15
3.1
DuoRacerDisplay Basic (DDB) ............................................................. 15
3.2
DuoRacerDisplay Standard (DDS) ...................................................... 17
4.
Protections, Troubleshooting & Maintenance ........................................23
4.1
Protections ......................................................................................... 23
4.2
Troubleshooting ................................................................................ 23
4.3
Maintenance ..................................................................................... 24
5.
Specifications ........................................................................................26
Annex I Mechanical Dimension Diagram ....................................................28
