COAXIAL

USER MANUAL

MADE IN GERMANY

General instructions for installing HELIX

loudspeakers

To prevent damage to the speakers and possible inju-

ry, read this manual carefully and follow all installation

instructions. This product has been checked for proper

function prior to shipping and is guaranteed against man-

ufacturing defects.

For a proper performance and to ensure full warranty

coverage, we strongly recommend to get this product in-

stalled by an authorized HELIX dealer.

If you choose to perform your own installation read the

following information and precautions carefully.

Failure to follow the stated precautions may result in

personal injury and / or damage to the audio system or

vehicle.

1. Always make sure that the speaker will t into the in-

tended mounting location and that there is adequate

depth for the magnet system.

2. Check for adequate space between speaker and

window, window crank, power window mechanism,

seat, rear deck torsion bars, and other items which

may interfere with the speaker`s mounting. This

is very important if any hole cutting is required.

Detailed size information is indicated in the dimen-

sion section of this manual. Take care that the mount-

ing surface is at and free from all obstructions.

3. Ensure that the loudspeakers are correctly connect-

ed in polarity. Exchanging plus and minus may result

in signicant loss of sound quality. The positive leads

of the loudspeakers are marked red.

4. Make sure that all speaker wiring is fully protected

from cutting or wear at sharp edges, which can lead

to short circuits that may damage your head unit,

amplier and / or speaker system.

5. Verify that all connection wires are long enough in

order to avoid any mechanical stress on the wires or

the connectors.

6. Make sure that all components are mounted prop-

erly.

7. Do not mount the components where water may

splash on them.

8. The quality of the installation has a signicant e󰀨ect

on the overall performance of the speaker system.

Treat each installation step with a high degree of

attention.

9. Avoid low frequency cancellation caused by air leak-

age between the speaker basket and the mounting

surface (e.g. mounted on a bended or uneven sur-

face or mounted in an oversized hole).

10. Mounting panel reinforcement may be necessary in

some cases in order to ensure a stable, torsion-free

and even surface. This can be achieved by mounting

the speaker on a metal, plastic or wooden sub-ba󰀪e

behind the body or door panel. Consult an installa-

tion specialist for further advices.

11. In most cases you can use the original speaker

mounting locations in the doors, A-pillars, body pan-

els or the rear deck. If these are not available you

have to prepare your own secure installation place.

Due to their structural integrity and accessibility the

precut mounting holes should be used whenever

possible. Information on a proper mounting can be

found in the section “Installation” of this manual.

IMPORTANT: Never cut any metal that is an integral part

of an automobile`s safety or structural car body.

We strongly recommend that you operate the complete

audio system at low volume before nal installation. So

you can check whether each speaker is working before

securing the loudspeakers into their mounting locations.

Congratulations!

General instructions

Dear Customer,

Congratulations on your purchase of this high-quality product.

HELIX COMPOSE highlights best quality, excellent manufacturing and state-of-the-art sound quality.

Thanks to more than 30 years of experience in research and development of audio products HELIX COMPOSE sets

new standards in the car audio speaker market.

We wish you many hours of enjoyment with your new HELIX COMPOSE components.

Yours

AUDIOTEC FISCHER Team

Find your composition

Go to www.audiotec-fischer.com/compose to

explore the whole HELIX COMPOSE platform

Installation

*Contact your retailer or visit www.audiotec-fischer.com/compose for an up-to-date overview of available adaptors.

max.

8 mm

Attention: To avoid damage to the speak-

ers, do not use countersunk screws and

do not overtighten the screws!

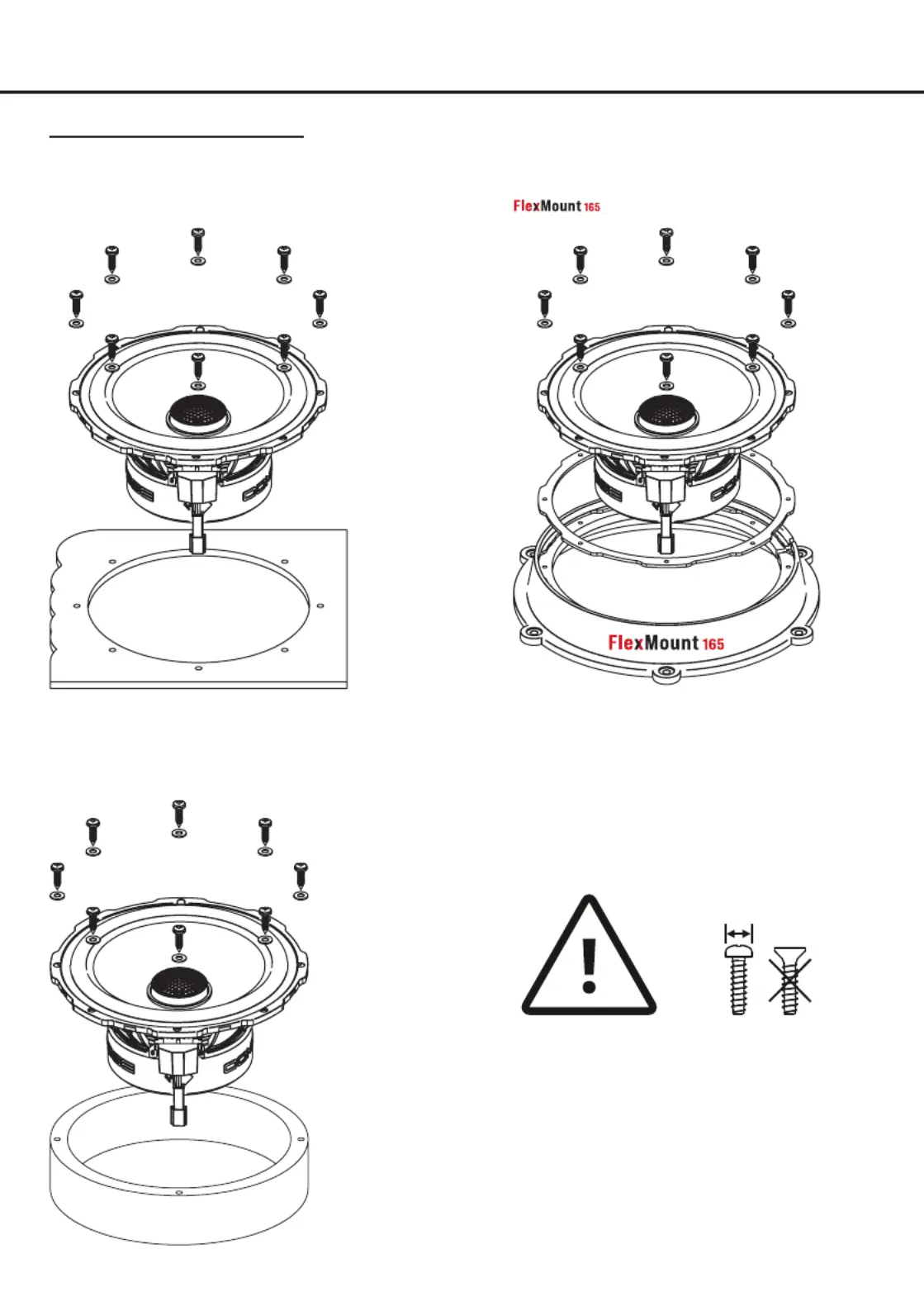

Mounting Ci7 C165.2FM-S3

Option a:

Universal mounting

Option b:

Professional integration with optionally available

car-specic adaptor*

Option c:

Mounting with universal mounting adaptor

Universal speaker

adaptor
