thank you for choosing JBL. For over 50 years, JBL has
been involved in every aspect of musical and film recording and
reproduction, from live performances to monitoring the recordings
you play in your home, car, or office.
We’re confident that the JBL loudspeakers you have
chosen will provide every note of enjoyment that you expected –
and that when you think about purchasing additional audio equip-
ment for your home, car, or office you will once again choose JBL.
Please take a moment to complete the enclosed profile card. It
enables us to keep you posted on our latest advancements, and
helps us to better understand our customers and build products
that meet your needs and expectations.
JBL Consumer Products
AS5, AS6,
AS8, AS65C
& AS SUB
simple
set-up guide
AS Series Owner’s Manual 9/11/98 12:51 PM Page 1

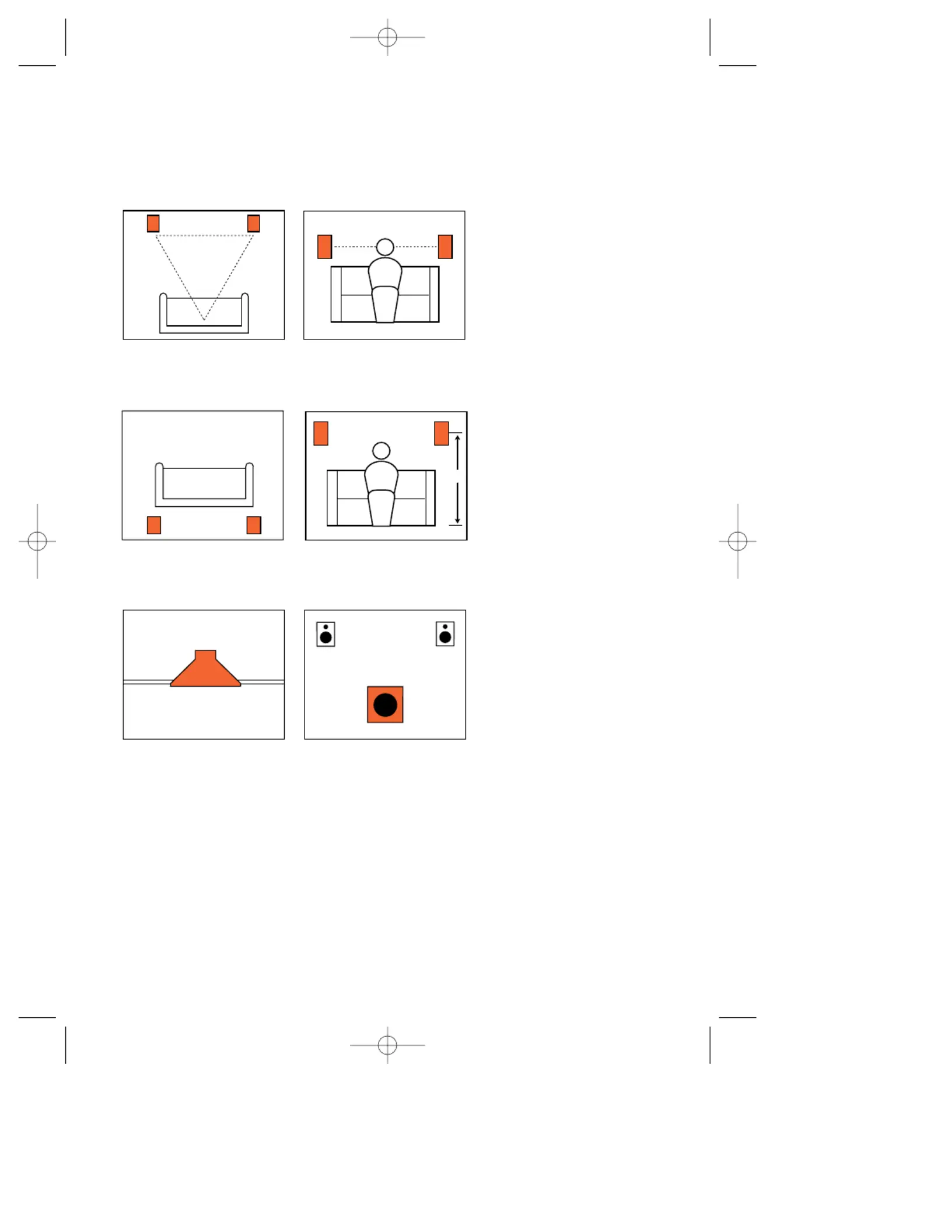

one. Speaker Placement
AS5, AS6, AS8 as front speakers
AS5, AS6, AS8 as rear speakers
AS65C in ceiling AS SUB
5 – 6 ft.
AS Series Owner’s Manual 9/11/98 12:51 PM Page 2
two. Speaker Connections
Speakers and electronics ter-
minals have corresponding (+)
and (–) terminals. It is impor-
tant to connect both speakers
identically: (+) on the speaker
to (+) on the amplifier and (–)
on the speaker to (–) on the
amplifier. Wiring “out of phase”
results in thin sound, weak bass
and a poor stereo image.

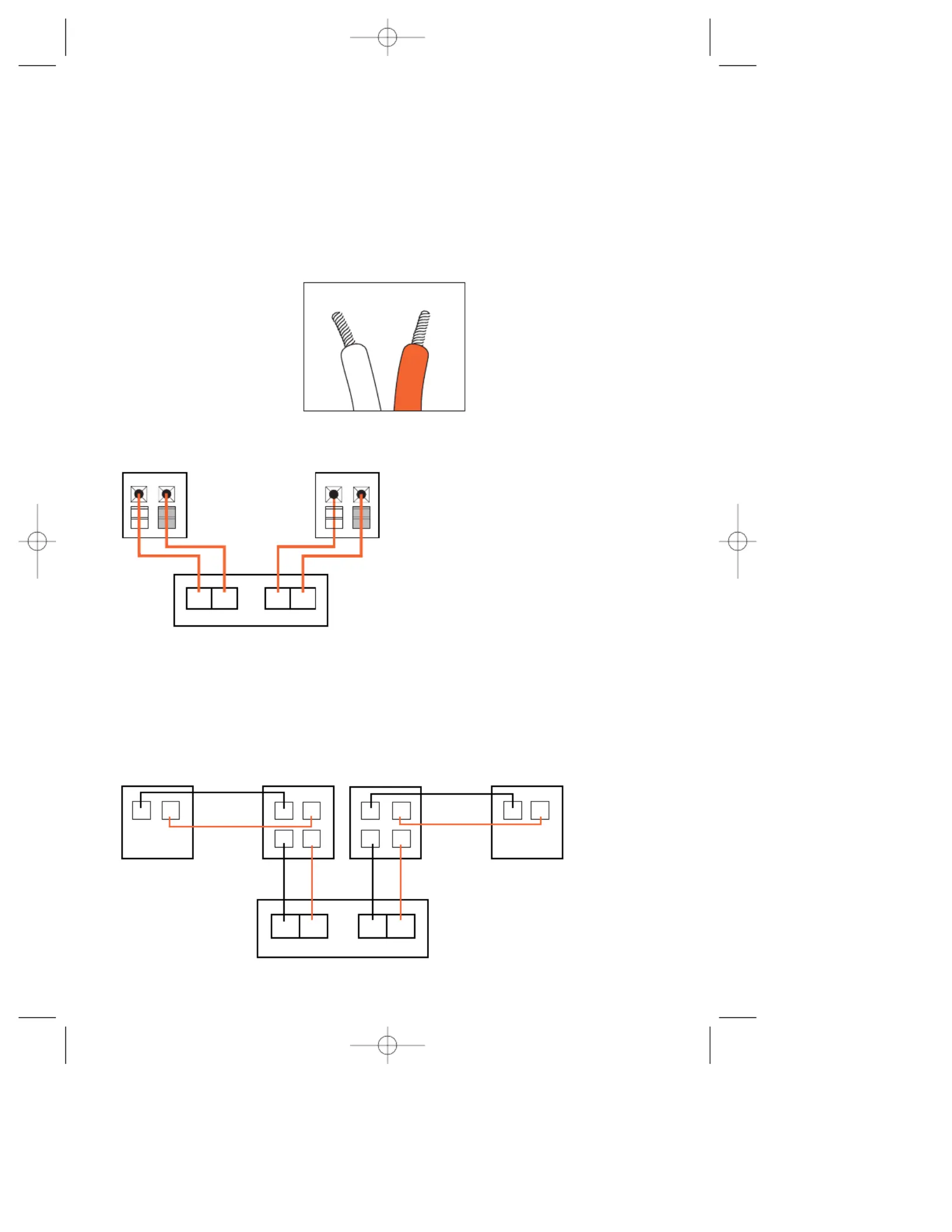

Connection Tips
AS5, AS6, AS8, AS65C
AS SUB
Wire Length Recommended Size
Up to 20 ft. 16 gauge
Up to 30 ft. 12 gauge
Greater than 30 ft. 10 gauge
– +– +
Front or Rear Speaker Outputs
LEFT RIGHT
LEFT RIGHT
–+–+
– +– +
– +– + – + – +
Receiver/Amplifier
LEFT RIGHT
Left Right
– + – +
Right SatelliteLeft Satellite
Subwoofer
Output
Input
Output
Input
The wires for both speakers
should be the same length. If
one speaker is placed closer to
the amplifier than the other,
hide the excess wire behind
the wall.
The AS SUB has two pairs of
speaker connections. Connect
one set of terminals (input)
to the left channel of your
amplifier. Connect the other set
of terminals (input) to the right
channel of your amplifier. Then
connect the left satellite to the
left output and the right satel-
lite to the right output.
Note: Diagram is for illustrative
purposes. For each channel it
does not matter which pair of
connectors is used for the input
or which pair is used for the
output.
