ES10, ES20, ES30, ES80,
ES90, ES100, ES25C
JBL ES SERIES
OWNER’S GUIDE
®
JBL®ES SERIES
For more than 60 years, JBL, Inc. has been providing audio equipment for
concert halls, recording studios and movie theaters around the world and has
become the hands-down choice of leading recording artists and sound
engineers.
With the JBL ES Series, innovative technologies such as titanium-laminate-
dome tweeters, Elliptical Oblate Spheroidal
™(EOS) waveguides and PolyPlas™
transducer reinforcement are available to you. Enjoy!
UNPACKING THE SPEAKERS
If you suspect damage from transit, report it immediately to your dealer.
Keep the shipping carton and packing materials for future use.
PLACEMENT
NEVER drag the speaker to move it, as this will damage the spikes, the
feet and/or the wood cabinet itself. Always lift the speaker and carry it to its
new location.
CAUTION: Floorstanding (tower) loudspeakers have a high center of
gravity and may become unstable and tip over during events such as
earthquakes, or if rocked, tipped or improperly positioned. If this is a concern,
these speakers should be anchored to the wall behind them, using the same
procedures and hardware customary for anchoring bookcases and wall units.
The customer is responsible for proper installation and proper selection of
hardware.
STEREO
Before deciding where to place your speakers, survey your room and think
about placement, keeping the following points in mind, using Figure 1 as a
guide:
• For best results, place the speakers 6'–8' (1.5m–2.5m) apart.
• Position each speaker so that the tweeter is approximately at ear level.
• Generally, bass output will increase as the speaker is moved closer to a wall
or corner.
• Refer to “Home Theater” below if you also plan to use the speakers for
home theater reproduction.
Figure 1. Experiment with speaker placement to obtain
the best bass level and stereo imaging in your room.
HOME THEATER
For front-channel use, place one speaker on the left and another on the right,
along either side of the television monitor. Since the speakers are
magnetically shielded, you can place them near the TV without worrying
about the field distorting the TV picture.
For surround-channel use, place speakers on bookshelves or stands
alongside the listening position. The ES10 is also wall-mountable. Final
placement depends on room acoustics, availability of space and your listening
preference (Figures 2 and 3).
In 6- or 7-channel configurations, place the rear channel(s) behind the
listening position, as shown in Figures 2 and 3.
NOTE: A JBL powered subwoofer will add impact and realism to both
music and film soundtracks. Contact your JBL dealer for recommendations
on subwoofer models for your application.
Figure 2. This overhead view shows a typical home theater plan. Left/right
rear channels are for a 7-channel system. The center rear channel is for
a 6-channel system.
Figure 3. This figure shows an alternate layout, which may be more suitable
for some rooms. Left/right rear channels are for a 7-channel system. The
center rear channel is for a 6-channel system.
2
Listening Position
Left
Channel
Right
Channel
Couch
Left
Front
Channel
Left
Surround
Channel
Left Rear
Channel
Right Rear
Channel
Center Rear
Channel
Right
Surround
Channel
Right
Front
Channel
Center
Channel
JBL Subwoofer
(optional)
Left
Surround
Channel
Right
Surround
Channel
Right Rear
Channel
Left Rear
Channel
JBL Subwoofer
(optional)
Center Rear
Channel
Right
Front
Channel
Left
Front
Channel
Center
Channel
English
INSTALLING FEET
ES10, ES20, ES30
The supplied self-adhesive rubber feet may be attached to the bottom corners
of your speakers to protect your furniture.
CHANGING THE FEET
ES80, ES90, ES100
The ES80, ES90 and ES100 feature attractive outboard feet, installed at the
factory. However, if you would like to replace them with the less visible
inboard feet (included), follow the instructions below.

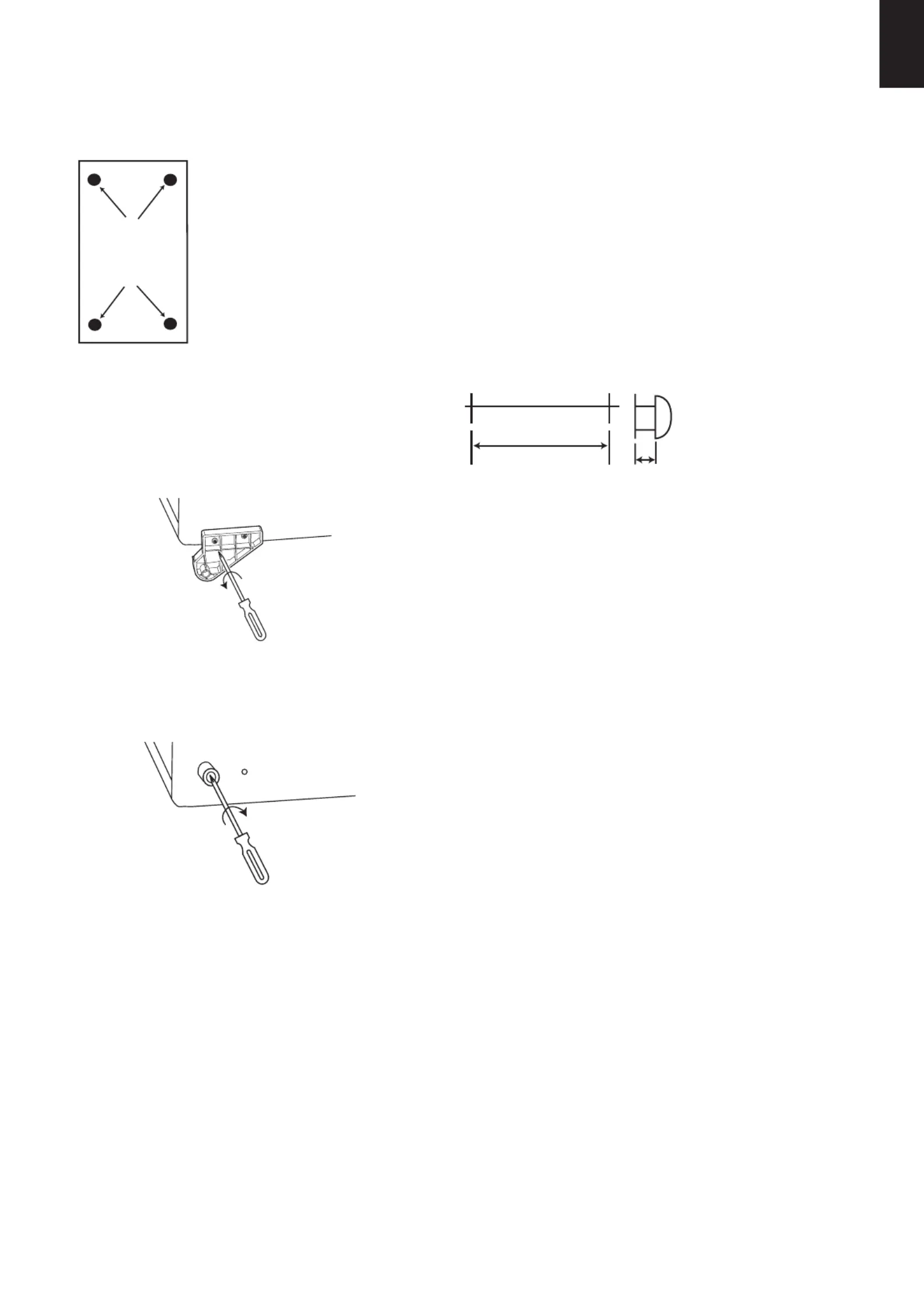

1. Remove the four feet on the bottom of the speaker by loosening the two
screws in each foot. Keep the screws for later use.
2. Attach the black inboard feet to the outer (closest to front of speaker for
front feet, closest to rear of speaker for rear feet) holes, from which you just
removed the feet, using the same screws you just removed.
3. Hand-tighten securely, using a handheld Phillips (+ tip) screwdriver.
Do not use a powered screwdriver of any type.
4. Replace the screw in the inner hole.
CAUTION: Floorstanding (tower) loudspeakers have a high center
of gravity and may become unstable and tip over during earthquakes, or if
rocked, tipped or improperly positioned. If this is a concern, these speakers
should be anchored to the wall behind them, using the same procedures and
hardware customary for anchoring bookcases and wall units. The customer is
responsible for proper installation and proper selection of hardware.
INSTALLING SPIKED FEET
ES80, ES90, ES100
Four metal spikes are supplied for use when using the outboard feet and the
speaker is to be placed on a carpeted surface, to decouple the speaker from
the floor and prevent unwanted damping. To insert the spikes, gently lay the
speaker on its side (not its front or back) on a soft, nonabrasive surface. Each
spike screws into the threaded insert in each outer foot. Make sure all four
spikes are screwed in completely for stability.
NEVER drag the speaker to move it, as this will damage the spikes, the feet
and/or the wood cabinet itself. ALWAYS lift the speaker and carry it to its
new location.
WALL-MOUNTING
ES10
The ES10 may be wall-mounted. The customer is responsible for proper
selection and use of mounting hardware (available through hardware stores),
to properly and safely wall-mount the speakers. THESE PRODUCTS
ARE NOT INTENDED FOR CEILING MOUNTING.
Two no. 8 round-head or pan-
head screws should be used per
loudspeaker. The screw head
should be between 5/16 inch
(8mm) and 1/4 inch (6.3mm) in
diameter, and the screw should
be at least 2 inches (50mm) in
length.
When installing screws in any wall, always use properly selected wall
anchors. Attach two of the four self-adhesive rubber pads that came with the
loudspeaker to the back of the enclosure in the two bottom corners so that the
cabinet is spaced evenly from the wall. Select a suitable mounting location on
a wall. (The ceiling is not a suitable mounting location.)
Drill two pilot holes, appropriately sized for the specific self-tapping screw
or wall anchor that you will be using. The holes should be 10 inches (254mm)
apart. The holes should be 3/4 inch (19mm) below where you want the top
of the enclosure to be positioned. Use a carpenter’s level to ensure that the
holes are even and that the speaker will mount on the level.
Install the two screws into either a wooden wall stud or anchor, and tighten
them until the back of each screw head is about 1/8 inch (3mm) from the wall.
Install the loudspeaker by slowly moving the cabinet toward the screws so
that the screw heads clear the larger circular portion of the two keyholes.
Once both screw heads have entered the keyholes, the loudspeaker should
gently be lowered onto the screw shafts. Check that the loudspeaker is firmly
locked onto the screws by gently pulling the speaker down and forward.
254mm (10")
3mm
(1/8")
3
Place pads here
