S P E C I F I C A T I O N S
JBL Consumer Products
250 Crossways Park Drive, Woodbury, NY 11797
8500 Balboa Boulevard, Northridge, CA 91329
800-336-4JBL (4525) (USA only)
www.jbl.com
©2001 JBL, Incorporated.
JBL is a registered trademark of JBL, Incorporated.
Part No.ai0455
P R O S O U N D
C O M E S H O M E ™
*Trademarks of Dolby Laboratories.
DTS is a registered trademark of Digital Theater Systems, Inc.
**The maximum recommended amplifier power rating will ensure proper system
headroom to allow for occasional peaks. We do not recommend sustained
operation at these maximum power levels.
All features and specifications are subject to change without notice.
N24II N26AWII N-CENTERII
Description: 2-Way 4" bookshelf, 2-Way 6" bookshelf, 2-Way dual 5" center
plastic plastic, weather-resistant
N24AWII
2-Way 4" bookshelf,
plastic, weather-resistant
Maximum
Recommended
Amplifier Power:** 100W 125W 150W
Nominal
Impedance: 8 Ohms 8 Ohms 8 Ohms
Sensitivity
(2.83V/1m):
86dB 88dB 90dB
Frequency
Response (–3dB):
75Hz – 20kHz 55Hz – 20kHz 80Hz – 20kHz
Crossover
Frequency: 3000Hz 3000Hz 3500Hz
High-Frequency
Transducer: 3/4" Titanium-laminate 3/4" Titanium-laminate 3/4" Titanium-laminate
dome, shielded (not dome dome, shielded
shielded on model N24AWII)
Low-Frequency
Transducer
:4" PolyPlas,™ ™shielded 6" WeatherPlas Dual 5" PolyPlas,™shielded
(Model N24AWII
uses an unshielded
WeatherPlas™ woofer)
Finish: Dark gray (N24II) Off-white Dark gray
Off-white (N24AWII)
Grille Color: Gray cloth (N24II) Off-white mesh Gray cloth
Off-white mesh (N24AWII)
Dimensions
(H x W x D): 9-1/2" x 6-1/4" x 4-3/4" 14-1/2" x 10-3/4" x 7-3/4" 6-1/2" x 20-1/2" x 8-1/2"
241mm x 159mm x 368mm x 273mm x 165mm x 521mm x
121mm 197mm 216mm
Weight
Per Speaker: 4.5 lb/2.1kg 8.3 lb/3.8kg 10 lb/4.6kg
We, Harman Consumer International
2, route de Tours
72500 Chateau-du-Loir
France
declare in own responsibility, that the products
described in this owner’s manual are in
compliance with technical standards:
EN 50081-1:1992
EN 50082-1:1997
Luc E. Godard
Harman Consumer International
Chateau-du-Loir, France. 8/01
MODELS: N24II, N24AWII, N26AWII
As Front Speakers

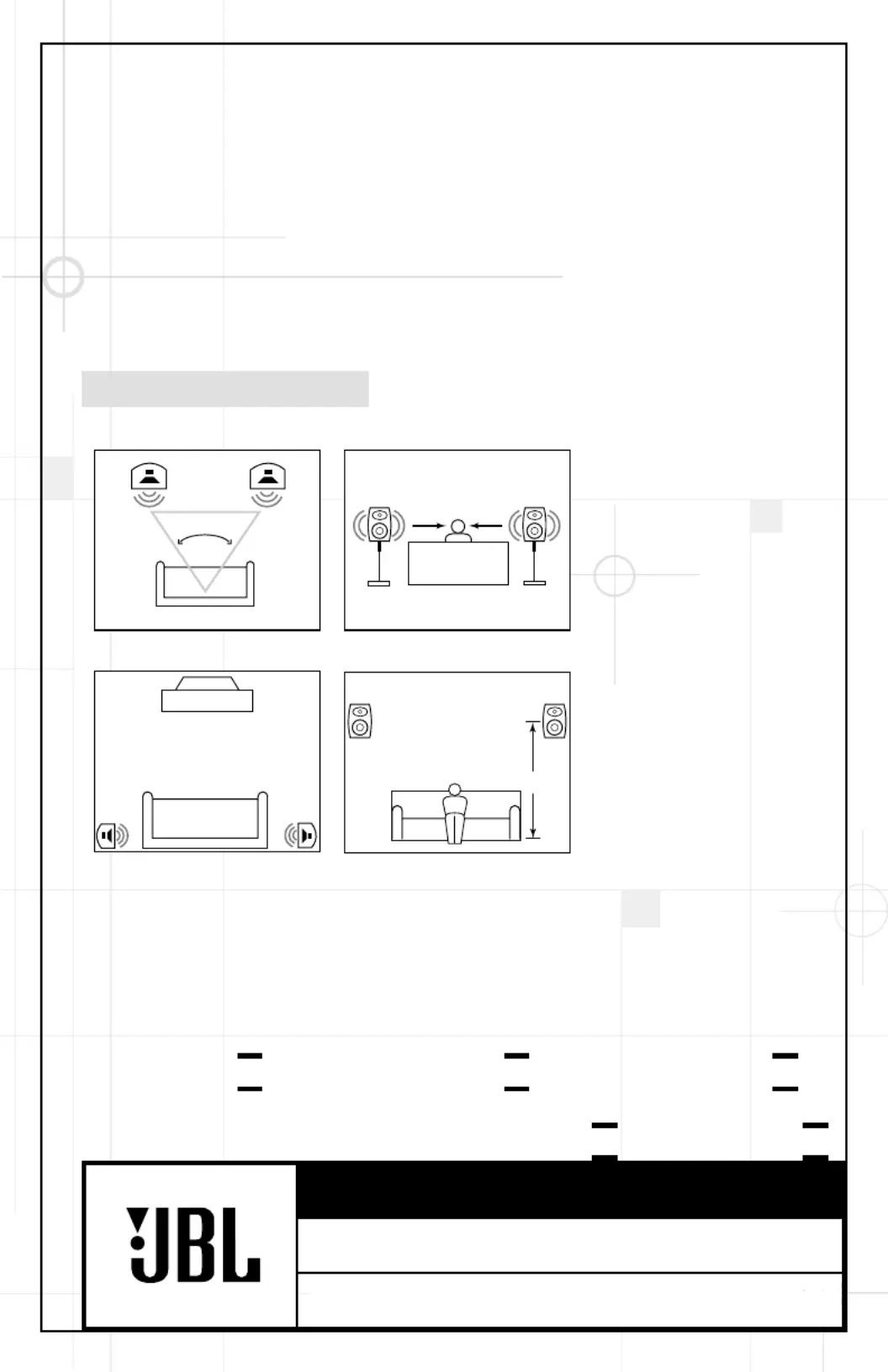

S P E A K E R P L A C E M E N T
Note for all-weather
models: While the N24AWII
and N26AWII are weather-
resistant, they are not
designed to be immersed in
water. Be selective in your
outdoor placement. Placing
these speakers under roof
eaves or a patio awning
will offer some shelter and
help contribute to years of
trouble-free performance.
When installed outdoors,
the speakers should be
angled down slightly, using
the mounting brackets that
are included with models
N24II and N24AWII.
See your JBL dealer
for the optional brackets
(WBN26WHT) available
for model N26AWII.
Proper placement of the speakers
is an important step in obtaining
the most realistic soundstage
possible. These recommenda-
tions are for the optimal
placement of the loudspeakers.
Use these placement recom-
mendations as a guide. Slight
variations will not diminish your
listening pleasure.
All of the Northridge Series
loudspeakers referred to in this
guide are video-shielded (except
models N24AWII and N26AWII)
and can safely be placed near a
television.
Note: Model NSP1II includes
four N24II speakers and one
N-CENTERII speaker. For a
complete home theater speaker
system, add a JBL powered
subwoofer to this model.
As Surround Speakers
P R O D U C T L I N E :
N O R T H R I D G E ™S E R I E S
P R O S O U N D C O M E S H O M E ™
O W N E R ’S G U I D E
N24 , N24AW , N26AWII II II,
N-CENTERII II, NSP1
5 – 6 ft.
40o 60–o

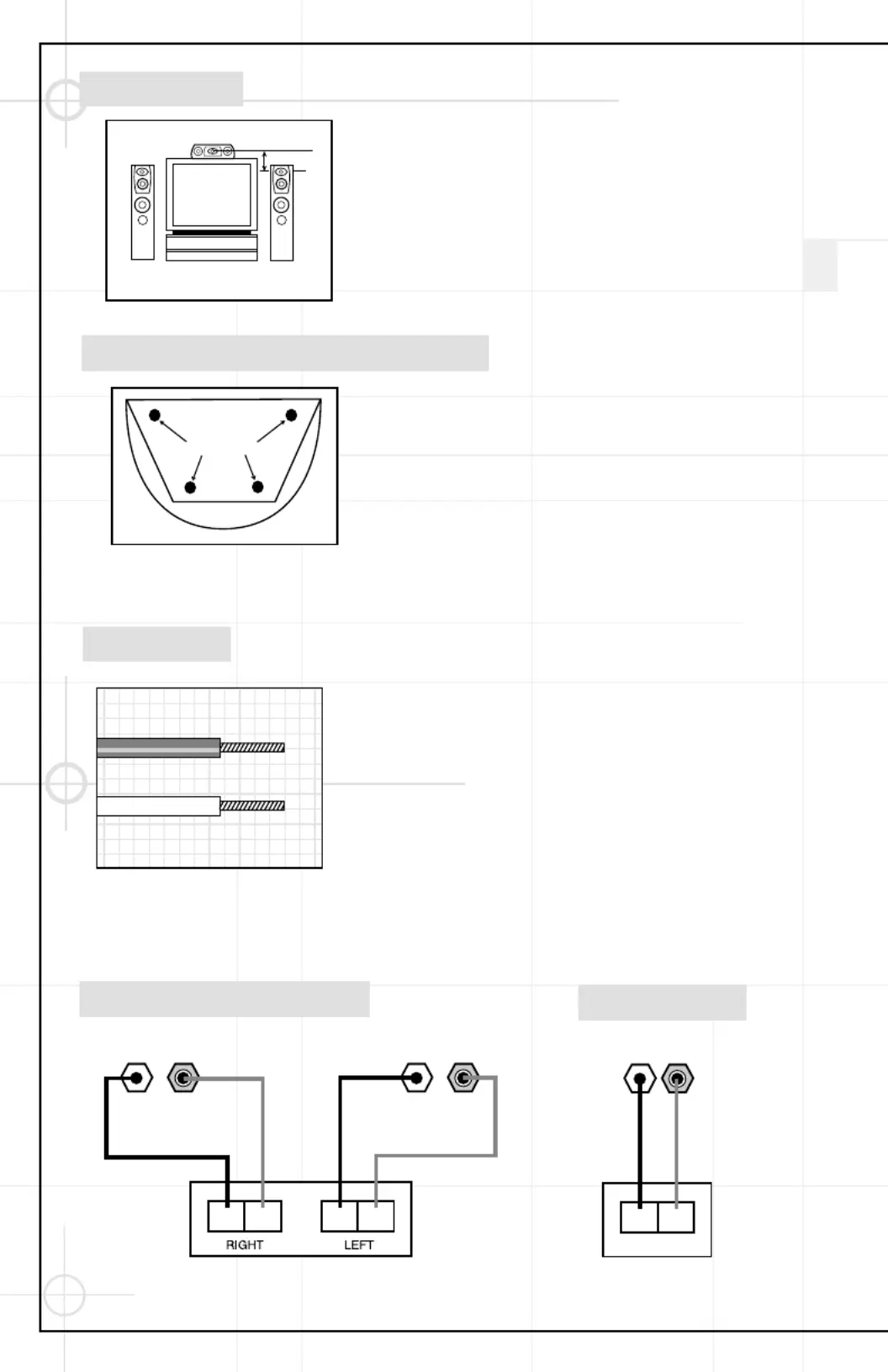

CONNECTION TIPS
S P E A K E R C O N N E C T I O N S
Speakers and electronics
terminals have corresponding (+)
and ( ) terminals. It is important–
to connect both speakers
identically: (+) on the speaker to
(+) on the amplifier and ( ) on the–
speaker to ( ) on the amplifier.–
Wiring “out of phase” results in
thin sound, weak bass and a poor
stereo image.
With the advent of multichannel
surround sound systems,
connecting all of the speakers in
your system with the correct
polarity remains equally important
in order to preserve the proper
ambience and directionality of the
program material.
To use the binding-post speaker
terminals, unscrew the colored
collar until the pass-through hole
in the center post is visible under
the collar. Insert the bare end of
the wire through this hole; then
screw the collar down until the
connection is tight. The hole in
the center of each collar is
intended for use with banana-
type connectors.
MODELS: N24II, N24AWII, N26AWII MODEL: N-CENTERII
Receiver
Speaker Outputs
– +
CENTER
CENTER
– +
MODEL: N-CENTERII
0 – 2 ft.
The N-CENTERII center channel
loudspeaker is designed to
complement all of the
Northridge Series loudspeakers.
It is the ideal way to re-create the
cinematic experience in your home.
MODELS: N24II, N24AWII, N26AWII, N-CENTERII
The supplied self-adhesive felt
pads may be attached to the
bottom corners of your speakers
to protect your furniture.
– +– +
– +
Receiver
Speaker Outputs
LEFTRIGHT
– +
Place pads here
