Sivu 1/58
®
User Guide
English ...........................2
Deutsch ......................... 6
Francais ........................10
Eapanol ........................14
Italiano ......................... 18
Dutch ...........................22
Korean ......................... 26
Danish ..........................30
Norwegian ...................34
Japanese .......................38
Simplified Chinese .......42
Russian ....................... 46
Swedish ........................50
Finnish .........................54

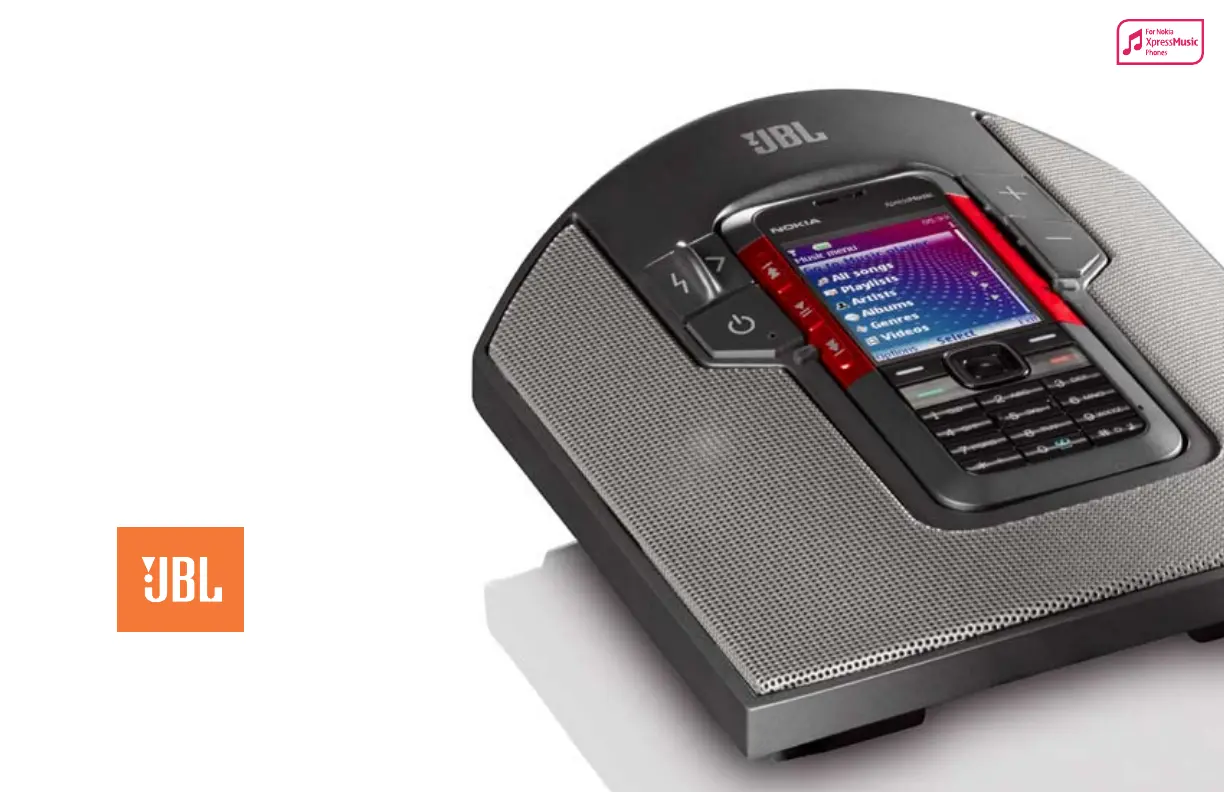

jbl on call™
5310
phone speaker dock for Nokia 5 310 Xpres sMusic
2
Read these instructions.•
Keep these instructions.•
Heed all warnings.•
Follow all instructions.•
Do not use this apparatus near water.•
Clean only with dry cloth.•
Do not block any ventilation openings. Install in accordance with the manufacturer’s •
instructions.
Do not install near any heat sources such as radiators, heat registers, stoves or other •
apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarizing •
plug has two blades with one wider than the other. A grounding-type plug has two blades
and a third grounding prong. The wide blade, or third prong, is provided for safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
Protect the power cord from being walked on or pinched, particularly at the plugs and •
convenience receptacles and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.•
Unplug this apparatus during lightning storms or when unused for long periods of time.•
Refer all servicing to qualified service personnel. Servicing is required when the apparatus •
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR •
BACK). THERE ARE NO USER-SERVICEABLE PARTS INSIDE THIS UNIT. PLEASE REFER
SERVICING TO QUALIFIED JBL, INCORPORATED, SERVICE PERSONNEL.
Never remove grille covers in order to service the speaker system. The speaker •
system does not contain any user-serviceable parts. Refer all servicing to the JBL,
Incorporated, Technical Support Group.
Important Safety Instructions
Please read the following precautions before use:
Regulatory
FCC Statement and Warning
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
1) This device may not cause interference.
2) This device must accept interference, including interference that may cause undesired operation of
the device.
IC Statement and Warning
Operation is subject to the following two conditions:
1) This device may not cause interference.
2) This device must accept interference, including interference that may cause undesired operation of
the device.
MODIFICATIONS NOT EXPRESSLY APPROVED BY THE MANUFACTURER COULD VOID THE USER’S
AUTHORITY TO OPERATE THE EQUIPMENT UNDER FCC RULES.
jbl on call
™
5310
Introduction
The JBL On Call 5310 portable loudspeaker is the latest innovation from JBL, a longtime leader in the manufacturing of high-end component audio
systems. JBL’s audio heritage and continual research have resulted in the unique technologies found in the JBL On Call 5310. Designed specifically
for the Nokia 5310 XpressMusic phone, the JBL On Call 5310 is both the ultimate in portable audio convenience and a paragon of superior audio
quality. The JBL On Call 5310 is a compact, high-performance sound center. Connected to your Nokia 5310 music phone, iPod, MP3 player or any
other music source with an audio jack, the JBL On Call 5310 will provide clean, powerful sound in a compact, portable design.
Compatibility
The JBL On Call 5310 is compatible with the Nokia 5310 music phone. The included charge port charges the Nokia 5310 whether the JBL On Call 5310
is powered off or on. The quick-release feature allows for easy access to the Nokia 5310 music phone. With the additional stereo mini jack connection,
you can enjoy high-quality audio from a variety of devices such as the iPod shuffle, MP3 and CD players, desktop computers (all platforms), satellite
radio and laptops.
Compact Design
The JBL On Call 5310 is a complete 2-channel audio system in one easy-to-place footprint. The JBL On Call 5310 delivers sound with a powerfully
tuned digital audio path. Its clean and compact digital amplification coupled with DSP (digital signal processing) equalization efficiently provides
radial transducers with cool-running power.
Advanced Technology
The JBL On Call 5310 combines many proprietary technologies to provide the highest quality sound. The JBL On Call 5310 will provide astonishing
bass and clear, accurate sound from any direction. Its two Odyssey® full-range transducers are driven by powerful neodymium magnets. The
Odyssey tweeters provide accurate high frequencies.
COE (Computer-Optimized Equalization)
The JBL On Call 5310 system equalization is computer-optimized to provide a rich, complete soundstage.
OCT (Optimized Compression Topology)
The JBL On Call 5310 features a proprietary compression technology to ensure clean, accurate sound at high output levels.
3
Unpacking
Carefully unpack your speaker system and identify all its components:
JBL On Call 5310 unit1.
Power supply 2.
Auxiliary audio cables3.
1.
2. 3.
Volume Control (on Base Unit)
Volume increase “ ”+
Volume decrease “–”
General Setup
Unpack the JBL On Call 5310 and its power supply.
Plug adapter into the “1.
12V
” port in back of unit and then into a wall outlet.
Press the “Power” 2. button on the front of the JBL On Call 5310.
A green LED will indicate that the unit is on.
Battery Installation
Lift the kickstand.1.
Lift battery cover on the bottom of the JBL On Call 5310 and remove the 2.
battery cover.
Place (4) fresh AA batteries as shown.3.
Replace battery compartment cover.4.
Close the kickstand.5.
Note: System will not use battery power when using AC power.
DO NOT MIX BATTERY TYPES.
DO NOT MIX CHARGED AND PARTIALLY CHARGED BATTERIES.
BATTERIES WILL NOT RECHARGE WHILE IN JBL ON CALL 5310.
Battery Disposal
Alkaline batteries are considered nonhazardous and can be
disposed of in your regular household trash.
Rechargeable batteries (i.e., nickel cadmium, nickel metal-hydride,
lithium and lithium-ion) are considered hazardous household
materials and could pose an unnecessary health and safety risk.
Unwanted materials should be disposed of in an environmentally
sound manner. Contact your local waste management officials for
other information regarding the environmentally sound collection,
recycling and disposal of used batteries.
Listening to Music From the
Nokia 5310 Music Phone
Slide the Nokia 5310 music phone into the JBL On Call 5310 dock.1.
Hold down the bottom of the Nokia 5310 music phone.2.
Slide the JBL On Call 5310 charge connector into the Nokia 5310 3.
music phone.
Press the “Power” button on the front of the JBL On Call 5310. 4.
A green LED will indicate that the unit is on.
Control music playback through the Nokia 5310 music phone.5.
Adjust volume using the “+” and “–” buttons located on the front of the 6.
JBL On Call 5310.
Listening to Music From an Auxiliary Device
The JBL On Call 5310 speaker includes a 2.5mm mini jack and 3.5mm mini
jack cable for connection to any analog music player with either a 2.5mm
or 3.5mm output.
Connect the auxiliary device to the JBL On Call 5310 using the supplied 1.
audio cable.
Press the “Power” button on the front of the JBL On Call 5310. 2.
A green LED will indicate that the unit is on.
Control music playback through the auxiliary device.3.
Adjust volume using the “+” and “–” buttons located on the front of the 4.
JBL On Call 5310.
1. 2.
1. 2.
3. 4.
1. 2.
3. 4.
1. 2., 4.
5.
