Sivu 1/6
SCS500.5 SYSTEM
Frequency Response
30Hz – 20kHz (–6dB)
SATELLITES
Maximum Recommended Amplifier Power
100 Watts
Nominal Impedance 8 Ohms
Sensitivity 88dB @ 1 Watt/1 meter
Frequency Response 100Hz – 20kHz (–6dB)
Tweeter
1/2" (13mm) Titanium-laminate dome,
video-shielded
Midrange
Dual 3" (75mm) drivers, video-shielded
Dimensions (H x W x D)
(not including shelf stand)
11-1/2" x 4" x 3-1/2" (292mm x 102mm x 89mm)
Weight 3 lb (1.4kg)
CENTER
Maximum Recommended Amplifier Power
100 Watts
Nominal Impedance 8 Ohms
Sensitivity 88dB @ 1 Watt/1 meter
Frequency Response 100Hz – 20kHz (–6dB)
Tweeter
1/2" (13mm) Titanium-laminate dome,
video-shielded
Midrange
Dual 3" (75mm) drivers, video-shielded
Dimensions (H x W x D)
(not including shelf stand)
4" x 11-1/2" x 3-1/2" (102mm x 292mm x 89mm)
Weight 3 lb (1.4kg)
SUBWOOFER
Amplifier 150 Watts RMS
Frequency Response 30Hz – 120Hz (–6dB)
Woofer 10" (250mm)
Enclosure Bass-reflex
Dimensions (H x W x D)
(including feet)
20" x 13-3/4" x 15-3/4"
(508mm x 349mm x 400mm)
Weight 35 lb (15.9kg)
SPECIFICATIONS
All features and specifications are subject to change
without notice.
Dolby and Pro Logic are registered trademarks of
Dolby Laboratories.
DTS is a registered trademark of DTS, Inc.
DE SI GN G O AL : Bring the thrill of live performance and movie sound
to
the home environment bycalling on JBL’s professional engineering leadership.
S AT EL L I T E T YPE :
Titanium-laminate-dome tweeter,
sealed enclosure
S UB W O OF E R T YP E :
Bass-reflex enclosure
PORT DESIGN: FreeFlow™flared
PR O F E S S I O NA L R E F E R E NC E : Cinema Loudspeaker Series
OWNER’S GUIDE
P R O D U C T L I N E :
M O DE L :
SCS500.5
S UR RO UN D C INE MA
S P E A K E RS
© 2007 Harman International Industries, Incorporated.
All rights reserved.
JBL is a trademark of Harman International Industries,
Incorporated, registered in the United States and/or
other countries.
Part No.
406-000-05677-E
PRO SOUND
COMES HOME™
Harman Consumer Group, Inc.
250 Crossways Park Drive, Woodbury, NY 11797
8500 Balboa Boulevard, Northridge, CA 91329
516.255.4JBL (4525) (USA only)
www.jbl.com
SCS500.5
32
INCLUDED
THANK YOU FOR CHOOSING JBL
For more than 60 years, JBL
has been involved in every
aspect of music and film
recording and reproduction,
from live performances to
the recordings you play in
your home, car or office.
We’re confident that the JBL
system you have chosen will
provide every note of enjoy-
ment that you expected –
and that when you think
about purchasing additional
audio equipment for your
home, car or office, you will
once again choose JBL.
Please take a moment to
register your product on our
Web site at www.jbl.com.
It enables us to keep you
posted on our latest advance-
ments, and helps us to better
understand our customers
and build products that
meet their needs and
expectations.
JBL, Incorporated
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding-type plug has two blades
and a third grounding prong. The wide blade
or the third prong is provided for your safety.
If the provided plug does not fit into your out-
let, consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles and the point
where they exit from the apparatus.
11. Only use attachments/accessories speci-
fied by the manufacturer.
12. Use only with the cart, stand, tripod,
bracket or table specified by the manufac-
turer or sold with the apparatus. When a cart
is used, use caution when moving
the cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus dur-
ing lightning storms or when unused
for long periods of time.
14. Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power supply cord or plug is dam-
aged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not
operate normally, or has been dropped.
15. Do not expose this apparatus to dripping
or splashing and ensure that no objects filled
with liquids, such as vases, are placed on
the apparatus.
16. To completely disconnect this apparatus
from the AC Mains, disconnect the power
supply cord plug from the AC receptacle.
17. The mains plug of the power supply cord
shall remain readily operable.
18. Do not expose batteries to excessive heat
such as sunshine, fire or the like.
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is
intended to alert the user to
the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magni-
tude to constitute a risk of electric shock to
persons.
The exclamation point within
an equilateral triangle is
intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in the literature
accompanying the product.
WARNING: To reduce the risk of fire or elec-
tric shock, do not expose this apparatus to
rain or moisture.

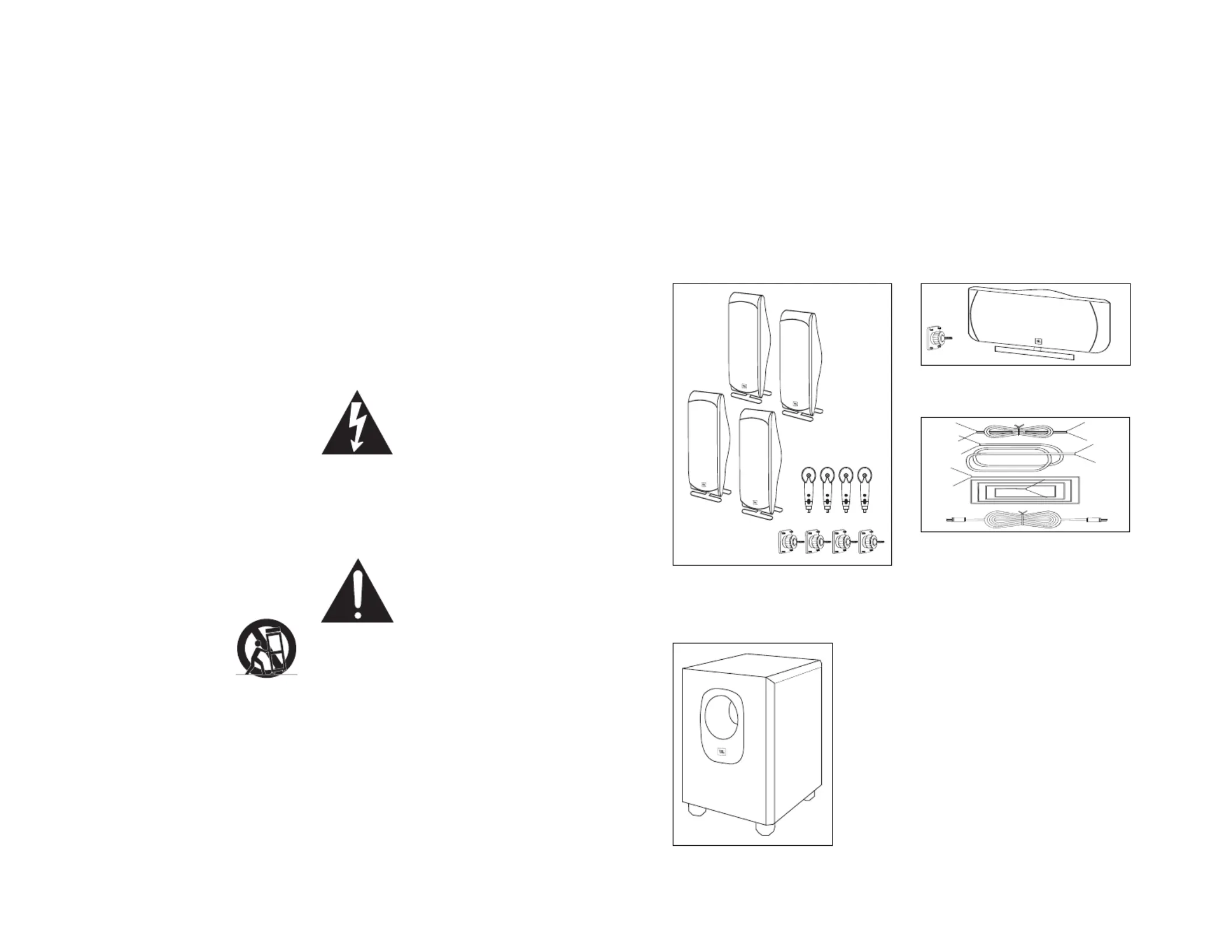

Four satellites for left, right and
surrounds. Wall-mount brackets.
Shelf stands. Floor stand adapters.
One center channel speaker with shelf
stand and wall-mount bracket.
Powered subwoofer.
Three 20' (6m) speaker cables for connection
to front, left, center and right speakers.
Two 40' (12m) speaker cables for connection
from receiver to rear satellites.
One 15' (4.6m) RCA interconnect cable for
connection from receiver to subwoofer’s
LFE input.
In addition, there are two hardware bags
included. Hardware Bag A contains screws
for the shelf stands. Hardware Bag B con-
tains screws for the floor stand adapters and
parts for the wall-mount brackets, including
the metal tightening bar.
54

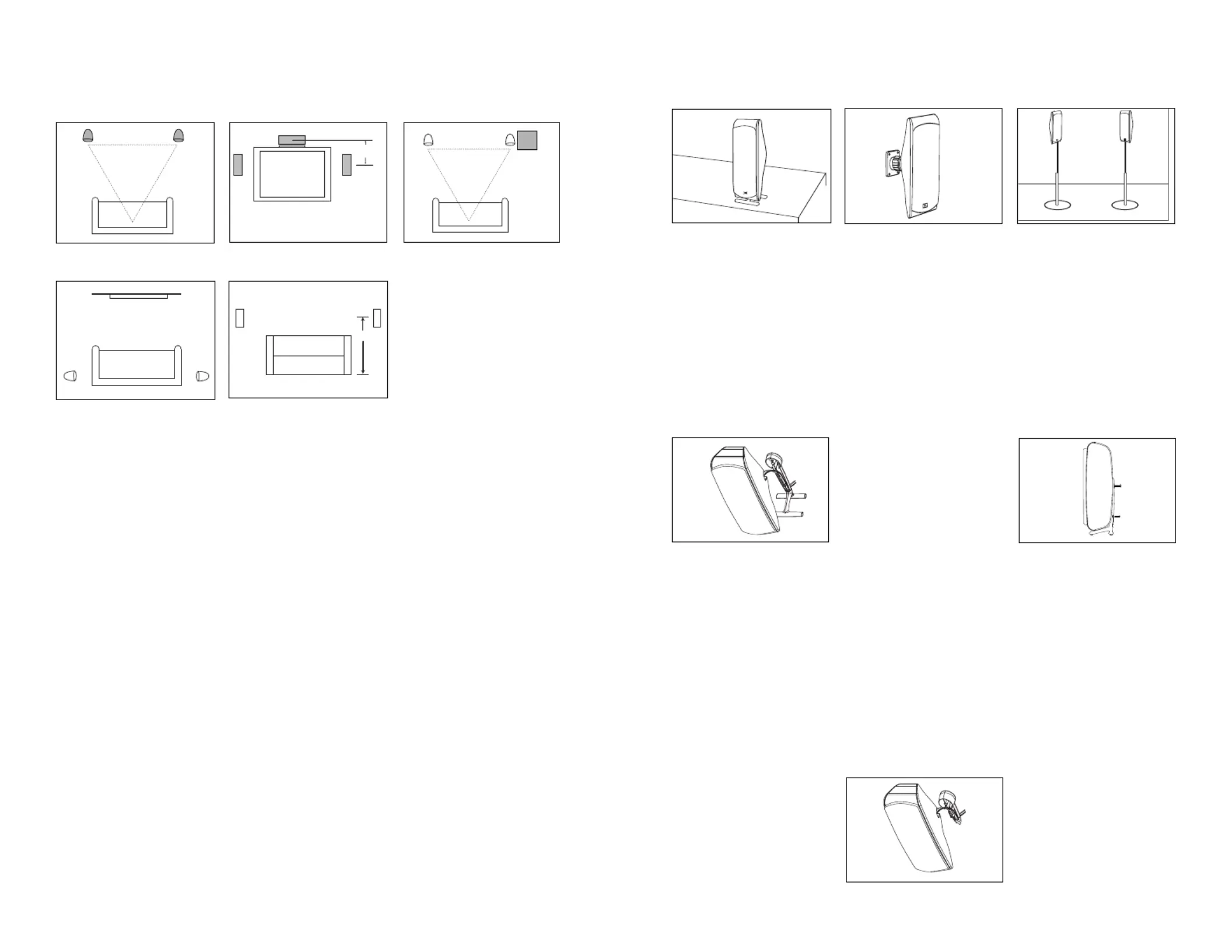

SPEAKER PLACEMENT
SUBWOOFER
SURROUND SPEAKERS
5–6 ft
(1.5–1.8m)
FRONT
SPEAKERS
0–2 ft
(0–0.6m)
The front speakers should be
placed the same distance
from each other as they are
from the listening position.
They should be placed at
about the same height from
the floor as the listeners’
ears will be, or they may be
angled toward the listeners.
The center channel speaker
should be placed directly
above or below the televi-
sion, and no more than two
feet above or below the
tweeters of the left and right
speakers. It is often con-
venient to set the center
speaker on top of the tele-
vision set, as shown in the
drawing.
The surround speakers
should be placed slightly
behind the listening position
and, ideally, should face
each other and be at a
level
higher than the listeners’
ears.
If that is not possible, they
may be placed on a wall
behind the listening position,
facing forward. Additional
satellites may be purchased
separately for use in 6.1- or
7.1-channel systems.
Generally, it is best to aim
all of the speakers (except
the subwoofer) toward the
listening position at about
ear-level height.
The low-frequency material
reproduced by the subwoofer
is mostly omnidirectional,
and this speaker may be
placed in a convenient loca-
tion in the room. However,
bass reproduction will be
maximized when the sub-
woofer is placed in a corner
along the same wall as the
front speakers. Experiment
with subwoofer placement
by temporarily placing the
subwoofer in the listening
position and moving around
the room until the bass
reproduction is best. Place the
subwoofer in that location.
CENTER CHANNEL
SPEAKER
MOUNTING OPTIONS
On shelves. On the wall. Wall
brackets are included.
On optional stands.
SATELLITES AND SURROUNDS
Prepare the speaker wire as
described on page 7. Thread
the two conductors through
the two holes in the stand
bracket. Make sure to pre-
serve the proper polarity
(+ and – connections) by
threading the positive con-
ductor through the hole on
the left, and the negative
conductor through the hole
on the right, looking at the
front of the stand. Push down
on the red speaker terminal
and insert the bare end of the
positive wire into the hole
under the red cap. Release
the cap, and tug gently on the
wire to make sure that the
connection is snug. Follow
the same procedure to con-
nect the negative wire to its
terminal.
Gently pull the slack out of
the wire and screw the shelf
stand onto the back of the
speaker in two places, as
shown. The shelf stand
screws may be found in
Hardware Bag A. Use the
larger screw in the upper
screw hole, and the smaller
screw in the lower screw hole.
ATTACHING THE SHELF STAND TO THE SPEAKER
MOUNTING THE SATELLITES ON OPTIONAL FLOOR STANDS
Important Safety Note: The
supplied floor stand adapters
facilitate installation with a
variety of general-purpose
floor stands available from
many manufacturers. Since
different stands will have
different weight capacities
and stability characteristics, it
is the customer’s responsibility
to check with the stand
manufacturer or dealer to
determine whether that spe-
cific stand is capable of han-
dling the weight and propor-
tions of these loudspeakers in
a safe and stable manner. JBL
disclaims any liability for the
selection of suitable floor
stands and/or correct compat-
ibility between the selected
stand and these satellite loud-
speakers.
The floor stand adapters are
compatible with floor stands
equipped with a 1/4"-20
threaded insert.
Prepare the speaker wire as
described on page 7. Thread
the two conductors through
the two holes in the floor stand
adapter. Make sure to
preserve the proper polarity
(+ and – connections) by
threading the positive
conductor through the hole
on the left, and the negative
conductor through the hole on
the right, looking at the front of
the adapter. Push down on the
red speaker terminal and
insert the bare end of the
positive wire into the hole
under the red cap. Release
the cap, and tug gently on
the wire to make sure that
the connection is snug.
Follow the same procedure
to connect the negative wire
to its terminal.
+
–
+
–
Tuotetiedot
| Merkki: | JBL |
| Kategoria: | Kaiutin |
| Malli: | SCS500.5 |
Tarvitsetko apua?
Jos tarvitset apua merkille JBL SCS500.5 esitä kysymys alla ja muut käyttäjät vastaavat sinulle
Kaiutin JBL Käyttöohjeet
15 Tammikuuta 2025
12 Tammikuuta 2025
12 Tammikuuta 2025
12 Tammikuuta 2025
4 Tammikuuta 2025
30 Joulukuuta 2025
30 Joulukuuta 2025
30 Joulukuuta 2025
30 Joulukuuta 2025
30 Joulukuuta 2025
Kaiutin Käyttöohjeet
- Kaiutin Aiwa
- Kaiutin Bauhn
- Kaiutin LG
- Kaiutin Power Dynamics
- Kaiutin Vonyx
- Kaiutin Grundig
- Kaiutin Sharp
- Kaiutin Hama
- Kaiutin AOC
- Kaiutin Philips
- Kaiutin IKEA
- Kaiutin Edifier
- Kaiutin Teufel
- Kaiutin Fender
- Kaiutin Axton
- Kaiutin Kogan
- Kaiutin Soundcore
- Kaiutin Turbosound
- Kaiutin Sony
- Kaiutin GoGEN
- Kaiutin Pro-Ject
- Kaiutin Yamaha
- Kaiutin Morel
- Kaiutin Axis
- Kaiutin Extron
- Kaiutin Media-tech
- Kaiutin Pioneer
- Kaiutin EarFun
- Kaiutin Ecler
- Kaiutin Audac
- Kaiutin KEF
- Kaiutin Audio-Technica
- Kaiutin Toa
- Kaiutin Pyle
- Kaiutin Sencor
- Kaiutin Bose
- Kaiutin Orava
- Kaiutin Kanto
- Kaiutin Wet Sounds
- Kaiutin JVC
- Kaiutin Sharper Image
- Kaiutin Kicker
- Kaiutin Auna
- Kaiutin OSD Audio
- Kaiutin Fenton
- Kaiutin MB Quart
- Kaiutin Aplic
- Kaiutin CSL
- Kaiutin Bearware
- Kaiutin Advance
- Kaiutin Sonance
- Kaiutin AXESS
- Kaiutin Artsound
- Kaiutin Denon
- Kaiutin Ion
- Kaiutin Elac
- Kaiutin Marshall
- Kaiutin Yorkville
- Kaiutin V-Tac
- Kaiutin Braun
- Kaiutin Infinity
- Kaiutin Majority
- Kaiutin Helix
- Kaiutin Genesis
- Kaiutin Logilink
- Kaiutin Klipsch
- Kaiutin Muse
- Kaiutin Ground Zero
- Kaiutin Karma
- Kaiutin Glemm
- Kaiutin Match
- Kaiutin Speed-Link
- Kaiutin Renkforce
- Kaiutin Definitive Technology
- Kaiutin QSC
- Kaiutin WHD
- Kaiutin Q Acoustics
- Kaiutin Karcher
- Kaiutin GoldenEar
- Kaiutin Pyramid
- Kaiutin FoneStar
- Kaiutin Trevi
- Kaiutin Monitor Audio
- Kaiutin Peavey
- Kaiutin Canton
- Kaiutin Sven
- Kaiutin Energy Sistem
- Kaiutin PSB
- Kaiutin Vizio
- Kaiutin Polk
- Kaiutin ESX
- Kaiutin Omnitronic
- Kaiutin MEE Audio
- Kaiutin Monacor
- Kaiutin ModeCom
- Kaiutin Hercules
- Kaiutin Black Hydra
- Kaiutin Electro-Voice
- Kaiutin Wharfedale
- Kaiutin Boss
- Kaiutin Tannoy
- Kaiutin Mount-It!
- Kaiutin GMB Audio
- Kaiutin Mad Dog
- Kaiutin Ashly
- Kaiutin Samson
- Kaiutin Memphis Audio
- Kaiutin Focal
- Kaiutin Alpine
- Kaiutin Boompods
- Kaiutin Kramer
- Kaiutin Genelec
- Kaiutin Bazooka
- Kaiutin Lamax
- Kaiutin Aiaiai
- Kaiutin RCF
- Kaiutin N-Gear
- Kaiutin Vimar
- Kaiutin Phoenix Gold
- Kaiutin Aconatic
- Kaiutin Bogen
- Kaiutin Atlas
- Kaiutin PowerBass
- Kaiutin Trendnet
- Kaiutin Prime3
- Kaiutin Harman Kardon
- Kaiutin Yamazen
- Kaiutin Lexibook
- Kaiutin Ibiza Sound
- Kaiutin Creative
- Kaiutin REL Acoustics
- Kaiutin Phonic
- Kaiutin Lexon
- Kaiutin Apart
- Kaiutin Magnat
- Kaiutin Boston Acoustics
- Kaiutin Crest Audio
- Kaiutin Devialet
- Kaiutin AudioSource
- Kaiutin Taga Harmony
- Kaiutin SoundTube
- Kaiutin Ruark Audio
- Kaiutin MB
- Kaiutin Antelope
- Kaiutin Lenco
- Kaiutin M-Audio
- Kaiutin SureFire
- Kaiutin Dali
- Kaiutin Berker
- Kaiutin LD Systems
- Kaiutin Xcellon
- Kaiutin Denon DJ
- Kaiutin Nikkei
- Kaiutin HK Audio
- Kaiutin Eve Audio
- Kaiutin Delvcam
- Kaiutin Grimm Audio
- Kaiutin DAP Audio
- Kaiutin Cerwin-Vega
- Kaiutin Ikegami
- Kaiutin Revel
- Kaiutin New One
- Kaiutin Mission
- Kaiutin Alto
- Kaiutin Proel
- Kaiutin Mackie
- Kaiutin Bowers Wilkins
- Kaiutin Audibax
- Kaiutin Sonus Faber
- Kaiutin Magnavox
- Kaiutin OWI
- Kaiutin Weather X
- Kaiutin Krüger And Matz
- Kaiutin Blue Tees
- Kaiutin BASSBOSS
- Kaiutin FBT
- Kaiutin Transparent
- Kaiutin IHome
- Kaiutin Andover
- Kaiutin ILive
Viimeisimmät Kaiutin Käyttöohjeet
16 Tammikuuta 2025
16 Tammikuuta 2025
16 Tammikuuta 2025
16 Tammikuuta 2025
16 Tammikuuta 2025
16 Tammikuuta 2025
16 Tammikuuta 2025
16 Tammikuuta 2025
16 Tammikuuta 2025
16 Tammikuuta 2025
