Part No.
ai0456
T W E E T E R T Y P E : Pure-titanium dome with EOS™ waveguide
D E S I G N G O A L : Bring the thrill of live performance and movie sound to
the home environment bycalling on JBL’s professional engineering leadership.
C R O S S O V E R N E T W O R K : Straight-Line Signal Path (SSP)™
W O O F E R T Y P E :
Cast-aluminum basket with HeatScape motor structure™
P O R T D E S I G N : FreeFlow™ flared
P R O F E S S I O N A L R E F E R E N C E : Studio Monitor
O W N E R ’ S G U I D E P R O S O U N D
C O M E S H O M E ™
P R O D U C T L I N E : S T U D I O™S E R I E S
M O D E L
N U M B E R : S-CENTER
Description: 3-Way dual 5-1/4" center
Maximum Recommended
Amplifier Power:** 150W
Nominal Impedance: 8 Ohms
Sensitivity (2.83V/1m):
91dB
Frequency Response (–3dB):
75Hz – 20kHz
Crossover Frequencies: 800Hz, 3200Hz
High-Frequency Transducer: 1" Pure-titanium dome, with rubber surround,
shielded; Elliptical Oblate Spheroidal (EOS) ™
waveguide
Midrange Transducer: 4" PolyPlas (polymer-coated cellulose fiber) ™
cone, rubber surround, shielded; Linear Field
Proximity™ (LFP) bezel
Low-Frequency Transducer
:5-1/4" PolyPlas™ (polymer-coated cellulose fiber)
cone, rubber surround, SFG™, magnetic shorting
rings, high-temp oversized Kapton
®voice coil,
HeatScape™ motor structure, cast-aluminum
baskets, shielded
Baffles: Low Diffraction, IsoPower™
Port: FreeFlow™ flared
Network: Straight-Line Signal Path™ (SSP)
Terminals: All-metal, gold-plated, 5-way binding posts
Dimensions (H x W x D): 7-7/8" x 20-1/2" x 9"
200mm x 521mm x 229mm
Weight: 15 lb/6.8kg
S P E C I F I C AT I O N S
* Dolby and Pro Logic are trademarks of Dolby Laboratories.
DTS is a registered trademark of Digital Theater Systems, Inc.
** The maximum recommended amplifier power rating will ensure proper system headroom
to allow for occasional peaks. We do not recommend sustained operation at these
maximum power levels.
All features and specifications are subject to change without notice.
X +
0 +
Y2
0
MH Z
X + 0 + Y
2
0 M
H Z
”

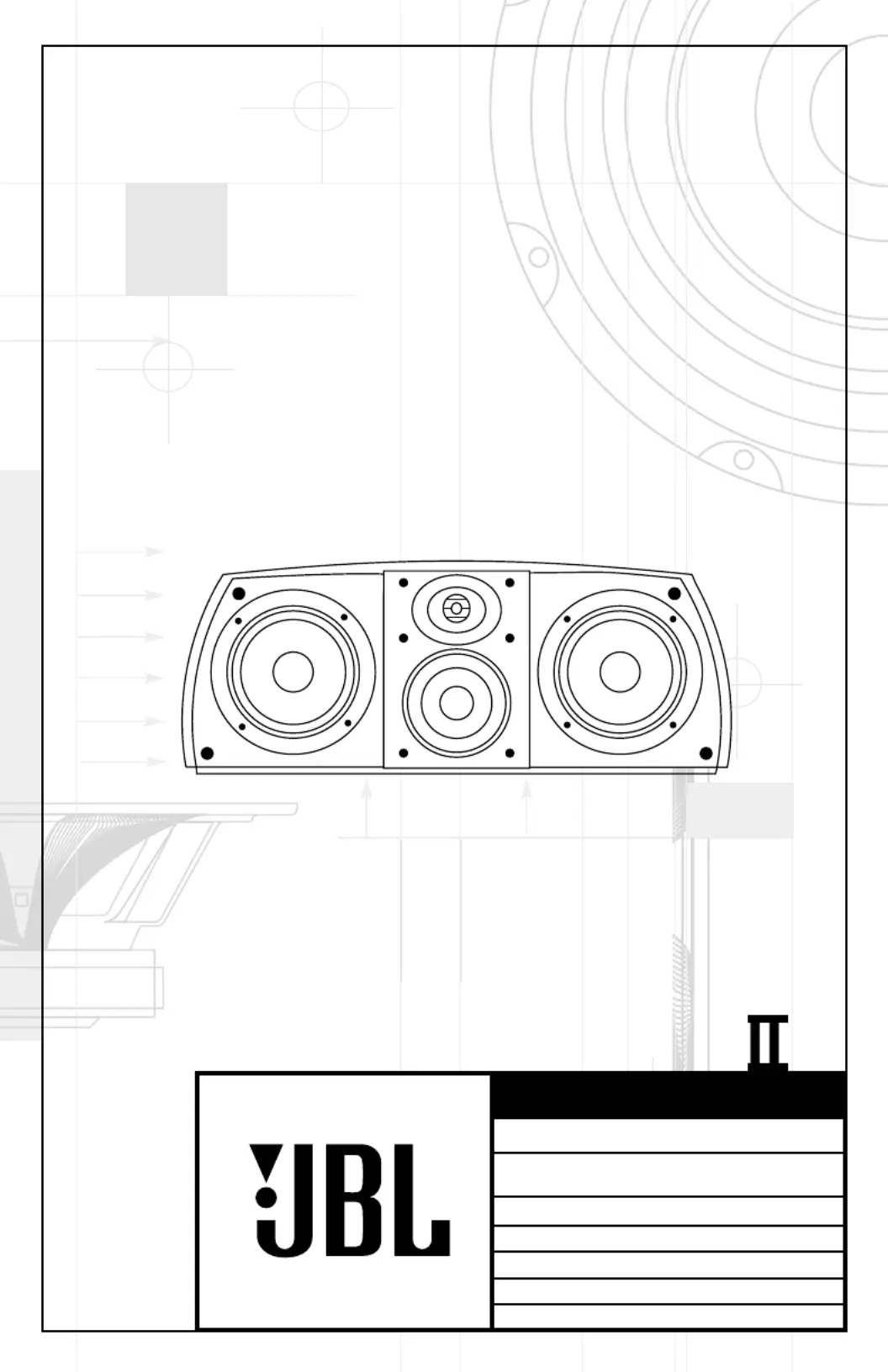

T W E E T E R T Y P E : Pure-titanium dome with EOS waveguide™
D E S I G N G O A L : Bring the thrill of live performance and movie sound to
the homeenvironment by calling on JBL’s professional engineering leadership.
C R O S S O V E R N E T W O R K : Straight-Line Signal Path (SSP)™
P O R T D E S I G N : FreeFlow™ flared
P R O F E S S I O N A L R E F E R E N C E : Studio Monitor
O W N E R ’S G U I D E
W O O F E R T Y P E :
Cast-aluminum basket with HeatScape™ motor structure
P R O D U C T L I N E : S T U D I O™S E R I E S
T H A N K Y O U F O R C H O O S I N G J B L
For more than 50 years, JBL
has been involved in every
aspect of music and film
recording and reproduction,
from live performances to the
recordings you play in your
home, car or office.
We’re confident that the JBL
loudspeaker you have chosen
will provide every note of
enjoyment that you expected –
and that when you think
about purchasing additional
audio equipment for your
home, car or office, you will
once again choose JBL.
Please take a moment to
complete the enclosed
profile card. It enables us
to keep you posted on our
latest advancements, and
helps us to better understand
our customers and build
products that meet their
needs and expectations.
JBL Consumer Products
S-CENTER
0-2 ft.

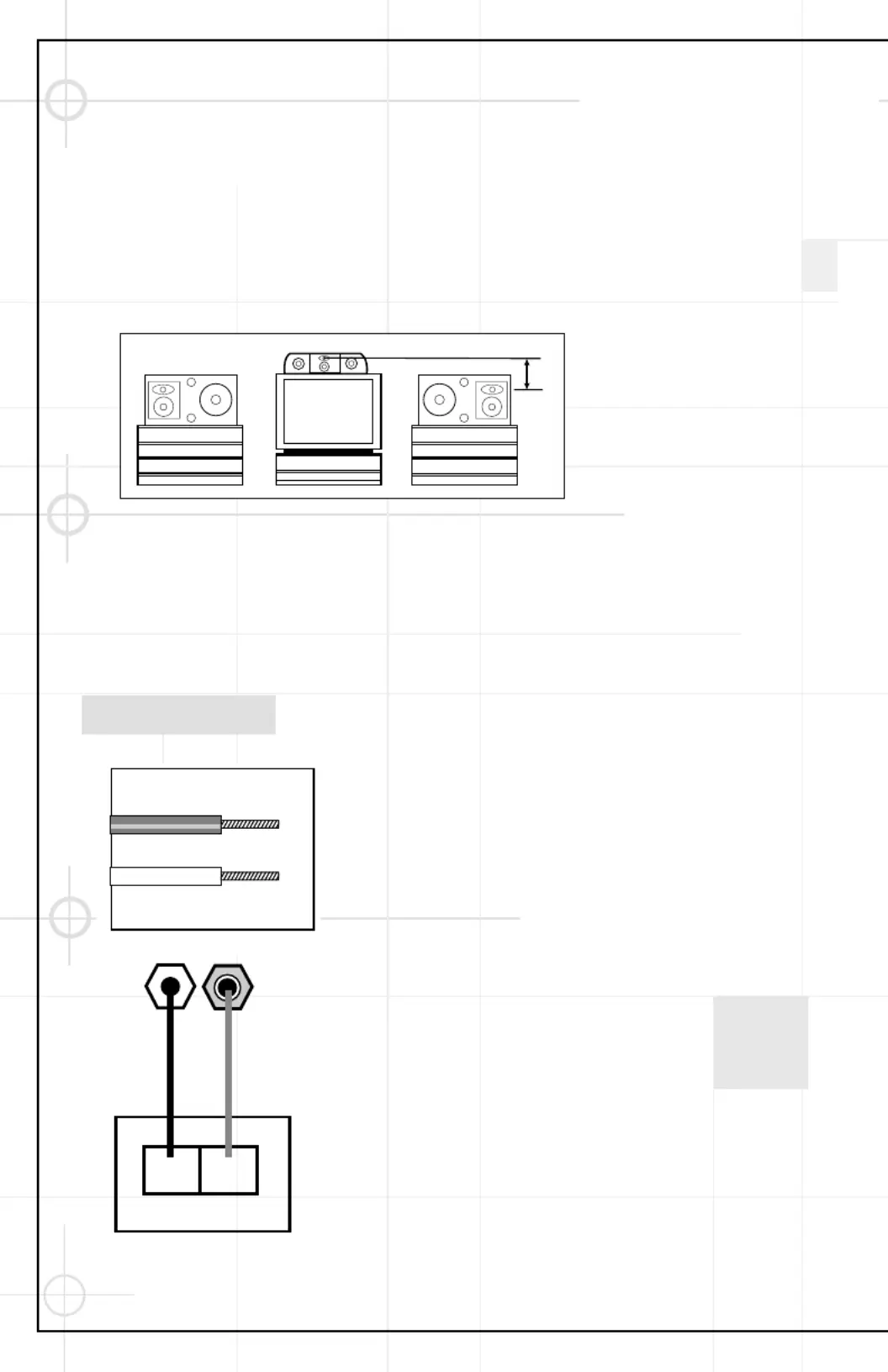

S P E A K E R P L A C E M E N T
Proper placement of your
speakers is an important step
in obtaining the most realistic
soundstage possible. These
recommendations are for the
optimum placement of your
loudspeakers. Use these
placement recommendations
as a guide. Slight variations
will not diminish your
listening pleasure.
The Studio Series S-CENTERII
loudspeaker is video-
shielded and can safely be
placed near a television.
The S-CENTER is designed II
to complement all of the
Studio Series loudspeakers.
It is the ideal way to re-create
the cinematic experience in
your home.
The supplied self-adhesive felt
pads may be attached to the
bottom corners of your
S-CENTERII speaker to protect
your television or furniture.
CONNECTION TIPS
S P E A K E R C O N N E C T I O N S
– +
Speaker Outputs
CENTER
– +
Speakers and electronics
terminals have corre-
sponding (+) and (–)
terminals. It is important to
connect both speakers
identically: (+) on the speaker
to (+) on the amplifier and (–)
on the speaker to ( ) on the–
amplifier. Wiring out of“
phase” results in thin sound,
weak bass and a poor
stereo image.
With the advent of
multichannel surround sound
systems, connecting
all of the speakers in your
system with the correct
polarity remains equally
important in order to
preserve the proper
ambience and directionality
of the program material.
To use the binding-post
speaker terminals, unscrew
the collar until the pass-
through hole in the center
post is visible under the
collar. Insert the bare end of
the wire through this hole;
then screw the collar down
until the connection is tight.
The hole in the center of
each collar is intended for
use with banana-type
connectors.
