T W E E T E R T Y P E : Pure-titanium dome with EOS™ waveguide
D E S I G N G O A L : Bring the thrill of live performance and movie sound to
the homeenvironment by calling on JBL’s professional engineering leadership.
C R O S S O V E R N E T W O R K : Straight-Line Signal Path™ (SSP)
E N C L O S U R E D E S I G N : Sealed
P R O F E S S I O N A L RE F E R E N C E : Studio Monitor
O W N E R ’ S G U I D E
W O O F E R T Y P E :
Cast-aluminum basket with HeatScape™ motor structure
P R O D U C T L I N E : S T U D I O S E R I E S
JBL Consumer Products
250 Crossways Park Drive, Woodbury, NY 11797
8500 Balboa Boulevard, Northridge, CA 91329
800-336-4JBL (4525) (USA only)
www.jbl.com
©2000 JBL, Incorporated. JBL is a registered trademark
of JBL, Incorporated.
Part No.
qi0424
T W E E T E R T Y P E : Pure-titanium dome with EOS™ waveguide
D E S I G N G O A L : Bring the thrill of live performance and movie sound to
the home environment bycalling on JBL’s professional engineering leadership.
C R O S S O V E R N E T W O R K : Straight-Line Signal Path™ (SSP)
W O O F E R T Y P E :
Cast-aluminum basket with HeatScape™ motor structure
E N C L O S U R E D E S I G N : Sealed
P R O F E S S I O N A L R E F E R E N C E : Studio Monitor
O W N E R ’ S G U I D E P R O S O U N D
C O M E S H O M E ™
P R O D U C T L I N E : S T U D I O S E R I E S
M O D E L S36
N U M B E R :
M O D E L S36
N U M B E R :
T H A N K Y O U F O R C H O O S I N G J B L
For more than 50 years, JBL
has been involved in every
aspect of music and lm
recording and reproduction,
from live performances to the
recordings you play in your
home, car or oce.
We’re confident that the JBL
loudspeakers you have
chosen will provide every
note of enjoyment that you
expected – and that when you
think about purchasing
additional audio equipment
for your home, car or
office, you will once again
choose JBL.
Please take a moment to
complete the enclosed
profile card. It enables us
to keep you posted on our
latest advancements, and
helps us to better understand
our customers and build
products that meet their
needs and expectations.
JBL Consumer Products
S P E C I F I C AT I O N S
S36
Description: 3-Way 6" horizontal/vertical mirror-image
wall-mount/bookshelf loudspeakers
Maximum Recommended
Amplier Power*: 150W
Nominal Impedance: 8 Ohms
Sensitivity (2.83V/1m):
90dB
Frequency Response (–3dB):
60Hz – 20kHz
Crossover Frequencies: 650Hz, 3000Hz
High-Frequency Transducer: 1" Pure-titanium dome, with rubber surround,
shielded; Elliptical Oblate Spheroidal™ (EOS)
waveguide
Midrange Transducer: 4" PolyPlas™ (polymer-coated cellulose ber)
cone, rubber surround, shielded; Linear Field
Proximity™ (LFP) bezel
Low-Frequency Transducer
:6" PolyPlas™ (polymer-coated cellulose ber)
cone, rubber surround, SFG™, magnetic shorting
rings, high-temp oversized Kapton
®voice coil,
HeatScape™ motor structure, cast-aluminum
baskets, shielded
Baes: Low diraction, IsoPower™
Enclosure: Sealed
Network: Straight-Line Signal Path™ (SSP)
Terminals: All-metal, gold-plated 5-way binding posts
Dimensions (H x W x D): 10-1/4" x 14-5/8" x 5"
260mm x 371mm x 127mm
Weight: 11 lb/5kg
*The maximum recommended amplier power rating will ensure proper system headroom to allow
for occasional peaks. We do not recommend sustained operation at these maximum power levels.
Occasional renements may be made to existing products without notice but will always meet or
exceed original specications unless otherwise stated.

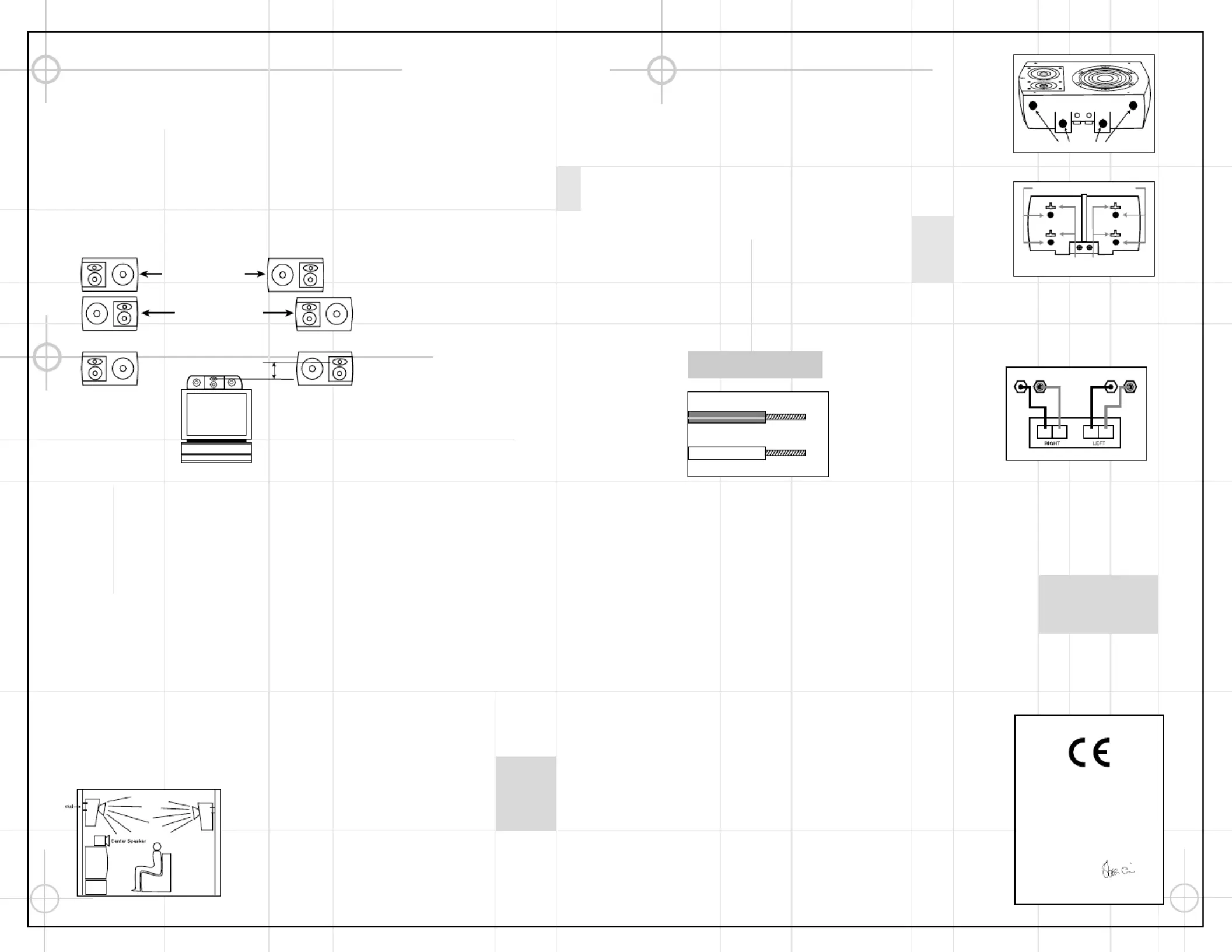

S P E A K E R P L A C E M E N T
Proper placement of the
speakers is an important step
in obtaining the most realistic
soundstage possible. These
recommendations are for the
optimum placement of the
loudspeakers. Use these
placement recommendations
as a guide. Slight variations
will not diminish your
listening pleasure.
The Studio Series S36
loudspeakers are video-
shielded and can safely be
placed near a television.
Although these loudspeakers
are designed as a mirrored
pair, the decision as to
which one is left or right will
depend on the amount of
space left between them.
If there is no sound from
any of the speakers:
• Check that receiver/
amplier is on and that
a source is playing.
• Review proper operation
of your receiver/amplier.
• Make sure all wires are
connected. Make sure none
of the speaker wires are
frayed, cut or punctured.
If the system plays at low
volumes but shuts o as
volume is increased:
• Check all wires and con-
nections between receiver/
amplier and speakers.
• Make sure all wires are
connected. Make sure none
of the speaker wires are
frayed, cut or punctured.
• If more than one pair of
main speakers is being
used, check the minimum
impedance requirements of
your receiver/amplier.
If there is no sound coming
from one speaker:
• Check the “Balance”
control on your receiver/
amplier.
• Check all wires and
connections between
receiver/amplier and
speakers.
• Make sure all wires are
connected. Make sure none
of the speaker wires are
frayed, cut or punctured.
CONNECTION TIPS
S P E A K E R C O N N E C T I O N S
Speakers and electronics
terminals have corresponding
(+) and (–) terminals. It is
important to connect both
T R O U B L E S H O O T I N G
Declaration of Conformity
We, Harman Consumer Inter national
2, route de Tours
72500 Chateau-du-Loir
France
Steen Michaelsen
Harman Consumer International
France. 5/00
declare in own responsibility, that the loudspeaker
described in this owner’s manual is in compliance with
technical standards:
EN 50081-1:1992
EN 50082-1:1992
Less than 6 – 8 feet
More than 6 – 8 feet
0-2 ft.
– +– +
– +
Speaker Outputs
LEFTRIGHT
– +
For stereo-only applications:
For home-theater applications:
A wider stereo image is
presented with the
tweeter/midrange array
outboard, and a tighter
image is presented with the
array inboard.
This placement provides
a wide spread in sound,
supplemented by the
center-channel speaker.
The Studio Series S36
loudspeakers may be wall-
mounted as either front or
rear speakers, horizontally
or vertically. The S36
enclosures are specially
designed to angle the
speakers toward the listener
when mounted ush against
the wall.
A template sheet is provided
to aid in drilling mounting
holes needed for the 4
keyholes on the back of
the S36. Always use all 4
keyholes, and try to place at
least 2 of the 4 screws into a
wooden wall stud. Size 10
screws of at least 1-1/2" in
length are recommended.
If the screws are used in
drywall or other surfaces
incapable of holding the
screw by itself, selection of
proper anchors is essential.
The customer is solely
responsible for proper
selection and installation of
screws, anchors and other
installation hardware.
Further installation details
are included on the
installation template.
W A L L - M O U N T I N G
Installation of Self-Adhesive
Rubber Pads: If the S36 is to
be placed on a surface
(such as a table top or shelf)
rather than being wall-
mounted, the enclosed self-
adhesive rubber pads are to
be attached to the bottom of
the speaker cabinet in their
designated recessed loca-
tions. If the S36 is to be wall-
mounted, then the four self-
adhesive rubber pads should
be attached to the back of
the speaker, as shown in the
bottom right diagram.
The S36 can also be used on
oor stands. Please see your
JBL dealer for more
information.
PADS GO HERE
TV
speakers identically: (+) on
the speaker to (+) on the am-
plier and (–) on the speaker
to (–) on the amplier. Wiring
“out of
phase” results in thin
sound, weak bass and a
poor stereo image. With the
advent of multichannel
surround sound systems,
connecting all of the
speakers in your system
with the correct polarity
The S36 loudspeakers may be
positioned on the wall either
horizontally or vertically. The
grille logo on each speaker
may be rotated depending on
how the speaker is
positioned. Gently pull the
logo away from the grille
slightly, rotate it to the desired
position, and let go. The logo
will snap back into place.
When mounted vertically, the
tweeter array may be
positioned either up or down,
depending on the height of
the placement. If the
speakers will be above ear
level, the tweeter array
should be positioned down,
preferably no more than two
feet above ear level. If the
speakers will be mounted
very low, it may be best to
position the tweeter array
upward so that it will be no
more than two feet below
ear level.
KEYHOLES FOR
MOUNTING HARDWARE
PLACE RUBBER PADS HERE
For wall-mounting
For tabletop or shelf placement
remains equally important in
order to preserve the proper
ambience and directionality
of the program material.
