T W E E T E R T Y P E : Pure-titanium dome with EOS™ waveguide
D E S I G N G O A L : Bring the thrill of live performance and movie sound to
the outdoors by calling on JBL’s professional engineering leadership.
C R O S S O V E R N E T W O R K : Straight-Line Signal Path (SSP)™
W O O F E R T Y P E :
Cast-aluminum basket with HeatScape motor structure™
E N C L O S U R E D E S I G N : Sealed
P R O F E S S I O N A L R E F E R E N CE : Studio Monitor
O W N E R ’ S G U I D E P R O S O U N D
C O M E S H O M E ™
P R O D U C T L I N E : S T U D I O
™
S E R I E S
M O D E L S36AW
N U M B E R :
S P E C I F I C AT I O N S
S36AW
Description: 3-Way 6" vertical/horizontal, mirror-image,
wall-mount/bookshelf, weather-resistant loudspeakers
Maximum Recommended
Amplifier Power*: 150W
Nominal Impedance: 8 Ohms
Sensitivity (2.83V/1m):
90dB
Frequency Response (–3dB):
60Hz – 20kHz
Crossover Frequencies: 650Hz, 3000Hz
High-Frequency Transducer: 1" Pure-titanium dome, with rubber surround,
shielded; Elliptical Oblate Spheroidal (EOS) ™
waveguide
Midrange Transducer: 4" WeatherPlas (polymer-coated cellulose fiber) ™
cone, rubber surround, shielded; Linear Field
Proximity™ (LFP) bezel
Low-Frequency Transducer
:6" WeatherPlas™ (polymer-coated cellulose fiber)
cone, rubber surround, SFG™, magnetic shorting
rings, high-temp oversized Kapton
®voice coil,
HeatScape™ motor structure, cast-aluminum
baskets, shielded
Baffles: Low diffraction, IsoPower™
Enclosure: Sealed
Network: Straight-Line Signal Path™ (SSP)
Terminals: All-metal, gold-plated 5-way binding posts
Dimensions (H x W x D): 10-1/4" x 14-5/8" x 5"
260mm x 371mm x 127mm
Weight: 11 lb/5kg
*The maximum recommended amplifier power rating will ensure proper system headroom to allow
for occasional peaks. We do not recommend sustained operation at these maximum power levels.
All features and specifications are subject to change without notice.
X +
0 +
Y2
0
MH Z
X + 0 + Y
2
0 M
H Z
”
X + 0 + Y
2
T W E E T E R T Y P E : Pure-titanium dome with EOS waveguide™
D E S I G N G O A L : Bring the thrill of live performance and movie sound to
the outdoors bycalling on JBL’s professional engineering leadership.
C R O S S O V E R N E T W O R K : Straight-Line Signal Path (SSP)™
E N C L O S U R E D E S I G N : Sealed
P R O F E S S I O N A L R E F E R E N C E : Studio Monitor
O W N E R ’S G U I D E
W O O F E R T Y P E :
Cast-aluminum basket with HeatScape™ motor structure
P R O D U C T L I N E : S T U D I O
™
S E R I E S
M O D E L S3 6AW
N U M B E R :
T H A N K Y O U F O R C H O O S I N G J B L
For more than 50 years, JBL
has been involved in every
aspect of music and film
recording and reproduction,
from live performances to the
recordings you play in your
home, car or office.
We’re confident that the JBL
loudspeakers you have chosen
will provide every note of
enjoyment that you expected –
and that when you think about
purchasing additional audio
equipment for your home, car
or office, you will once again
choose JBL.
Please take a moment to
complete the enclosed
profile card. It enables us
to keep you posted on our
latest advancements, and
helps us to better understand
our customers and build
products that meet their needs
and expectations.
JBL Consumer Products
S P E A K E R P L A C E M E N T
Proper placement of the
speakers is an important step
in obtaining the most realistic
soundstage possible. These
recommendations are for the
optimum placement of the
loudspeakers. Use these
placement recommendations
as a guide. Slight variations
will not diminish your listening
pleasure.
The S36AW loudspeakers are
weather-resistant and are
specifically designed for
outdoor use, such as in a patio
area. As noted below, we
recommend mounting the
speakers under an overhang,
such as roof eaves, for added
protection. The S36AW
speakers, because they are
resistant to moisture, are also
appropriate for mounting in a
bathroom, although not inside
a bathtub or shower stall.
Although these loudspeakers
are designed as a mirrored
pair, the decision as to which
one is left or right will depend
on the amount of space left
between them.

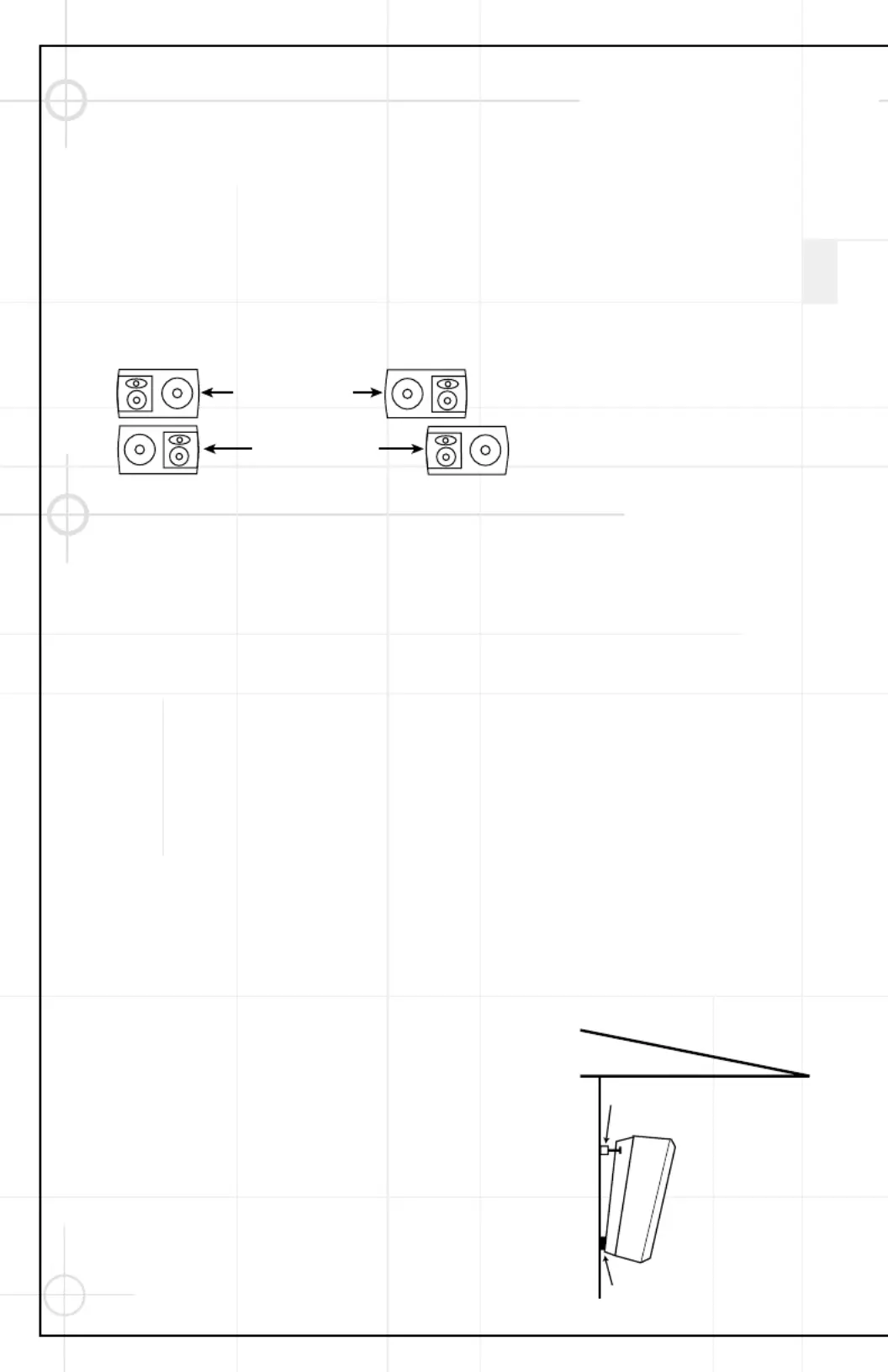

Less than 6 – 8 feet
More than 6 – 8 feet
A wider stereo image is
presented with the
tweeter/midrange array
outboard, and a tighter image
is presented with the array
inboard.
Do not attempt to mount these
speakers on a ceiling, on the
underside of roof eaves or in a
shower stall.
The S36AW loudspeakers may
be positioned on the wall either
horizontally or vertically. The
grille logo on each speaker may
be rotated depending on how
the speaker is positioned.
Gently pull the logo away from
the grille slightly, rotate it to the
desired position, and let go. The
logo will snap back into place.
When mounted vertically, the
tweeter array may be
positioned either up or down,
depending on the height of the
placement. If the speakers will
be above ear level, the tweeter
array should be positioned
down, preferably no more than
two feet above ear level. If the
speakers will be mounted very
low, it may be best to position
the tweeter array upward so
that it will be no more than two
feet below ear level.
The S36AW enclosures are
specially designed to angle the
speakers toward the listener
when mounted flush against
the wall.
When mounting the speakers
outdoors, we recommend that
you place them under an
overhang, such as roof eaves,
for added protection, and that
you use two of the supplied
special angle-mount screws
per speaker, which angle the
speakers downward at a
greater-than-usual angle,
facilitating water drainage.
NOTE: When using the
enclosed angle-mount screws,
always use the top two screw
locations appropriate for the
specific mounting orientation
of your S36AW. Referring to
the enclosed installation
template, screw locations (1)
and (2) are to be used when
mounting the S36AW
horizontally so that these
locations are on top. To mount
the loudspeakers vertically,
use locations (2) and (4) or
locations (1) and (3),
depending on the mounting
orientation. Do not mount the
S36AW upside down (with
screw locations (3) and (4) on
top) because it won’t be able
to lock onto the screw heads.
Remember that the JBL logo
on the tweeter/mid faceplate
can be rotated with choice of
speaker position (vertical or
horizontal).
At least one screw per
speaker should be installed in
a wooden wall stud. Select an
appropriate wall anchor for the
other screw. If the special
angle-mount screws are not
being used, size 10 screws of
at least 1-1/2" in length are
recommended. If the screws
are used in drywall or other
surfaces incapable of holding
the screw by itself, selection of
proper anchors is essential.
The customer is solely
responsible for proper
selection and installation of
screws, anchors and other
installation hardware. Further
installation details are included
on the installation template.
W A L L - M O U N T I N G
Supplied Rubber Pad
S36AW
Wall
Supplied Angle-Mount Screw
(When using angle-mount
screws, always utilize the
top two screw holes
on the S36AW,
depending on
mounting orientation.)
Horizontal mounting:
Use screwholes (1) and (2).
Vertical mounting: Use
screwholes (1) and (3), or (2)
and (4), whichever are uppermost.
Roof eave
