REFERENCE

SURROUND LOUDSPEAKERS

OWNER'S MANUAL

REFERENCE SERIES

IMPORTANT SAFETY INSTRUCTIONS

1. READ these instructions.

2. KEEP these instructions.

3. HEED all warnings.

4. FOLLOW all instructions.

5. DO NOT use this apparatus near water.

6. CLEAN ONLY with dry cloth.

7. DO NOT block any ventilation openings.Install in accordance with the manufacturer's

instructions.

8. DO NOT install near any heat sources such as radiators,heat registers,stoves,or other

apparatus (including ampliers) that produce heat.

9 . DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has

two blades with one wider than the other. A grounding type plug has two blades and a third

grounding prong. The wider blade or the third prong are provided for your safety. If the provided

plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. -PROTECT the power cord from being walked on or pinched,particularly at plugs,conve

nience receptacles,and the point where they exit from the apparatus.

11. ONLY USE attachments/accessories specied by the manufacturer.

12.USE only with a cart,stand,tripod,bracket,or table specied by the manufacturer,

or sold with the apparatus.When a cart is used,use caution when moving the

cart/apparatus combination to avoid injury from tip-over.

13. UNPLUG this apparatus during lightning storms or when unused for long periods of time.

14. REFER all servicing to qualied service personnel.Servicing is required when the apparatus

has been damaged in any way, such as power-supply cord or plug is damaged,liquid has

been spilled or objects have fallen into the apparatus,the apparatus has been exposed to

rain or moisture,does not operate normally, or has been dropped.

This symbol indicates that there are important operating and maintenance instructions

in the literature accompanying this unit.

This symbol indicates that dangerous voltage constituting a risk of electric shock is

present within this unit.

WARNING : To reduce the risk of re or electrical shock,do not expose this apparatus

to rain or moisture.

WARNING: Voltages in this equipment are hazardous to life.No user-serviceable parts inside.

Refer all servicing to qualied service personnel.

CAUTION: Changes or modications not expressly approved by the manufacturer could void the

user’s authority to operate this device.

ABOUT YOUR KLIPSCH PURCHASE

Thank you for your purchase of Klipsch surround loudspeakers.After reading this manual and

connecting your system,you will hear the result of over 55 years of stringent engineering and

class-leading research and development.Like all Klipsch products,your surround speakers

feature Klipsch Tractrix

Horn-loaded Technology—the guiding design for the rst Klipschorn

developed in 1946 and for every product that has followed.Horn-loading allows your speakers

to deliver high sensitivity, low distortion, flat frequency response and wide dispersion,which

translates to unequaled power, detail and dynamics,the hallmarks of “The Klipsch Sound.”

Please be sure to ll out the warranty card at the back of this manual or online at

www.klipsch.com so we are better able to serve you.Again,thank you for choosing Klipsch and

we hope that your speakers bring life to your music and movies for many years.

UNPACKING

The easiest way to remove the speaker from its carton is to turn the open side of the box

down so that it is resting on a table or the oor, y. Thenwith the aps spread out and awa

pull the box straight up and o.Remove any packing material from the speaker, place it

back in the carton,and store in case you ever need to ship the loudspeaker.

PLACEMENT

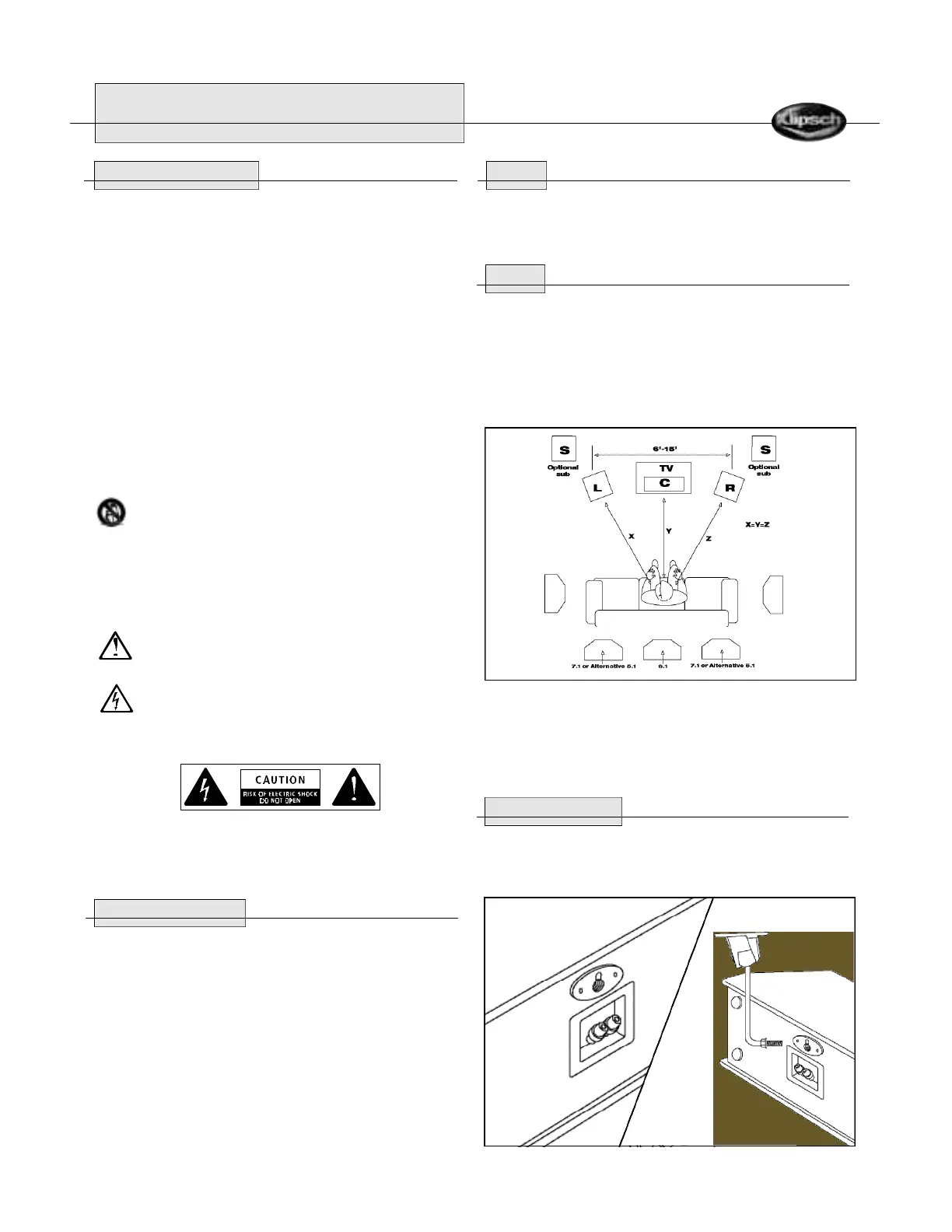

The best locations for Klipsch Wide Dispersion Surround Technology™surround speakers in

a typical 5.1-channel system are on or against the walls to the sides of the seating area,

anywhere from adjacent to the listening position to about 20 degrees behind.(See Figure

1.)It is also desirable that they be mounted above the ear height of seated listeners (5’-7’

high).Their WDST™design allows great exibility, however, and good results can be

achieved with congurations that depart signicantly from the ideal.The speakers can

even be mounted on the ceiling if necessary using an adjustable bracket (not included)

connected to the threaded insert only.

If you are assembling a 6.1- or 7.1-channel system,you will need one or two additional

surround speakers at the back of the room.As with the left and right surrounds,the opti-

mum location is above seated ear level.If you are using just one back surround speaker, it

should be centered behind the listening area; if you are using two,they should be spaced a

few feet apart.If practical,the regular left and right surrounds should be almost directly out

to the sides of the seating area rather than slightly behind.(See Figure 1.)

WALL AND CEILING MOUNTING

Some models have threaded inserts for use with wall or ceiling brackets, as well as

back-panel keyholes for flush wall-mounting. If you will be using brackets, see their

instructions for mounting details. (See Figure 2.)

Figure 1

Figure 2

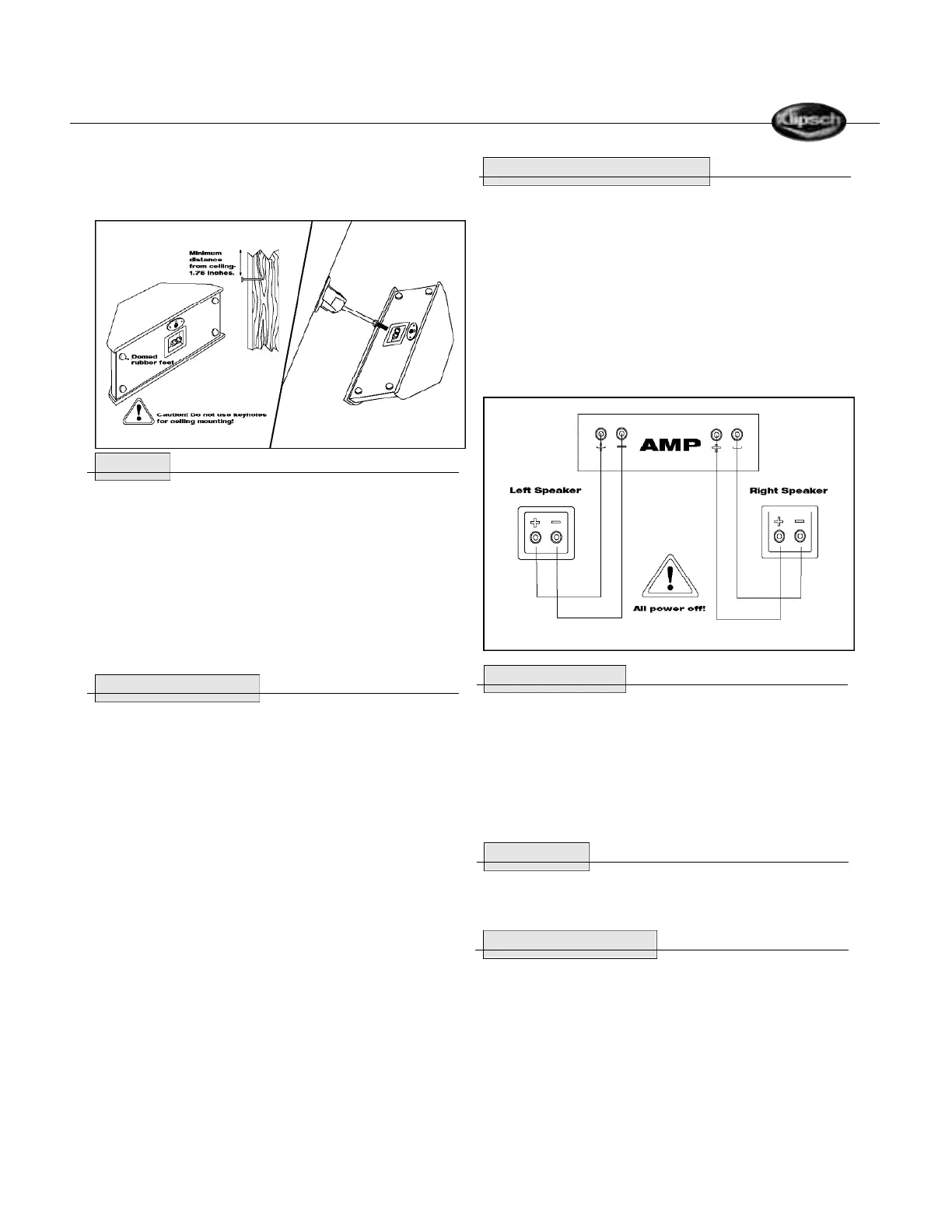

To use the ke all you need is a screw head of the a te size protruding slight-y h o l e , p p r o p r i a

ly from the wall. If possible, the screw should be driven into a wall stud; if not, be sure to

use a te anchors in the drywall or plaster. (See Figure 3.)p p r o p r i a

CONNECTIONS

Note: Proper connection of your speakers to your amplier or receiver is vital to obtaining

good sound quality. Please follow these directions carefully. Sloppy connections can cause

amplier malfunction or damage.

Klipsch Reference Series speakers are wired internally with Bandwidth Balanced ™

M o n s t e r®C ab l e . Bandwidth Balanced technology employs multiple gauges of high-

purity copper wire, y selected and wound to ensure optimum signal transfer at allc a r e f u l l

f r e q u e n c i e s . You will obtain best performance from your speakers if you connect them to

your amplier or receiver with Monster Cable or similar quality wire a ble from yourv a i l a

d e a l e r. We recommend that you use 16-gauge or heavier stranded copper wire. Use a

lower gauge (heavier) wire for longer runs to reduce the amount of amplier power lost

due to the wire’s resistance.

BUTFIRST: TYPES OF CONNECTORS

Bare wire. Pull the two conductors apart for about an inch and strip approximately 1/4-inch

of insulation from the end of each.(A wire stripper will simplify this,but you can use an

ordinary pocket knife to cut around and through the insulation down to the wire.) Twist the

strands of wire on each individual conductor tightly together. Loosen the nuts on a pair of

binding posts until the holes through the metal posts are exposed,then insert the bare wire

through the holes.Screw the nuts down nger-tight on the wire. Make sure that no strands

of wire are touching from one binding post to the other or to any strands from the other

conductor. Failure to observe this precaution at either end of the connection can result in

amplier malfunction or damage.

Pins. Many pre-made speaker cables are terminated with metal pins.Loosen the nuts on a

pair of binding posts until the holes through the metal posts are exposed,then insert the

pins through the holes.Screw the nuts down nger-tight on the pins — do not overtighten.

Make sure that there is no metal-to-metal contact between the two pins or binding posts.

Failure to observe this precaution at either end of the connection can result in amplier

malfunction or damage.

Spade lugs. Some speaker cables are terminated with U-shaped connectors called spade

lugs.Loosen the nuts on a pair of binding posts and slip the spade lugs around the metal

posts.Screw the nuts down nger-tight on the lugs and inspect to ensure they have

remained rmly in place. Make sure that there is no metal-to-metal contact between the

two lugs or binding posts. Failure to observe this precaution at either end of the connection

can result in amplier malfunction or damage.

OTHER TYPES OF SPECIALTY CONNECTORS ARE AVAILABLE TO FACILITATE HOOKING

UP YOUR SPEAKERS. PLEASE CONSULT YOUR AUTHORIZED KLIPSCH DEALER FOR

SUGGESTIONS AND FURTHER DETAILS.

SPEAKERS TO AMPLIFIER:KEEPING IT STRAIGHT

One of the most important things about hooking up your speakers is keeping them in

the same polarity, or phase. If they are connected out of phase, bass and sound imagi n g

will be degr a d e d .

The easiest way to ensure that your speakers are wired in phase is to always connect the

positive and negative output terminals on your amplier or receiver to the matching input

terminals on your speakers:positive (“+”,color-coded red) to positive and negative (“–”,

color-coded black) to negative.(See Figure 4.)

Most pre-terminated speaker cables have color-coded connectors that make it easy to

match output and inputs correctly. If yours do not,or if you are making your own out of

paired,two-conductor wire,look for identifying marks on the insulation of the two conduc-

tors.Normally there will be printing,a stripe or a molded ridge along one of the conductors.

BASS MANAGEMENT SETTINGS

Surround-sound receivers and processors use what is known as bass management to

ensure that low frequencies in the various channels are sent to speakers that can handle

them well and away from small speakers that cannot.Any of the Klipsch Reference Series

surround speakers can be set to Large in your receiver or processor’s speaker setup menu

if necessary. But if your system includes a good powered subwoofer or oorstanding front

left and right speakers,you probably will get better overall performance by using the Small

setting and letting the sub or the front speakers handle the low bass,especially when the

woofers in the surrounds are less than 6.5 inches in diameter.

CARE AND CLEANING

The only thing you should ever need to do to your speakers is dust them occasionally.

Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean

the grilles with the brush attachment of a vacuum cleaner.

WARRANTY— U.S. AND CANADA ONLY

The Warranty below is valid only for sales to consumers in the United States or Canada.

KLIPSCH,L.L.C.("KLIPSCH") warrants this product to be free from defects in materials and

workmanship (subject to the terms set forth below) for a period of ve (5) years from the date of

purchase.During the Warranty period,KLIPSCH will repair or replace (at KLIPSCH’s option) this

product or any defective parts (excluding electronics and ampliers).For products that have

electronics or ampliers,the Warranty on those parts is for a period of two (2) years from the

date of purchase.

To obtain Warranty ser please contact the KLIPSCH authorized dealer from which youv i c e ,

purchased this product. If your dealer is not equipped to perform the repair of your KLIPSCH

p r o d u c t , it can be returned, freight paid, to KLIPSCH for repair.

Figure 4

Figure 3
