612T, 612R Installation Instructions
4K60 4:4:4 DP Tx/Rx over Extended-Reach Multi-Mode Fiber Optic Cable
This guide helps you install and use your for the first time.612T, 612R
Go to to download the latest user manual and check if firmware
https://www.kramerav.com/product/612r/t
upgrades are available.
612T, 612R 4K60 4:4:4 DP Tx/Rx over Extended-Reach Multi-Mode Fiber Optic
Cable
Congratulations on purchasing your Kramer 612T and 612R Plug and Play active 4K60 4:4:4 DP Tx/Rx over Extended-Reach Multi-
Mode (MM) Fiber Optic cable. 612T and 612R extend signals of up to 4096x2160 @60Hz, over a distance of up to 200m (656ft) without
signal scaling or data compression, providing a maximum data rate of 21.6Gbps (5.4Gbps per lane). 612T and 612R are easily and
securely connected via a 2LC fiber connector and can be powered either from the USB connector or from the Display Port interface (pin
#20) .

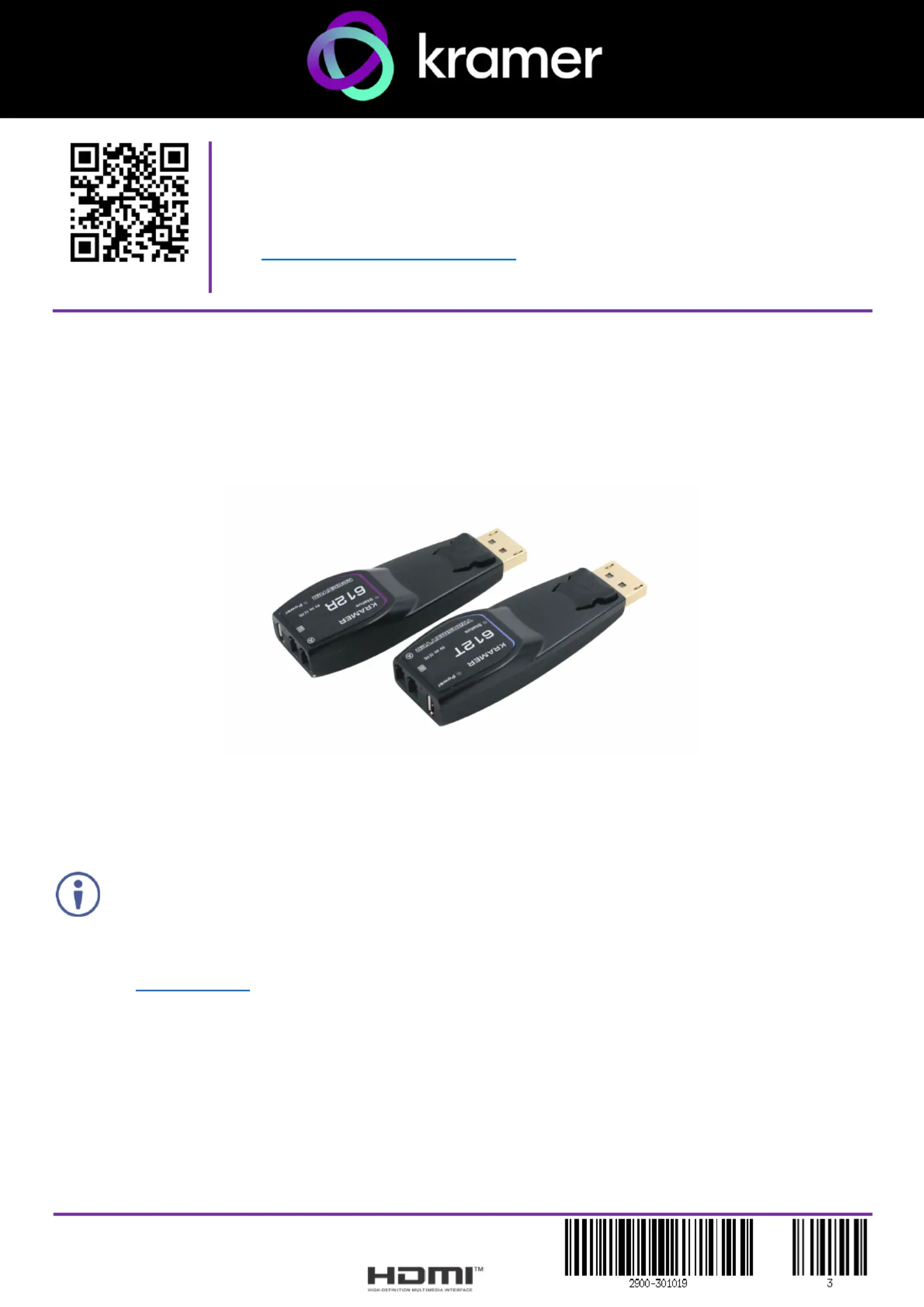

Figure 1: 612T Transmitter and 612R Receiver
Safety
Caution: There are no operator serviceable parts inside the unit.
Warning: Disconnect the power and unplug the unit from the wall before installing.
Warning: Avoid direct eye exposure into the optic connectors when powered, although this product is regulated strictly enough to
operate under the Laser Class 3R for eye safety.
See for updated safety information.
www.KramerAV.com
612T, 612R Installation Instructions
P/N: Rev:

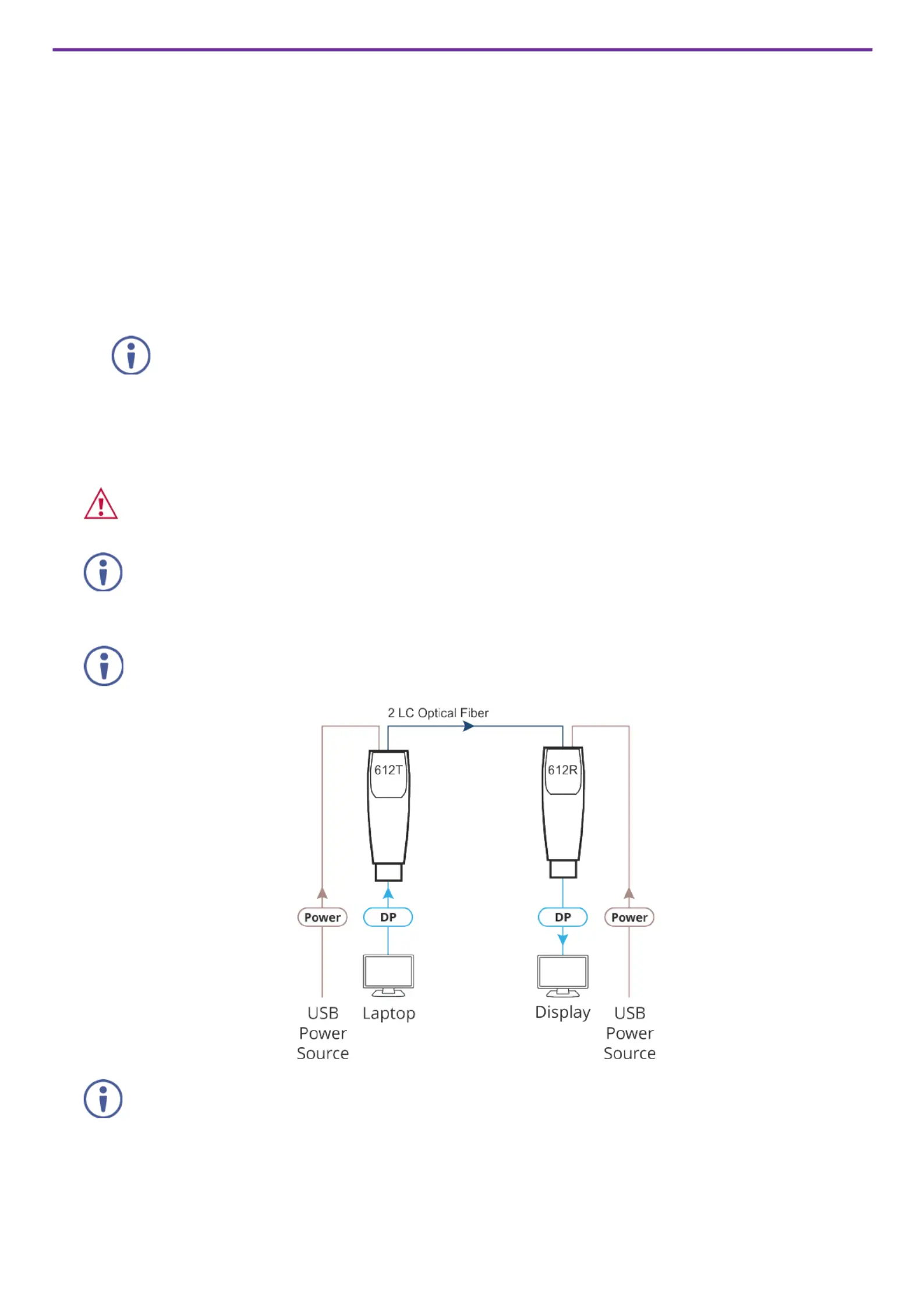

Installation
To install 612T and 612R:
1. Unpack the contents of the package with care.
We recommend that you save the original box and packaging materials for possible future shipment.
2. Turn on the power to the DisplayPort source (for example, a laptop) and acceptor (for example, a display).
3. Power the 612T and 612R:
lConnect the micro USB connector on each device to a USB cable (supplied).
lConnect the USB cable either to the wall-mount power adapter (supplied) and to the mains, or to a USB port.
The POWER LED lights and the STATUS LED flashes three times.
Although the transmitter and receiver can be powered via pin #20 on the DisplayPort interface, we recommend that you use the
USB power adapters on both sides.
4. Connect the two LC optical fibers between 612T and 612R.
Connect (A) to (A) and (B) to (B). Make sure that the duplex connectors are connected properly.
The STATUS LED flashes.
Do not look directly into the LC connectors on the 612T (the transmitter side) when it’s powered.
This product operates under LASER Class I, classified by CDRH/FDA for eye safety.
We recommend that you avoid using intermediate cables or adapters. Using them may affect the transmission quality.
5. Connect 612T to the DisplayPort connector on the source side and 612R on the acceptor side.
Make sure that the 612T is always connected to the source side and the 612R is connected to the acceptor side.
If you cannot connect the 612R directly to the display, we recommend that you use the DisplayPort (M) to-(F) extension cable supplied
with the package.
Once the system is connected, the Status LEDs on both 612T and 612R flash.
Troubleshooting
If the display appears black:
lCheck that the source and display devices are both switched on.
lCheck that the power source adapters are properly connected on both sides.
lMake sure that both DisplayPort connector heads are fully plugged into the devices.
lReset the system by disconnecting and then reconnecting the 612T or 612R, or by disconnecting and then reconnecting the power
adapters.
lReboot the system.
If the image appears distorted and/or there is background noise:
lGo to the display properties and check the settings. Make sure that the resolution is set below 4096x2160 at a 60Hz refresh ratio to
check if the graphic resolution is properly defined.
lReset the system by disconnecting and then reconnecting the 612T or 612R, or by disconnecting and then reconnecting the power
adapters.
It is important to connect the devices correctly as marked: 612T to the source side and 6127R to the acceptor side.
