676T, 676R Quick Start
P/N:
2900- 301397QS
Rev:
4
Scan for full manual
676T / 676R Quick Start Guide
This guide helps you install and use your 676T / 676R for the rst time.
Go to www.kramerav.com/downloads/676T or www.kramerav.com/downloads/676R to download the latest
user manual and check if rmware upgrades are available.
Step 1: Check what’s in the b ox
676T HDMI Optical Transmitter or
676R HDMI Optical Receiver
1 Bracket set
4 Rubber feet
1 Power cord and adapter
1 Quick start guide
1 OSP-MM1 Fiber Optic SFP+ Transceiver
Step 2: Get to know your 676T and 676R
676T can be connected to a single 676R device or to multiple devices via optical splitters. When multiple devices are connected, a
receiver device is dened as primary when its Tx (SFP+ OUT) optical ber is connected directly to the 676T Rx optical fiber (SFP+ IN).
676T
#
Feature
Function
1
IN LED
Lights green when a connected source device (with an active HDMI signal) is detected. ™
Flashes 4 times green when resetting the device.
O when active signal is detected on the connected HDMI source device. no
2
OUT LED
Lights green when an HDMI acceptor device (with an active HDMI signal) detected. is
O when no active signal is detected on the connected acceptor.
3
LINK LEDs
Tx
Lights green when OUT IN SFP+ is connected, and an active Tx optical link is detected.
Lights red when OUT IN SFP+ is connected, and a fault is detected on the single/primary
676R receiving optical link.
O when the OUT IN SFP+ is disconnected.
Rx
Lights green when OUT IN SFP+ is connected, and an active optical link is detected. Rx
Lights red when OUT IN SFP+ is connected, and a fault is detected on the incoming optical
link.
O when OUT IN SFP+ is disconnected.
4
ON LED
Lights green when the device receives power.
5
HDMI™ IN Connector
Connect to an HDMI source.
6
RS- (Tx, Tr, G) 3-pin 232
Terminal Block Connector
Connect to a serial controller to communicate serial with all the connected receivers. ly
Receives -232 communication only from a single/primary receiver. RS
7
OUT IN SFP+ Connector
Connect the ber optic cable to the plugged- SFP+ optical module connectors. in
(OSP-MM1, included).
8
SETUP 4-way DIP-switch
Sets the device behavior.
9
RESET Recessed Button
Press and hold for 5 seconds or less to reset the device.
Press and hold for over 5 seconds to reset the device to factory default values.
10
SERVICE Micro USB Port
Connect to a PC to perform rmware upgrade (via K-Upload).
11
12V DC Power Connector
12V DC connector for powering the unit.
676R
#
Feature
Function
12
IN LED
Lights green when a connected HDMI source device (with an active HDMI signal) is
detected.
Flashes 4 times green when resetting the device.
O when no active signal is detected on the connected source device.
IN LED is always o for receivers other than the single/primary device.
676R
13
OUT LED
Lights green when an HDMI acceptor device (with an active HDMI signal) is
detected on the single/primary 676R device.
O when no active signal is detected on the connected acceptor.
14
LINK LEDs
Tx
Lights green when OUT IN SFP+ is connected, and an active Tx optical link is
detected.
Lights red when OUT IN SFP+ is connected, and a fault is detected on the 676T
receiving optical link.
LED on devices other than the single/primary Tx 676R device always light red.
O when OUT IN SFP+ is disconnected.
Rx
Lights green when OUT IN SFP+ is connected, and an active optical link is Rx
detected.
Lights red when OUT IN SFP+ is connected, and a fault is detected on the incoming
active optical link.
O when OUT IN SFP+ is disconnected.
15
ON LED
Lights green when the device receives power.
16
HDMI™ OUT Connector
Connect to an HDMI acceptor.
17
RS-232 (Tx, Tr, G) 3-pin Terminal
Block Connector
Connect to the serial control port of a controlled device located next to the 676R.
Only the controlled device connected to the single/primary receiver returns
serial data to the transmitter.
18
OUT IN SFP+ Connector
Connect the ber optic cable to the plugged-in SFP+ optical module connectors
(OSP-MM1, Included ).
19
SERVICE Micro USB Port
Connect to a PC to perform rmware upgrade via K-Upload.
20
12V DC Power Connector
12V DC connector for powering the unit.
Step 3: Mount /676R 676T
Install 676T/676R using one of the following methods:
• Attach the rubber feet and place the unit on a at surface.
• Fasten a bracket (included) on each side of the unit and attach it to a at surface
(see www.kramerav.com/downloads/676T).
• Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/676T).
• Ensure that the environment (e.g., maximum ambient temperature &
air ow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
• Maximum mounting height for the device is 2 meters.

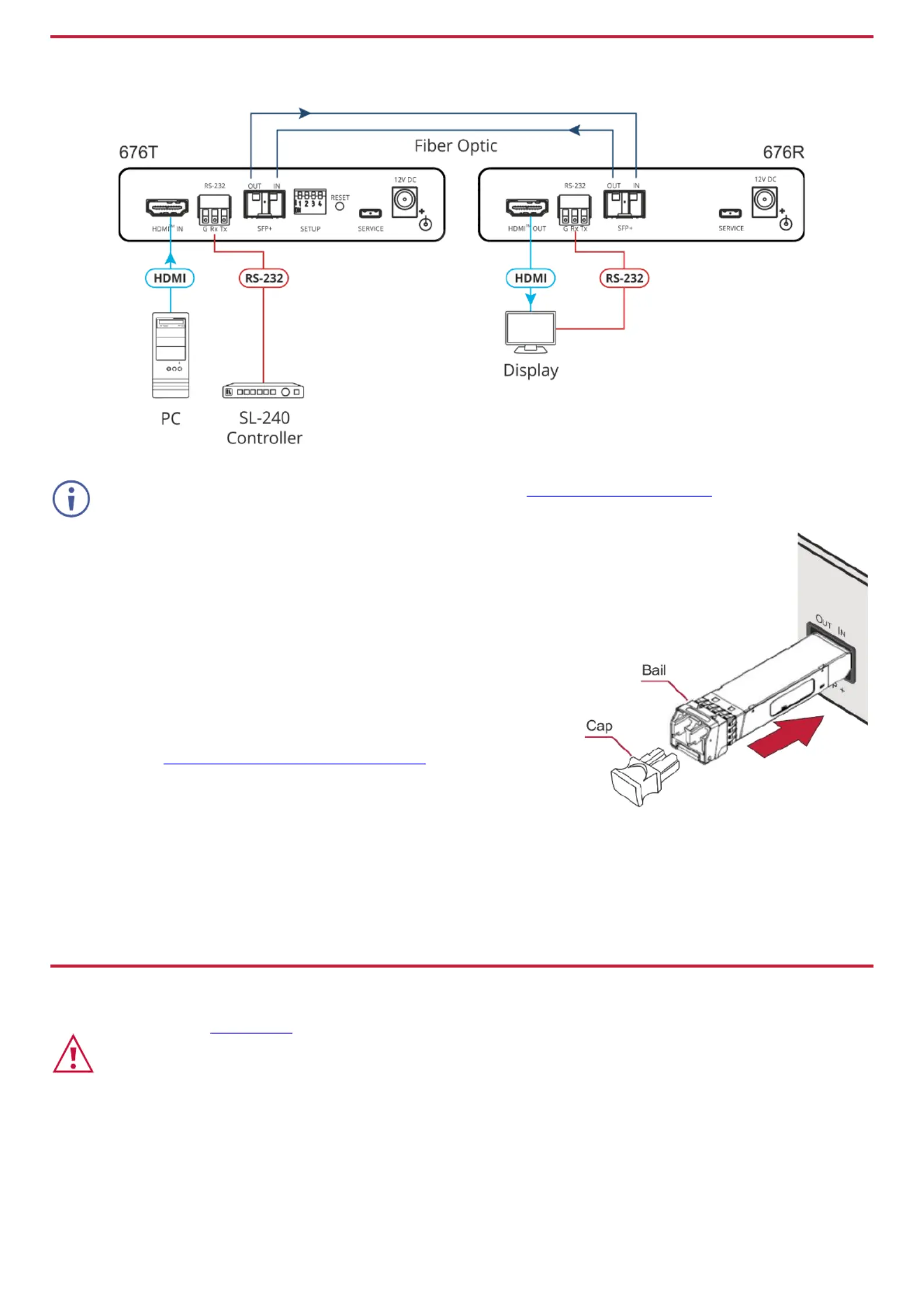

Step 4: Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your 676T/676R.
For optimal performance, use the recommended Kramer cables available at . www.kramerav.com/product/676T
Using third-party cables may cause damage!
To install/replace the OSP-MM1 or other Kramer recommended SFP+
transceiver:
1. Pull the bail out and remove the currently installed transceiver,
insert the protective cap and store in a safe place.
2. Make sure the bail of the new transceiver is pushed up, in the
closed position.
3. Insert the new transceiver into the relevant optical device SFP+ slot
and push it in until it clicks.
4. Remove the protective cap and store it in a safe place for future
use.
Warning: Connecting the OSP SFP+ connector to an LC(APC) ber
connector may cause poor performance and damage the connector!
Refer to www.kramerav.com/downloads/OSP-MM1 for more information.
Warning: Class 1 Laser Product
• Invisible laser radiation present.
• Avoid long-term viewing of laser.
• Avoid the use of magnifying viewing aids or instruments (such as binoculars, telescopes, microscopes and
magnifying lenses, but not spectacles or contact lenses).
• Avoid placing optical devices in the emitted beam that could cause the concentration of the laser radiation to be
increased.
Step 5: Connect power
Connect the power cord to 676T/676R and plug it into the mains electricity.
Safety Instructions (See for updated safety information)www.kramerav.com
Caution:
• There are no operator serviceable parts inside the unit.
Warning:
• Use only the power cord that is supplied with the unit.
• Disconnect the power and unplug the unit from the wall before installing.
