Installation Instructions
MODELS:
WP-3H2 W-3H2,
HDMI Extender
SAFETY WARNING
Disconnect the unit from the power supply before opening and servicing
For the latest information products a list Kramer distributors, visit site where on our and of our Web
updates to this user manual may be found.
We welcome your questions, comments, and feedback.
www.kramerAV.com
info@kramerAV.com
P/N:
2900- 301252
Rev:
2
The -3H2 W-3H2 HDMI Extender WP / ,
Thank you for purchasing the Kramer Wall Plate (US, UK and EU versions) and/or WP-3H2 W-3H2
Dual Insert HDMI Extenders. The HDMI Extender is ideal for ProAV, multimedia and home cinema
applications. The device extends the HDMI transmission length by reclocking and regenerating the
HDMI signal before it sends the output to the HDMI display. It extends the HDMI cable distance
between the HDMI player and the HDMI display. By placing in the transmission
WP-3H2 / W-3H2
path, it removes dropout and digital noise (sparkles) in your picture that may result from using long
HDMI cables. In addition, the HDMI Extender:
Provides a method of transmitting 4K@60Hz (4:4:4) signals at a distance of up to 20m from the
source (10m from the source to the HDMI Extender, and 10m from the HDMI Extender to the
display).
Maintains an HDMI single link video resolution of up to 4K@60Hz (4:4:4).
Supports the DDWG standard for HDMI compliant displays.
Complies with HDCP 1.4 and HDCP 2.2.
Supports ARC CEC, , deep color, x. v. color™, 7.1 PCM, 4K and 3D as specified in HDMI 2.0.
#
Feature
Function
1
INPUT HDMITM Connector
Connects to an HDMI source.
2
POWER LED
Lights when power powered (via the HDMI source or via an external
power source connected to the 2-pin terminal block connector).
3
External Power Supply 2-pin Terminal
Block Connector
Optional: Connect to a power supply. Connect GND to GND, +5V to
+5V. (Typically used when the HDMI source is not strong enough to
power the device, or when the device is located far from the source or
when driving sources such as AOCH cables).
4
Ring Tongue Terminal Grounding Screw
Connect to grounding wire (optional).
5
OUTPUT HDMITM Connector
Connect to an HDMI acceptor
The terms HDMI, HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc.

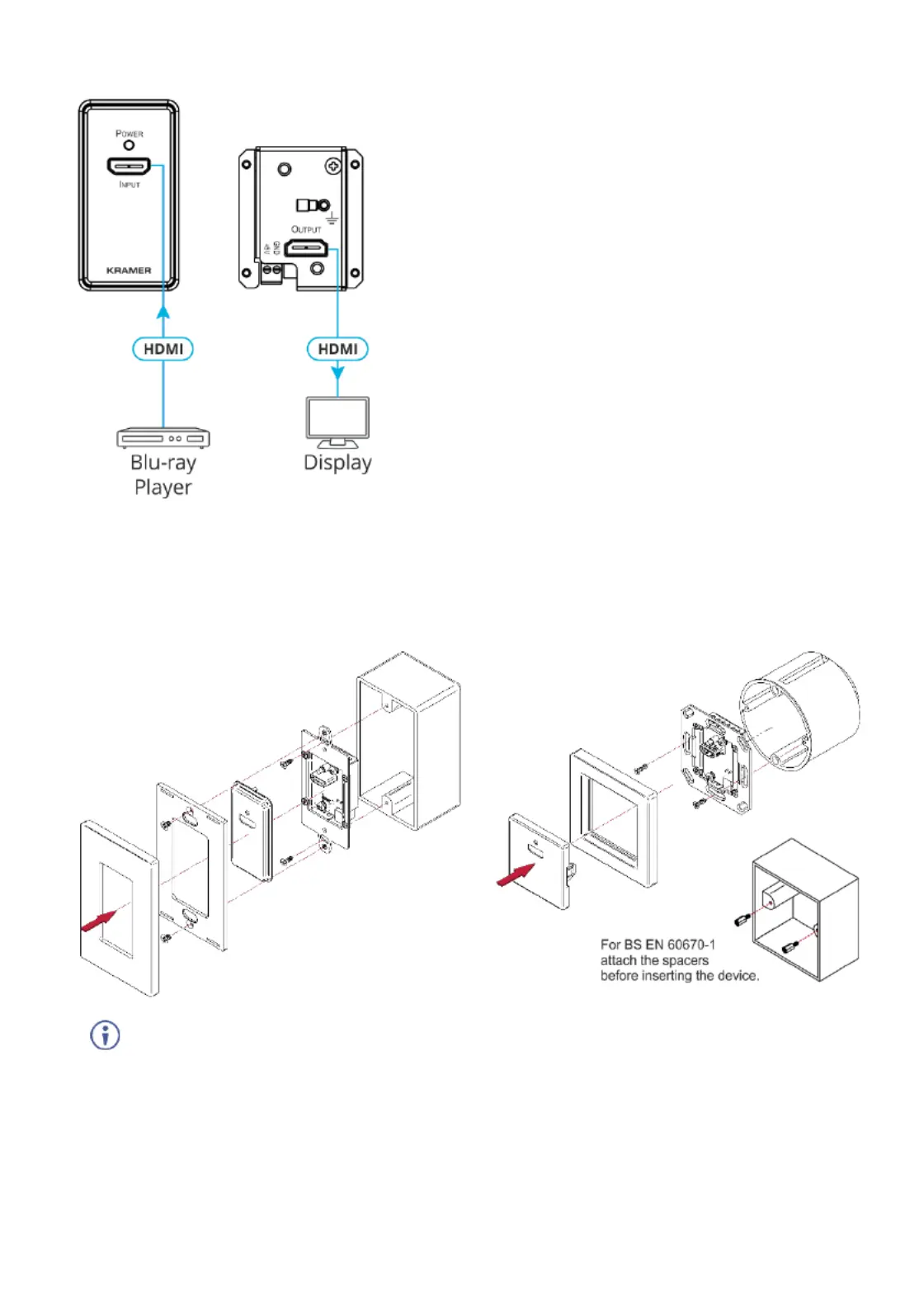

Connecting the Input and Output
Installing the -3H2 W-3H2WP /
After connecting the ports, insert the device into the in-wall box and connect the parts as shown in the
illustrations below:
WP-3H2 -D Version US
WP-3H2 EU/UK Version
DECORA® is a registered trademark of Leviton Manufacturing Co., Inc.
DECORA® design frames are included in US-D models.
We recommend that you use any of the following standard 1 Gang in-wall junction boxes:
: 1 Gang US electrical junction boxes. US-D
: 1 Gang in-wall junction box, with a cut-hole diameter of 86mm and depth that cant in both EU
the device and the connected cables (DIN 49073).
: 1 Gang in-wall junction box, 75x75mm (W, H) and depth that can t in both the device and UK
the connected cables (BS 4662 or BS EN 60670-1 used with supplied spacers and screws).
