Sivu 1/4
Master Blaster Series
ALL MODELS ARE: All Steel Construction; Black Matte Finish; Two 4.0 Peak HP Twin Fan Motor; 18
Amps; 2280 Watts; Air Volume (CFM/ . FPM): 229/58500; 12’ Grounded 3 Conductor Cord
ACCESSORIES: Large Blower Nozzle, Air Flare & Adapter.
Different models and what they come with:
MB-3 (114-141488): Pet Dryer: 2 Speed; 10 ft. Commercial Hose; Crevice Tool; Stationary Wheels.
MB-3V (114-142454): Pet Dryer: Variable Speed; 10 ft. Commercial Hose; Crevice Tool; Stationary
Wheels.
MB-3CD (103-141709): Car Dryer: 2 Speed; 10 ft. Commercial Hose; Crevice Tool; Inflator Adapter;
Stationary Wheels.
MB-3CDSWB (103-103066): Car Dryer: 2 Speed; 10 ft. Commercial Hose; Crevice Too; Inflator Adapter;
Wall Mount Bracket; Hose Hanger; Swivel Wheels.

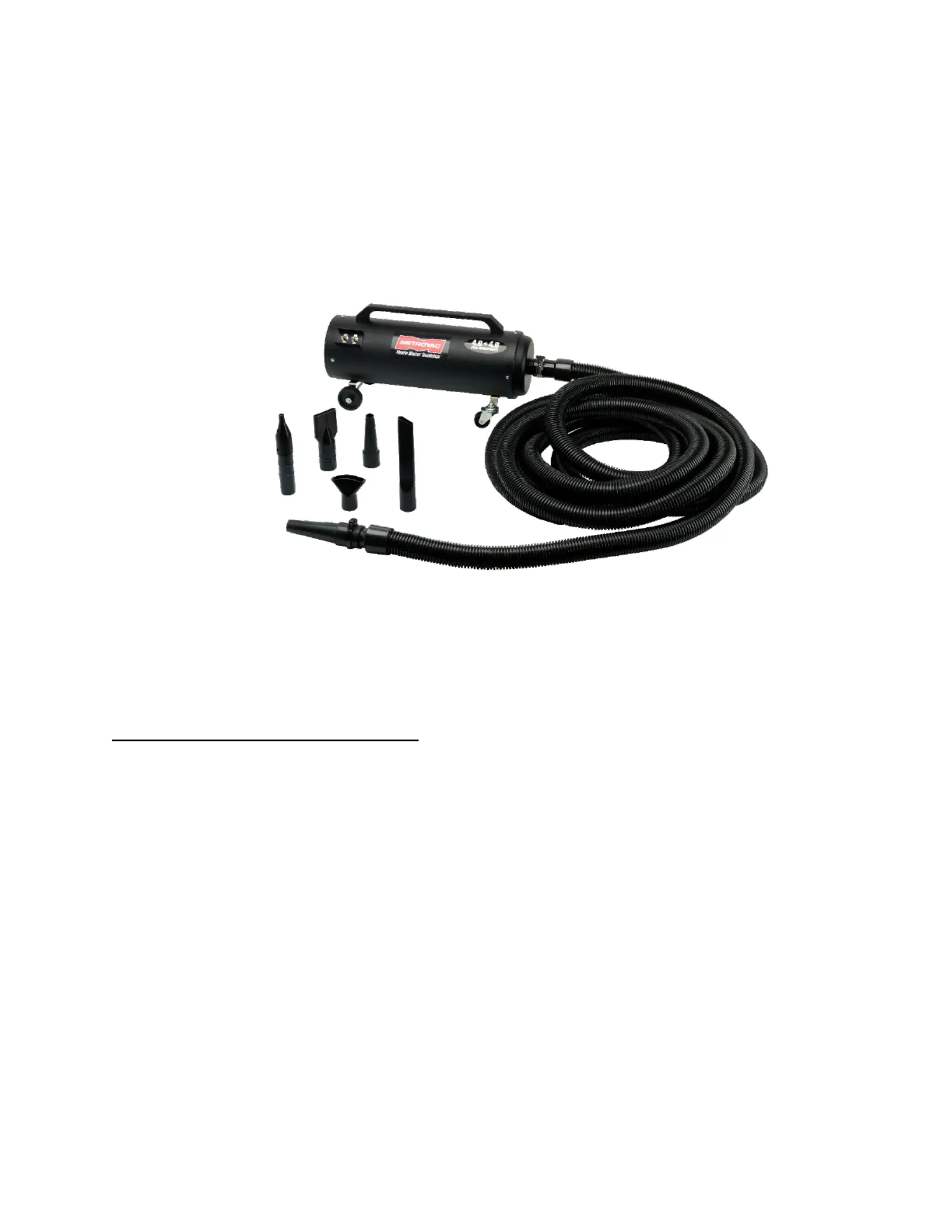

MB-3-CDSWB-30 (103-142690): Car Dryer: 2 Speed; 30 ft. Commercial Hose; Crevice Too; Inflator
Adapter; Wall Mount Bracket; Hose Hanger; Swivel Wheels. (Model Shown)
MB-3INDWB (110-578598): Industrial Dryer: 10 ft. Commercial Hose; Wall Mount Backet; Stationary
Wheels.
INSTRUCTIONS (Instructions are general for all MB-3 Models. Some of the below information may
not pertain to your specific model. Check list above for parts and accessories that go with your particular
machine):
• Insert the grounded Power Supply Cord into a grounded outlet.
o IMPORTANT: THE PRODUCT MUST BE GROUNDED.
o WARNING: INPROPER CONNECTION OF THE EQUIPMENT GROUNDING
CONDUCTOR CAN RESULT IN A RISK OF ELECTRIC SHOCK!
• Fit the hose over the steel tube protruding from the front-end cap of the power unit. Tighten the
adjustable clamp to keep the hose securely on the dryer.
• Start the blower:
o 1-Speed: Push the On/Off Switch from left to right.
o Variable: Turn knob from low, clockwise to high.
o ***If you are only using one motor at a time, alternate use of each as to wear the
carbon brushes evenly***.
• Attach or remove the attachments to or from the hose to control the air velocity.
CAUTION: If your machine has suction but does not clean when the hose is attached, remove the
hose from the suction end and place it on the blower end. Blow out the hose, it may be clogged.
ADDITIONAL PARTS FOR PURCHASE (the below items are available for purchase on our website
www.MetroVac.com; use the provided product # in the search):
• MetroVac Vac Pac for Master Blaster -VACPAC –MB
• Foam Filters MVC 56F – –
• Hoses:
o 10’ Hose – MVC- 56D
o 30’ Hose For Blaster – – – MVC 56MB 30
• Carbon Brushes ABC–3
• Mounting Bracket MVC- –331
• Adapter Cuff MVC-184 –
• Heavy Duty Blower Nozzle MVC-195AA –
• “Airflare” Utility Nozzle – MVC-195AB
• Motorcycle Dryer 5-Piece Attachment Kit BCK-5 –
• Soft Pack Carry All Bag MVC- –420G
• Switches (you cannot replace a variable speed switch with a one speed switch or vice versa):
o 1 Speed: MVC- 74
o Variable Speed: MVC- -OHM 46A
• Motor MVC-157D –
• Sealing Gasket MVC 155A –
Replacing carbon brushes (ABC-3: should be changed after about 500 hours of use):
1. The front motor needs to be removed to access the back motor.
a. Long Phillips and long flathead are needed to remove the rear motor’s carbon brushes.
2. Remove front endcap.
3. Find wire going to carbon brush and use flathead screwdriver to loosen tab.
4. Use Philips screwdriver to remove carbon brush mounting bracket.
5. Install tab into new carbon brush and replace mounting bracket.
Replacing / Cleaning Filter (Filter MVC-56F):
1. Pull out filter from backend and replace with new or shake out.
a. You can rinse the filter and reuse, BUT IT MUST BE COMPLETELY DRY BEFORE
PUTTING BACK INTO THE MACHINE.
b. Replace it with a new filter after 3 rinses.
Mounting to the wall: Your Master Blaster can be mounted to a wall with the wall mount bracket. Mollies
should be used to secure mounting bracket when attaching to sheet rock. Ideally, one of the screws should
go into a wall stud. Level wall mount bracket in desired position and mark screw location with pencil within
screw holes. Once bracket is securely mounted, the Master Blaster can be hung by the wheel axle located
on the Intake side of the Master Blaster Wall Mount Bracket.
WARRANTY:
This machine carries a Five Year Limited* Warranty.
The Five Year Warranty includes the unit and the motor.*
There is also a on Parts, Switches, and Cords. One Year Warranty*
This warranty covers any defects in materials or workmanship, including installation, with the exceptions
stated below:
• *MetroVac will repair or replace any defective or malfunctioning part* at no charge. If the machine
is not repairable, it will be replaced.
• *Mechanical alterations made to the machine will void the warranty.
• *Warranty does not cover carbon brushes, carbon brush wear, filters, or general maintenance.
• *The warranty does not cover physical damage made to the machine from tampering with or
attempting to take the appliance apart, improper electrical connections, or water damage.
*Customer is responsible for shipping charges to and from our facility.
***Even if the product is beyond the warranty period, we suggest you send the unit back to our
factory for expert repairs and maintenance at reasonable rates. Please click the following link to
access our Repairs and Maintenance form***
WARNING: To reduce the risk of fire, electric shock, or injury Do not leave appliance when plugged
in. Unplug from outlet when not in use and before servicing.
• Do not allow it to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use it with damaged cord or plug. If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp
edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
