Sivu 1/8
Specifications are subject to change without notice.
© 2017 Bogen Communications, Inc.
740-00028A
1704

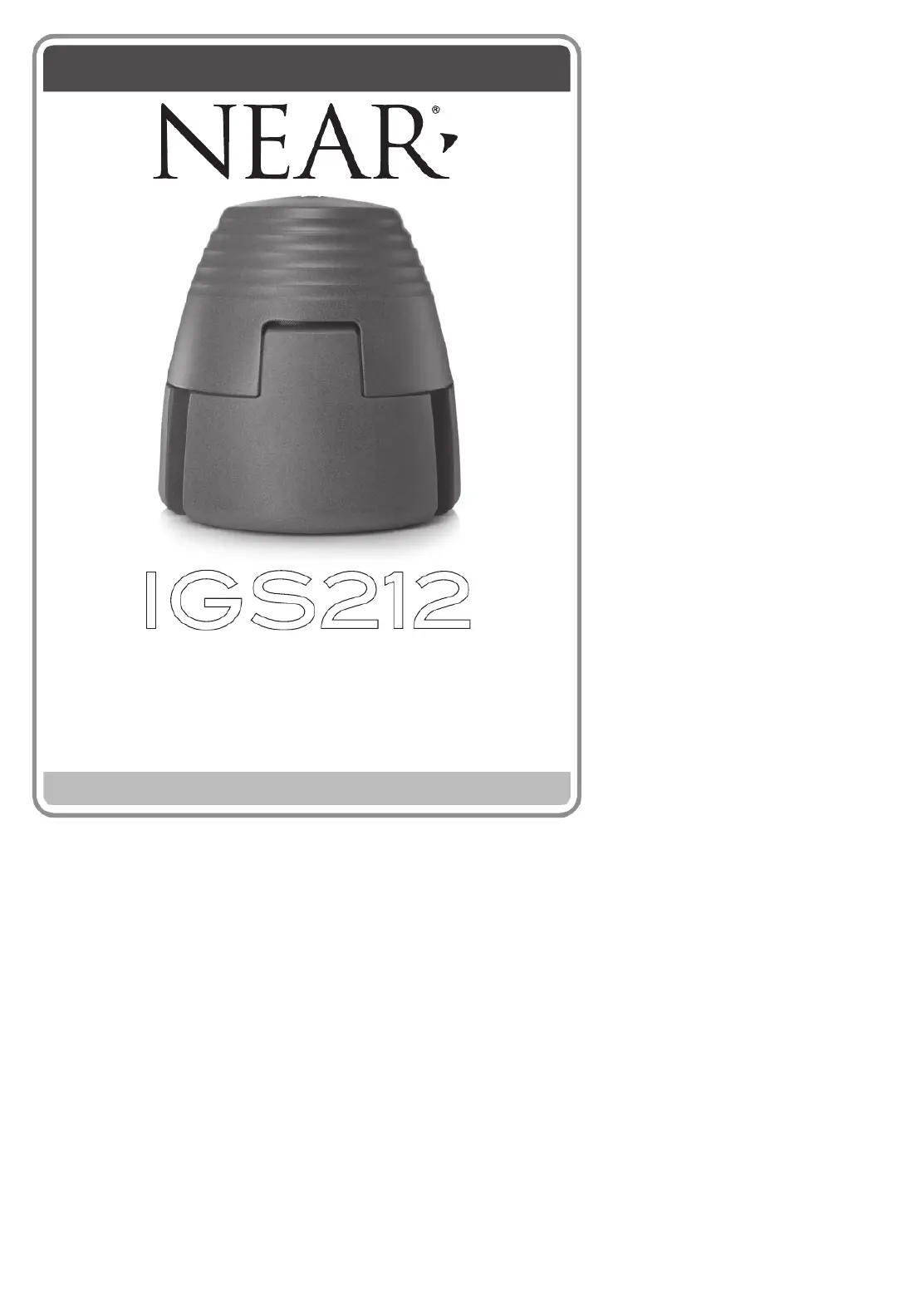

ALL-ENVIRONMENT IN-GROUND,
OUTDOOR SUBWOOFER
QUICK START INSTALLATION & SETUP GUIDE
Model
IGS212
Dual 12-inch Metal Alloy Woofers
IGS212
ALL-ENVIRONMENT IN-GROUND,
OUTDOOR SUBWOOFER
featuring Dual 12-inch Metal Alloy Woofers
Thank you for your purchase of the NEAR IGS212 subwoofer! This guide will assist
in the proper installation of your subwoofer. When you couple the IGS212 with the
NEAR XL-Series amplifiers, you are ensured the highest level of bass performance.
By taking a few moments to review this setup guide, you ensure that your new system
will quickly deliver audiophile-quality musical reproduction. The IGS212 is a sealed
bandpass, outdoor subwoofer that provides exceptionally high-impact natural sound
and can withstand nearly all types of environment and weather conditions. The
subwoofer combines two industry-leading technologies from NEAR: Metal Diaphragm
Technology (MDT), which ensures speaker cone stability in all-environmental conditions,
and Magnetic Liquid Suspension (MLS), a Ferrofluid seal around the magnet gap
and voice coil that provides protection from moisture and corrosion as well as
near-perfect voice coil alignment. Incidentally, the in-ground bandpass subwoofer
design was originally patented by NEAR.
Dispersion of the IGS212 is a full 360 degrees! This means that the orientation of the
subwoofer is not critical. We recommend that you install the subwoofer in-ground.
The packed earth around the enclosure suppresses enclosure resonance for improved
low-frequency definition. The IGS212’s enclosure features drainage channels to drain
water that may enter the enclosure via the bass vents.
Placement and Sound Quality
1In-ground Installation
and Connection of
IGS212 Subwoofer
Speaker cables from the amplifier to the
subwoofer may be directly buried provided
you use direct burial-rated stranded speaker
cable. We highly recommend the use of a
1” to 1-1/2” ID conduit to protect the wires
from degradation and damage due to exca-
vation or normal gardening activities. The
NEAR IGS212 subwoofer has entry and exit
wire/conduit channels on the bottom of the
enclosure. We highly recommend the use
of the NEAR IE1 junction box.
*OPTIONAL: ORDER SEPARATELY
UNDERSIDE
VIEW OF
THE IGS212
SUBWOOFER
SPEAKER
INPUT
CABLE
CONDUIT
CHANNEL
*IE-1 DIRECT BURIAL
JUNCTION BOX
*IE-1
DIRECT BURIAL
JUNCTION BOX
FEED FROM
AMPLIFIER
Remove Pre-Installed
Jumpers (2X)
Connections using the
NEAR IE1 Junction Box
DETAIL
A
SPEAKER INPUT CABLE
BLACK
(COMMON)
RED
(POSITIVE)
FROM
AMP
(
+
)
Model IGS212
Subwoofer Features
1. Two (2) 12-inch diameter Metal Alloy
Diaphragm Woofers (Internally)
2. High-Density reinforced
enclosure with UV inhibitors
3. Low turbulence output vents (3)
with protective screens
5. Input Connection Cable
4. Wiring/Conduit Channels
(underside)
2
3
1
SIDE VIEW
ABOVE
VIEW
UNDERSIDE
VIEW
4
5
FROM SPEAKER
(
+
) (
-
)
(
-
)
SPEAKER
INPUT CABLE
