INS00882-A
(Isolated Loop Circuit Protector)
INSTALLATION INSTRUCTIONS - MOD-UTP5e

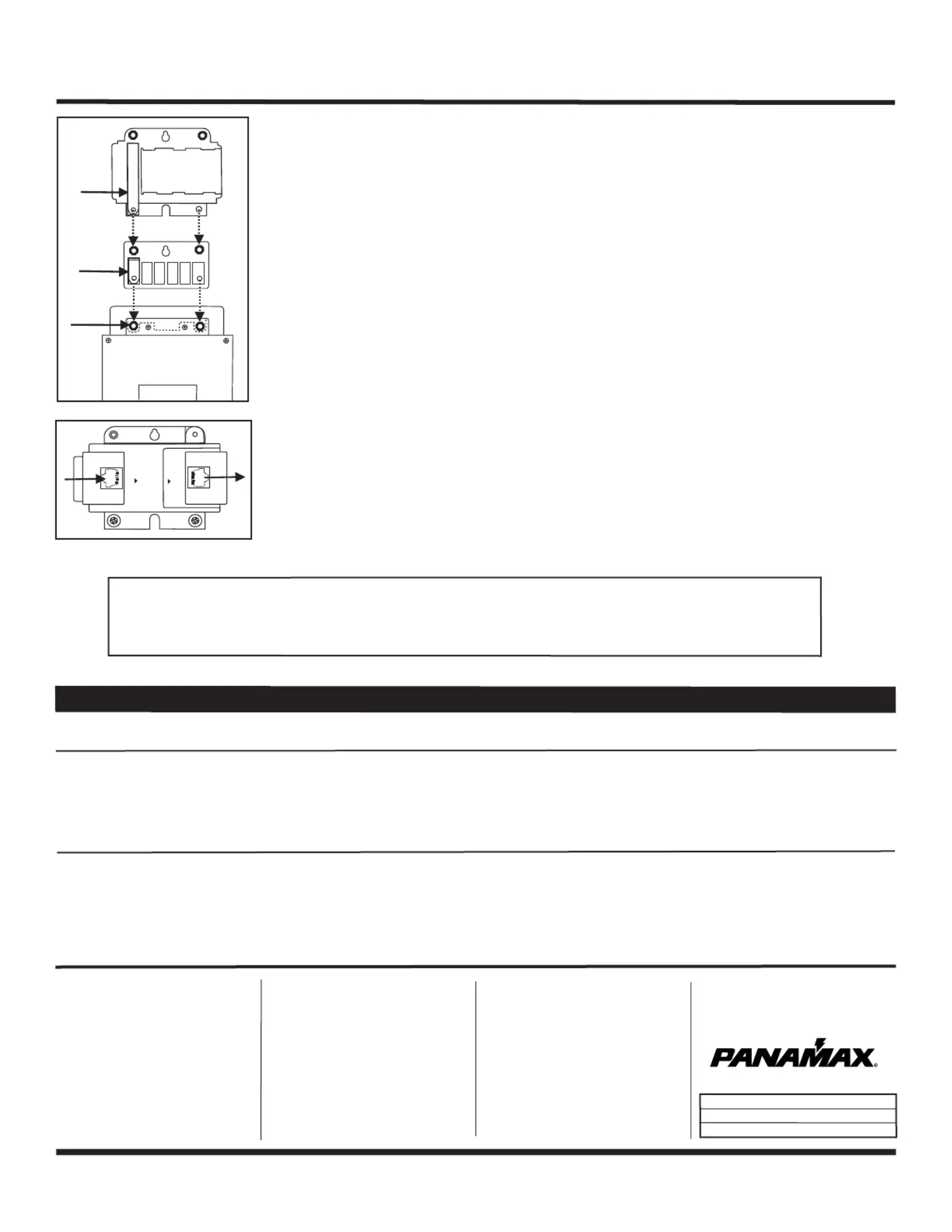

1. Mount the rectangular bracket to the back of the AC base unit with the #8-32 x 5/16” machine screws.
Note: The brass ground connector must be used with the bracket in order to bond the module ground to the
base unit’s ground.
2. Mount the signal line module to the bracket (screws provided with the module).
3. Optional – The assembled base unit and module(s) may be wall mounted if desired.
4. Connect the wiring to the signal line module as shown in the appropriate following section.
Panamax LLC, 1690 Corporate Circle, Petaluma, CA 94954 • 707-283-5900 • FAX 707-283-5901 • 800-472-5555 • www.panamax.com
5. IN LINE Connect the network line from wall/floor jack to the jack on the module.
6. EQUIP OUT Use a modular cord to connect the modular jack to the equipment to be protected.
7. PULL OUTAn easy access card is included on the back of each module for wiring diagrams and specifications.
The MOD-UTP5e module is CAT5e compliant, and designed to protect networked computer equipment.
It will protect one Ethernet 10/100/1000BASE-T, Token Ring, Arcnet, or AppleTalk network line.
PANAMAX SIGNAL LINE PROTECTION MODULE LIFETIME LIMITED PRODUCT WARRANTY INFORMATION - MOD-UTP5e
CAUTION!
All Panamax Warranties and Connected Equipment Policies are valid only in the United States and Canada.
CAUTION!
Audio/Video, computer and/or telephone system installations can be very complex systems, consisting of many interconnected components.
Due to the nature of electricity and surges, a single protector may not be able to completely protect complex installations. In those cases, a systematic approach using multiple protectors must b
empl ed. Systematic protection requires professional design. AC power, satellite cables, CATV cables, telephone/network lines, signal lines or any other electrical conductors, entering the system thaoy
do not pass through this surge protector may invalidate the Panamax Connected Equipment Protection Policy. For additional information on how to protect your system, please contact Panamax befo
connecting your equipment to the surge protector.
CAUTION!
WARRANTY LIMITATION FOR INTERNET PURCHASERS
Panamax products pu hased through the Internet do not carry a valid Product Warranty or Connected Equipment Protection Policy unless pu hased from an Authorized Panamax Internet Dealer arc rc
the original factory serial numbers are intact (they must not have been removed, defaced or replaced in any way). Pu hasing from an Authorized Panamax Internet Dealer insures that the product warc
intended for consumer us has passed all quality inspections and is safe. Buying through auction sites or unauthorized dealers may result in the pu hase of salvaged, failed and/or products not intendee, rc
for use in the US. In addition, Authorized Panamax Internet dealers have demonstrated sufficient expertise to insure warranty compliant installations. For a list of Authorized Panamax Internet Dealers g
to www.panamax.com. If you have any questions regarding these requirements, please contact Panamax Customer Relations.
PANAMAX SIGNAL LINE
PROTECTION MODULE
LIFETIME LIMITED PRODUCT
WARRANTY
Valid only in the United States & Canada
Panamax warrants to the pu haser of this rc
Panamax signal line protection modul that the e,
unit shall be free of defects in design, material,
or workmanship, and Panamax will repair or
replace any defective unit.
These signal line protection modules DO NOT
provide a Connected Equipment Protection
Policy. When properly installed with a compat-
ible Panamax AC base unit the base unit’s Con-,
nected Equipment Protection Policy remains
valid.
THE LIMITED PRODUCT WARRANTY IS THE ONLY
WARRANTY PROVIDED WITH THIS PANAMAX PROD-
UCT AND ANY OTHER IMPLIED OR EXPRESSED
WARRANTIES ARE NON-EXISTENT.
This warranty may not be modified except in writ-
ing, signed by an officer of the Panamax Corpora-
tion.
Product Upgrade Program
Valid only in the United States & Canada
If your Panamax signal line protection module
sacrifices itself while protecting your connected
equipment, you have an option to upgrade to the
latest technology. Please go to our web site www.
panamax.com/rma or contact Panamax Customer
Relations at 800-472-5555 for details.
Forms are available on the Panamax web site
for requesting RAs and opening a claim for con-
nected equipment damage.
www.panamax.com 800-472-5555
MODEL - MOD-UTP5e
DOC. NO. IWS00882 REV. A
Effective Date 4/10
Module
(back side)
Bracket
AC Base Unit
(back side)
Ground
Connector
Ground
Connector
Ground
Connector
Pull Out Card
1.
2.
EQUIP.
OUT
LINE
IN
MOD-UTP5e
Pull Out
5. 6.
7.
• CAT5e Compliant
• Connectors RJ-45
• Suppression Modes - Differential & common Ground
SPECIFICATIONS
• For 10/100/1000BASE-T Ethernet, Category 5e Compliant
• 8 Wires (4 Pairs) Protected
• Clamping Level: 62 ± 6 V, all pins, plus ground.
