Sivu 1/10
Manual

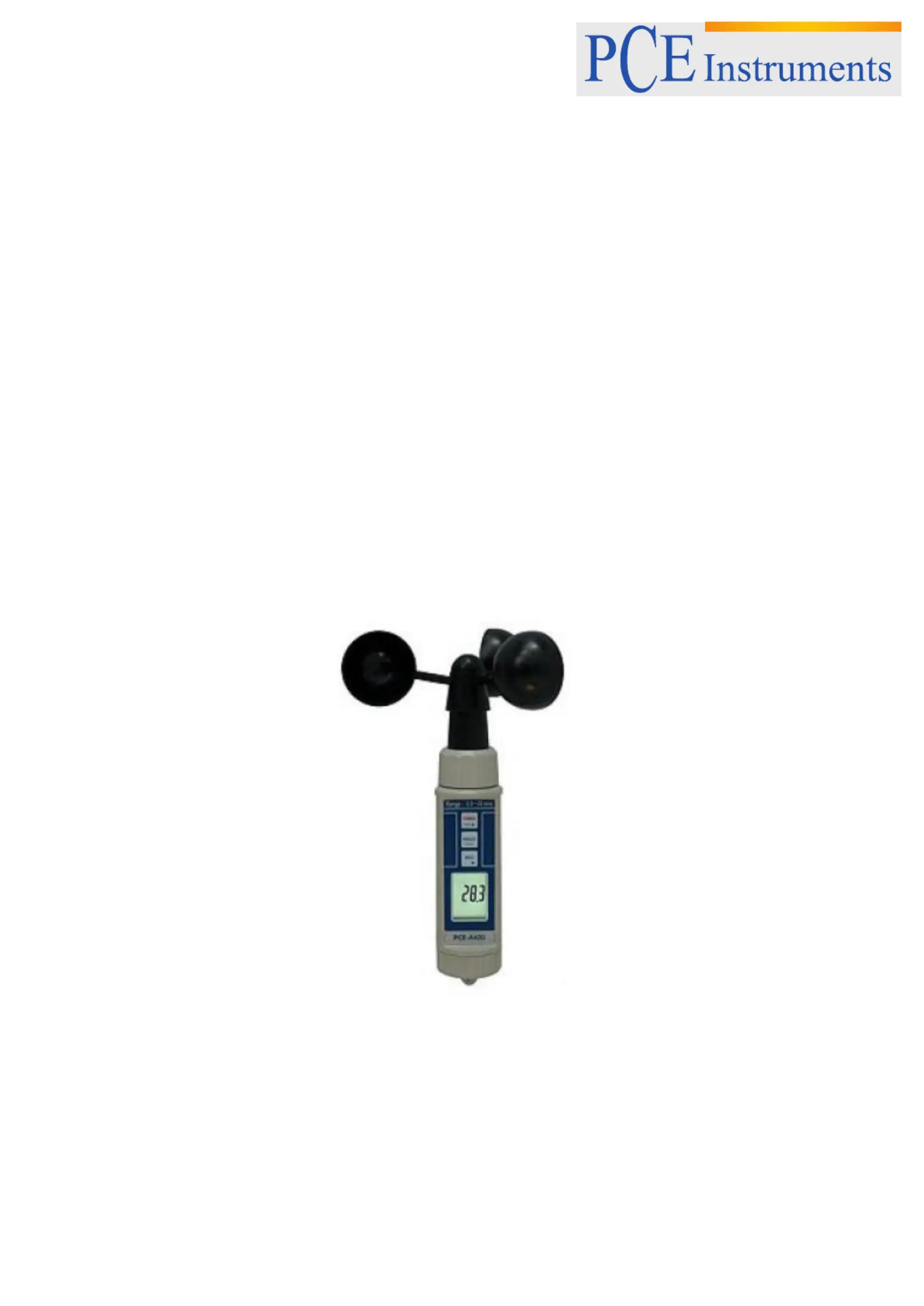

HVAC Meter PCE-A 420
PCE Americas Inc.
711 Commerce Way
Suite 8
Jupiter
FL-33458
USA
From outside US: +1
Tel: (561) 320-9162
Fax: (561) 320-9176
info@pce-americas.com
www.pce-instruments.com/english
www.pce-instruments.com
PCE Instruments UK Ltd.
Units 12/13
Southpoint Business Park
Ensign way
Hampshire / Southampton
United Kingdom, SO31 4RF
From outside UK: +44
Tel: (0) 2380 98703 0
Fax: (0) 2380 98703 9
info@pce-instruments.com
Manual
2
Version 1.0
17.10.2014
Content
1 Introduction 3 ..................................................................................................................
2 Safety ............................................................................................................................3
3 Specifications ..............................................................................................................3
3.1 Feautures ................................................................................................................................................. 3
3.2 General Specications ........................................................................................................................... 4
3.3 Electrical Specications (23 5°C) ±....................................................................................................... 4
4 System description .....................................................................................................5
5 Measuring Procedure .................................................................................................7
5.1 Wind Speed Measurement .................................................................................................................... 7
5.1.1 Unit Change 7 .................................................................................................................................................
5.1.2 Data Hold ..................................................................................................................................................... 7
5.1.3 Data Record (Max., Min. readin g)............................................................................................................ 7
5.2 Data Logger ............................................................................................................................................. 8
5.2.1 Save data ..................................................................................................................................................... 8
5.2.2 Call Data ...................................................................................................................................................... 8
5.2.3 Delete Data (Empty the memory) 9 .............................................................................................................
6 Battery Replacement ................................................................................................10
7 Contact .......................................................................................................................10
Manual
3
1 Introduction
Thank you of purchasing a PCE-A420 cup vane anemometer from PCE Instruments.
A handy cup anemometer with digital display. The great advantage of the cup anemometer no doubt is in
the possibility that you do not have to hold the cup anemometer exactly the wind direction Normal in .
vane anemometers have the disadvantage that they only measure exactly when the impeller is held in the
wind direction The very smooth cup anemometer already responds to small ow rates. .
2 Safety
Please, read this user's handbook carefully and completely, before you put it into service for the rst time.
The usage of the device may take place only through carefully trained sta.
- The device may only be used in approved temperature range
- The opening the case should only be done by qualied personnel of the PCE Instruments. of
- The instrument should never be placed with the user interface (e.g. keyboard side on a table )
- You should not make technical changes on the device
- The appliance should only be cleaned with a damp cloth / use only -neutral cleanerpH
This user's handbook is published from PCE Instruments without any guarantee.
We expressly point to our general guarantee terms, they can be found in our general terms of business.
If you have any questions please contact PCE Instruments.
3 Specifications
3.1 Feautures
Cup vane anemometer, available for wind speed measurement, high reliability.
Measurement range: 0.9 to 35.0 m/s
Unit: m/s, km/h, ft/min, knot, mile/h.
LCD display.
IP 65, water resistance.
Microprocessor circuit ensures high accuracy and provides special functions and features.
Records Maximum and Minimum readings with recall
100 point data logger with recall
Data hold.
Auto power o saves battery life.
Operates from DC 1.5V (UM4/AAA) x 4 PCs batteries.
Low-friction ball vane wheels is accurate in both high and low velocities.
Durable, long-lasting components, enclosed in strong, compact ABS-plastic housing.
