3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

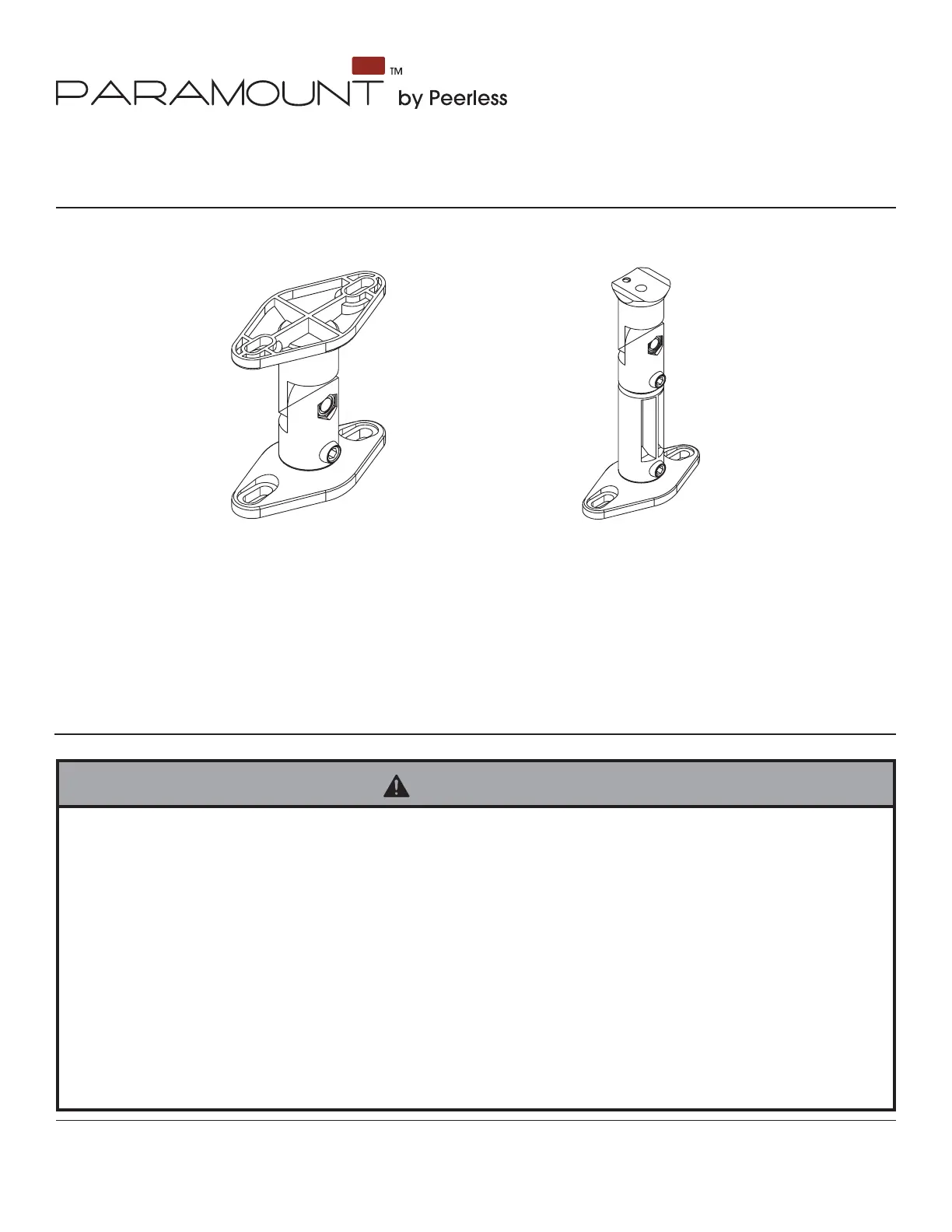

Installation and Assembly:
Universal Speaker Mounts
Features:
•Colors: Black- PSP2 & PSP5 White- PSP2-W & PSP5-W
•Universal design fits most satellite speakers
•Easily mounts to wall or ceiling. Includes extensions for ceiling mounting
•Pivot and swivel capabilities make it easy to position speaker for optimal sound quality
•Maximum load capacity: 8 lb (3.62 kg)
•Available in packs of two (PSP2 & PSP2-W) or five (PSP5 & PSP5-W)
Maximum Load Capacity:
8 lb (3.62 kg)
Note: Read entire instruction sheet before you start installation and assembly.
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please
call Peerless customer care at 1-800-865-2112.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-
ware and components.
• Never exceed the Maximum Load Capacity of 8 lb (3.62 kg).
• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of an
"edge to edge" stud finder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
WARNING
MODELS: PSP2, PSP2-W, PSP5, PSP5-W
ISSUED:10-23-07 SHEET #: 087-9016-1
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
2 of 18
A B
C D
IE F G H J K L M
N O P

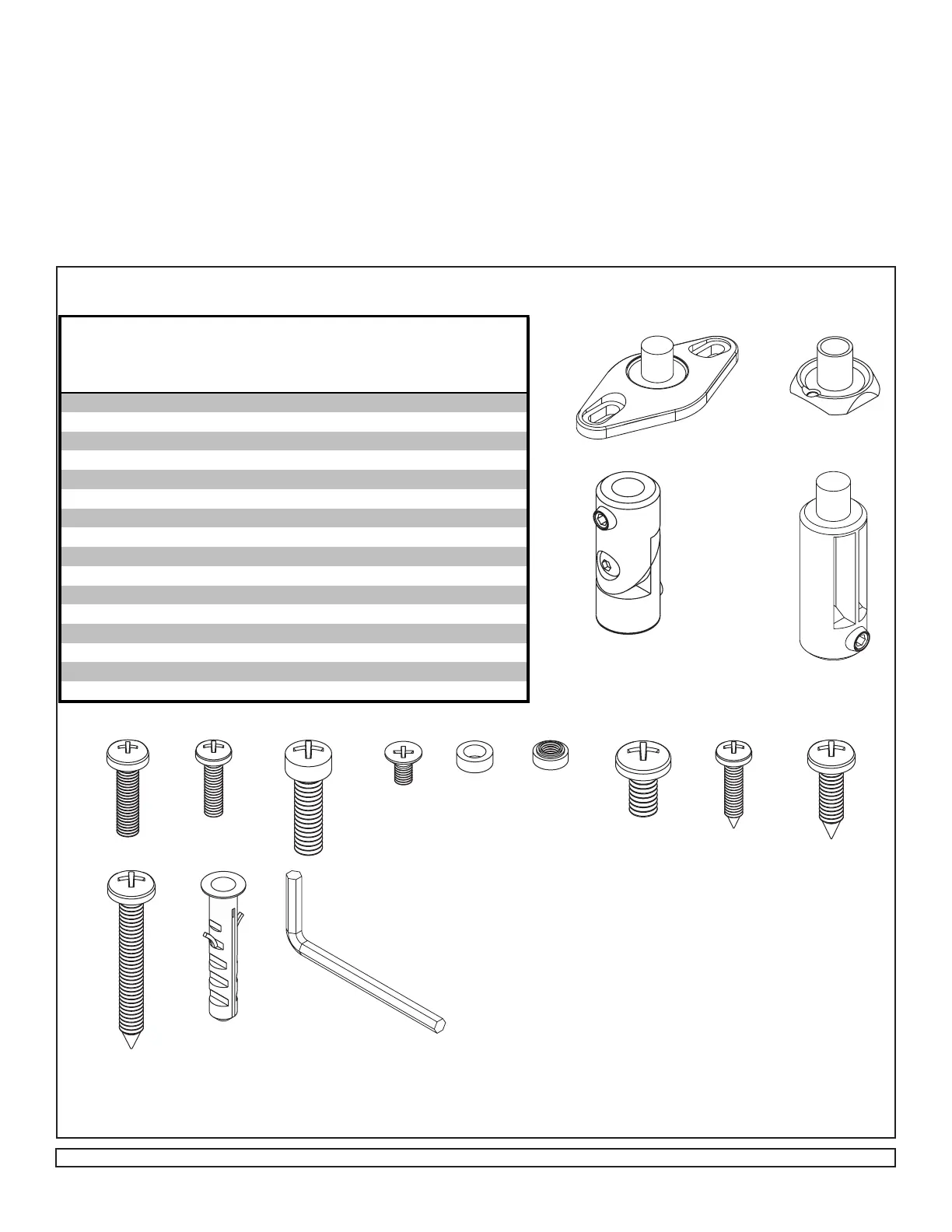

Before you begin, make sure all parts shown are included with your product.
Parts may appear slightly different than illustrated.
Tools Needed for Assembly
•stud finder ("edge to edge" stud finder is recommended)
•phillips screwdriver
•drill
•1/8" bit for wood stud wall
•5/16" bit for concrete and cinder block wall
•level
•tape measure
P
P
P
PPS
S
S
SSP
P
P
PPK
K
K
KK2
2
2
22 P
P
P
PPS
S
S
SSP
P
P
PPK
K
K
KK5
5
5
55
P
P
P
PPS
S
S
SSP
P
P
PPK
K
K
KK2
2
2
22-
-
-
--W
W
W
WW P
P
P
PPS
S
S
SSP
P
P
PPK
K
K
KK5
5
5
55-
-
-
--W
W
W
WW
D
D
D
DDe
e
e
ees
s
s
ssc
c
c
ccr
r
r
rri
i
i
iip
p
p
ppt
t
t
tti
i
i
iio
o
o
oon
n
n
nn Q
Q
Q
QQt
t
t
tty
y
y
yy.
.
.
.. Q
Q
Q
QQt
t
t
tty
y
y
yy.
.
.
..
A
A
A
AA double hole mounting plate 4 10
B
B
B
BB single hole mounting plate 2 5
C
C
C
CC arm 2 5
D
D
D
DD arm extension 2 5
E
E
E
EE M5 x 20 mm phillips screw 2 5
F
F
F
FF 8-32 x 5/8" phillips screw 2 5
G
G
G
GG 1/4"-20 x 7/8" phillips screw 2 5
H
H
H
HH M4 x 8 mm flat head phillips screw 2 5
I
I
I
II M5 x 1/8" plastic washer 2 5
J
J
J
JJ 8-32 round key hole nut 2 5
K
K
K
KK 1/4"-20 x 1/2" phillips screw 4 10
L
L
L
LL #8 x 3/4" self tapping screw 2 5
M
M
M
MM #12 x 3/4" self tapping screw 4 10
N
N
N
NN #12 x 1-3/4" self tapping screw 4 10
O
O
O
OO #12-14 Alligator concrete anchor 4 10
P
P
P
PP allen wrench 1 1
P
P
P
PPa
a
a
aar
r
r
rrt
t
t
tts
s
s
ss
L
L
L
LLi
i
i
iis
s
s
sst
t
t
tt
ISSUED:10-23-07 SHEET #: 087-9016-1
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
3 of 18

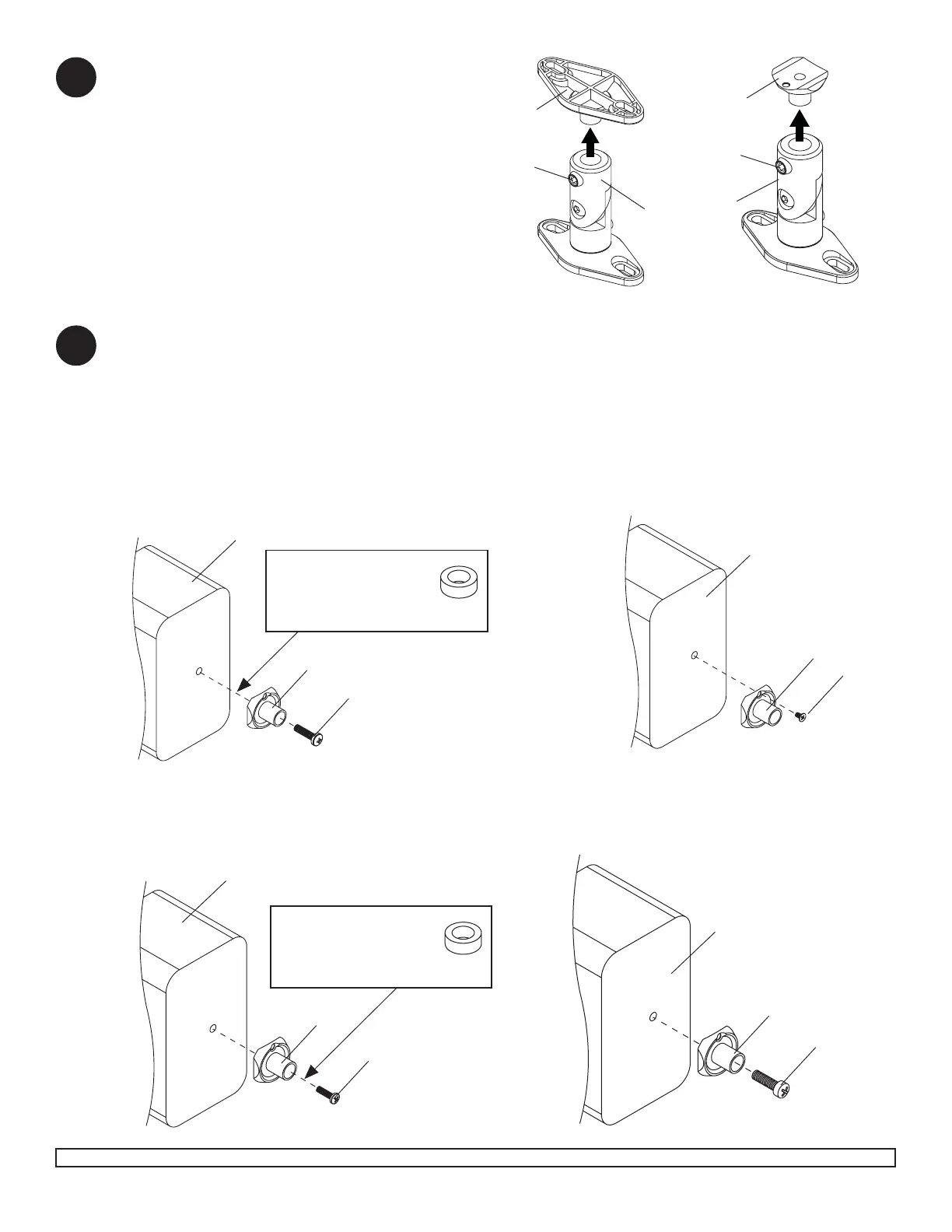

Single hole threaded insert mounting
Confirm the hole size on back of speaker can use either of the following screws: 8-32 x 5/8" screw (F), M5 x 20 mm phillips
screw (E), 1/4-20 x 7/8" phillips screw (G) or M4 x 8 mm flat head phillips screw (H).
Satellite speakers may require either the single
hole mounting plate (B) or the double hole
mounting plate (A). Remove mounting plates (if
attached) from arm (C or D) by disengaging the
hex set screws a few turns using the allen
wrench (P). Pull mounting plates (A or B) from
arm.
NOTE: Speaker mounts may come
preassembled in different configurations.
Remove Mounting Plate
1
B
A
C or D
SET
SCREW
SET
SCREW
2
Installing Mounting Plate to Speaker
For attachment to speakers with M5 threaded insert:
Attach single hole mounting plate (B) to back of speaker
using M5 x 20 mm screw (E) as shown.
For attachment to speakers with M4 threaded insert:
Attach single hole mounting plate (B) to back of speaker
using M4 x 8 mm flat head phillips screw (H) through the
off-center hole on mounting plate as shown.
For attachment to speakers with 8-32 threaded insert:
Attach single hole mounting plate (B) to back of speaker
using 8-32 x 5/8" phillips screw (F) as shown.
For attachment to speakers with 1/4"-20 threaded
insert:
Attach single hole mounting plate (B) to back of speaker
using 1/4-20 x 7/8" phillips screw (G) as shown.
I
If M5 x 20 mm screw
does not fully secure
mounting plate to
speaker, spacer (I) can
be used.
SPEAKER
B
E
SPEAKER
BH
I
If 8-32 x 5/8" screw
does not fully secure
mounting plate to
speaker, spacer (I) can
be used.
B
F
B
G
SPEAKER
SPEAKER
