Scanstrut SC30 Käyttöohje

Lue alta 📖 käyttöohje suomeksi merkille Scanstrut SC30 (1 sivua) kategoriassa Ei luokiteltu. Tämä opas oli hyödyllinen 3 henkilölle ja sai 4.5 tähden keskimäärin 2 käyttäjältä

Sivu 1/1
163mmx163mm (6.4”x6.4”)
(KVH M1)
140mmx140mm (5.7”x5.7”)
(Intellian i1, 12)
ø175.4mm PCD (FB150/250
compact, Thrane & Thrane F33)
4x M8 Fasteners (length to suit mounting area)
66mm (2.6”)

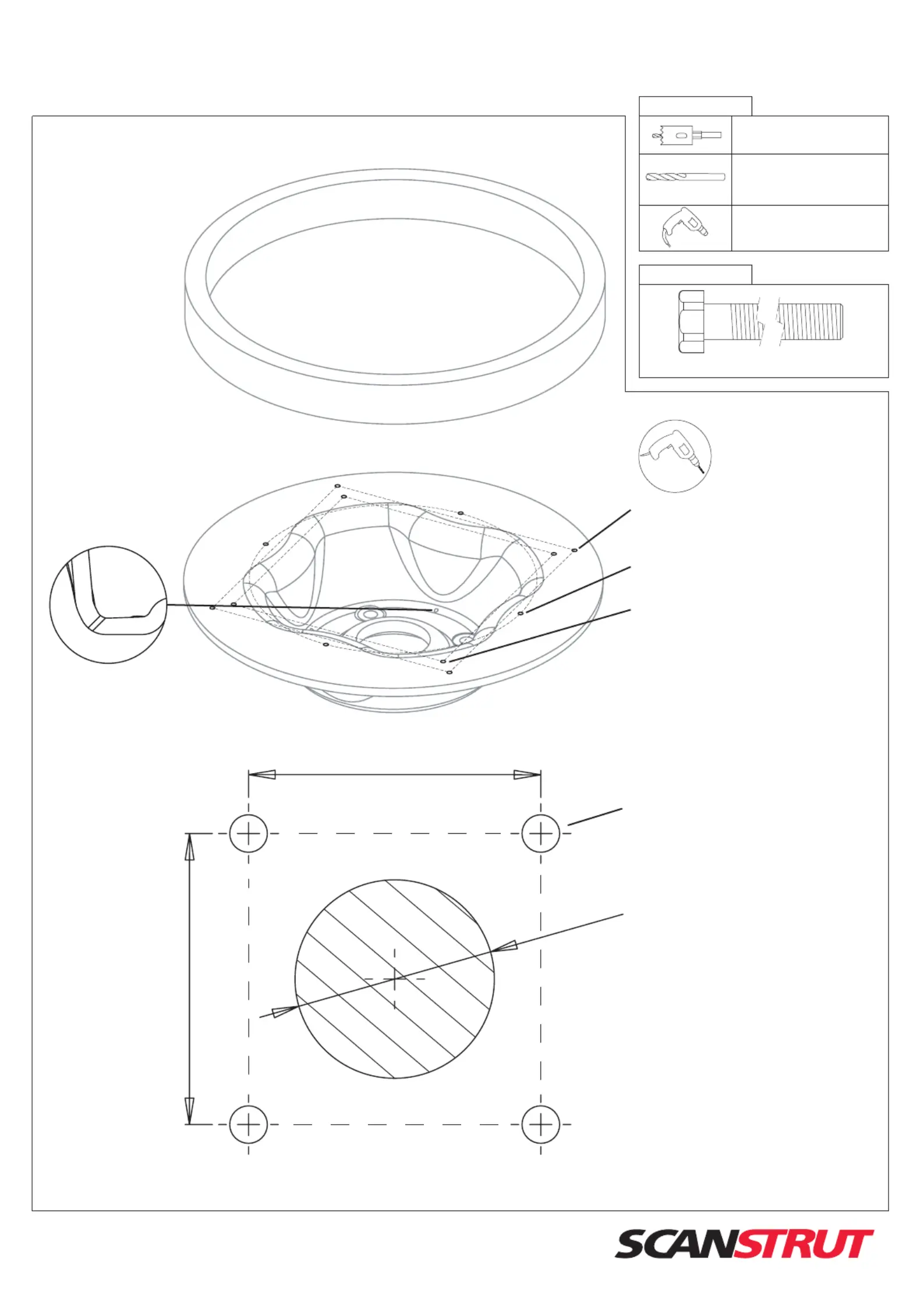

Drilling Guide
4x ø8.5mm to suit
mounting fasteners
66mm (2.6”)
Cable Routing hole
ø30-50mm (1 1/4”-2”)
Drainage hole (ø3mm (1/8”))
to be drilled when fitting
FB150/250 compact, or
Thrane & Thrane F33
Weather Seal (for use with KVH
FB150/250 compact and T&T F33)
Tools Required
Power drill
ø30-50mm (1 1/4”-2”)
Drill bits to suit Radome
fasteners & drainage hole if
needed.
Parts Required
Scanstrut Installation Instructions
®
INSTALLATION SOLUTIONS FOR MARINE ELECTRONICS
SC30
