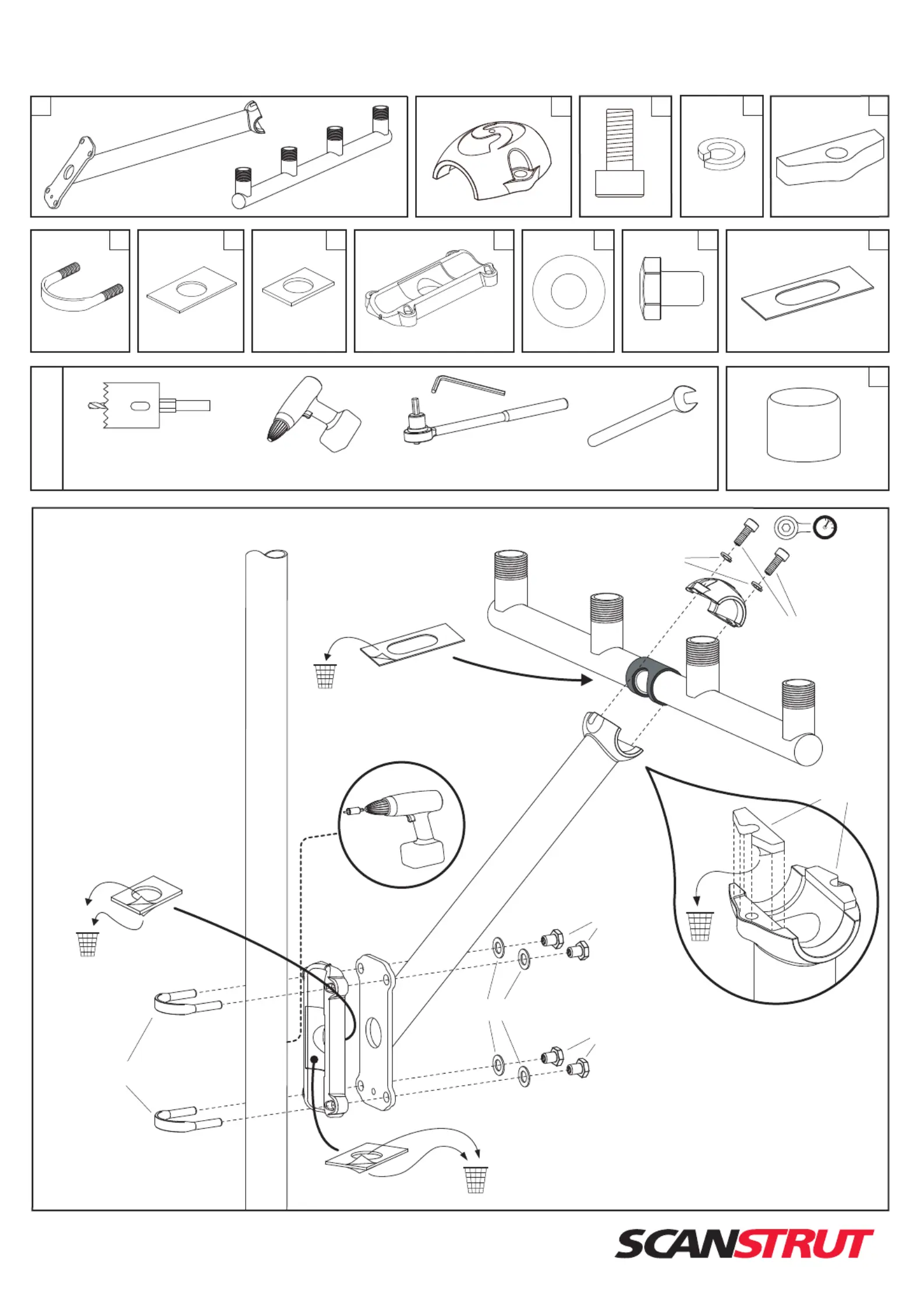

Tools Required
x2
190-RA-T
190-RA-C
190SPH3 10SPSADDLE - S190SPH460453 6045260085
x1 x4x2
x2
x1x4
ø20mm
(25/32”)
190SPH4
190SPH3
190-RA-T
60453
60452
60452
60085
5mm Hex Bit + Wrench
or Allen Key
190-RA-C
101818
x4
9Nm
Installation Instructions
®
INSTALLATION SOLUTIONS FOR MARINE ELECTRONICS
T-Bar
Scanstrut Ltd. 1 Malt Mill, Totnes, Devon, UK TQ9 5NH Tel: Fax:+44(0)1803 863800 +44(0)1803 862223
E-mail: Website: mail@scanstrut.com www.scanstrut.com
IMPORTANT
No liability is accepted for damage caused by incorrect installation.
The installation and assembly must be regularly inspected for evidence of damage or loose parts.
Product has been designed specifically for the mounting of approved marine electronics under normal boating conditions.
IMPORTANT
Scanstrut déclinent toute responsabilité pour les dégats résultant d’une installation incorrecte.
L’installation et l’assemblage doivent être inspectés régulièrement afin de déceler des dégats ou des pièces désserrées
Ce produit a été spécifiquement conçu pour le montage d’appareils d’électronique marine approuvés dans des conditions de navigation normales.
WICHTIG
Für Schäden aufgrund unsachgemäßen Einbaus wird keine Haftung übernommen.
Der Anbau und die Baueinheit müssen regelmäßig auf Anzeichen von Schäden oder lockere Teile geprüft werden.
Dieses Produkt wurde spezifisch für die Befestigung genehmigter Elektronikgeräte für die Schifffahrt unter normalen Bootsfahrtsbedingungen entwickelt.
IMPORTANTE
Si declina qualsiasi responsabilità per danni causati da un’installazione erronea.
L’installazione e il montaggio devono essere ispezionati con regolarità per verificare la presenza di danni o di pezzi allentati.
Questo prodotto è stato studiato appositamente per il supporto di apparecchiature elettroniche navali approvate in normali condizioni di navigazione.
IMPORTANTE
No se aceptará ninguna responsabilidad por los daños causados por una instalación incorrecta.
La instalación y ensamblaje deberá inspeccionarse regularmente, comprobando cualquier evidencia de daños o piezas aflojadas.
Este producto p2-ha sido específicamente diseñado para el montaje de equipos electrónicos marinos aprobados bajo condiciones normales de navegación.

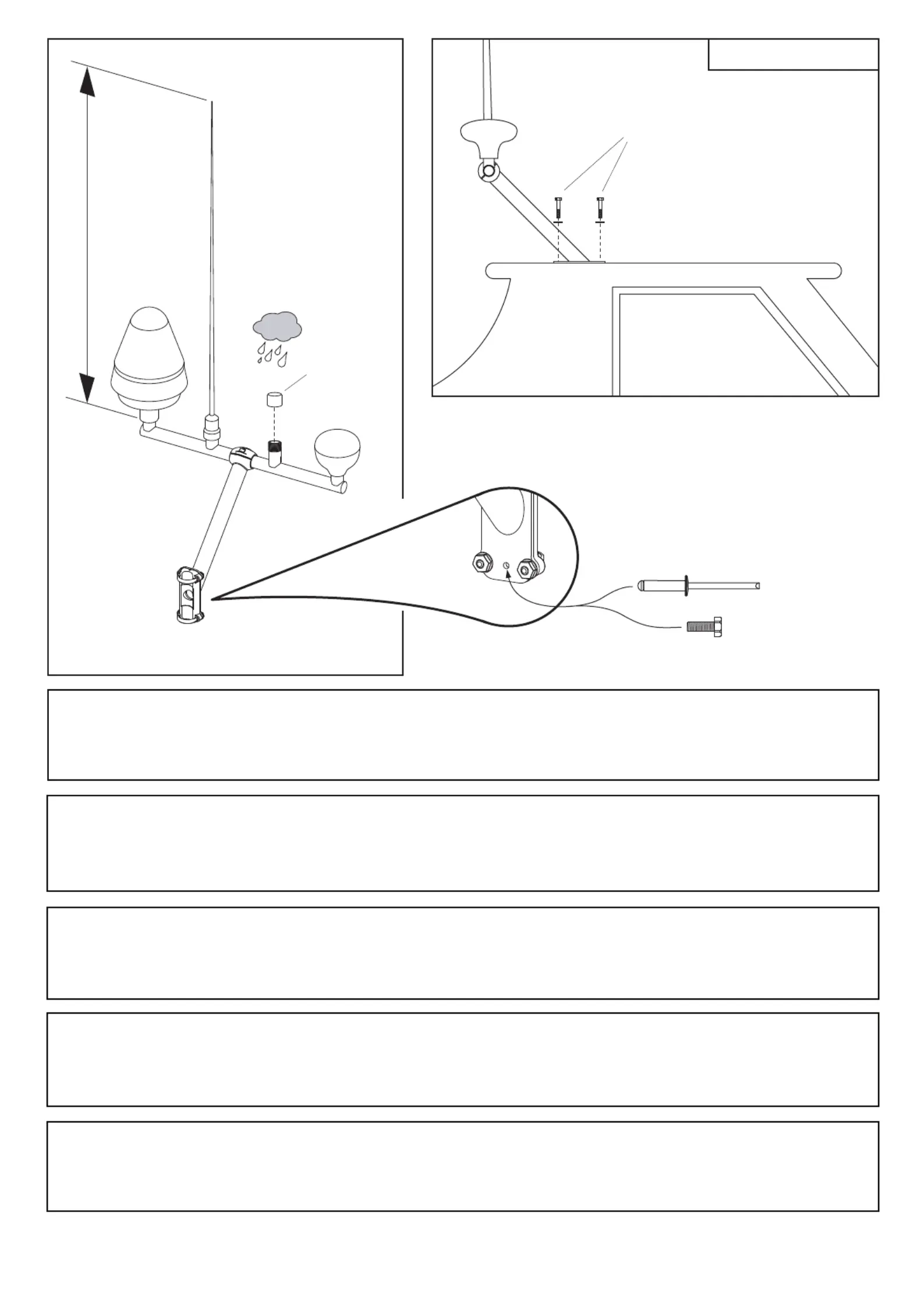

1m (3’3”) MAX
ROOF MOUNTED
4x M8 Bolts (not supplied)
M5 x 16mm
5 x 20mm
(3/16 x 3/4”)
O
PT
I
O
NA
L
A
N
TI
-
TW
I
S
T
SA
F
E
T
Y
F
E
A
T
U
R
E
101818
