Sivu 1/13

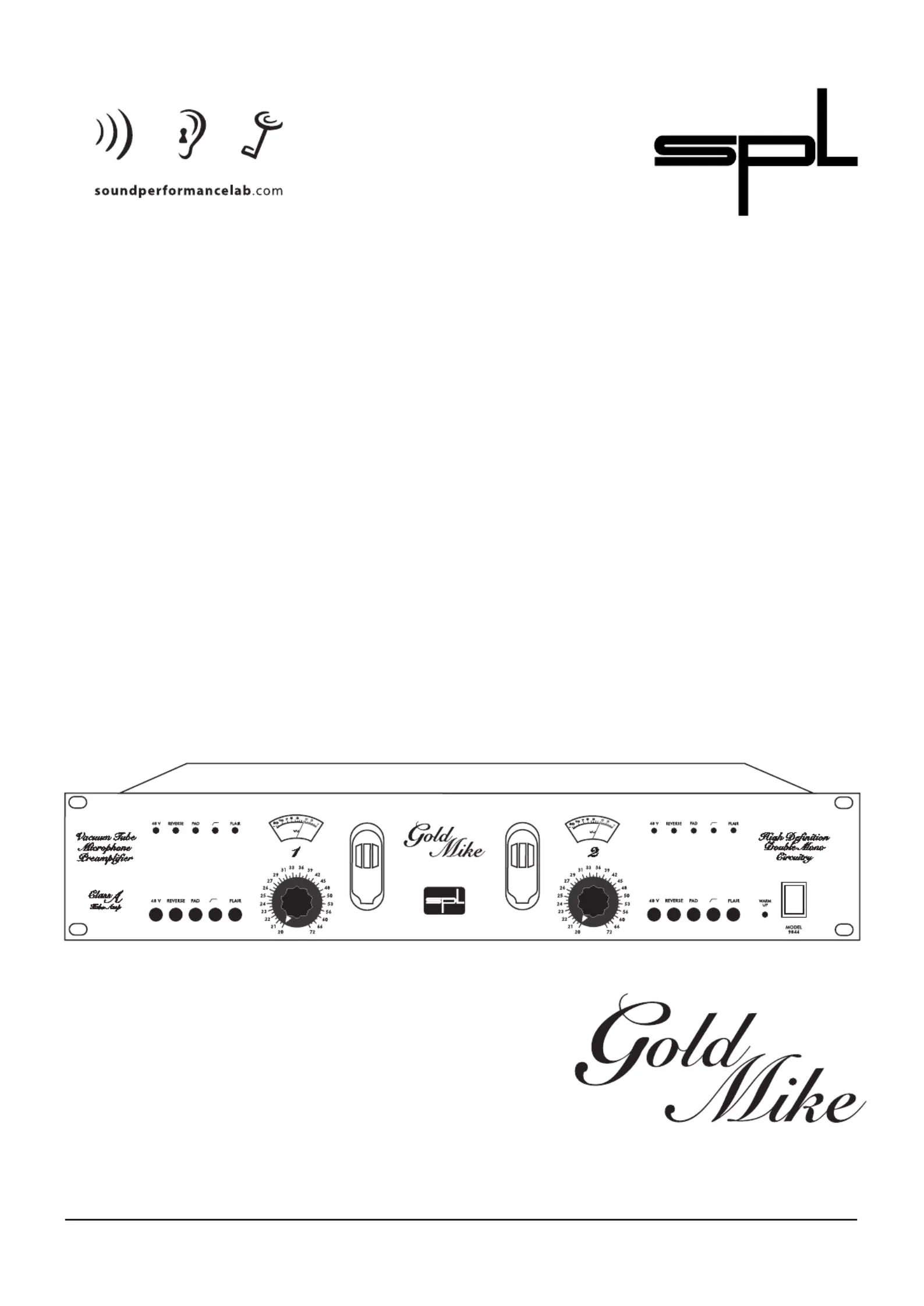

Model 9844

Manual

Vacuum Tube Microphone Preamplifier

Contents

Foreword .................................................................................................. 3

Introduction ............................................................................................ 4

Hookup ..................................................................................................... 5

Installation & Connections ................................................................. 5

Power Supply ............................................................................................ 6

Tech Talk .................................................................................................. 7

Control elements ................................................................................. 9

MIC GAIN ............................................................................................. 9

48 V ....................................................................................................... 9

REVERSE ..............................................................................................10

PAD .......................................................................................................10

HIGHPASS ...........................................................................................11

FLAIR ....................................................................................................11

Displays ...............................................................................................11

Specifications .........................................................................................12

Warranty ...................................................................................................13

Foreword

Thanks

I would like to start with my thanks to all our staff, who created

what is to be described here.The importance of their exceptional

qualification and talents cannot be overestimated. Special thanks

to Ruben Tilgner for his creativity.

Our products are often tested and compared in many publica-

tions and by our customers themselfs and constantly valued with

best results. I would like to pass on this broad appreciation to

those,who deserve it – my excellent colleagues.

Hermann Gier

Dear customer,

Thank you for the confidence you have shown towards

SPL electronics GmbH by purchasing the SPL GoldMike. You have

decided to use an innovative microphone preamp which

provides excellent sound quality by combining exemplary speci-

fications with highest manufacturing standards. Please read this

manual carefully to ensure you have all the information you need

to use the Gold Mike. We wish you every success with it.

Your Sound Performance Lab-Team

The GoldMike is another jewel in the SPL Tube series. Like all SPL

tube processors, the GoldMike combines the unique sonic qualities

of tube technology with state-of-the-art manufacturing, meti-

culous component selection and high-tech conception.

This latest product, a dual-channel tube microphone preamplifier

with superb sonic qualities, is particularly suited for recording

vocals and acoustic instruments. You will be surprised by not

only its precision but also the natural impact of different vocal

timbres – the silky warmth of a pristine tube sound is needed by

more than just acoustic guitars!

You don't have to listen to those dead and sterile HD recordings.

GoldMike's whisper quiet performance makes it ideal for digital

recording. Even the most demanding recording subjects, such as

a choir, are easily handled. The Class A tube amp, designed as

two independent mono blocks, guarantees absolute channel

separation. Your stereo recordings in particular will benefit from

a wider stereo depth.

GoldMike's technical standards are predicated on an uncompro-

mising effort to combine the sonic advantages of tubes with the

experience of more than 12 years of research in semi-conductor

amplification design.

The GoldMike allows for up to 72 dB of gain – a value tube-only

designed preamps can't match. The SPL tube/IC construction,

on the other hand, superbly combines today's standards with

such trademark tube characteristics: improved spatial depth,

rich detailed imaging, warm and smooth sonics. Moreover, the

GoldMike delivers high common-mode-rejection and ultra linear

amplification in addition to the high gain capabilities.

Features

• Unique "FLAIR" circuitry enhances the presence and

intelligibility of any signal. Vocals, for example,

seem to move closer. Pristine, non-colored "softening"

of very harsh and aggressive sounds

• 50 Hz high-pass filter

• Phase reverse switch

• 30 dB pad

• Switchable 48-volt phantom power with

independently filtered power supply

• High-quality ALPS potentiometers

• Click-free switches

• Five LEDs per channel

• Two backlit VU meters

• Warm-up LED indicates tube status during warm up

• Star ground wiring scheme for best sound performance;

extra wide PCB ground connections guarantee

stable voltage distribution

• Power supply with state-of-the-art filtering schemes and

solid power reserves (6000 µF in the main supply

and 400 µF in the tube supply)

• XLR inputs

• XLR and 1/4" outputs (can be used individually or

simultaneously)

Introduction
