Atlona HDMI Troubleshooting Guide
Quick Setup Guide
www.atlona.com Toll-Free 1.877.536.3976 International 408.962.0515 Fax 408.743.5622· · ·
1

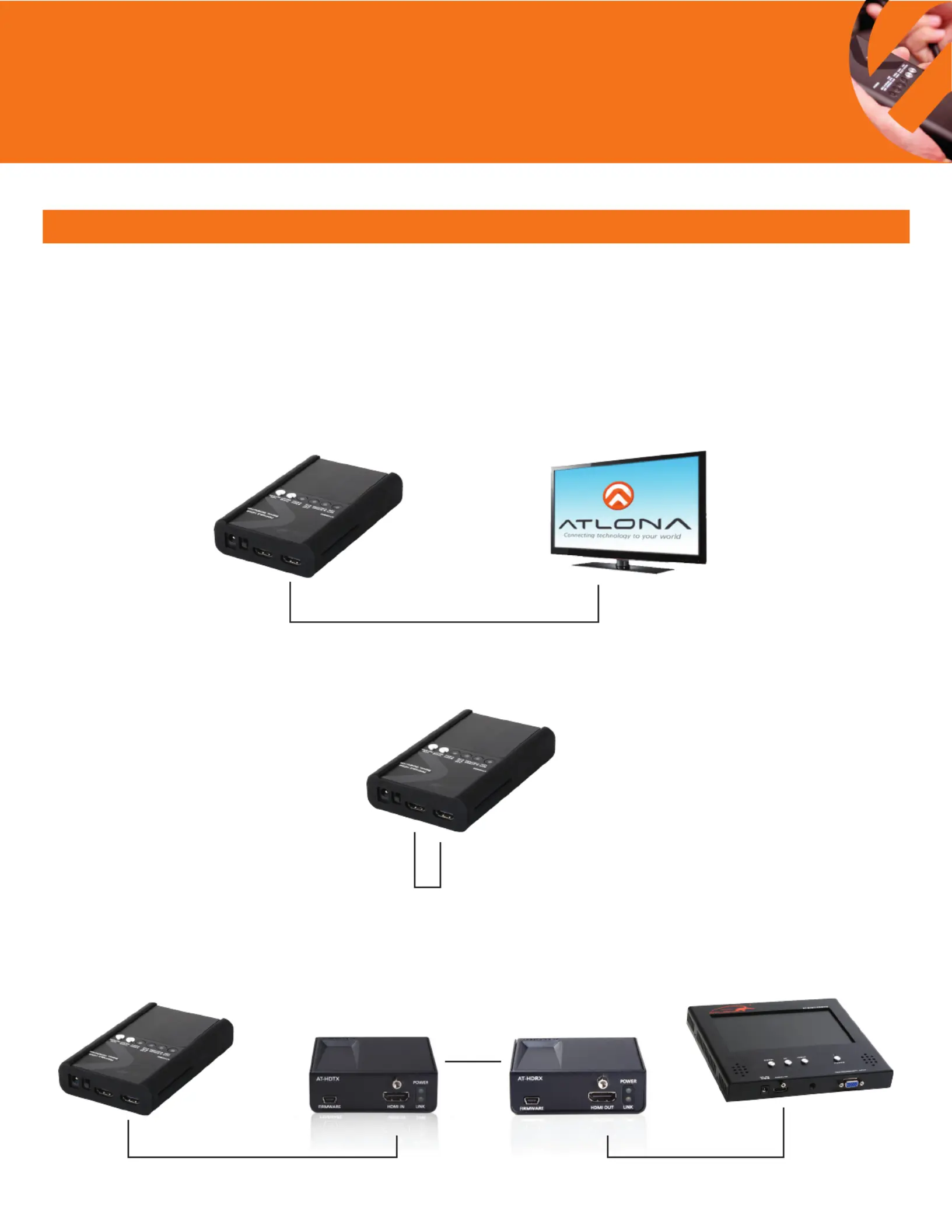

USE #1
HDMI pass through to easily switch between test pattern and content from any other digital sources, while
also giving the ability to read the EDID from the connected display.
USE #2
HD800 can also perform a cable test on and HDMI cable.
USE #3
HD800 is to allow users to diagnose specic resolution, video timing, EDID, and color space issues in any
DVI or HDMI video system.
HD800 Basic Operation
HDMI Cable
HDMI Cable HDMI Cable
Category
cable in wall
HD-800
HD-800
HDTX HDRX
AT-DIS7-PROHD
HDMI Cable
* EDID information
displayed on screen
HD-800 Display*
Typical usage of an HD800 is to allow users to diagnose specific resolution, video timing, EDID and color space issues in any DVI
or HDMI video system. It features an HDMI output as well as an HDMI pass through to easily switch between test patterns and
content from any other digital sources, while also giving the ability to read the EDID from the input source and displaying it on the
display. It can also perform a cable test on any HDMI cable.
Quick Setup Guide
www.atlona.com Toll-Free 1.877.536.3976 International 408.962.0515 Fax 408.743.5622· · ·
2
USE #1 Operation
Cycle thru resolutions:
• Insert HDMI cable to HD800 output, insert the other end to displays input
• Turn on HD800
• Press Timing/Select button, OSD menu will reveal forward/backward navigation for resolution settings
Within three seconds press Timing/Select button to scroll forward, or press Info/Pattern to scroll backwards
through resolution options
• 25 options available for video, VESA and 3D resolutions
Source and display EDID comparison:
• Insert HDMI cable to source output, insert cable to HD800 input
• Insert HDMI cable to HD800 output, insert the other end to displays input
• Turn on HD800
• Press Info/Pattern button to display side by side capabilities from OSD menu
• Press button again to disable
USE #3 Operation
Cycle thru Patterns (color bar, full scree purity, 3D, patterns):
• Insert HDMI cable to HD800 output, insert the other end to displays input
• Turn on HD800
• Press Info/Pattern button
Within three seconds press Timing/Select button to scroll forward, or press Info/Pattern to scroll backwards
through pattern options.
To view all 19 options resolution MUST be set to 720p. Only 10 options available in all other resolutions.
Display EDID Information:
• Insert HDMI Cable to HD800 output, insert the other end to display’s input
• Turn on HD800
• Press Timing/Select button, OSD menu will reveal forward/backward navigation for resolution settings
Within three seconds press Timing/Select button to scroll forward, or press Info/Pattern to scroll backwards
through resolution options
• Select 720p (can only view EDID for display in this mode)
• Wait until OSD menu disappears then press Info/Pattern button
Within three seconds scroll forward or backward until you get to VESA Timing, scroll forward once more
for Video Timing.
USE #2 Operation
Cable Integrity test:
•Insert one end of the HDMI cable to HD800 input, insert the other end to the output
•Turn on HD800
•Press and hold Timing/Select button for 3 seconds then release to enable this function
If all LED/s are solid, cable has passed the test. If all LED’s are ashing, cable is NOT transferring signal
properly and has failed the test.
•Press and hold Timing/Select button for 3 seconds then release to disable this function.
HD800 Basic Operation
