Sivu 1/6
1
Installation Guide
AT-VTP-FMK-7-BL
Flush Mount Kits for Velocity Touch Panels
AT-VTP-FMK-7-BL
The Atlona AT-VTP-FMK-7 is a ush mount kit for Velocity™ 7” touch panels. It allows the touch
panel to be recessed into a wall so the panel face is virtually ush with the wall surface. The
VTP-FMK-7 kit fastens to the wall with adjustable metal tabs and the touch panel attaches to
the mount via four magnets. These magnets secure the touch panel to the enclosure when in
use while also allowing it to easily be removed for maintenance if necessary. The VTP-FMK-7 is
available in black and compatible with Velocity 7” touch panels including the AT-VTP-700VL-BL.
1 x AT-VTP-FMK-7-BL
1 x Perforated Wall Cutout Template
4 x Magnets
4 x Plastic Washers
4 x Screws
Package Contents
2
Installation Guide
AT-VTP-FMK-7-BL
Mounting Instructions
Use the following steps to install the AT-VTP-FMK into the wall.
1. Remove the inner cut out from the Perforated Wall Cutout Template. The two outer rings
should remain.
7” Cutout Ring
8.09 inch
205.5 mm
10.71 inch
272 mm
5.41 inch
137.5 mm
7.76 inch
197 mm
10.71 inch
272 m m
7.76 inch
197 mm
2. Trace the inside edge of the cutout ring onto the wall.
3. Cut and remove the traced part of the wall.
8.09 inch
205.5 mm
5.41 inch
137.5 mm
10.71 inch
272 mm
7.76 inch
197 mm
3
Installation Guide
AT-VTP-FMK-7-BL

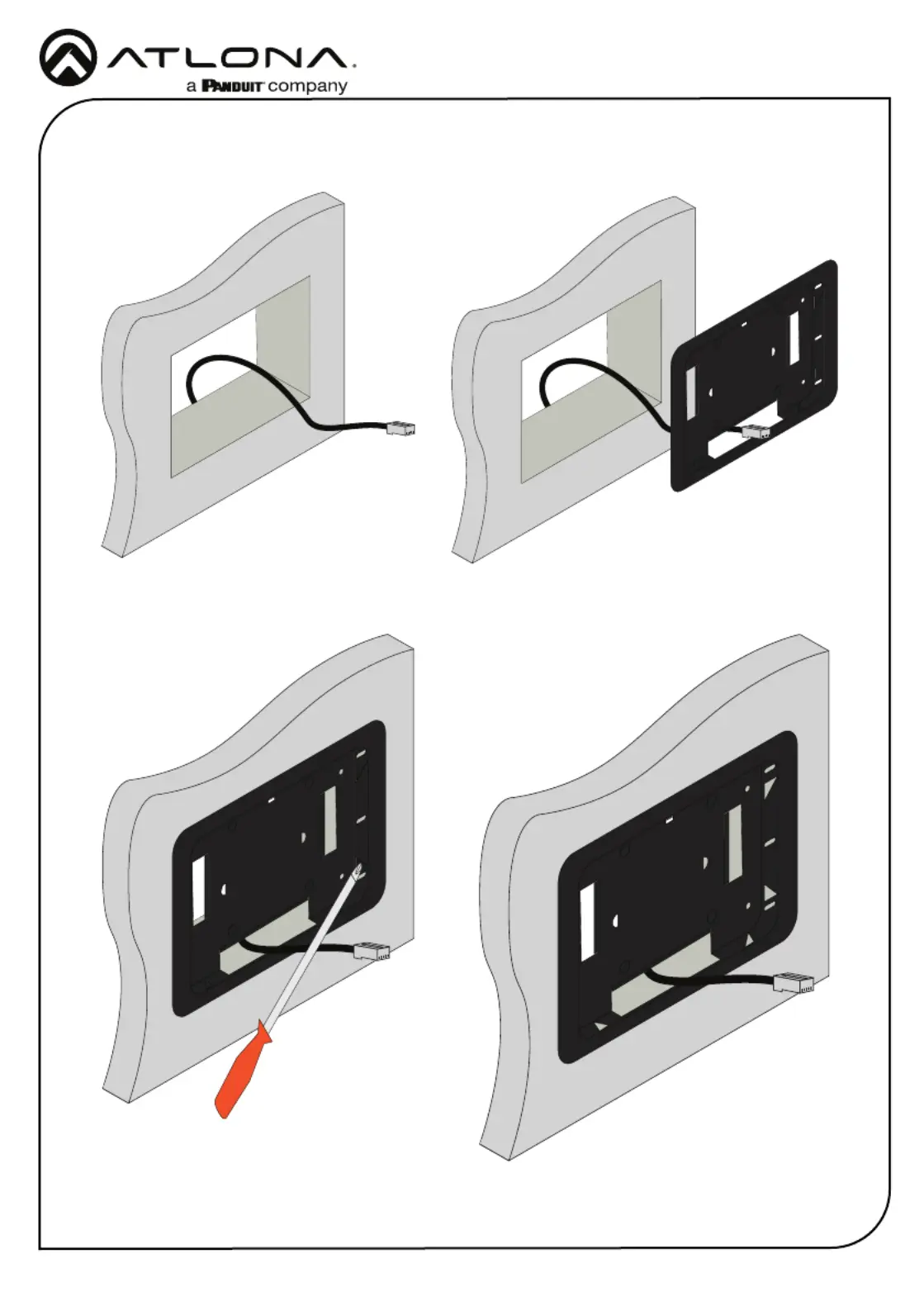

4. Pull the Ethernet cable through the hole in the wall and thread it through the VTP-FMK.
5. Slide the VTP-FMK into the hole in the wall until it is pressed fully against the wall.
6. Press a screwdriver into the triangle metal aps of the unit to secure the VTP-FMK into the
wall. There are 8 triangles to press in, two on each side.
