Sivu 1/12
I N S T A L L A T I O N I N S T R U C T I O N S
Display Carts
MFC Series
MFC Series Installation Instructions
2
DISCLAIMER
Legrand and subsidiaries
| AV and its affiliated corporations
(collectively “Legrand | AV”), intend to make this manual
accurate and complete. However, Legrand | AV makes no claim
that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Legrand | AV
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Legrand | AV
assumes no responsibility for accuracy, completeness or
sufficiency of the information contained in this document.
Chief® is a registered trademark of Legrand AV Inc.
DEFINITIONS
MOUNTING SYSTEM: A MOUNTING SYSTEM is the
primary Chief product to which an accessory and/or component
is attached.
ACCESSORY: AN ACCESSORY is the secondary Chief
product which is attached to a primary Chief product, and may
have a component attached or setting on it.
COMPONENT: A COMPONENT is an audiovisual item
designed to be attached or resting on an accessory or mounting
system such as a video camera, CPU, screen, display,
projector, etc.
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all mounting systems
are properly assembled and installed using the instructions
provided.
WARNING: Failure to provide adequate structural strength
for this mounting system can result in serious personal injury
or damage to equipment! It is the installer’s responsibility to
make sure the structure to which this mounting system is
attached can support five times the combined weight of all
equipment. Reinforce the structure as required before
installing the mounting system.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all accessories and components attached to the cart does not
exceed 125 lbs (56.70 kg). Use with heavier televisions may
result in instability causing tip over resulting in death or
serious injury!
WARNING: Use this mounting system only for its intended
use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
WARNING: Never operate this mounting system if it is
damaged. Return the mounting system to a service center for
examination and repair.
WARNING: Do not use this mounting system outdoors.
WARNING: RISK OF INJURY TO PERSONS! Do not place
video equipment such as televisions or computer monitors on
cart legs.
WARNING: RISK OF SERIOUS INJURY OR DEATH!
Placing a remote control or toy on the cart may encourage a
child to climb onto the cart causing the cart to tip over onto
the child. DO NOT place remote controls or toys on the cart!
WARNING: RISK OF SERIOUS INJURY OR DEATH!
Relocating audio and/or video equipment to the cart may
result in the cart collapsing or overturning onto a child. DO
NOT relocate audio and/or video equipment to the cart!
NOTE: The MFC Series cart has no user serviceable parts.
NOTE: The MFC Series cart can support screen sizes up to a
maximum of 55" wide.
NOTE: The MFC Series includes:
• Model MFCU which includes the Listed Chief
accessory MSBU interface bracket;
• Accessory Model MFC6000 (to be used with Listed
Chief accessory MSBU interface bracket--not included)
--SAVE THESE INSTRUCTIONS--
MFC Series Installation Instructions
3

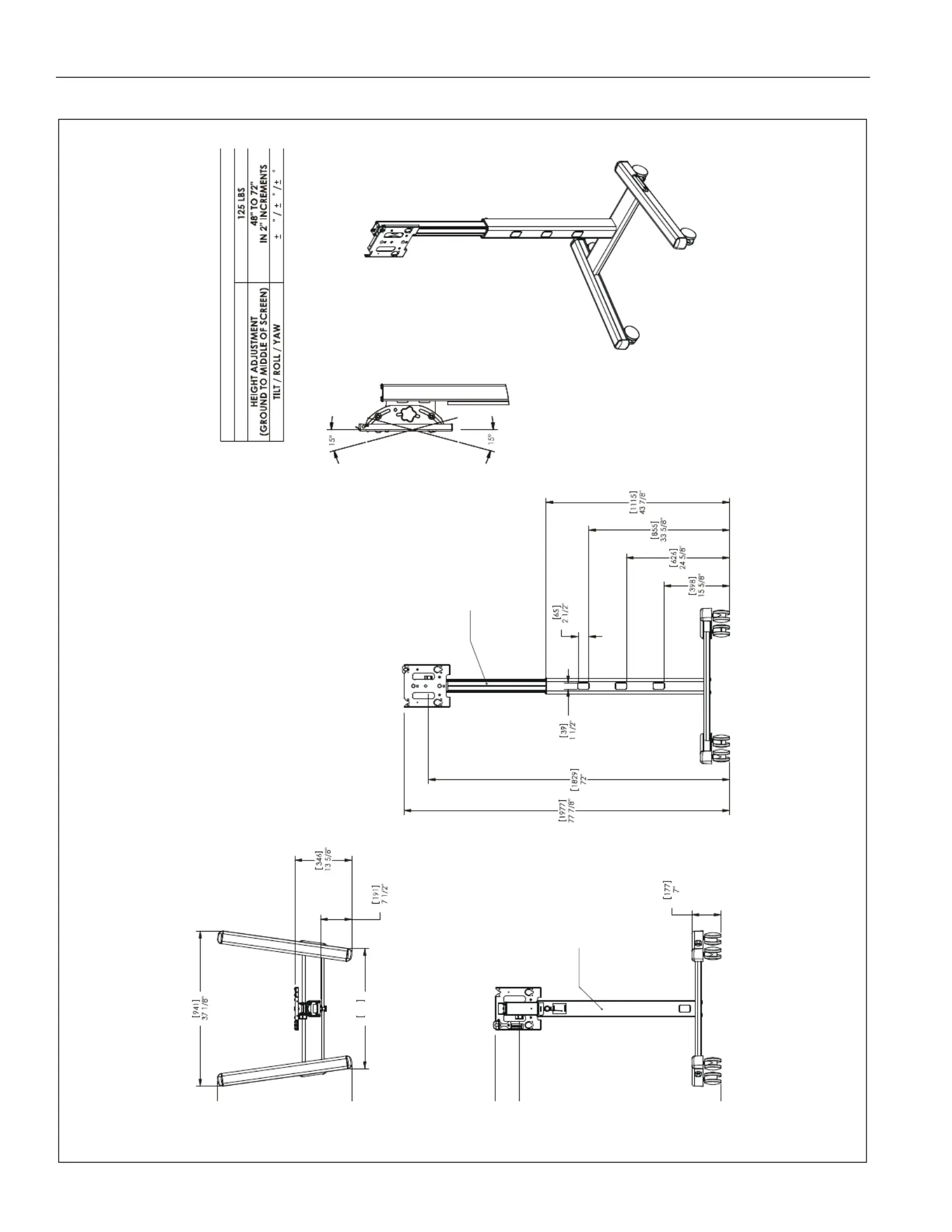

DIMENSIONS
[96 X 86]
3 3/4" X 3 3/8" TUBE
28 3/4"
729
[81 X 51]
3 1/4" X 2" TUBE
NOTE: CUSTOM INTERFACE BRACKET
NOT SHOWN. THE CUSTOM INTERFACE
BRACKET NEEDED FOR YOUR DISPLAY
WILL ADD BETWEEN 1/2" AND 2" IN DEPTH
AND MAY AFFECT LOCATION OF DISPLAY
ON THE MOUNT.
SEE MSBU DRAWING ALSO.
PRODUCT FEATURES
WEIGHT CAPACITY
15 0 0
DIMENSIONS: [MILLIMETERS]
INCHES
